radio Citroen C3 RHD 2013 2.G Owner's Manual

2
Multifunction screens
43

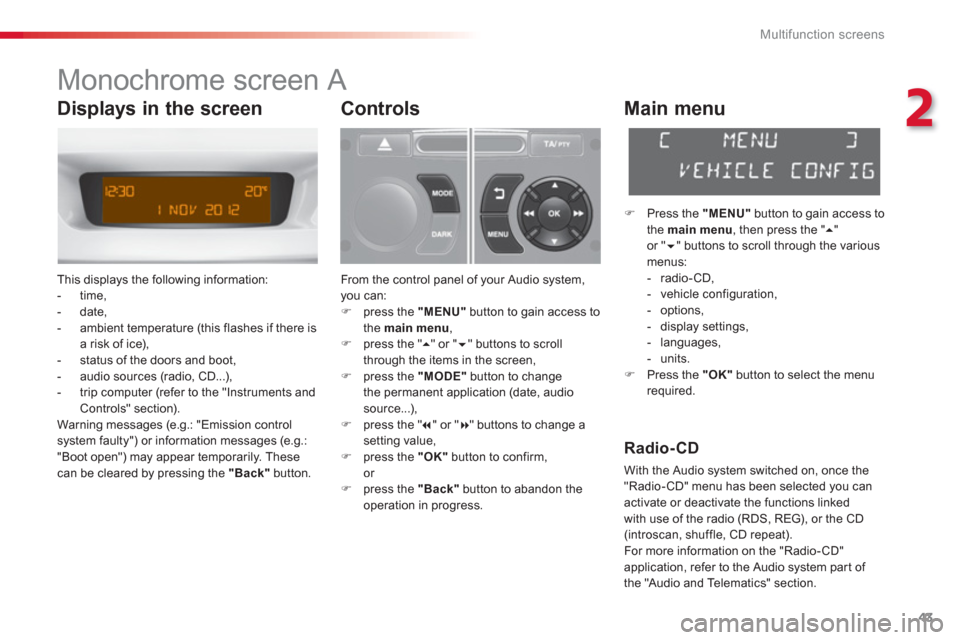

Monochrome screen A

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of the doors and boot,

- audio sources
(radio, CD...),

- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.:
"Boot open") may appear temporarily. Thesecan be cleared by pressing the "Back"button.
Controls
From the control panel of your Audio system,you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items in the screen,) press the "MODE"
button to change
the permanent application (date, audio source...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "Back"button to abandon the
operation in progress.



Main menu
)
Press the "MENU"
button to gain access to
the main menu
, then press the " "or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
- units.)
Press the "OK"button to select the menurequired.


Radio-CD

With the Audio system switched on, once the
"Radio- CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio-CD"
application, refer to the Audio system par t of
the "Audio and Telematics" section.


Displays in the screen

Multifunction screens
46










Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there isa risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t / auxiliary socket etc.),
- trip computer (refer to the "Instruments andcontrols" section).
Warning messages (E.g. "Emissions controlsystem faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared bypressing the "Back"
button.


Controls

From your Audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu,)
press the " " or " " buttons to scroll
through the items in the screen,
) press the "MODE"button to change the
permanent application (trip computer, audiosource...), ) press the "
" or "
" buttons to change a setting value, )
press the "OK"button to confirm,
or ) press the "Back"button to abandon theoperation in progress.

Main menu
)
Press the "MENU"button to gain access to
the main menu
:


- audio functions,

- the trip computer,

- personalisation-confi
guration,

- telephone (hands-free kit). )
Press the "  " or " " buttons to select the
menu required, then confirm by pressingthe "OK"button.



"Au d i o f u n c t i o n s"
menu

With the Audio system switched on, once this menu has been selected you can activateor deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t / auxiliary socket).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Displays in the screen

Multifunction screens
50

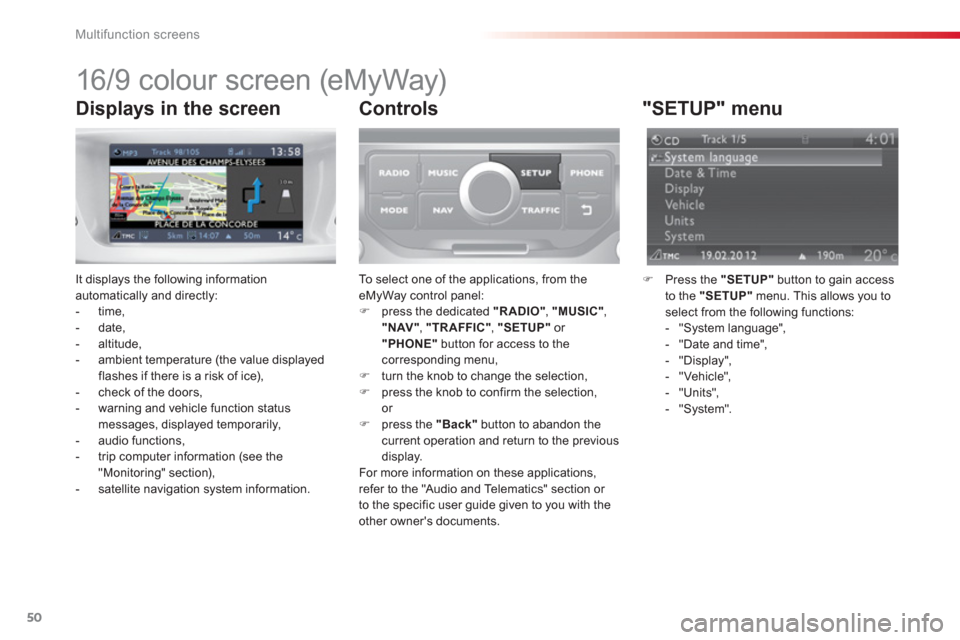

16/9 colour screen (eMyWay)
It displays the following information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature
(the value displayed
flashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information (see the "Monitoring" section),
- satellite navigation system information.


Controls

To select one of the applications, from theeMyWay control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"
or "PHONE"
button for access to thecorresponding menu, )
turn the knob to change the selection, )
press the knob to confirm the selection,
or ) press the "Back"button to abandon thecurrent operation and return to the previous
display.
For more in
formation on these applications, refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.


"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",
- "Units",
- "S
ystem".


Displays in the screen

11
Practical information
169

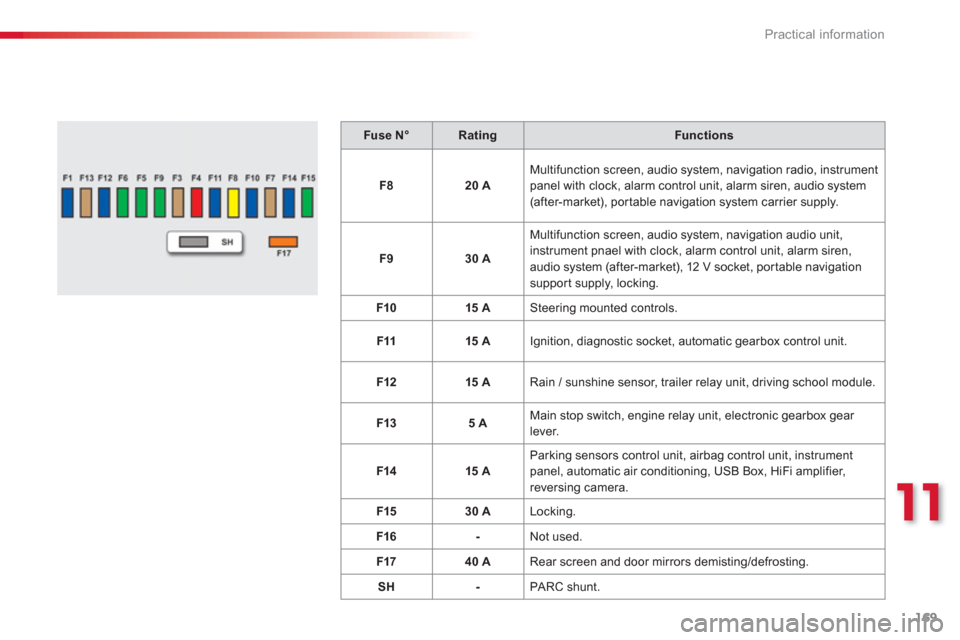

Fuse N°RatingFunctions
F
820 A Multifunction screen, audio system, navigation radio, instrument
panel with clock, alarm control unit, alarm siren, audio system (after-market), por table navigation system carrier supply.
F
930 A
Multifunction screen, audio system, navigation audio unit,
instrument pnael with clock, alarm control unit, alarm siren,
audio s
ystem (after-market), 12 V socket, portable navigationsupport supply, locking.
F1
015 A Steering mounted controls.
F1
115 A
Ignition, diagnostic socket, automatic gearbox control unit.
F12 15 A
Rain
/ sunshine sensor, trailer relay unit, driving school module.
F1
35 A Main stop switch, engine relay unit, electronic gearbox gear lever.
F1415 A Parking sensors control unit, airbag control unit, instrument
panel, automatic air conditioning, USB Box, HiFi amplifier, reversing camera.
F1
530 A Locking.
F1
6- Not used.
F17
40 A Rear screen and door mirrors demisting/defrosting.
S
H- PA RC shunt.

11
Practical information
183

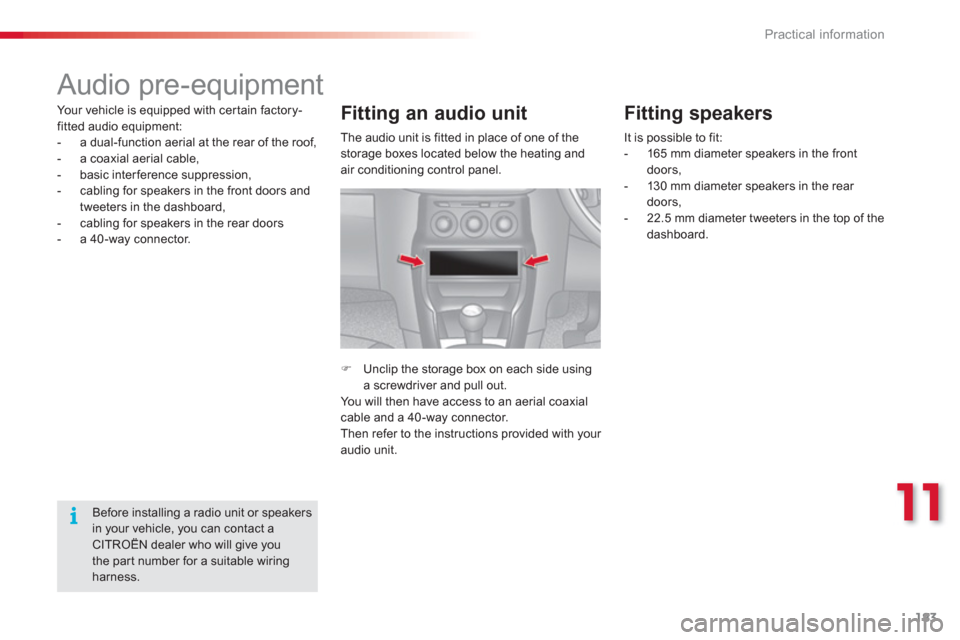

Audio pre-equipment

Your vehicle is equipped with cer tain factory-
fitted audio equipment:


- a dual-function aerial at the rear of the roof,

- a coaxial aerial cable
,

- basic interference suppression,

- cabling for speakers in the front doors and
tweeters in the dashboard,

- cabling for speakers in the rear doors

- a 40 -way connector.

Before installing a radio unit or speakersin your vehicle, you can contact aCITROËN dealer who will give you the par t number for a suitable wiring harness.
Fitting an audio unit
)
Unclip the storage box on each side usinga screwdriver and pull out.
You will then have access to an aerial coaxialcable and a 40 -way connector.
Then refer to the instructions provided with your audio unit.
Fitting speakers

It is possible to fit:


- 165 mm diameter speakers in the front
doors,

-
13 0 mm diameter speakers in the rear
doors,
- 22.5 mm diameter tweeters in the top of the dashboard. The audio unit is
fitted in place of one of the
storage boxes located below the heating and
air conditioning control panel.

Practical information
186
"Multimedia":Bluetooth® hands-free kit, suppor t for ®
Bluetooth® hands-free kit, audio systems with®
steering controls interface, por table satellite
navigation system, semi-integral portablenavigation system carrier, mapping updates
for integral navigation system, DVD player,auxiliary cable for connecting a por table MP3 player, USB Box, Hi-Fi module, speakers, Wi-Fi
on board, rear multimedia support, telephone/smartphone support, 230 V socket, telephonecharge compatible with iPhone...
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs andfuses available in the vehicle.
By going to a CITROËN dealer, you can also
obtain cleanin
g and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range - products for topping up (screenwash fluid...),
touch up pens and paint aerosols for the exact
colour of your vehicle, recharges (cartridge for
the temporary puncture repair kit...), ...
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption. Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.

201

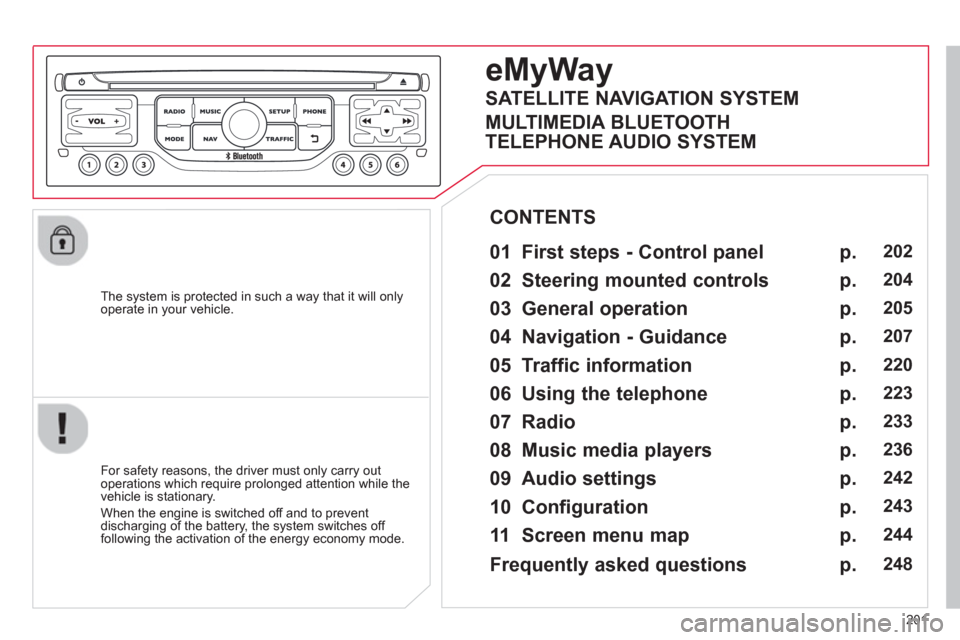

The system is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steerin
g mounted controls

03 General o
peration

04 Navi
gation - Guidance

05 Traffic information

06 Usin
g the telephone

07 Radio

08 Music media pla
yers

09 Audio settin
gs

10 Confi
guration

11 Screen menu ma
p
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
202
204
205
207
220
223
233
236
242
243
244
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

Frequentl
y asked questions p. 248

01
202

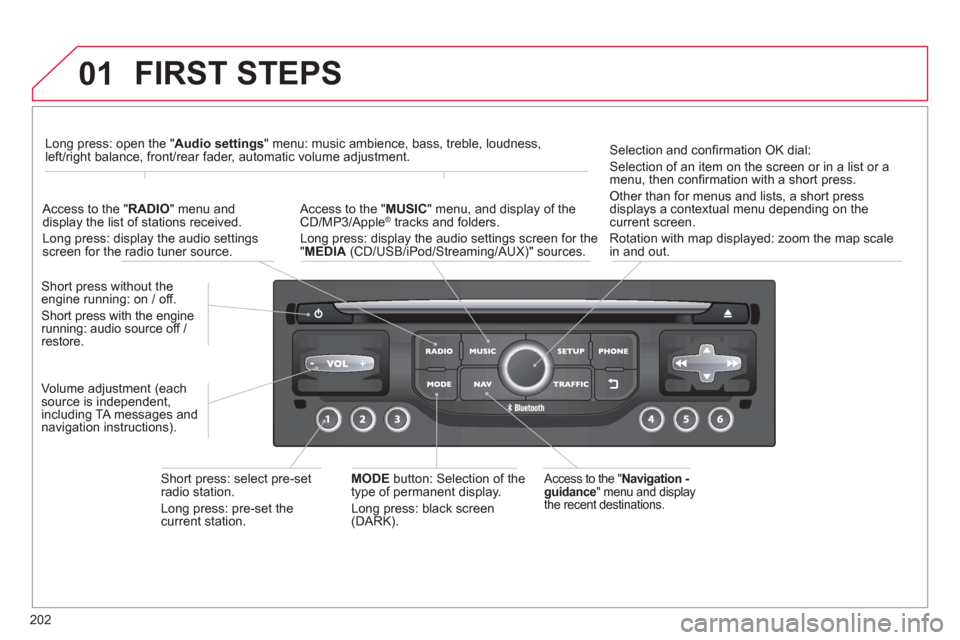

FIRST STEPS

Access to the " Navigation - guidance
" menu and display
the recent destinations.
Short press without the engine running: on / off.
Short press with the enginerunning: audio source off / restore.
Short press: select pre-set radio station.
Lon
g press: pre-set thecurrent station.
MODE
button: Selection of the
type of permanent display.
Lon
g press: black screen(DARK).
A
ccess to the " MUSIC
" menu, and display of the CD/MP3/Apple®
tracks and folders. ®

Long press: display the audio settings screen for the"MEDIA
(CD/USB/iPod/Streaming/AUX)" sources.
Long press: open the "Audio settings" menu: music ambience, bass, treble, loudness,left/right balance, front/rear fader, automatic volume adjustment.


A
ccess to the "RADIO
" menu anddisplay the list of stations received.
Lon
g press: display the audio settingsscreen for the radio tuner source.
Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press
displays a contextual menu depending on the current screen.
Rotation with map displa
yed: zoom the map scalein and out.
Volume ad
justment (each
source is independent,
includin
g TA messages and
navigation instructions).

01
203

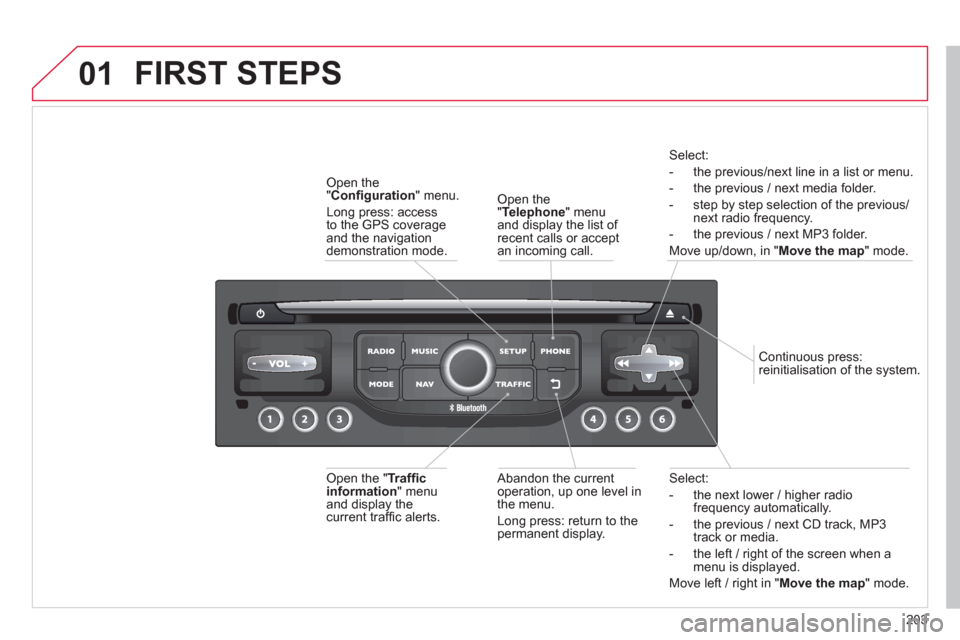

Select:
- the next lower / hi
gher radiofrequency automatically.
- the previous
/ next CD track, MP3
track or media.
- the le
ft / right of the screen when a menu is displayed.
Move left / ri
ght in "Move the map
" mode.
Abandon the current
operation, up one level in
t
he menu.

Long press: return to the permanent display.
Continuous
press:
reinitialisation of the system.
Open the" Telephone" menu
and display the list of recent calls or accept
an incoming call.
Open the
"Confi guration
" menu.
Lon
g press: access
to the GPS coverageand the navigation demonstration mode.
Open the "Traffi c information " menuand display thecurrent traffi c alerts.

Select:
- the previous
/next line in a list or menu.
- the previous
/ next media folder.
- step b
y step selection of the previous/next radio frequency.
- the previous / next MP3 folder.
Move up/down, in "
Move the map " mode.
FIRST STEPS

02
204

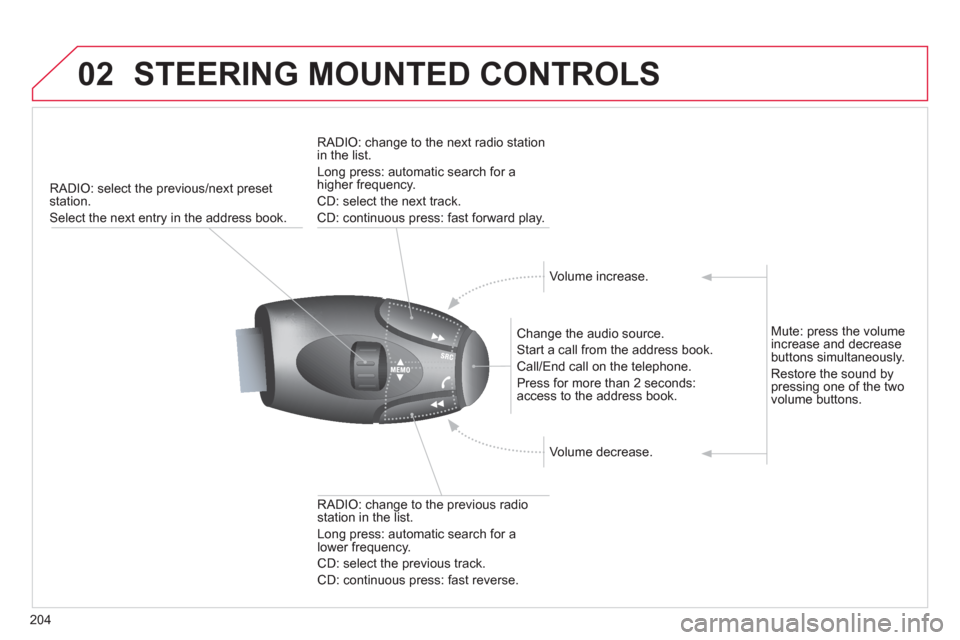

STEERING MOUNTED CONTROLS
RADIO: select the previous/next preset station.
Select the next entry in the address book.

Chan
ge the audio source.

Start a call from the address book.
Call/End call on the telephone.
Pr
ess for more than 2 seconds: access to the address book.

RADI
O: change to the previous radio station in the list.
Lon
g press: automatic search for a
lower frequency.

CD: select the previous track.

CD: continuous press: fast reverse.
RADI
O: change to the next radio station
in the list.
Lon
g press: automatic search for ahigher frequency.

CD: select the next track.

CD: continuous press: fast forward play.

V
olume increase.

V
olume decrease.
Mute: press the volume increase and decrease buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.
