159
Changing main beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F
d
i
sconnect the bulb connector.
F

S
pread the springs to release the bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing sidelamp bulbs
F Remove the protective cover by pulling on the tab.
F

P
ull the bulb holder pressing on the tabs on
both sides.
F

P
ull the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

160

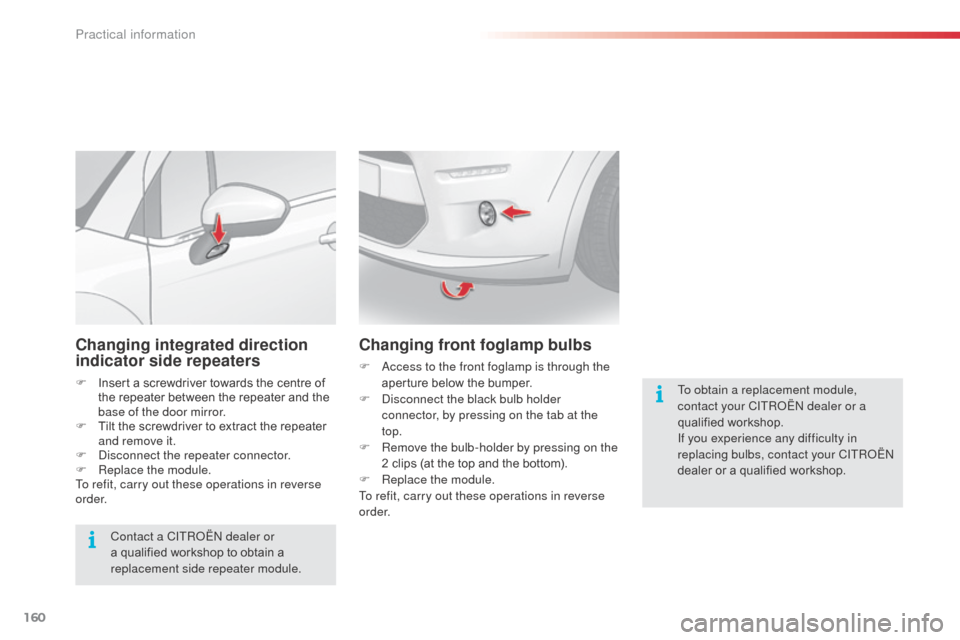

Changing integrated direction
indicator side repeaters
F Insert a screwdriver towards the centre of the repeater between the repeater and the
base of the door mirror.
F

T
ilt the screwdriver to extract the repeater
and remove it.
F
d
i
sconnect the repeater connector.
F

R
eplace the module.
To refit, carry out these operations in reverse
o r d e r.
Contact a CITR
oËn

dealer or
a qualified workshop to obtain a
replacement side repeater module.
Changing front foglamp bulbs
F access to the front foglamp is through the aperture below the bumper.
F
d
i
sconnect the black bulb holder
connector, by pressing on the tab at the
top.
F

R
emove the bulb-holder by pressing on the
2 clips (at the top and the bottom).
F

R
eplace the module.
To refit, carry out these operations in reverse
o r d e r. To obtain a replacement module,
contact your CITR
oËn

dealer or a
qualified workshop.
If you experience any difficulty in
replacing bulbs, contact your CITR
oËn


dealer or a qualified workshop.
Practical information

161

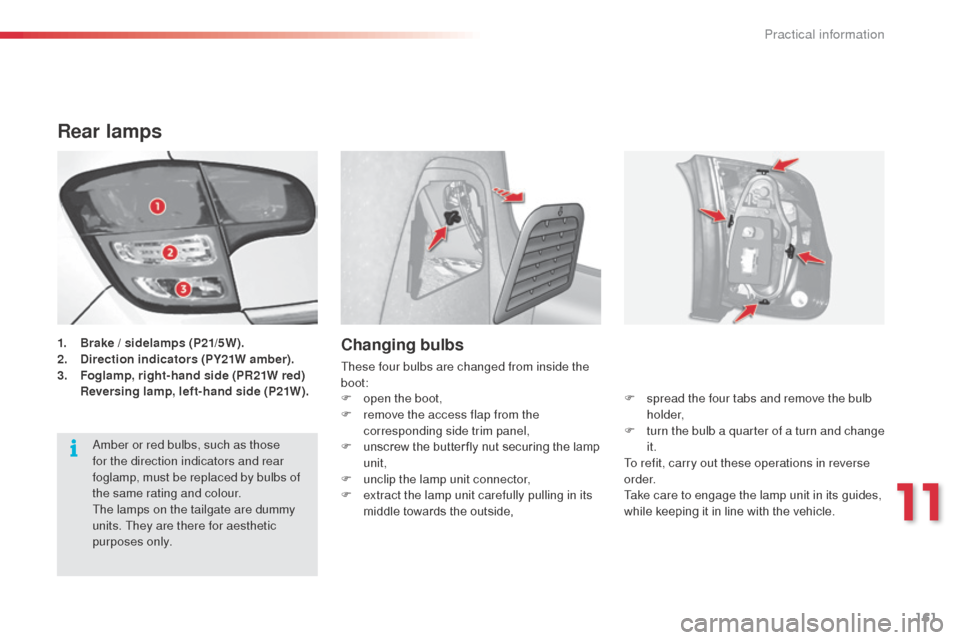

Rear lamps
1. Brake / sidelamps (P21/5W).
2. Direction indicators (PY21W amber) .
3.
F

oglamp, right-hand side (PR21W red)
R

eversing lamp, left-hand side (P21W).Changing bulbs
These four bulbs are changed from inside the
boot: F

s
pread the four tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change
it.
To refit, carry out these operations in reverse
o r d e r.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
F

o
pen the boot,
F

r
emove the access flap from the
corresponding side trim panel,
F

u
nscrew the butter fly nut securing the lamp
unit,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside,
am

ber or red bulbs, such as those
for the direction indicators and rear
foglamp, must be replaced by bulbs of
the same rating and colour.
The lamps on the tailgate are dummy
units. They are there for aesthetic
purposes only.
11
Practical information

162

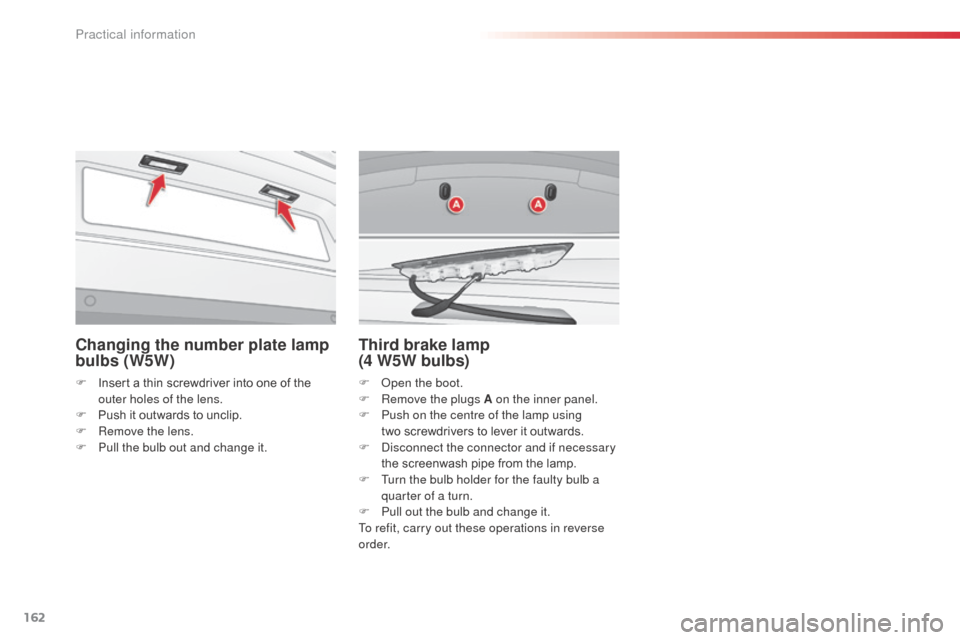

Changing the number plate lamp
bulbs (W5W)
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

R
emove the lens.
F

P
ull the bulb out and change it.
Third brake lamp
(4 W5W bulbs)
F open the boot.
F R emove the plugs A on the inner panel.
F

P
ush on the centre of the lamp using
two
screwdrivers to lever it outwards.
F
d
i
sconnect the connector and if necessary
the screenwash pipe from the lamp.
F

T
urn the bulb holder for the faulty bulb a
quarter of a turn.
F

P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

163

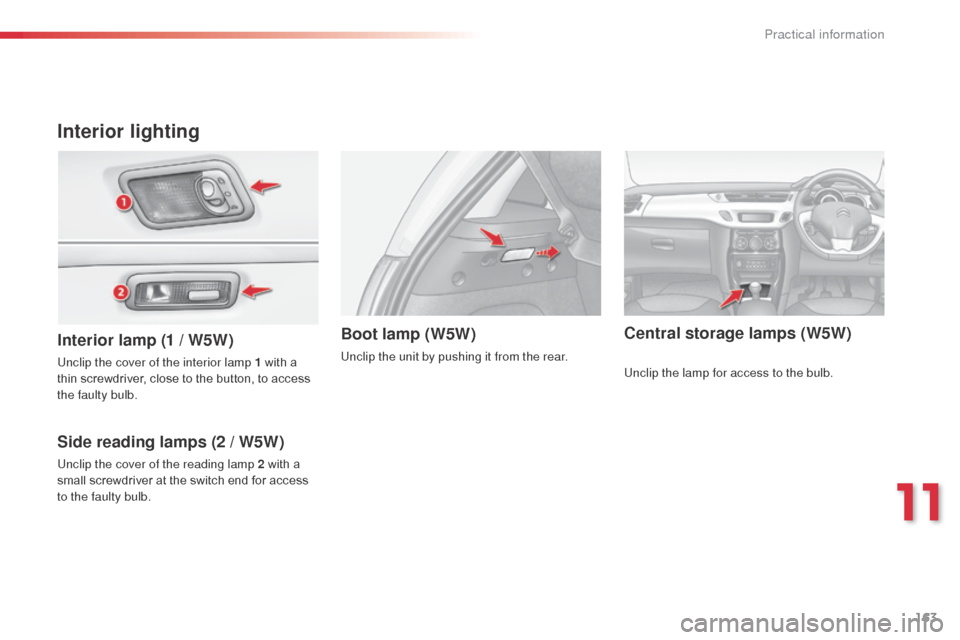

Interior lighting
Interior lamp (1 / W5W)
Side reading lamps (2 / W5W)Boot lamp (W5W)
Unclip the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Unclip the cover of the reading lamp 2 with a
small screwdriver at the switch end for access
to the faulty bulb. Unclip the unit by pushing it from the rear.
Central storage lamps (W5W)
Unclip the lamp for access to the bulb.
11
Practical information

164

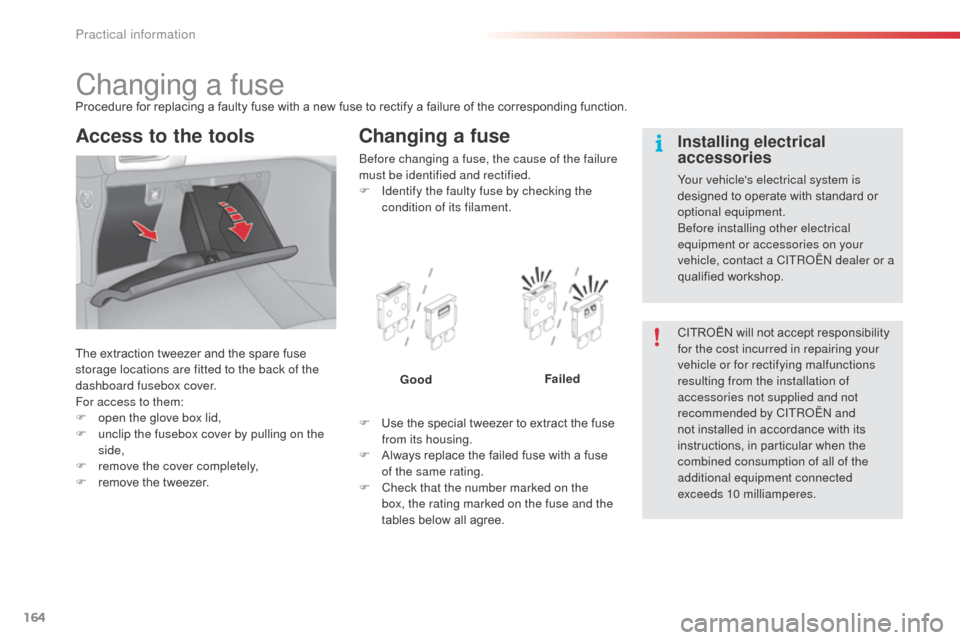

Changing a fuseProcedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuse
storage locations are fitted to the back of the
dashboard fusebox cover.
For access to them:
F
o
pen the glove box lid,
F

u
nclip the fusebox cover by pulling on the
side,
F

r
emove the cover completely,
F

r
emove the tweezer.
Changing a fuse
before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the faulty fuse by checking the
condition of its filament.
F

U
se the special tweezer to extract the fuse
from its housing.
F

A
lways replace the failed fuse with a fuse
of the same rating.
F

C
heck that the number marked on the
box, the rating marked on the fuse and the
tables below all agree. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITR
oËn

and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
be

fore installing other electrical
equipment or accessories on your
vehicle, contact a CITR
oËn

dealer or a
qualified workshop.
Access to the tools
Practical information

165
Dashboard fusebox
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "access to the
to o ls".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 -
no

t used.
FH38 20 AHiFi amplifier.
FH39 -
no

t used.
FH40 40 ATrailer relay unit.
Fuse N° Rating Functions
F1 -
no

t used.
F2 -
no

t used.
F3 5 A
ai

rbags and pretensioners control unit.
F4 10 AAir conditioning, clutch switch, electrochromatic mirror, particle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F5 30 AElectric windows panel, passenger's electric window control,
front electric window motor.
F6 30 ARear electric windows motors and driver's electric window
motor.
F7 5 ACourtesy lamp, side reading lamps.
11
Practical information

166
Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation radio, instrument
panel with clock, alarm control unit, alarm siren, audio system
(after-market), portable navigation system carrier supply.
F9 30 AMultifunction screen, audio system, navigation audio unit,
instrument pnael with clock, alarm control unit, alarm siren,
audio system (after-market), 12 V socket, portable navigation
support supply, locking.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15 ARain / sunshine sensor, trailer relay unit, driving school module.
F13 5 AMain stop switch, engine relay unit, electronic gearbox gear
l eve r.
F14 15 AParking sensors control unit, airbag control unit, instrument
panel, automatic air conditioning, US
b

b
o
x, HiFi amplifier,
reversing camera.
F15 30 ALocking.
F16 -
no

t used.
F17 40 ARear screen and door mirrors demisting/defrosting.
SH -P
aR

C shunt.
Practical information

167

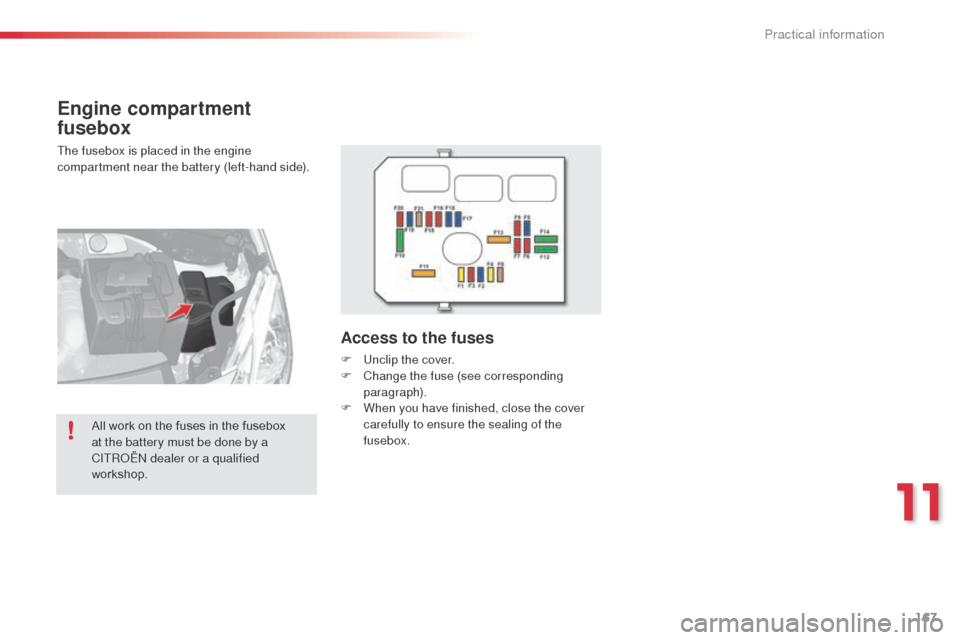

Engine compartment
fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure the sealing of the
fusebox.
All work on the fuses in the fusebox
at the battery must be done by a
CITR
oËn

dealer or a qualified
workshop.
11
Practical information

168
Fuse N°Rating Functions
F1 20 AEngine control unit supply, cooling fan unit control relay,
multifunction engine control main relay, injection pump (
die

sel).
F2 15 AHorn.
F3 10 AFront / rear wash-wipe.
F4 20 A
da

ytime running lamps, LE
d d
aytime running lamps.
F5 15 A
di

esel heater (
di
esel), particle filter additive pump (
di
esel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater
and electrovalves (VTi).
F6 10 AABS/ESP control unit, secondary stop switch.
F7 10 AElectric power steering, automatic gearbox.
F8 25 AStarter control.
F9 10 ASwitching and protection unit (Diesel).
F10 30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel),
fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F11 40 AHeater blower.
Fuse table
