Instrument panel 11
Indicator and warning lamps
1
3
Indicators

2
8
Distance recorders

3
6
Configuration of the equipment on vehicles without a screen

3
7
Monochrome screen C

3
8
Touch screen

4
1
Trip computer

4
7
Setting the date and time

5
1
InstrumentsOver view
Remote control 5
3
Keyless Entry and Starting
5
6
Back-up procedures

6
1
Doors
65
Boo

t
6
6
Central locking

6
7
Alarm
6

9
Electric windows

7
1
Access
Front seats 73
Rear seats
7
5
Steering wheel adjustment

7
8
Ventilation
7

9
Heating
8

1
Manual air conditioning
8

2
Automatic air conditioning

8
4
Front demist - defrost

8
8
Rear screen demist - defrost

8
9
Courtesy lamp

9
0
Panoramic sunroof

9
1
Boot lamp

9
1
Interior fittings

9
2
Boot fittings

9
6
Rear parcel shelf (enterprise version)

9
8
Ease of use and comfort
Mirrors 99
Lighting control
1
01
Direction indicators

1
04
Automatic illumination of headlamps

1
05
Daytime running lamps / Sidelamps

1
06
Headlamp beam height adjustment

1
08
Wiper control stalk

1
09
Automatic rain sensitive wipers

1
11
Lighting and visibility
General safety recommendations 113
Hazard warning lamps
1
14
H o r n
11

4
Emergency or assistance

1
15
Electronic stability control (ESC)

1
19
Seat belts

1
22
Airbags
1

25
Child seats

1
30
Deactivating the passenger front airbag

1
33
ISOFIX child seats

1
39
i-Size child seats

1
43
Child lock

1
46
Safety
Eco-driving
Contents

5
Boot fittings 96 -97
- r ear parcel shelf
-

h
ooks
-

s
torage box
Boot lamp

9
1
Warning triangle

2
15
Temporary puncture repair kit

2
16 -220
Spare wheel

2
21-228
Interior
Child seats 130 -138, 145
ISOFIX child seats 1 39 -142, 145
i-Size child seats

1
43 -145
Rear seats

7
5 -77
Interior fittings
9
2-95
-
s
un visor
-
g
love box
-
1
2 V accessory socket
-
U
SB port
-
a
uxiliary socket
-
f
ront armrest
- c oat hooks
Mats 9 5
Front seats

7
3 -74
Seat belts

1
22-124A ir bags
12

5 -129
Deactivating the passenger's front airbag
1
26
Electric child lock
1
46
.
Over view

53
General points
Remote control
The remote control can be used for the
following functions, depending on version:
-
u
nlocking / locking / deadlocking of the
vehicle,
-

o
pening of the fuel tank cap,
-

r
emote switching on of the lighting,
-

a
ctivation / deactivation of the alarm,
-

l
ocating the vehicle,
-
v

ehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control. The key, integral with the remote control, can
be used for the following functions, depending
on version:
-

u
nlocking / locking / deadlocking of the
vehicle,
-

t
urning the child lock on or off,
-

a
ctivation / deactivation of the passenger's
front airbag,
-

b
ack-up door locking,
-

s
witching on the ignition and starting /
stopping the engine.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure of
the remote control, the central locking, the
batter y...
For more information on the Back-up
procedures , refer to the corresponding
section.
Ejecting the key
Version with Keyless Entr y and Star ting
F P ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button. Version without Keyless Entr y and Star ting
F
P
ress this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
2
Access

57
As a safety measure (children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you,
even for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.
If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, the central
locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.
If the vehicle is unlocked by mistake
and with no action on the doors or boot,
the vehicle will lock again automatically
after about 30 seconds.
If fitted to your vehicle, the alarm will
also be reactivated automatically.
In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or
start the engine with the electronic key
in the reader.
For more information on Starting with

Keyless Entr y and Star ting , refer to
the corresponding section.
2
Access

60
Lost keys, remote control, electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the
key code.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
For vehicles with an ignition switch, do not forget to remove the key and turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Access

62
Deadlocking
Without central locking
These procedures should be used in the
following cases:
-
c
entral locking fault,
-

b
attery disconnected or discharged.
Driver's door
F Turn the key towards the rear of the vehicle to lock it, or towards the front to unlock it.
F

I

nsert the key in the door lock barrel.
F

T

urn the key towards the rear of the vehicle
to lock it.
F

W

ithin five seconds, turn the key towards
the rear of the vehicle again to deadlock it.
For versions without alarm, at the second
manoeuvre the deadlocking is confirmed
by flashing of the direction indicators for a
few

seconds.
Passenger doors
Unlocking a door
F P ull the interior opening control for the
d o o r. Locking
F

O
pen the doors.
F
F
or the rear doors, check that the child lock
is not on.
Refer to the corresponding section.
F

R
emove the black cap on the edge of the
door, using the key.
F

W
ithout forcing, insert the key into the
aperture; then, without turning it, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the key and refit the black cap.
F

C
lose the doors and check from the
outside that the vehicle is locked.
Access

124

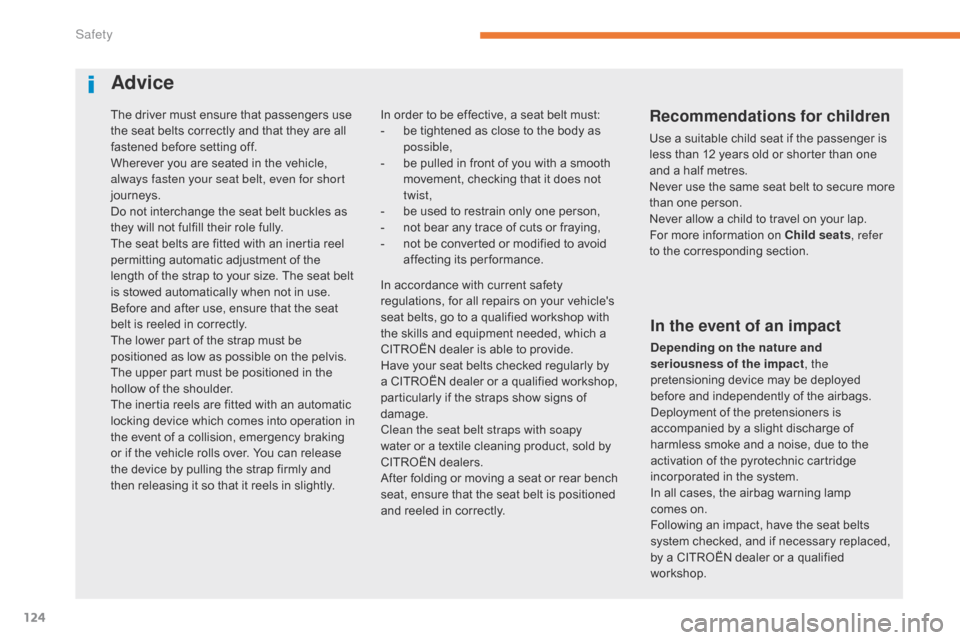

The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfill their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
In the event of an impact
Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
In order to be effective, a seat belt must:
-

b

e tightened as close to the body as
possible,
-

b

e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b

e used to restrain only one person,
-

n

ot bear any trace of cuts or fraying,
-

n

ot be converted or modified to avoid
affecting its performance.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on Child seats , refer
to the corresponding section.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Advice
Safety

145
Advice
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a rear ward facing child seat is installed
on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You must remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
5
Safety

146
Electric child lock
Switching on
F With the ignition on, press this button.
The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside.
Switching off
F With the ignition on, press this button again.
The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Remote control system to prevent opening of the rear doors using their interior controls.
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a CITROËN dealer
or a qualified workshop.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
Safety

254
Accessories .......................................... 113, 153
AdBlue® ............................... ...... 23, 33, 210, 211
Adjusting headlamps .................................... 10
8
Adjusting head restraints

................................ 74
A

djusting seats
................................................ 73
A

djusting the air distribution
..................... 8
1, 84
Adjusting the air flow

................................. 8
1, 84
Adjusting the date

..................................... 3
8, 51
Adjusting the height and reach of the steering wheel

.................................... 78
A

djusting the temperature
........................ 8
1, 84
Adjusting the time

............................... 3
8, 51, 52
Advice on driving

..............................
....147, 148
Airbags
...............

............................. 26, 125, 133
Airbags, curtain
..................................... 12

8, 129
Airbags, front......................................... 126, 129
Airbags, lateral
...................................... 12

7, 129
AIRBUMP
® .................................................... 2 14
Air conditioning ............................... ............9, 83
Air conditioning, automatic

.......................8
0, 84
Air conditioning, manual
...........................8

0, 82
Air intake

...............
....................................82, 84
Air vents
..............................

............................ 79
Alarm
............................................................... 69
A

nti-lock braking system (ABS)
....................11

9
Anti-slip regulation (ASR)

............................. 11

9
Anti-theft
..............................

.........................149
Armrest, front

............................................9
2, 94
Assistance call
...............................

........115 , 117
Assistance, emergency braking
................... 11

9
Audio system

...............................
....................38
Auxiliary socket

............................................... 98
ABChild seats, ISOFIX .......................1 3 9 -141, 143
C ITROËN C onnect Box ........................11
5 , 117
CITROËN ConnectedCAM™
....................... 18

9
C
ITROËN

Localised Emergency
Call
........

............................................... 115 , 117
Closing the boot

...............................
.........54, 66
Closing the doors

..........................5
4, 57, 58, 65
Coat hanger
..............................

......................95
Configuration, vehicle
......................... 3

8, 41, 43
Control, electric windows

................................71
C

ontrol, emergency
boot release
...............................

...................66
Control, emergency door
................................ 61
C

ontrol stalk, lighting
.............. 1
4, 101, 102, 106
Control stalk, wipers

..............................1

0 9 -111
Courtesy lamp

...............................
..........90, 235
Cruise control
................................ 1

66, 169, 174
Cruise control by speed limit recognition
.................................................. 16

9
Cup holder

...............................
........................92
Capacity, fuel tank

..............................

.......... 192
Cap, fuel filler

................................................ 19

2
Central locking

.................................... 5

7, 58, 67
Changing a bulb
........................... 2

29, 233, 235
Changing a fuse
............................2

36, 238, 241
Changing a wheel

...............................

.. 221, 222
Changing a wiper blade

........................ 1

12, 199
Changing the remote control battery

.............. 63
C

hecking the engine oil level

.......................... 32
C

hecking the levels

............................... 20

4-207
Checking tyre pressures (using the kit)

..............................

................ 216
Checks
...............

.................. 202, 203, 208, 209
Child lock

...............................

........................ 146
Children
...............................

... 137, 139 -141, 143
Child seats

............ 1

24, 130 -132, 136, 137, 145
Child seats, i-Size

...............................

.......... 143 Date (setting)

...............................
.............. 38, 51
Daytime running lamps

........ 1
02, 106, 229, 230
Deactivating the passenger
airbag
.................................................. 1

26, 133
Deadlocking
...............................

...............54, 59
Demisting - defrosting

..................................... 89
D

imensions
..............................
.....................252
Dipstick
................

....................................32, 204
Direction indicators
...... 1

04, 106, 229, 230, 233
Display screen, instrument panel

.................16

1
C
D
Battery ................................... 198, 208, 243 -246
Battery, charging ............................... ............245
Battery, remote control

.............................6
0, 63
Blind, panoramic roof

...................................... 91
B

lind spot monitoring system
........................18

0
Blind spot sensors

.................................. 1
6, 180
BlueHDi
...............................

...... 29, 33, 210, 215
Bonnet
...............

............................................ 201
Boot
........

.............................................66, 91, 96
Brake discs

.................................................... 20

9
Brake lamps

...............................
...................233
Brakes
.....................................................2

0, 209
Bulbs (changing)
...............................

... 229, 233
Alphabetical index
