IIThe map menu lets you set parameters for the display and to access the information available on the map.The mapping data is stored directly on the hard disc of your NaviDrive.
Regular up d at es of t h e M ap d at aba se are availabl e. Cont ac t a CITRO ËN dealer.
m A P
G E N E R A L
DISPLAY OF THE MAP
Your NaviDrive allows you to select 2 types of displays for the map.
Window modeThe map is shown on the right of the screen.

191919
II
A1A2A3
ABCD
A1
A2
A3
C1
C2C2
C1
D
B
A
C
A
WHAT ARE THE FUNCTIONS OF THE MAP MENU ?
ORIENT THE MAP
Orient the map to the direction the vehicle is heade d.
Orient the map to the North.
View the map in perspective.
DISPLAY ON THE MAP THE DETAILS OF THE CENTRES OF INTEREST (POI) AVAILABLE (LIST PAGE 21)
MODIFY THE DISPLAY OF THE MAP
Display the map full screen.
Display the map on the right of the screen.
M OVE THE POINTER ON THE MAP
m A P
A C C E S S I N G T H E m E N u - S T R u C T u R E
H OW TO ACCESS THE MAP MENU ?
Press button mENu.

202020
II
B
CDEFG
m A P
S E L E C T I N G A C E N T R E O F I N T E R E S T ( P O I )
HOW TO SELECT AND ADD A C ENTRE OF INTEREST ON THE MAP ?
In the map menu:Rotate the control to select the menu B.Press on the control to validate.

212121
IICity hall, City centre
Hospital
PUBLIC AUTHORITIES AND SECURITY
School, university, college
H OTELS , RESTAURANTS , BUSINESS AND RETAIL PARKS
Selected hotels
Vineyards
Selected restaurants
Retail parks, trading estates
Supermakets, Shopping malls
S PORTS AND OPEN AIR CENTRES
Sports centres and complexes
Golf courses
Parks, gardens
Winter sports
Public attractions
C ULTURE , TOURISM , ENTERTAINMENT
Culture, museums and theatres
Historic monuments, tourist attractions
Exhibitions
Cinemas
Skating, Bowling
TRANSPORT AND MOTORING
Airports, fl ying clubs
Rail stations, bus stations
Car hire
Car parks, rest areas
Ferry terminals, port areas
Service stations, garages
Radar zones/High-accident zones (depending on the cou ntry of marketing and availability of the service)
CITROËN Dealer or Repairer
Casinos and night life
m A P
L I S T O F C E N T R E S O F I N T E R E S T ( P O I )
Police
Law Courts
michelin guides
Activity centre
Customs

222222
IiITMC traffi c information consists of messages transmitted by Fm radio stations.As opposed to the road information fl ashes broadcast by radio (TA), TMC (Traffi c Mes-sage Channel) messages are coded and silent. You can fi lter the types of information that interest you.Your NaviDrive issues messages written in the selected language (including in a foreign country where your language is not that of the local radio stations).The messages contain:The date and the time of the broadcastthe nature of the incidentthe locationthe namet h e d i r e c t i o n o f t r a f f i c o n t h e a r t e r y concerned.A message is sent when an event occurs. You are again informed of the event when you are coming into proximity. The messages are classed according to the distance of the event from your vehicle.The list of messages is updated every 15 minutes approximately.

232323
IIi
C
B1B2
B3
D1D2D3
B1
B2
B3
C2
D1
D2
D3
C1
C2
C1AB
D
A
B
C
D
A
ACCESSING THE LIST OF MESSAGES
Select the information relating to a geographical a rea.
Select the information relating to traffi c.
Select the information relating to built-up areas.
SETTING PARAMETERS FOR MESSAGE ANNOUNCEMENTS
Activate or deactivate the reading of new messages by the NaviDrive voice.Activate or deactivate the display of new TmC mes-sages (do not select the tab for the regions with dens e traffi c).
CHOOSING A TMC STATION
Select an automatic TmC search.
Select a manual TmC search.
Access the list of TmC stations.
FILTERING TMC INFORMATION
T R A F F I C I N F O R m A T I O N
A C C E S S I N G T H E m E N u - S T R u C T u R E
HOW TO ACCESS THE TRAFFIC INFORMATION MENU ?
Press button mENu.

242424
IiI
A
CONSULTING OF MESSAGES
The fi lters enable you to select the types of information which you wish to receive.This menu gives you access:To the geographical fi lter: information concerning incidents situated around your vehicle, around a given location and/or on an itinerary (radius of 3 to 200 km),To road information: information con-cerning road incidents such as traf fi c, road closures, height /width limitations, state of the roadway or weather condi-t i o n s (d e p e n d i n g o n t h e i n f o r m a t i o n available).To urban traffi c information: information concerning the town where you are, such as parking, public transport and demon-strations (depending on the information available).The fi lters can be cumulative.If no fi lter is selected, all the TMC information will be displayed.

252525
IV
ABC
WHAT DOES THE AUDIO SYSTEM COM -PRISE ?
Your audio system uses 5 sources:Radio source,CD source,Jukebox source,Audio/video auxiliary input,CD changer (according to equipment)

262626
IV
B
C
D
D
Selection of a pre- defi ned musical ambiance automatically adjusts bass and treble. Select the musical ambiance “None” to personalise your adjustment of bass and treble.Adjustments of loudness, bass and treble (when they are available) are specifi c to each source.The sound volume is automatically corrected as a function of vehicle speed, provided the facility has been activated.
Press button SOuRCE.
Rotate the control or use the buttons at the steering B and C to increase or decrease the volume.
How to stop the sound momentarily ?Press on the mute button D.The sound of the Audio source currently b e i n g l i s t e n e d t o i s c u t . T h e g u i d a n c e instructions remain activated. To restore sound, press on one of the buttons on your NaviDrive, or on one of the controls on the steering wheel.
or
Press on button D to select:the pre-defi ned musical ambiances,bass,treble,loudness,front /rear and left /right balanceautomatic correction of the volume as a function of vehicle speed.Rotate the control to modify the value of the parameter displayed.The value is automatically taken into account without the need for validation.

272727
IV
B
C
D
E
BCDE
A

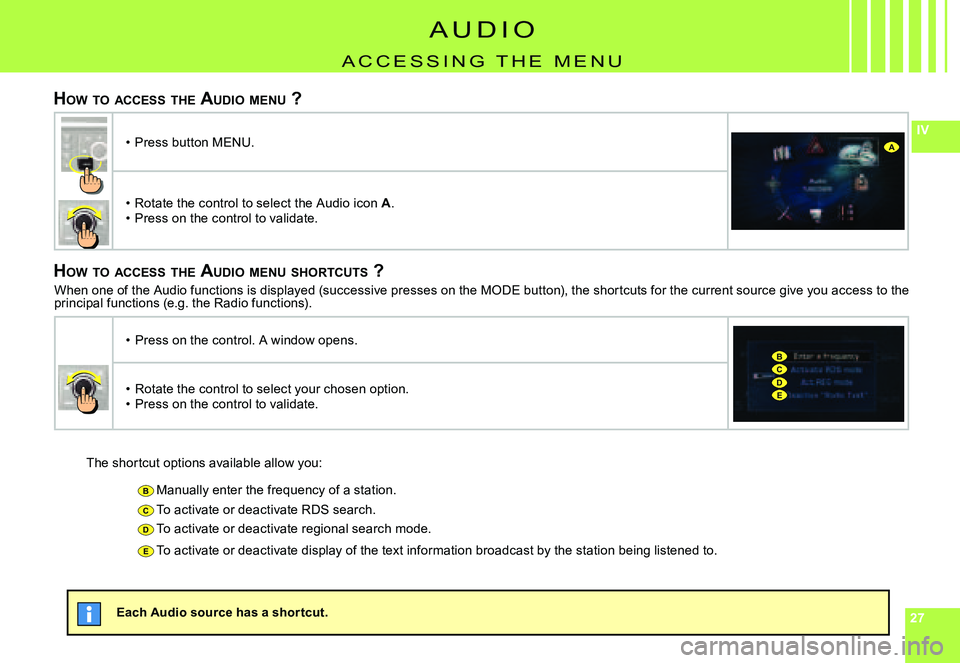

HOW TO ACCESS THE AUDIO MENU ?
HOW TO ACCESS THE AUDIO MENU SHORTCUTS ?
The shortcut options available allow you:
manually enter the frequency of a station.
To activate or deactivate RDS search.
To activate or deactivate regional search mode.
To activate or deactivate display of the text informa tion broadcast by the station being listened to.
A u D I O
A C C E S S I N G T H E m E N u
Each Audio source has a shor tcut.
Press button mENu.
