SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
14 Crankshaft bearing cap sealing screw (*) 0,8 ± 0,1
15 Knock sensor 2 ± 0,4
16 Coolant pump stud screw 1,6 ± 0,2
17 Coolant pump cover screw 0,6 ± 0,1
18 Screw of coolant pump body on cylinder block 6,5 ± 0,6
19 Cooling circuit plug 3 ± 0,5
20 Oil circuit plugs 3 ± 0,5
21 Flywheel screw (*) 6,7 ± 0,6
22 Con rod cap fixing nut 3,7 ± 0,4
23 Accessories drive belt pulley screw 0,8 ± 0,2
Crankshaft pinion screw
24Tightening4 ± 0,4
Angular tightening45°±4°
Crankshaft bearing cap cover screw (*)
25Tightening2
Angular tightening44°±4°
Engine: KFU
B1DP1KVP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
ENGINE
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 49

Downloaded from www.Manualslib.com manuals search engine 50
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Engine: KFU
B1CP0GYCB1DP05BC
IMPERATIVE: Respect the tightening sequence.
Cylinder block
(14) Crankshaft bearing cap sealing screw
(25) Crankshaft bearing cap cover screw(21) Flywheel screw
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 50

Downloaded from www.Manualslib.com manuals search engine 56
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
18 Coolant pump screw 2 ± 0,1
19 Oil plug 2,5 ± 0,5
20 Con rod cap bolt 3,8 ± 0,2
21 Seal plate screw, flywheel end 1 ± 0,1
22 Flywheel screw (*) 7 ± 0,7
23 Seal plate screw, timing end 1 ± 0,1
24 Coolant inlet manifold screw 0,8 ± 0,1
25 Crankshaft pinion screw
Tightening4 ± 0,2
Angular tightening45°±3°
26 Crankshaft bearing cap screw
Tightening2 ± 0,1
Angular tightening49°±2°
27 Accessories drive belt pulley screw 2,5 ± 0,6
28 Knock sensor 2 ± 0,5
Engine: NFU
B1DP1KUP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 56

Downloaded from www.Manualslib.com manuals search engine 65
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
17 Oil circuit plugs 3 ± 0,3
Coolant pump screw (*)
18Pre-tightening0,8
Tightening1,4 ± 0,1
19 Cooling circuit plug 3 ± 0,3
Accessories drive belt pulley screw
20Tightening4 ± 0,4
Angular tightening40°±4°
Flywheel screw (*)
21Pre-tightening0,8 ± 0,1
Tightening2 ± 0,2
Angular tightening21°± 3°
Engine: RFJ
B1DP1KSP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 65

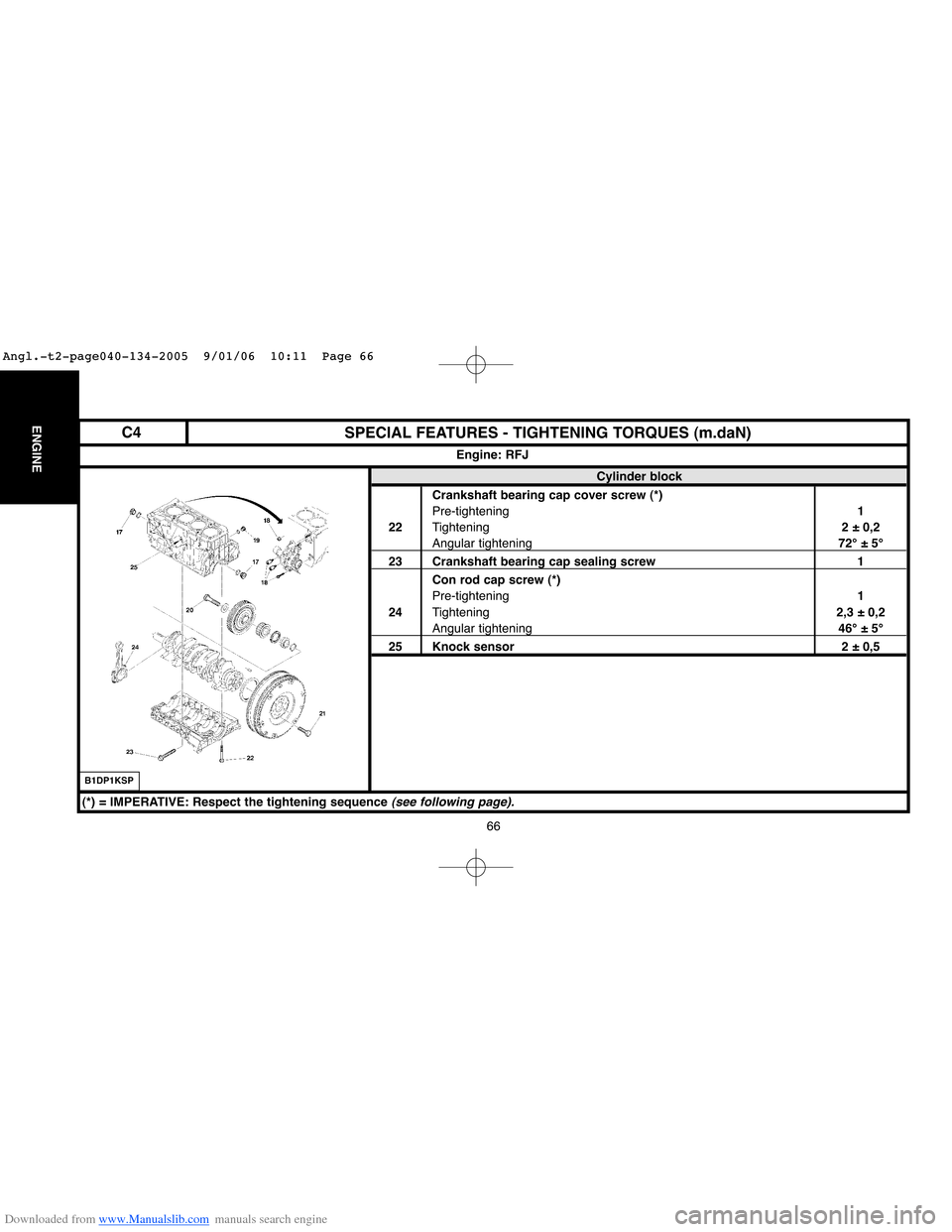

Downloaded from www.Manualslib.com manuals search engine 66
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
Crankshaft bearing cap cover screw (*)
Pre-tightening1
22Tightening2 ± 0,2
Angular tightening72°±5°
23 Crankshaft bearing cap sealing screw 1
Con rod cap screw (*)
Pre-tightening1
24Tightening2,3 ± 0,2
Angular tightening46°±5°
25 Knock sensor 2 ± 0,5
Engine: RFJ
B1DP1KSP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 66

Downloaded from www.Manualslib.com manuals search engine 72
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Crankshaft
Bearing cap fixing screws
Pre-tightening2 ± 0,2
Angular tightening60°±5°
Bearing cap screws
Pre-tightening2,3 ± 0,2
Angular tightening46°±3°Accessories belt automatic tensioner roller2 ± 0,2
Accessories belt guide roller
Pre-tightening1,5 ± 0,1
Tightening3,7 ± 0,3
Accessories support block
Tightening
(2 studs)0,7 ± 0,2
Pre-tightening (4 screws)1 ± 0,1Tightening1,9 ± 0,2Cylinder block
Sump0,8 ± 0,2
Timing belt guide roller
Pre-tightening1,5 ± 0,1
Tightening3,7 ± 0,3Timing belt tensioner roller2,1 ± 0,2
RH engine support6 ± 0,6 Engine: RFN
XSARA - XSARA PICASSO
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 72

Downloaded from www.Manualslib.com manuals search engine 79
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
18 Oil circuit plugs 3 ± 0,3
Coolant pump screw (*)
19Pre-tightening0,8
Tightening1,4 ± 1
20 Cooling circuit plug 3 ± 0,7
Flywheel screw (*)
21Pre-tightening0,8 ± 0,1
Tightening2 ± 0,2
Angular tightening23°±5°
Crankshaft bearing cap cover screw (*)
22Pre-tightening1 ± 0,1
Tightening2 ± 0,1
Angular tightening60°±5°
Engine: RFN
B1DP1KKP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 79

Downloaded from www.Manualslib.com manuals search engine 80
ENGINE
80
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
23 Crankshaft bearing cap sealing screw 1 ± 0,1
Con rod cap bolt (*)
24Pre-tightening1
Tightening2,3 ± 0,1
Angular tightening46°±3°
25 Knock sensor 2 ± 0,5
Accessories drive belt pulley screw
26Tightening4 ± 0,4
Angular tightening53°±5°
Engine: RFN
B1DP1KKP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 80

Downloaded from www.Manualslib.com manuals search engine 89
ENGINE
89
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
17 Oil circuit plugs 3 ± 0,3
Coolant pump screw (*)
18Pre-tightening0,8
Tightening1,4 ± 1
19 Cooling circuit plug 3 ± 0,7
Flywheel screw (*)
20Pre-tightening0,8 ± 0,1
Tightening2 ± 0,2
Angular tightening23°±5°
Crankshaft bearing cap cover screw (*)
21Pre-tightening1 ± 0,1
Tightening2 ± 0,1
Angular tightening60°±5°
Engine: RFK
B1DP1KTP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 89

Downloaded from www.Manualslib.com manuals search engine 90
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
22 Crankshaft bearing cap sealing screw 1 ± 0,1
Con rod cap bolt (*)
23Pre-tightening1
Tightening2,3 ± 0,1
Angular tightening46°±3°
24 Knock sensor 2 ± 0,5
Accessories drive belt pulley screw
25Tightening4 ± 0,4
Angular tightening80°±5°
Engine: RFK
B1DP1KTP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 90
