Page 75 of 257
71
V
V I S I B I L I T Y
1 - Spotlamps
A press on one of the buttons will switch the corresponding spotlamp on or off.
They will not come on if the ignition is switched off or the vehicle is in economy mode.
Automatic lighting of interior lamps
- When you enter the vehicle:
They come on immediately you unlock the vehicle or open a door.
They go out 30 seconds after doors have been closed, or after the ignition has been switched on.
- When you leave the vehicle:
They come on when you remove the ignition key (for about 30 sec-onds), or when a door is opened.
They go out after 30 seconds with the doors closed, or immediately the vehicle is locked.
In this position, the interior lamp comes on when you open a door or the boot.
In this position, it is deacti-vated and switched off per-manently.
In the front, the spotlamps are de-activated.
In this position, lighting is permanent.
2 - Front and rear interior lamps
INTERIOR LIGHTING
Welcome lighting
Page 86 of 257
82
VII
C H I L D S A F E T Y
Incorrect installation of a child seat in a vehicle compromises protection of the child in the event of a collision.
The ISOFIX fastening system enables you to reduce those risks p o s e d b y i n c o r r e c t fi t t i n g , o f f e r i n g you a convenient, strong and r e l i a b l e fi t t i n g f o r a c h i l d s e a t i n y o u r vehicle.
The ISOFIX child seat recommended for your vehicle is: ISOFIX RÖMER Duo:recommended for yourmend
It is sold by the CITROËN net-work. This seat has an upper strap, which must be attached to the ISOFIX "upper tether".
The RÖMER Duo Plus ISOFIX is a p p r o v e d s p e c i fi c a l l y f o r y o u r v e h i c l e .
If it is installed in a rear seat position, the vehicle’s corresponding front seat should be adjusted so that the child’s feet do not touch the backrest of this front seat.
This ISOFIX child seat can also be installed in seat positions that are not equipped with ISOFIX anchoring points. In this case, it is compulsory to secure it to the vehicle seat by means of the vehicle seat belt.
Page 110 of 257
1 0 0
IX
D R I V I N G
T h e 6 - s p e e d e l e c t r o n i c g e a r b o x offers a choice of two driving modes:
6-SPEED ELECTRONIC GEARBOX
A manual mode with two methods of operation:
Note: if you are in automatic mode, an instant manual mode activates whenever you action one of the controls at the steering wheel.
- t h e p a d d l e c o n t r o l s b e h i n d t h e steering wheel.
- t h e g e a r l e v e r i n p o s i t i o n M,
Display in the instrument panel
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in manual mode
A1, A2, A3, A4, A5, A6. Gears in automatic mode.
S. Sport (Sport driving style)
For each of these two modes, a Sport option (corresponding to a more dynamic style of driving) is also available.
An automated mode with the gear lever in position A.
Page 119 of 257
1 0 8
IX
D R I V I N G
Operation in Sport or Snow automatic mode
Select the driving mode:
- N o r m a l , f o r r e g u l a r u s e , t h e w a r n i n g l a m p s S and are not illuminated.
-Sport, for more responsive driving, to provide maximum performance and acceleration.
- S n o w , f o r s m o o t h d r i v i n g i n w i n t r y c o n d i t i o n s .
Page 124 of 257
1 1 3
IX
D R I V I N G
To stop the function
- m o v e t h e c o n t r o l f r o m p o s i t i o n "LIM" to position 0.
- o r s t o p t h e e n g i n e .
The speed that you chose is memorised.
In the event of a malfunction, a message is displayed, accompanied by a sound signal and lighting of the S E R V I C E w a r n i n g l a m p .
C o n s u l t y o u r C I T R O Ë N d e a l e r .
A fl o o r m a t n o t r e c o m -mended by CITROËN risks sliding under the accelerator pedal, thus preventing you from pressing past the tight spot.
It will then be impossible to exit from the desired limitation, unless by acting on the steering wheel control.
The driver must still remain attentive and in complete control of the vehicle.
We advise the driver to keep their feet close to the pedals.
Note: if during speed limitation, the system cannot keep to the maximum speed (especially on a steep descent or if you accelerate too hard) the s p e e d fl a s h e s . A d a p t y o u r s p e e d a s necessary.
T h e f u n c t i o n w i l l r e - e n g a g e w h e n your speed has returned below the desired maximum.
Deactivation of the maximum speed
Press button 3.
The information "OFF" will appear on the instrument panel screen.
This action does not cancel the memorised maximum speed, which remains displayed in zone A of the instrument panel.
Temporary override of the maximum speed
You can exceed the memorised maximum speed at any time by pressing the accelerator pedal hard down past the tight spot.
During the time the limit speed is being exceeded, the displayed s p e e d fl a s h e s .
You have only to release the accelerator pedal to return below the maximum speed, thus keeping the function active.
Page 125 of 257
1 1 4
IX
D R I V I N G
Proximity sensors are located in the front and rear bumpers of your vehicle.
When manoeuvring, whether forwards or in reverse, at a speed below approx. 6 mph, they warn you of the presence of any obstacle situated within their detection zone, by means of:
- a s o u n d s i g n a l e m i t t e d b y t h e f r o n t or rear loudspeakers,
- t h e d i s p l a y o f t h e o u t l i n e o f y o u r vehicle with shading at the zones where obstacles are detected.
As the vehicle approaches an obstacle, the sound signal tells you its position according to whether the sound issues from the front LH or RH speaker or from the rear LH or RH speaker.
NaviDrive version
Screen C version
- A s t h e v e h i c l e g e t s c l o s e t o the obstacle, the sound signal becomes ever more rapid and the shading appears ever closer to your vehicle’s outline.
- W h e n t h e o b s t a c l e i s l e s s t h a n a r o u n d 2 5 c e n t i m e t r e s f r o m t h e vehicle, the signal becomes continuous and a WARNING panel appears on the display.
Activation/Deactivation
Y o u c a n a c t i v a t e / d e a c t i v a t e t h e parking assistance with a press on control 1. If the parking assistance is inactive, the warning lamp is on.
Activation or deactivation of the parking assistance is memorised when you stop the vehicle.
Note: The system is deactivated automatically if a trailer is attached to the vehicle.
T h e fi t t i n g o f t h e t o w b a r s h o u l d b e c a r r i e d o u t b y t h e C I T R O Ë N T h e fi t t i n g o f t h e t o w b a r s h o u l d T h e fi t t i n g o f t h e t o w b a r s h o u l d
network.
This system does not replace the vigilance and responsibility of the driver.
VISUAL AND AUDIBLE FRONT AND REAR PARKING ASSISTANCE
Page 154 of 257
142
XI
P R A C T I C A L A D V I C E
If a metal object makes a contact between the two battery terminals or between the battery + and the bodywork, this causes a short-circuit (risk of fi r e a n d s e r i o u s b u r n s ) .
The battery releases minute quantities of hydrogen, a gas which is explosive under certain conditions. Never use a fl a m e o r c r e a t e s p a r k s c l o s e t o the battery.
The battery contains dilute sulphuric acid which is highly corrosive:
When handling batteries, al-ways protect your face and especially your eyes.
In the event of any contact with the skin, rinse immedi-ately with copious amounts of fresh water.Refer to a CITROËN dealer for battery replacements.
Page 159 of 257
147
XI
P R A C T I C A L A D V I C E
W e r e c o m m e n d y o u t o h a v e t h i s d e v i c e fi t t e d b y a C I T R O Ë N D e a l e r , W e r e c o m m e n d y o u t o h a v e t h i s W e r e c o m m e n d y o u t o h a v e t h i s
w h o w i l l b e a c q u a i n t e d w i t h y o u r v e - h i c l e ’ s t o w i n g c a p a b i l i t y a n d w i t h t h e p r o c e d u r e s n e c e s s a r y f o r i n s t a l l i n g a s a f e t y i t e m o f t h i s k i n d .
I t i s e s s e n t i a l t o i n s t a l l a C I T R O Ë N a p p r o v e d e l e c t r o n i c u n i t w h e n h a v - i n g a t o w b a r fi t t e d , i n o r d e r t o p r e - v e n t a n y r i s k o f m a l f u n c t i o n o r d a m - a g e ( r i s k o f fi r e ) .
T h e fi t t i n g o f a c a r a v a n m i r r o r o n t h e w i n g i s p r o h i b i t e d .
TOWBAR
d i m e n s i o n s i n m e t r e s : A = 0 . 8 4 1
Respect the towing limitsof your vehicle.

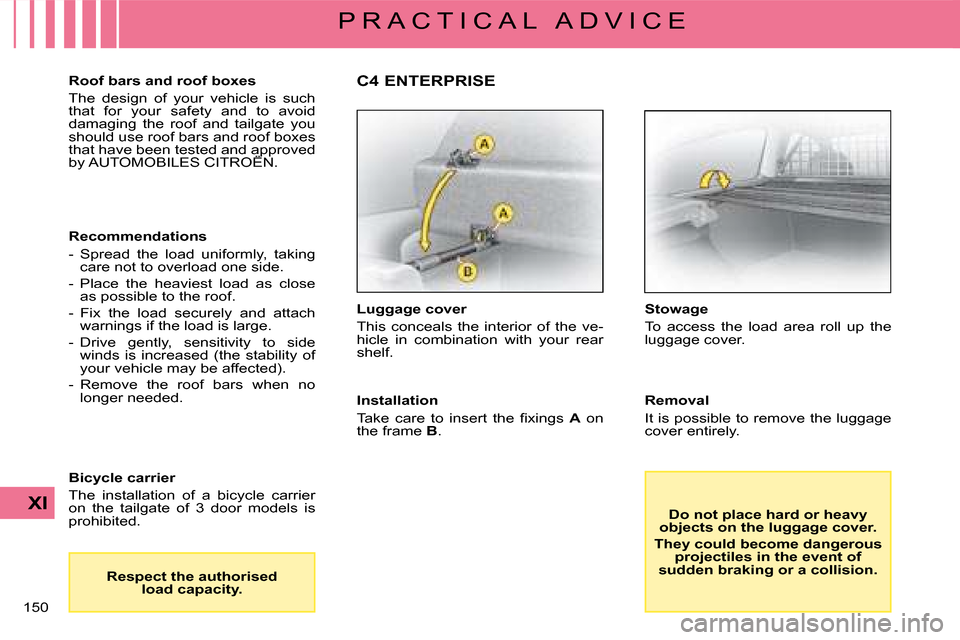

Page 162 of 257
1 5 0
XI
P R A C T I C A L A D V I C E
Luggage cover
T h i s c o n c e a l s t h e i n t e r i o r o f t h e v e - h i c l e i n c o m b i n a t i o n w i t h y o u r r e a r s h e l f .
Installation
T a k e c a r e t o i n s e r t t h e fi x i n g s A o n t h e f r a m e B .
Do not place hard or heavy objects on the luggage cover.
They could become dangerous projectiles in the event of sudden braking or a collision.
Stowage
T o a c c e s s t h e l o a d a r e a r o l l u p t h e l u g g a g e c o v e r .
Removal
I t i s p o s s i b l e t o r e m o v e t h e l u g g a g e c o v e r e n t i r e l y .
C4 ENTERPRISE
Respect the authorisedload capacity.
Bicycle carrier
T h e i n s t a l l a t i o n o f a b i c y c l e c a r r i e r o n t h e t a i l g a t e o f 3 d o o r m o d e l s i s p r o h i b i t e d .
Roof bars and roof boxes
T h e d e s i g n o f y o u r v e h i c l e i s s u c h t h a t f o r y o u r s a f e t y a n d t o a v o i d d a m a g i n g t h e r o o f a n d t a i l g a t e y o u s h o u l d u s e r o o f b a r s a n d r o o f b o x e s t h a t h a v e b e e n t e s t e d a n d a p p r o v e d b y A U T O M O B I L E S C I T R O Ë N . t h a t h a v e b e e n t e s t e d a n d a p p r o v e d t h a t h a v e b e e n t e s t e d a n d a p p r o v e d
Recommendations
- S p r e a d t h e l o a d u n i f o r m l y , t a k i n g c a r e n o t t o o v e r l o a d o n e s i d e .
- P l a c e t h e h e a v i e s t l o a d a s c l o s e a s p o s s i b l e t o t h e r o o f .
- F i x t h e l o a d s e c u r e l y a n d a t t a c h w a r n i n g s i f t h e l o a d i s l a r g e .
- D r i v e g e n t l y , s e n s i t i v i t y t o s i d e w i n d s i s i n c r e a s e d ( t h e s t a b i l i t y o f y o u r v e h i c l e m a y b e a f f e c t e d ) .
- R e m o v e t h e r o o f b a r s w h e n n o l o n g e r n e e d e d .
Page 179 of 257
167
XIII
A U D I O
RADIO SOURCE
Notes on radio reception
Your radio will be subject to certain phenomena that are not encountered by domestic systems.The reception of AM and FM signals may suffer from interference, which is caused by the nature and propagation of the signals and does n o t r e fl e c t o n t h e q u a l i t y o f y o u r r a d i o installation.In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the s t a t i o n t r a n s m i t t e r , t h e r e fl e c t i n g o f signals off obstacles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
Selection of radio source
Press button D to select the source.
Selection of frequencies and memory banks
Press button E successively to go t h r o u g h t h e m e m o r y b a n k s F M 1 , F M 2 and FM3, for the FM waveband, and the memory banks MW/LW, for the AM waveband.
Manual search
Manual seearch is via buttons Jor M.By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
Tuning sensitivity
Automatic searches can be carried out according to two levels of sensitivity:- To capture the most powerful transmitters, choose the local search mode "LO" (default option).
- To capture the weakest or most distant transmitters, choose the sensitive search mode "DX".
S e a r c h f o r a s t a t i o n i s d o n e fi r s t i n "LO" (local) sensitivity, then in "DX" (distant) sensitivity.To commence a search in sensitivity "DX" (distant) immediately, press twice in succession on one of the buttons K or N.
Automatic search
A short press on one of the buttons K or N will tune into higher or lower radio stations respectively, within the chosen waveband.By keeping button K or N pressed, you will be able to scroll through the waveband. The scrolling will stop a t t h e fi r s t s t a t i o n i t fi n d s o n c e t h e button is released.You can also do this by means of control 2 at the steering wheel.If the automatic search is unable to tune into a known frequency (perhaps owing to very weak reception), it is p o s s i b l e t o s e a r c h m a n u a l l y t o fi n d this station.
Display and selection of a station available in the area in which you are travelling
B r i e fl y p r e s s o n b u t t o n G to bring up a list of stations, this is updated every 10 minutes.You can also update this list at any time by giving a long press on button G.To listen to one of these stations, select by pressing buttons J or Mand validate using button L.
