Page 54 of 279
64
IV
A C C E S S
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
pull the control until the window
stops,
release the control and pull it
again until the window closes
fully,
continue to hold the control for
approximately one second after
the window has closed,
press the control to lower the
window automatically to the low
position,
when the window has reached
the low position, press the con-
trol again for approximately one
second.
The safety anti-pinch function is
not operational during these ope-
rations. Deactivation of the rear
electric window and door
controls
For the safety of your children,
press control 5 to deactivate the
rear electric window controls re-
gardless of their position.
Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, he must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
This warning lamp comes
on temporarily on the instru-
ment panel on deactivation
and each time the ignition is
switched on. This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a CITROËN dealer.
Page 55 of 279
65
IV
A C C E S S
DOORS
Opening
From outside When the selective unlocking is acti-
v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver’s door only.
Pull on the front door control to
open the door; this unlocks the
vehicle completely.
Pull on the rear door control to
open the door; this unlocks the
door concerned only.
With the selective unlocking acti-
vated:
- the driver’s door control unlocks the driver’s door only,
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Central manual control
System which provides full manual
locking or unlocking of the doors
and boot from the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
If the boot is open, the central lock-
ing from the inside is active for the
doors, to permit the transportation
of long objects.
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside
Page 56 of 279
66
IV
A C C E S S
Unlocking
Press button A again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
d i c a t o r l a m p fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
Central automatic control Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock
automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic
central locking of the doors is active.
Unlocking
Above 6 mph (10 km/h), press
button A to unlock the doors and
boot temporarily.
Activation
Press button A for more than two
seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction screen.
Deactivation
Press button A again for more
than two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction screen.
Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking. Locking the driver’s door
Insert the key in the lock, then
turn it to the right.
Locking the front and rear
passenger doors
Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
System which provides full automat-
ic locking or unlocking of the doors
and boot while driving.
You can activate or deactivate this
function. Unlocking the driver’s door
Insert the key in the lock, then
turn it to the left.
Unlocking the front and rear
passenger doors
Pull the interior door opening
control.
Page 57 of 279
67
IV
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, push upwards on the
lever 1 , located between the
number plate lamps, then raise
the tailgate.
Lower the tailgate using one of
the two handholds 2 , located on
the inside of the tailgate.
Push at the end of travel.
- when the engine is run-
ning
, this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
Opening Closing
Emergency tailgate release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Push the white part, located in-
side the lock, to the left to unlock
the boot.
Page 58 of 279
68
IV
A C C E S S
DIESEL FUEL
Refuelling
A l a b e l o n t h e i n s i d e o f t h e f u e l fi l l e r
fl a p i n d i c a t e s t h e t y p e o f f u e l t o b e
used.
T o fi l l t h e t a n k s a f e l y :
it is imperative that you switch
off the engine,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the fuel tank cap
then turn it to the left. Petrol engines are designed to run
on 95 RON fuel.
However, for better vehicle perform-
ance (petrol engines), we recommend
98 RON.
For petrol engines with catalytic
converter, use of unleaded fuel is
obligatory.
T h e fi l l e r n e c k h a s a n a r r o w e r o r i fi c e
t o a d m i t o n l y p e t r o l fi l l e r n o z z l e s .
UNLEADED PETROL
W h e n y o u a r e fi l l i n g y o u r f u e l
tank, do not persist after the
third cut-off; this could cause
your vehicle to malfunction.
FUEL TANK
Capacity of the tank: approxi-
mately 60 litres.
Low fuel level
When the minimum level
in the fuel tank is reached,
this warning lamp in the in-
strument panel comes on,
accompanied by an audible signal
and a message on the multifunction
screen.
You have enough fuel left to drive
approximately 30 miles (50 km).
Fuel cut-off switch
Your vehicle is equipped with a safety
device which cuts off the fuel supply
in the event of a collision.
Page 69 of 279
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 70 of 279
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 106 of 279
103
VIII
S A F E T Y
Deactivation
This warning lamp comes on
in the instrument panel when
the ignition is on and until the
airbag is reactivated.
To guarantee the safety of your
child, it is imperative that the pas-
senger airbag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk be-
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e
airbag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so guaran-
tee the safety of your front passen-
ger in the event of an impact.
Operating fault
Only the front passenger’s airbag
can be deactivated:
with the ignition off
, insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
If this warning lamp comes on
in the instrument panel, accom-
panied by an audible warning
and a message on the multi-
function screen, contact a CITROËN
dealer to have the system checked. The
airbags may no longer be triggered in
the event of a serious impact.
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Page 110 of 279
106
IX
D R I V I N G
PARKING BRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the parking brake to immobi-
lise your vehicle.
Releasing
Pull on the handle and press the
button A to release the parking
brake.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompa-
nied by an audible signal and a mes-
sage on the multifunction screen,
this indicates that the parking brake
is still on or has not been properly
released.
When parking on a slope, direct your
wheels against the pavement, pull the
parking brake on and engage a gear.
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting. Engaging reverse gear
Push the gear lever to the
right then rearwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.

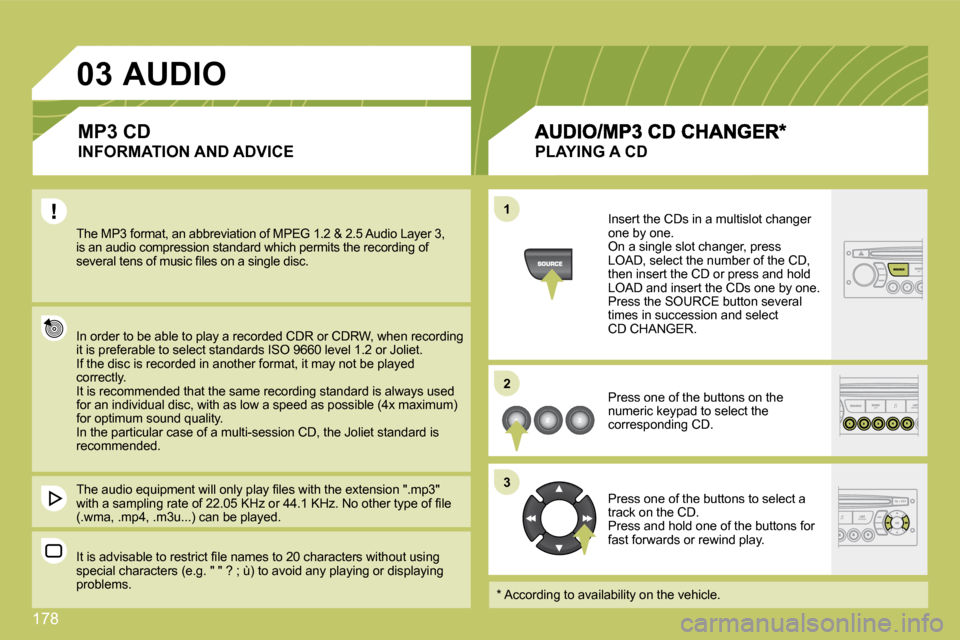

Page 185 of 279
178
03
11
22
33
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, i s a n a u d i o c o m p r e s s i o n s t a n d a r d w h i c h p e r m i t s t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
I n o r d e r t o b e a b l e t o p l a y a r e c o r d e d C D R o r C D R W , w h e n r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t s t a n d a r d s I S O 9 6 6 0 l e v e l 1 . 2 o r J o l i e t . If the disc is recorded in another format, it may not be played correctly. I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s a m p l i n g r a t e o f 2 2 . 0 5 K H z o r 4 4 . 1 K H z . N o o t h e r t y p e o f fi l e (.wma, .mp4, .m3u...) can be played.
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g s p e c i a l c h a r a c t e r s ( e . g . " " ? ; ù ) t o a v o i d a n y p l a y i n g o r d i s p l a y i n g problems.
MP3 CD
INFORMATION AND ADVICE
AUDIO
I n s e r t t h e C D s i n a m u l t i s l o t c h a n g e r one by one. O n a s i n g l e s l o t c h a n g e r , p r e s s LOAD, select the number of the CD, then insert the CD or press and hold LOAD and insert the CDs one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the c o r r e s p o n d i n g C D .
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forwards or rewind play.
PLAYING A CD
* A c c o r d i n g t o a v a i l a b i l i t y o n t h e v e h i c l e .
AUDIO/MP3 CD CHANGER * AUDIO/MP3 CD CHANGER *
