Page 146 of 284
122
D R I V I N G
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven
at a speed below approximately
6 mph (10 km/h), certain sourc-
es of noise (motorcycles, lorries,
pneumatic drills, ...) may trigger the
parking sensor audible signals.
Reactivation
Press button A again, the warning
lamp switches off, the system is
reactivated.
Deactivation Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 196 of 284
172
CITROËN ASSISTANCE
CUSTOMER CALL
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES EMERGENCY CALL
Press this button to gain access to the CITROËN services * . Press this button to gass this
Select "Customer call" to request any information about the CITROËN marque.
Select "CITROËN Assistance" to make a breakdown assistance call.
In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * directly to CITROËN CANCELLATION screen is displayed. isplaye
Emergency which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries where the call centre is not operational, the call is directed to the national emergency services (112).
* This service is subject to conditions and availability. Consult a CITROËN dealer. * This service is subject to cond
If necessary, the internal telephone is activated automautomatically to make an emergency call.
In order for an emergency call to be made, a vali d SIM c SIM card must be inserted.
EMERGENCY OR ASSISTANCE CALL using NaviDrive
Page 198 of 284
174
2
8
1 6
1 8 1 7 711 1 4 3
5 9 4
1 5 1 2
1 3
61
10
01
FIRST STEPS
1 . On/Off and Volume adjustment.
2 . Selection of the source: radio, Jukebox, CD and au
xiliary ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . Long press: CD copy to hard disk.
3 . Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4 . Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long press: update the local radio stations.
5 . Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Juke box track. Long press: fast forward and backward play.
6 . Selection of wavebands FM1, FM2, FMast, AM.
7 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (radio Programme TYpes) mode.
8 . Ejection of the CD.
9 . SIM card slot.
1 0 . Keypad for entering descriptions by successive presses.
1 1 . Access to the "CITROËN" services menu.
1 2 . S e l e c t i o n a n d c o n fi r m a t i o n .
1 3 . Selection of the previous/next MP3/USB/Jukebox dir ectory.
1 4 . Cancellation of the current operation. Long press: return to the current application.
1 5 . Display the general menu.
1 6 . M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . L o n g p r e s s : reinitialisation of the system.
1 7 . Selection of the display on the screen between modes: TRIP, TEL, NAV and AUDIO.
1 8 . Long press on the SOS button: emergency call.
Page 199 of 284
175
0 2
4
1
2 3
51
2 3
4
51
2
3
4
STEERING MOUNTED CONTROLS
1 . Volume increase.
2 . Volume decrease.
3 . Mute.
4 . RADIO: selection of the previous or next stored station. MP3/JUKEBOX: selection of the previous or next dir ectory CD CHANGER: selection of the previous or next CD.
5 . RADIO: automatic search for a higher frequency. CD/MP3/JUKEBOX/CD CHANGER: selection of the next track. CD/MP3/CD CHANGER: continuous press: fast forwards play.
1 . Displays the main screen.
2 . Selection of the mode displayed (TRIP, TEL, NAV or AUDIO).
3 . Abandon the operation in progress and return to the previous display.
4 . Navigation through the menus.
5 . C o n fi r m a t i o n o f t h e f u n c t i o n s e l e c t e d .
1 . Short press: Activation of the voice recognition.
2 . WHEN THE TELEPHONE IS NOT IN USE: Long press: access to the telephone menu (phone book, call list, ...). INCOMING CALL: Short press to accept. Long press to reject the call. CALL IN PROGRESS: Short press to hang up. Long press to access the telephone menu.
3 . Personalisation: S h o r t p r e s s : c o n fi r m a t i o n o f t h e s e l e c t i o n m a d e u s i n g t h e d i a l .
4 . Rotation: Move around the phone book, the call list. Selection of personalisation.
Page 200 of 284
176
0 3
°
> COLOUR SCREEN
This displays the following information, via the audio control panel: - time, - date, - ambient temperature (if there is a risk of ice, you are warned by a message), - audio source displays (radio, CD, jukebox, ... ), - telematic system displays (telephone, services , ...), - check of openings (doors, boot, ...), - warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") displaye d temporarily, - trip computer information, - GPS (Europe) satellite navigation system information.
The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk. Updates of the maps of the UK and of the other Euro pean countries, offered by our partner NAVTEQ, are available from the CITROËN network. The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk.
S c r e e n c o n fi g u r a t i o n : r e f e r t o t h e s e c t i o n - S c r e e n m e n u m a p .
Telephone
Orange Time:
Date:
Page 201 of 284
177
0 3 SCREEN AND MAIN MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) parameters. so
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Long press on MENU: help.
Page 202 of 284
178
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0 3 SCREEN AND MAIN MENU
Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
c a l l l i s t
d i a l
p h o n e b o o k
v o i c e m a i l NAVIGATION (IF NAVIGATION IS IN PROGRESS):
r e s u m e / s t o p g u i d a n c e
d i v e r t r o u t e
r o u t e t y p e
c o n s u l t t r a f fi c i n f o
z o o m / s c r o l l m a p
TRIP COMPUTER:
a l e r t l o g
s t a t u s o f f u n c t i o n s
BLUETOOTH TELEPHONE:
c a l l l i s t
c a l l
p h o n e b o o k
p r i v a t e m o d e / h a n d s - f r e e m o d e
p l a c e c a l l o n h o l d / r e s u m e c a l l
C D ( M P 3 O R A U D I O ) :
c o p y C D t o J B X / s t o p c o p y
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
RADIO:
e n t e r a f r e q u e n c y
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
h i d e / d i s p l a y " R a d i o T e x t "
JUKEBOX:
s e l e c t p l a y l i s t
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
USB:
c o p y U S B t o J B X / s t o p c o p y
e j e c t U S B
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
DISPLAY ACCORDING TO THE CONTEXT
I N " Z O O M / S C R O L L " M O D E :
p o s i t i o n i n f o
s e l e c t a s d e s t i n a t i o n
s e l e c t a s s t a g e
s t o r e t h i s p o s i t i o n
e x i t M A P m o d e
g u i d a n c e o p t i o n
Page 208 of 284
184
0 4
1
2
3
4
5
UPDATING THE RISK AREAS POIs
S e l e c t M A P a n d c o n fi r m b y pressing OK.
Press the MENU button.
N A V I G A T I O N - G U I D A N C E
DISPLAYING THE RISK AREAS POIs
S e l e c t M A P D E T A I L S a n d c o n fi r m b y pressing OK.
Select TRANSPORT AND A U T O M O B I L E S a n d c o n fi r m b y pressing OK.
T i c k " R i s k A r e a s " a n d c o n fi r m b y pressing OK.
The detailed procedure is available from CITROËN deal dealers.
Page 212 of 284
188
11
2 2
3 3
4 4
5 5
6 6
7 7
0 4
Press the MENU button.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to c o n fi r m
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY MAP function.

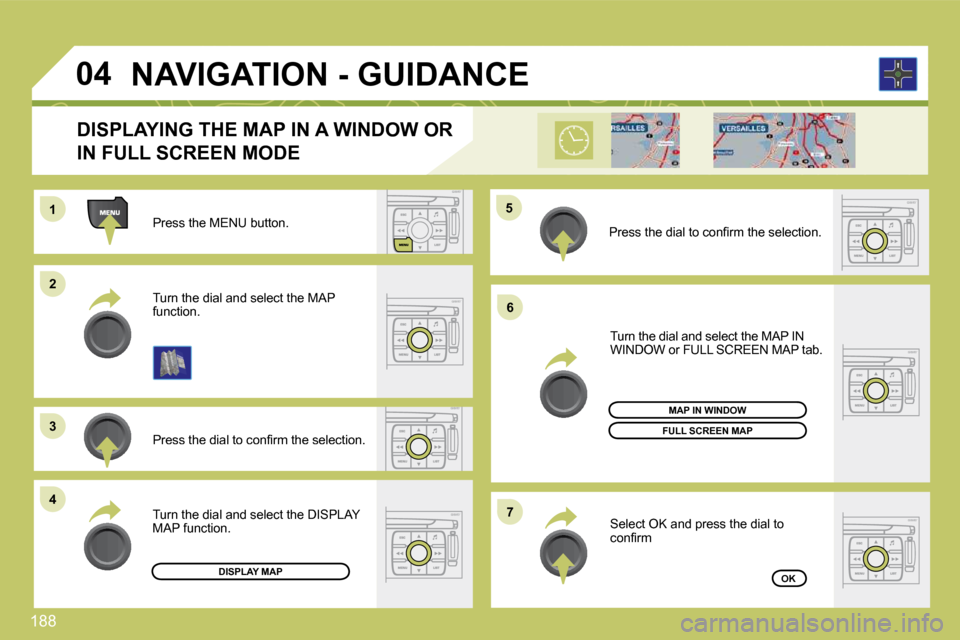

DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW
N A V I G A T I O N - G U I D A N C E
Page 214 of 284
190
11
2 2
3 3
4 4
6 6
5 5
7 7
0 5
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK
CONFIGURING THE DISPLAY OF
TMC MESSAGES W e r e c o m m e n d t h a t y o u d o n o t t i c k t h e N E W M E S S A G E D I S P L A Y t a b f o r r e g i o n s w i t h h e a v y t r a f fi c .
Turn the dial and select the TRAFFIC INFORMATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
Select the READ MESSAGES tab.
T h e T r a f fi c I n f o r m a t i o n M e s s a g e s w i l l be read by the voice synthesiser. Select the NEW MESSAGE DISPLAY tab. T h e t r a f fi c i n f o r m a t i o n m e s s a g e s a r e e x t e n d e d t o t h e fi l t e r s s e l e c t e d (geographic...) and can also be displayed when guidance is not active.
CONFIGURE MESSAGE ANNOUNCEMENT
TRAFFIC INFORMATION
S e l e c t O K a n d p r e s s t h e d i a l t o c o n fi r m .
