Citroen C4 2011 2.G User Guide

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS




1.
Cruise control/speed limiter
switches.

2.
Controls for optional functions.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicators
control stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Controls for audio and telematic
system.

8.
Controls for Bluetooth system or
telephone.

9.
Bonnet release.

10.
Door mirror controls.
Electric window controls.

11 .
Fusebox.

12.
Manual headlamp height
adjustment
Lower side switch panel.

13.
Fuel fi ller fl ap opening button.
Upper side switch panel.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

10
INSTRUMENTS AND CONTROLS




1.
Steering lock and ignition.

2.
Steering mounted control paddles
for the 6-speed electronic gearbox
system.

3.
Wiper/screenwash/trip computer
control stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box/Audio/video sockets/
Passenger's airbag deactivation
switch.

9.
Heated seat control.

10.
Lumbar massage control.

11 .
Electric parking brake.

12.
Gear lever, 6-speed electronic
gearbox system.

13.
Large multifunctional storage unit.

11
FAMILIARISATION



A.
Rear view mirror.

B.
Emergency call/Warning lamps
display for front passenger's airbag
and seat belt/Assistance call.

C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.

D.
Microphone for audio and telematic
system.

E.
Panoramic sunroof blind control.




1.
Central adjustable air vents.

2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.

3.
Audio or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating/air conditioning controls.

6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.

7.
Gear lever, manual or automatic
gearbox.

8.
Manual parking brake

9.
Portable ashtray.

10.
Large open storage or front
armrest.

12
SITTING COMFORTABLY

Driver's seat


Forwards-backwards
Height



Manual adjustment




70



Electric adjustment




71
Seat back angle

13
FAMILIARISATION
SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
Other functions available...
Lumbar massage.
Storing driving positions (driver's
electric seat).
Heated seats.



Steering wheel adjustmentFront armrest



73


1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.



78
For your comfort, the front armrest can
be adjusted for longitudinal position and
for height, depending on version.
It also has a storage compartment; this
may be equipped with a 230 V/50 Hz
socket.



113, 114



72

As a safety precaution, these
operations must only be carried
out when stationary.

14
SITTING COMFORTABLY

Door mirrors


Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.

C.
De-selection of the mirror.


Rear view mirror


Manual day/night model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.



78

Automatic day/night model


A.
Brightness detection in automatic
day/night mode.

B.
Adjustment of the mirror.



78


Front seat belts



1.
Fastening the buckle.

2.
Height adjustment.



135

Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.
Blind spot sensors.



76

15
FAMILIARISATION

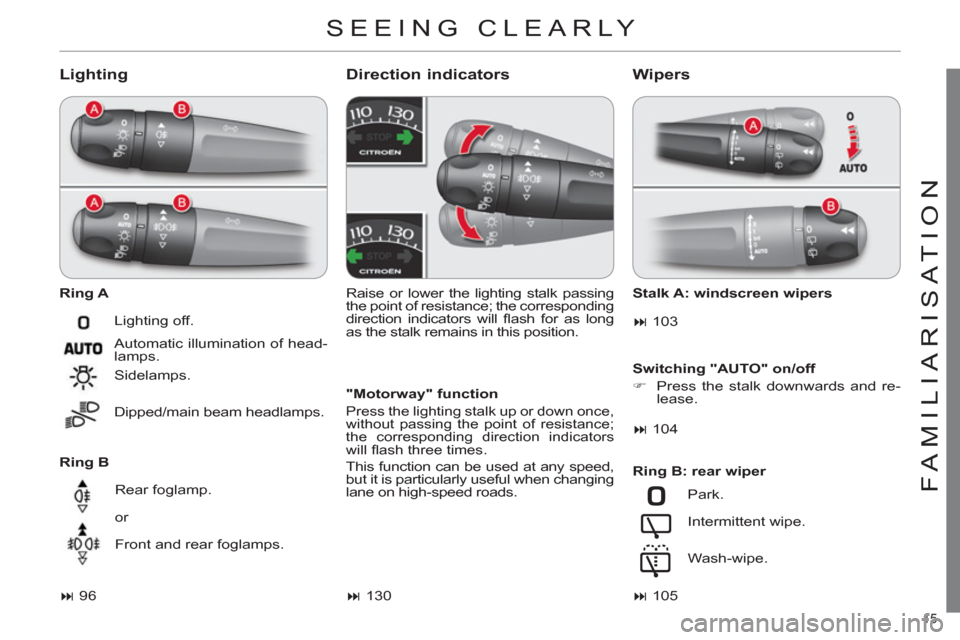

SEEING CLEARLY

Lighting


Ring A

Ring B


Direction indicators


"Motorway" function

Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.

This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.
Wipers

Stalk A: windscreen wipers

Switching "AUTO" on/off


)
Press the stalk downwards and re-
lease.

Ring B: rear wiper



96

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.



130




105

Lighting off.
Rear foglamp.
Park. Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
or
Front and rear foglamps. Intermittent wipe.
Wash-wipe.


103




104

16
VENTILATION


Recommended interior settings


Digital air conditioning:
we recommend use of one of the three fully automatic modes by pressing the "AUTO"
button.

I require...



Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING


DEFROSTING

17
FAMILIARISATION
MONITORING

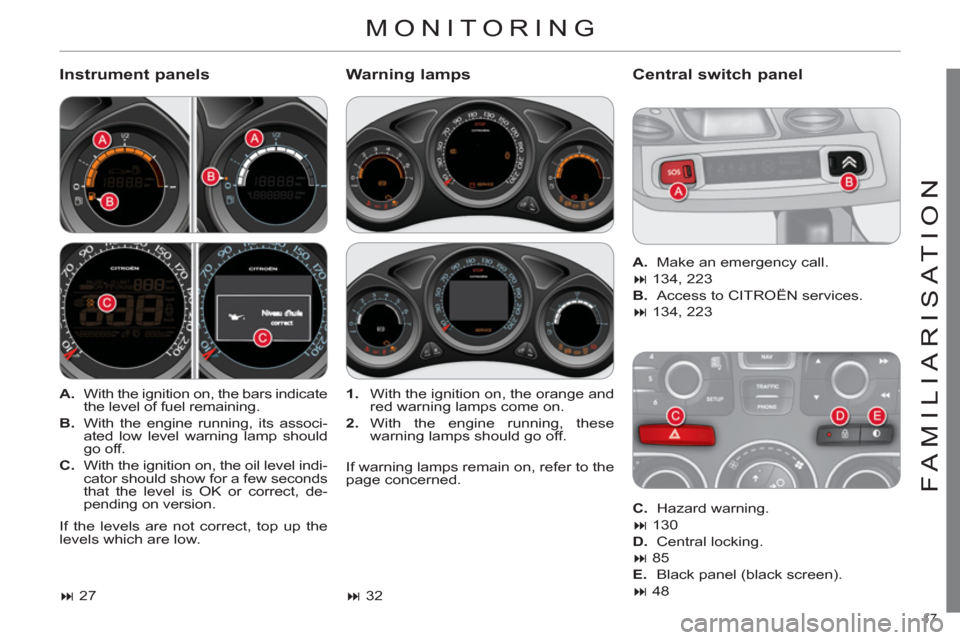

Instrument panels
Warning lamps Central switch panel



A.
With the ignition on, the bars indicate
the level of fuel remaining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level indi-
cator should show for a few seconds
that the level is OK or correct, de-
pending on version.



27


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.



32


A.
Make an emergency call.

134, 223

B.
Access to CITROËN services.

134, 223


C.
Hazard warning.



130

D.
Central locking.



85

E.
Black panel (black screen).



48
If the levels are not correct, top up the
levels which are low. If warning lamps remain on, refer to the
page concerned.

18
MONITORING

Side switch panel
Multifunction steering wheel


Cruise control/speed limiter
controls



166, 168


Optional functions controls


1.
Black panel (black screen).

48

2.
Dashboard lighting dimmer.

48

or
Control of the central colour screen
associated with the satellite naviga-
tion system.

56

3.
Courtesy lamp on/off.

106

or
Parking space sensors.

170


Audio system controls



228, 279


Bluetooth system or telephone
controls



228, 279

Illumination of the warning lamp indi-
cates the state of the system.


A.
Deactivation of the ESP/ASR system.

133

B.
Deactivation of the parking sensors.

173

C.

Deactivation of the Stop & Start system.

159

D.
Activation of the blind spot sensor
system.

162

E.
Activation of the lane departure
warning system.

161

F.
Deactivation of the volumetric alarm
protection.

88
