Page 57 of 324
2
MULTIFUNCTION SCREENS
55
COLOUR SCREEN AND MAP
From the navigation system control
panel, to select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,
)
turn the wheel A
to select a func-
tion, an item in a list,
)
press button B
to confi rm the selec-
tion,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section.
Controls "SETUP" menu
)
Press the "SETUP"
button for ac-
cess to its menu. You can choose
from the following functions:
- "Display confi guration",
- "Voice synthesis".
Display confi guration
This menu is used to set the bright-
ness of the screen, the screen colour
scheme and the date and time.
Voice synthesis
This menu is used to adjust the volume
for guidance messages and to select
the type of voice (male or female).
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Displays in the screen
It displays the following information au-
tomatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),
- parking sensor information,
- audio functions,
- directory and telephone information,
-
satellite navigation system information.
Page 65 of 324
3
COMFORT
63
RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:
)
To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles,
the vents and the air outlets, as well as the air extractor located in the
boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the digital air conditioning system.
)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.
)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
)
To ensure correct operation of the air conditioning system, you are
also advised to have it checked regularly as recommended in the
Maintenance and Warranty Guide.
)
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.
The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.
Page 80 of 324
3
COMFORT
78
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle,
this system automatically and progres-
sively changes between the day and
night uses.
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the control
lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehicles,
low sun...
Manual day/night model
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the nor-
mal "day" position.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Page 101 of 324
5
VISIBILITY
99
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.
Deactivation
)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the screen.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the du-
ration is set: 60 seconds),
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed on the instrument
panel and/or a message appears in the
screen, accompanied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.
Operating fault
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
Parking lamps
Side markers for the vehicle by illumi-
nation of the sidelamps on the traffi c
side only.
)
Within one minute of switching off
the ignition, operate the lighting con-
trol stalk up or down depending on
the traffi c side (for example: when
parking on the left; lighting control
stalk upwards; the right hand side-
lamps are on).
This is confi rmed by an audible signal
and illumination of the corresponding
direction indicator warning lamp in the
instrument panel.
To switch off the parking lamps, return
the lighting control stalk to the central
position.
Page 102 of 324
5
VISIBILITY
100
EXTERIOR WELCOMELIGHTING
Switching on
)
Press the open padlock on
the remote control.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
5 people.
-.
Intermediate setting.
2.
5 people + maximum authorised
load.
-.
Intermediate setting.
3.
Driver + maximum authorised load.
MANUAL ADJUSTMENT OFHALOGEN HEADLAMPS
The initial setting is position "0"
.
AUTOMATIC ADJUSTMENT OFXENON HEADLAMPS
The remote switching on of the light-
ing and side spotlamps makes your ap-
proach to the vehicle easier in poor light.
It is activated depending on the light level
detected by the sunshine sensor.
The dipped beam headlamps and the
sidelamps come on, as well as the side
spotlamps, located under the door mir-
rors; your vehicle is also unlocked.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp is displayed
on the instrument panel, ac-
companied by an audible
signal and a message in the screen.
The system then places your headlamps
in the lowest position.
Do not touch the xenon head-
lamp bulbs.
Contact a CITROËN dealer or a
qualifi ed workshop. The lighting duration is select-
ed via the vehicle confi guration
menu.
Page 106 of 324
5
104
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
downwards.
The instruction is confi rmed by
a wiping cycle, accompanied by
illumination of this warning lamp
in the instrument panel and an activation
message.
Switching on
Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.
Windscreen and headlamp
wash
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicated
by gauge in the reservoir fi ller neck un-
der the bonnet.
Checking and topping up this fl uid can
only be done when stationary with the
engine off.
The driver should check the level of this
fl uid regularly, particularly during winter.
Refer to "Checks - § Screenwash/head-
lamp wash level" for the procedure on
checking the level.
Low screenwash/headlamp wash
level
)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
Page 110 of 324
5
108
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running,
no limit.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated depending on the
light intensity detected by the sunshine
sensor.
Switching on
Switchin
g off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
)
Press the open padlock on
the remote control.
The side spotlamps, the footwell light-
ing and the courtesy lamps come on;
your vehicle is also unlocked. The lighting duration is select-
ed via the vehicle confi guration
menu.
Page 133 of 324
8
SAFETY
131
TYRE UNDER-INFLATION DETECTION
System which automatically and continu-
ously checks the pressure of the tyres
while driving.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed
on the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.
Under-infl ated tyre
The STOP
warning lamp
comes on and/or this warn-
ing lamp is displayed on the
instrument panel, accompa-
nied by an audible signal and
a message in the screen iden-
tifying the wheel concerned.
)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
Sensor(s) not detected or faulty
A message appears in the screen, ac-
companied by an audible signal, to
identify the wheel or wheels which are
not detected or to indicate a malfunc-
tion in the system.
Contact a CITROËN dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired)
or when one or more wheels
without a sensor are fi tted.
If your vehicle is equipped with
a spare wheel, this is not fi tted
with a sensor. All repairs and changing of tyres
on a wheel fi tted with this sys-
tem must be carried out by a
CITROËN dealer or a qualifi ed
workshop.
If, when changing a tyre, you
install a wheel which is not de-
tected by your vehicle (example:
fi tting of snow tyres), you must
have the system reinitialised by
a CITROËN dealer or a qualifi ed
workshop.
The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the need
for the driver to be vigilant or to
drive responsibly. This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" sec-
tion) to ensure that the optimum
dynamic performance of the ve-
hicle is maintained and prevent
premature wear of the tyres, par-
ticularly in arduous driving condi-
tions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detec-
tion system may experience
temporary interference due to
electro-magnetic emissions on a
frequency close to that used by
the system.
)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Page 163 of 324
9
DRIVING
161
LANE DEPARTURE WARNING SYSTEM
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
Activation
)
Press this button, the indicator lamp
comes on.
Deactivation
)
Press this button again, the indicator
lamp goes off.
The status of the system remains in the
memory when the ignition is switched
off.
Detection
You are warned by the vibration of the
driver's seat cushion:
- on the right-hand side, if the mark-
ing on the ground has been crossed
on the right,
- on the left-hand side, if the marking
on the ground has been crossed on
the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the di-
rection indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-standard
marking (e.g. graffi ti) is crossed.
Operating fault
The detection may be impeded:
- if the sensors are dirty (mud,
snow...),
- if the markings on the ground
are worn,
- if there is little contrast be-
tween the markings on the
ground and the road surface.
System which detects the involuntary
crossing of longitudinal traffi c lane mark-
ings on the ground (solid or broken
line).
Sensors, fi tted below the front bumper,
trigger a warning if the vehicle drifts
over a lane marking (speed higher than
50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads. In the event of a malfunc-
tion, the service warning
lamp comes on, accompa-
nied by an audible signal
and a message in the screen.
Contact a CITROËN dealer or a qualifi ed
workshop.
Page 164 of 324
9
DRIVING
162

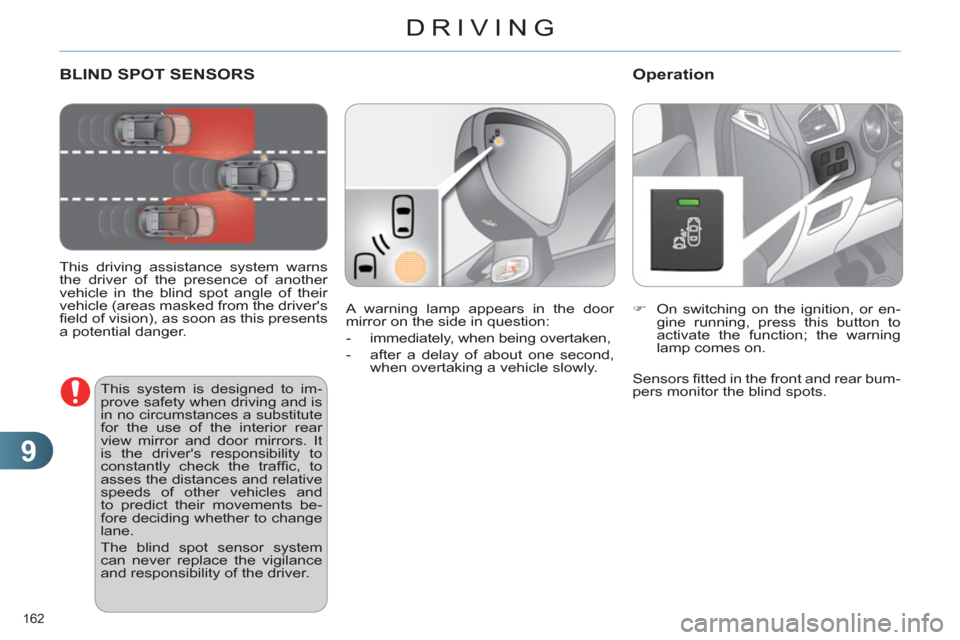

BLIND SPOT SENSORS
This driving assistance system warns
the driver of the presence of another
vehicle in the blind spot angle of their
vehicle (areas masked from the driver's
fi eld of vision), as soon as this presents
a potential danger.
Operation
)
On switching on the ignition, or en-
gine running, press this button to
activate the function; the warning
lamp comes on.
This system is designed to im-
prove safety when driving and is
in no circumstances a substitute
for the use of the interior rear
view mirror and door mirrors. It
is the driver's responsibility to
constantly check the traffi c, to
asses the distances and relative
speeds of other vehicles and
to predict their movements be-
fore deciding whether to change
lane.
The blind spot sensor system
can never replace the vigilance
and responsibility of the driver.
Sensors fi tted in the front and rear bum-
pers monitor the blind spots. A warning lamp appears in the door
mirror on the side in question:
- immediately, when being overtaken,
- after a delay of about one second,
when overtaking a vehicle slowly.
