Page 21 of 332
.
19
Familiarisation

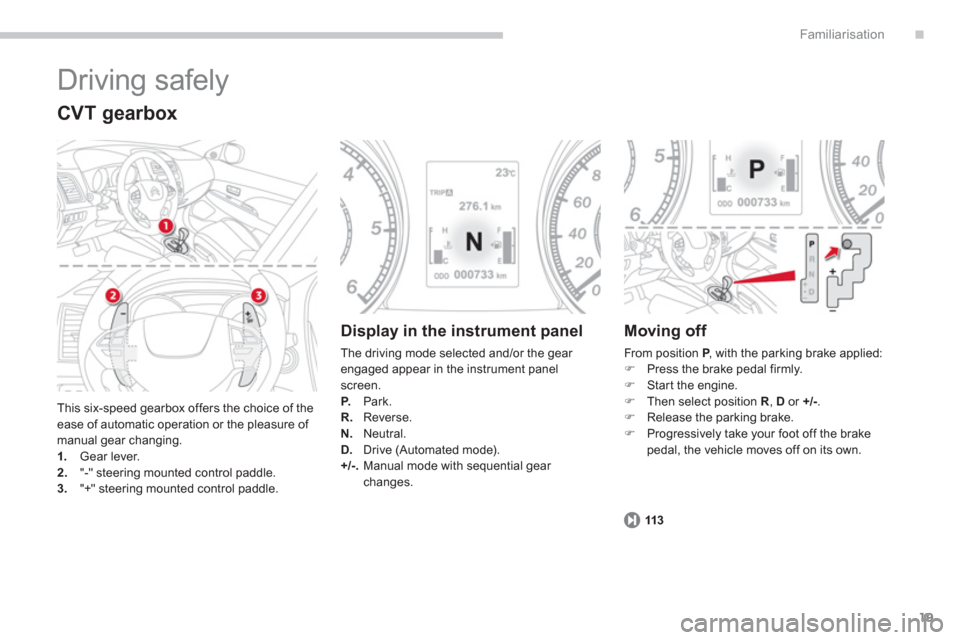

Driving safely
This six-speed gearbox offers the choice of the ease of automatic operation or the pleasure of manual gear changing.1.
Gear lever. 2."-" steering mounted control paddle. 3."+" steering mounted control paddle.
CVT gearbox
Display in the instrument panel
The driving mode selected and/or the gear
engaged appear in the instrument panel screen.
P.Park.
R. Reverse.
N
.Neutral. D. Drive (Automated mode).
+/-. Manual mode with sequential gear changes.
Moving off
From position P
, with the parking brake applied: P )
Press the brake pedal firmly. )
Start the engine. )
Then select position R
, D
or +/-. )
Release the parking brake. )
Progressively take your foot off the brake pedal, the vehicle moves off on its own.
11
3
Page 24 of 332
22
Familiarisation
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites youto change up; it is displayed in the instrumentpanel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal,and press the accelerator progressively. These practices contribute towards a reduction in fuelconsumption and CO2 emissions and also helpsreduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your
electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it byopening the windows and air vents before using
the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that canhelp keep the temperature in the passenger compartment down (sunroof and windowblinds...).
Switch off the air conditioning, unless it has automatic digital regulation, as soon as thedesired temperature is attained. Switch off the demisting and defrostingcontrols, if not automatic. Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglampswhen the level of light does not require their use.
Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.
As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel.
Disconnect your por table devices beforeleaving the vehicle.
Page 26 of 332
24
Monitoring

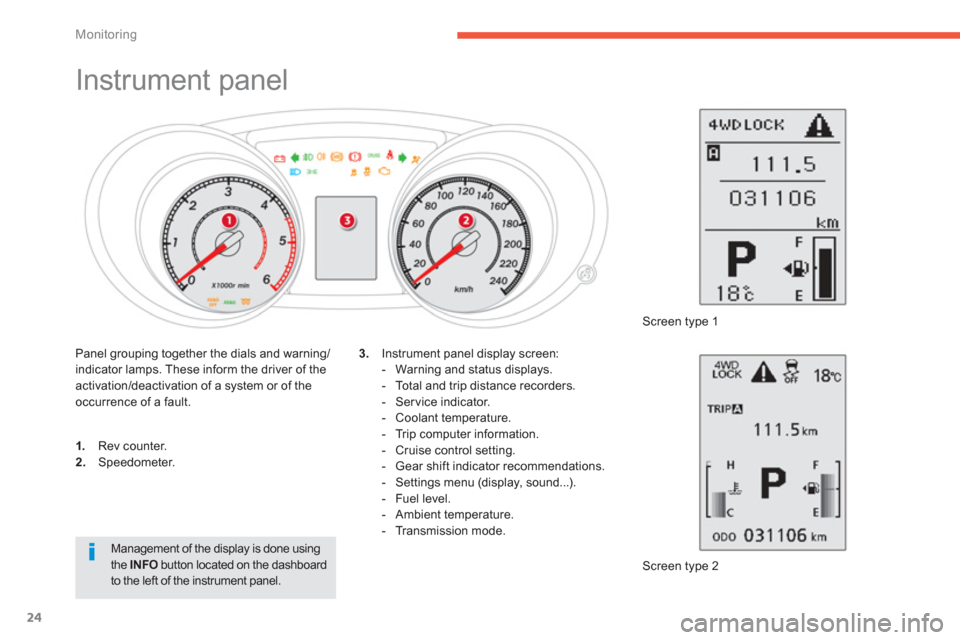

Instrument panel
1.
Rev counter. 2.
Speedometer.
Screen t
ype 2
3.
Instrument panel display screen:
- Warning and status displays.
- Total and tri
p distance recorders.
- Ser vice indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control settin
g.
- Gear shift indicator recommendations.
- Settings menu (display, sound...).
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel
grouping together the dials and warning/indicator lamps. These inform the driver of the activation/deactivation of a system or of theoccurrence of a fault.
Screen t
ype 1
Management of the display is done using the INFO
button located on the dashboard to the left of the instrument panel.
Page 28 of 332
26
Monitoring
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the following warning lamps indicates a malfunction
which requires action on the par t of the driver.
The warnin
g comes on in the instrument panel
or appears in the instrument panel screen.
Warning lampis onCauseAction / Observations
Parking brake / Brake fluid level / Electronic brake force distributionfix
ed. It comes on for a few seconds, then goes off when the ignition is switched
to "ON".
The parkin
g brake is on or not fully released. It is accompanied by a message. Release the parkingbrake to make the warning lamp go off.
Th
e brake fluid level is too low.It is accompanied by a message. Top up with brake
fluid and contact a CITROËN dealer or a qualified
workshop.
Th
e electronic brake force distribution(EBFD) is faulty.You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Engine autodiagnosis system
flashing. The engine management system hasa fault. Risk of destruction of the catalytic conver ter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fix
ed. The emission control system has a
fault. The warning lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or
qualified workshop without delay.
The illumination of a warning lamp may be accompanied by the display of an additionalmessage, to assist you in identifying the problem. If you encounter any problems, you should contact a CITROËN dealer or a qualified workshop.
Page 33 of 332
1
31
Monitoring
Instrument panel screen
Each time the engine is started: warning lamps and/or messages come on, applying a checking self test. They go off after a few seconds.
When
you want to see the trip computer information, you can choose to ignore the aler ts, by pressing the INFO
button on the dashboard.
The messa
ges displayed may vary according to the type of display screen (type 1 or type 2) in the instrument panel.
Cer tain messages are only displayed in the type 2 screen.
When this symbol appears: make a
short press. When this symbol appears: make a longpress.
Ignition off.Ignition on (with a manual gearbox).Ignition on (with a CVT gearbox).
Warnings and alerts
When an aler t occurs, the displayed information then disappears. the warning lamp and its associated message appear, accompanied if appropriate by
an audible signal.
When there are several aler ts, they are displayed in turn and this symbol appears. It remains displayed while there are still alerts.
You will then be able to displa
y the aler ts again by pressing the INFO
button several times to cycle through the trip computer information and return to
the alerts.
Page 44 of 332
42
Monitoring

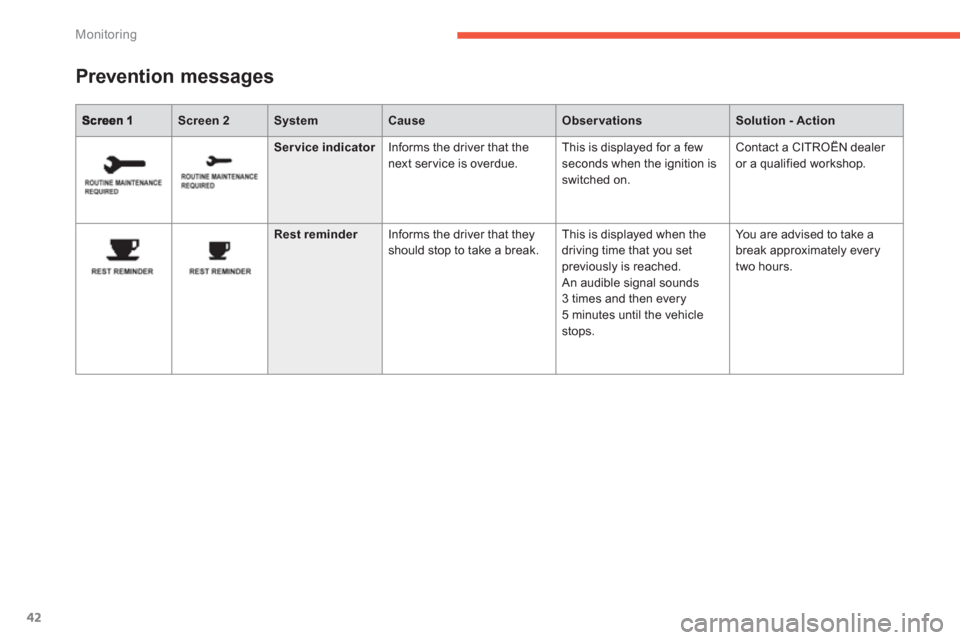

Screen 2SystemCauseObservationsSolution - Action
Prevention messages
Ser vice indicatorInforms the driver that the
next service is overdue. This is displa
yed for a few
seconds when the ignition is switched on.
Contact a CITROËN dealer
or a quali
fied workshop.
Rest reminderInforms the driver that they
should stop to take a break. This is displayed when the
driving time that you set
previousl
y is reached. An audible signal sounds 3 times and then every 5 minutes until the vehiclestops.
Yo u are advised to take a
break approximately every
tw
o hours.
Page 45 of 332
1
43
Monitoring

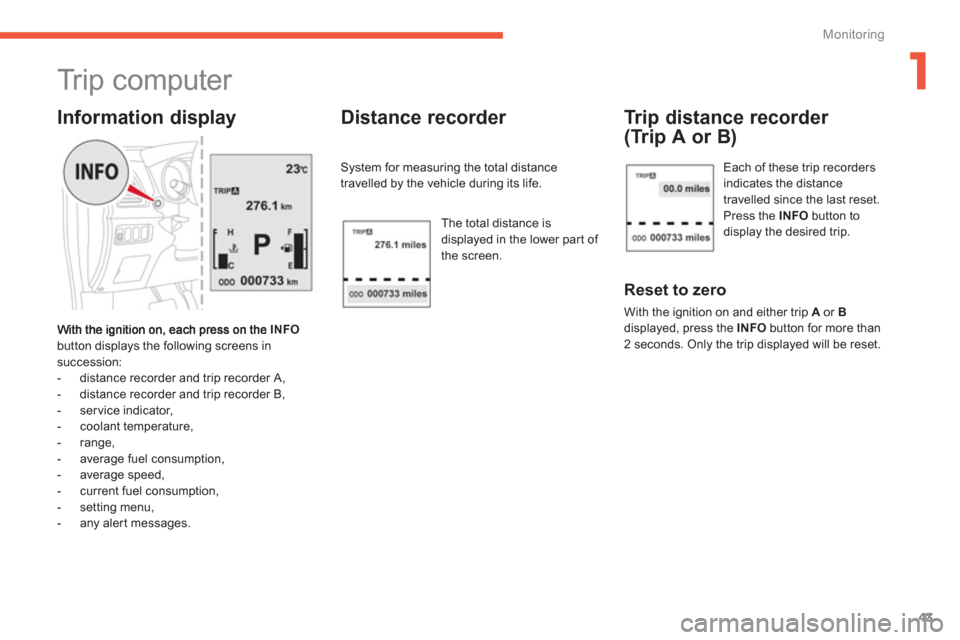

Tr i p c o m p u t e r
INFO
button displays the following screens in succession:
- distance recorder and trip recorder A,
- distance recorder and trip recorder B,
- service indicator,
- coolant temperature,
- range,
- average fuel consumption,
- average speed,
- current fuel consumption,
- settin
g menu,
- any aler t messages.
Information display Distance recorder
System for measuring the total distance
travelled by the vehicle during its life.
Th
e total distance is
displayed in the lower part of
the screen.
Trip distance recorder
(Trip A or B)
Reset to zero
With the ignition on and either trip Aor Bdisplayed, press the INFObutton for more than
2 seconds. Only the trip displayed will be reset.
Each of these trip recordersindicates the distance
travelled since the last reset.
Press the INFObutton todisplay the desired trip.
Page 46 of 332
44
Monitoring

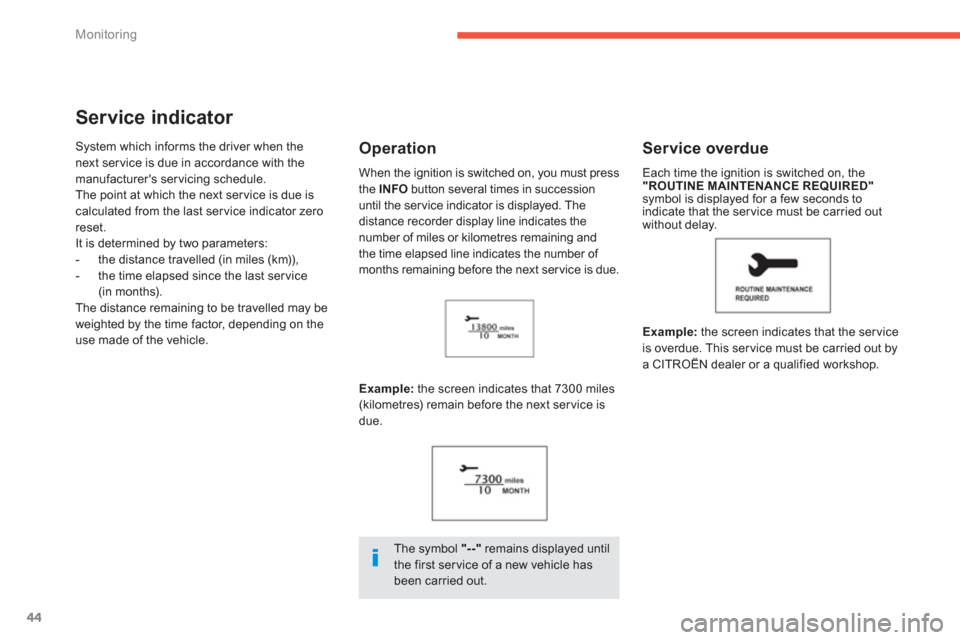

Service indicator
System which informs the driver when the next service is due in accordance with the manufacturer's servicing schedule.
The point at which the next ser vice is due is
calculated from the last service indicator zero
reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last service(in months).
The distance remaining to be travelled may be
wei
ghted by the time factor, depending on theuse made of the vehicle.
Exam
ple: the screen indicates that 7300 miles(kilometres) remain before the next ser vice is due.
Service overdue
Example:the screen indicates that the serviceis overdue. This ser vice must be carried out bya CITROËN dealer or a qualified workshop.
Operation
The symbol "--"remains displayed until the first service of a new vehicle has been carried out. Each time the i
gnition is switched on, the"ROUTINE MAINTENANCE REQUIRED"symbol is displayed for a few seconds toindicate that the service must be carried out
without delay. When the i
gnition is switched on, you must press
the INFO
button several times in successionuntil the service indicator is displayed. The
distance recorder display line indicates the
number of miles or kilometres remaining and
the time elapsed line indicates the number of
months remaining before the next ser vice is due.
Page 47 of 332
1
45
Monitoring

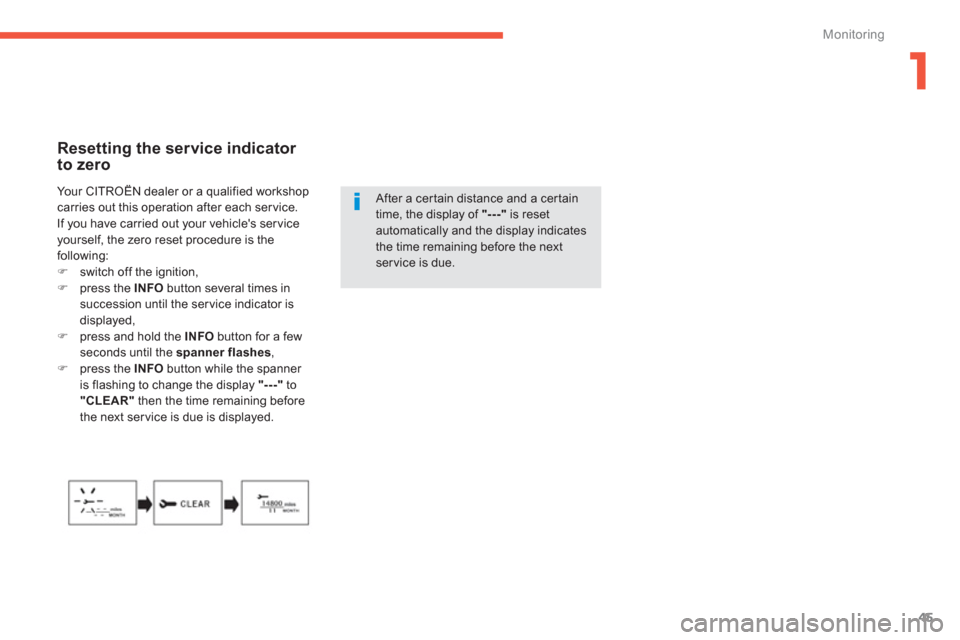

Resetting the service indicator to zero
After a certain distance and a certain time, the display of "---"
is reset automatically and the display indicatesthe time remaining before the nextservice is due.
Yo u r C I T R O
ËN dealer or a qualified workshopcarries out this operation after each ser vice.
If you have carried out your vehicle's ser vice yourself, the zero reset procedure is the
following: )switch off the ignition, )press the INFO
button several times in succession until the service indicator is displayed, )press and hold the INFO
button for a few seconds until the spanner flashes, )press the INFO
button while the spanner
is flashing to change the display "---" to"CLEAR"then the time remaining before
the next ser vice is due is displayed.
Page 48 of 332
46
Monitoring

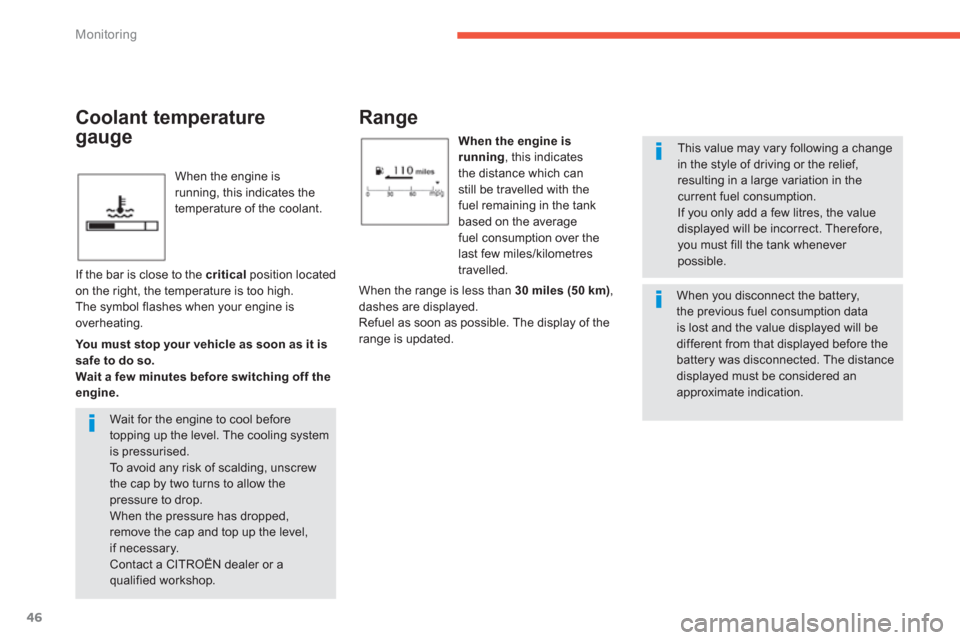

When the engine is
running, this indicates the
temperature of the coolant.
Range
When the engine isrunning , this indicates
the distance which can still be travelled with thefuel remaining in the tankbased on the average
fuel consumption over the
last few miles/kilometres
travelled.
This value may vary following a change
in the style of driving or the relief,resulting in a large variation in the current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. Therefore,you must fill the tank whenever possible.
Coolant temperature
gauge
If the bar is close to the criticalposition located
on the right, the temperature is too high.
The symbol flashes when your engine is
overheating.
You must stop your vehicle as soon as it is
safe to do so.Wait a few minutes before switching off theengine.
When the range is less than 30 miles (50 km),
dashes are displayed.
Refuel as soon as possible. The display of the range is updated.
Wait for the engine to cool beforetopping up the level. The cooling system is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow thepressure to drop. When the pressure has dropped,remove the cap and top up the level, if necessary.
Contact a CITROËN dealer or aqualified workshop.
When you disconnect the battery, the previous fuel consumption data is lost and the value displayed will be different from that displayed before thebattery was disconnected. The distancedisplayed must be considered anapproximate indication.
