Citroen C4 2012 2.G User Guide

9
FAMILIARISATION

6-speed electronic gearbox system
This offers a fully automatic mode, a
manual mode and an auto-sequential
mode which combines the advan-
tages of the automatic and manual
modes, using the paddles behind the
steering wheel.



149


Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.



162, 164

Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.



139


Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.



65


Interior mood lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



104



INTERIOR

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS

11
FAMILIARISATION

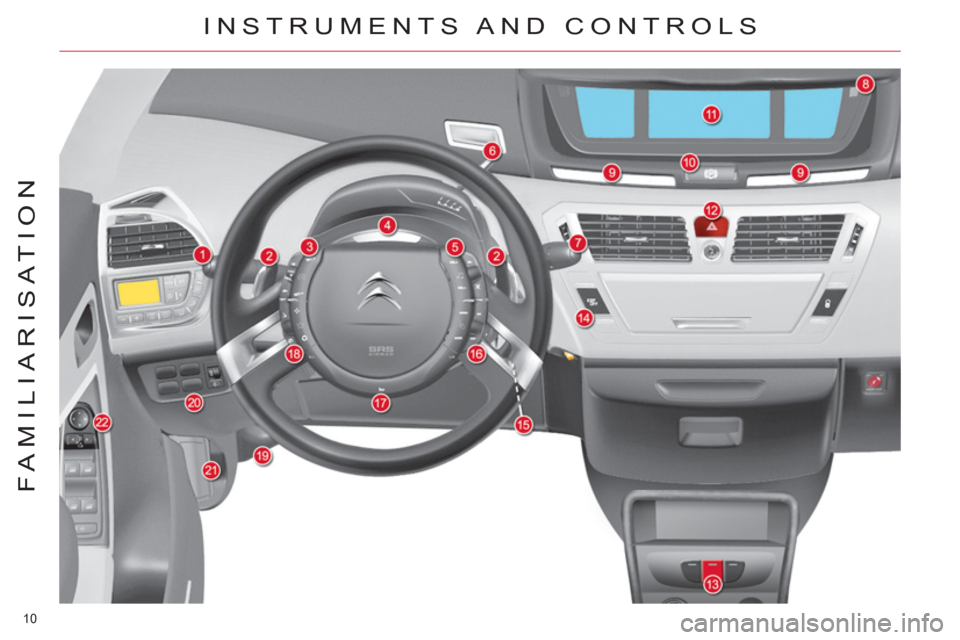

8.
Controls:


- Trip mileage recorder reset
button

- Lighting rheostat

9.
Warning lamps display (with the
MyWay or NaviDrive multifunction
screen)

10.
Electric parking brake

11 .
Instrument panel

12.
Hazard warning lamps

13.
Switch panels:


- Emergency or assistance

- Lane departure warning system

14.
ESP deactivation button

15.
Steering lock - Ignition switch

16.
Multifunction screen steering
mounted controls

17.
Horn


1.
Controls:


- Lighting

- Direction indicators

- Front and rear foglamps

2.
Paddles for automatic gearbox or
6-speed electronic gearbox system

3.
Cruise control and speed limiter
steering mounted controls

4.
Direction indicator warning lamps

5.
Audio and telematics system
steering mounted controls

6.
Gear lever for automatic gearbox or
6-speed electronic gearbox system

7.
Controls:


- Windscreen wipe

- Screenwash

- Rear screen wipe

- Trip computer

INSTRUMENTS AND CONTROLS


18.
Optional function controls
(on steering wheel)

19.
Fusebox access cover

20.
Controls:


- Fuel fi ller fl ap

- Front and rear parking sensors

- Stop & Start

- Volumetric alarm deactivation

- Headlamp adjustment

21.
Bonnet release

22.
Mirror controls

12
FAMILIARISATION
INSTRUMENTS AND CONTROLS

13
FAMILIARISATION
INSTRUMENTS AND CONTROLS

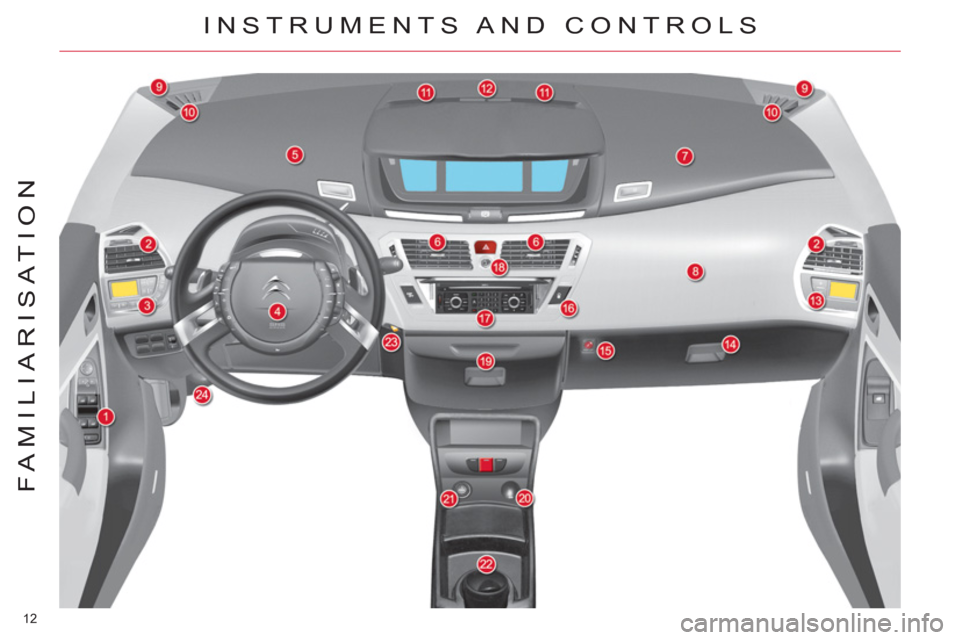

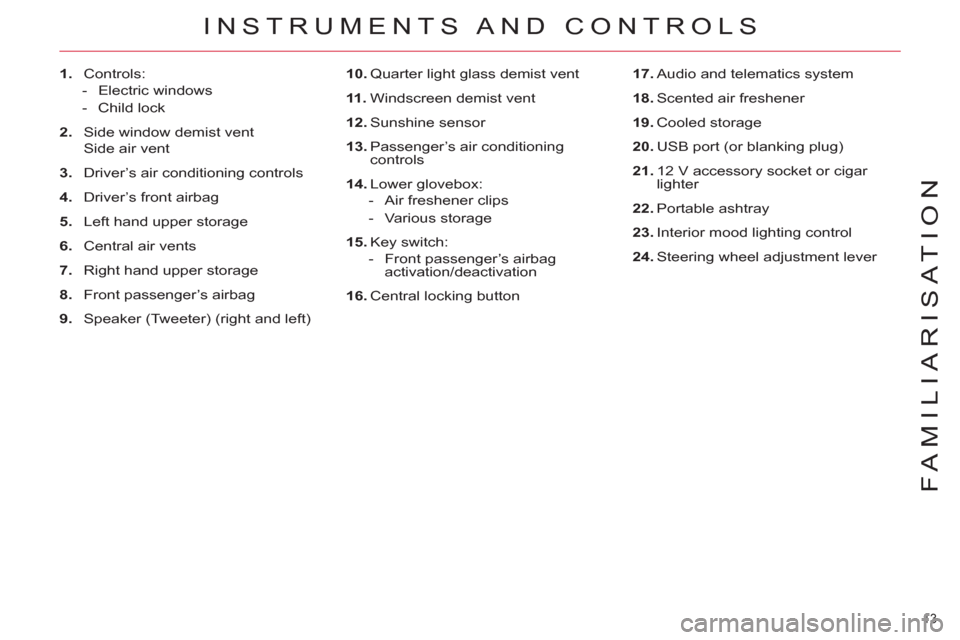

1.
Controls:


- Electric windows

- Child lock

2.
Side window demist vent
Side air vent

3.
Driver’s air conditioning controls

4.
Driver’s front airbag

5.
Left hand upper storage

6.
Central air vents

7.
Right hand upper storage

8.
Front passenger’s airbag

9.
Speaker (Tweeter) (right and left)
10.
Quarter light glass demist vent

11 .
Windscreen demist vent

12.
Sunshine sensor

13.
Passenger’s air conditioning
controls

14.
Lower glovebox:


- Air freshener clips

- Various storage

15.
Key switch:


- Front passenger’s airbag
activation/deactivation

16.
Central locking button
17.
Audio and telematics system

18.
Scented air freshener

19.
Cooled storage

20.
USB port (or blanking plug)

21.
12 V accessory socket or cigar
lighter

22.
Portable ashtray

23.
Interior mood lighting control

24.
Steering wheel adjustment lever

14
FAMILIARISATION

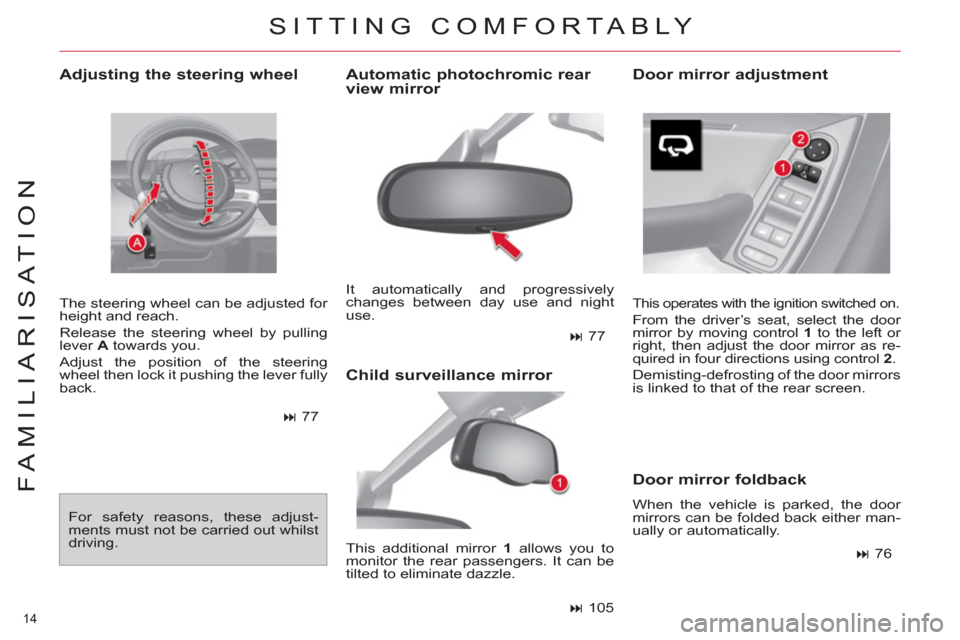

Adjusting the steering wheel

The steering wheel can be adjusted for
height and reach.
Release the steering wheel by pulling
lever A
towards you.
Adjust the position of the steering
wheel then lock it pushing the lever fully
back.



77
It automatically and progressively
changes between day use and night
use. This operates with the ignition switched on.

From the driver’s seat, select the door
mirror by moving control 1
to the left or
right, then adjust the door mirror as re-
quired in four directions using control 2
.
Demisting-defrosting of the door mirrors
is linked to that of the rear screen.



105



76

For safety reasons, these adjust-
ments must not be carried out whilst
driving.
This additional mirror 1
allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle.

Door mirror foldback

When the vehicle is parked, the door
mirrors can be folded back either man-
ually or automatically.
SITTING COMFORTABLY

Automatic photochromic rear
view mirror
Door mirror adjustment




77



Child surveillance mirror

15
FAMILIARISATION

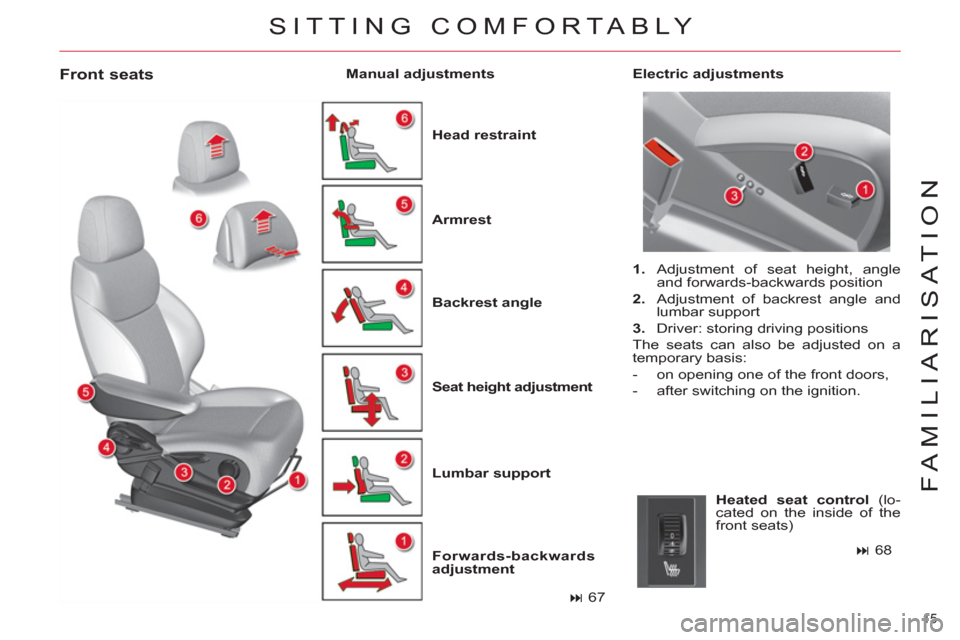

Front seats


Head restraint


Backrest angle


Seat height adjustment

Lumbar support


Forwards-backwards
adjustment

Armrest

Electric adjustments

Manual adjustments



68



Heated seat control
(lo-
cated on the inside of the
front seats)



67

1.
Adjustment of seat height, angle
and forwards-backwards position

2.
Adjustment of backrest angle and
lumbar support

3.
Driver: storing driving positions
The seats can also be adjusted on a
temporary basis:


- on opening one of the front doors,

- after switching on the ignition.

SITTING COMFORTABLY

16
FAMILIARISATION

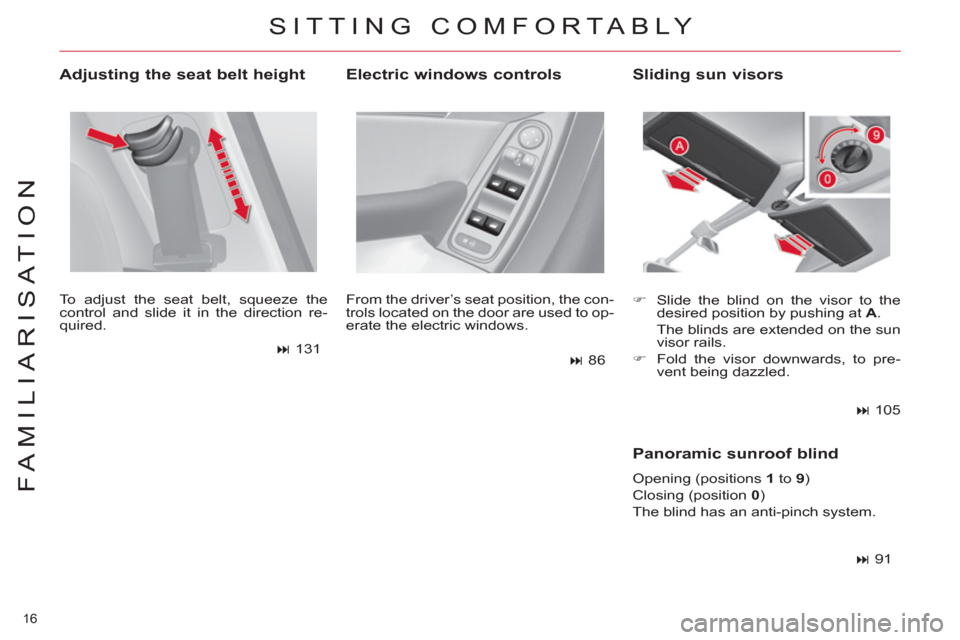

Adjusting the seat belt height

To adjust the seat belt, squeeze the
control and slide it in the direction re-
quired.



131
From the driver’s seat position, the con-
trols located on the door are used to op-
erate the electric windows.



86


)
Slide the blind on the visor to the
desired position by pushing at A
.
The blinds are extended on the sun
visor rails.

)
Fold the visor downwards, to pre-
vent being dazzled.


Panoramic sunroof blind

Opening (positions 1
to 9
)
Closing (position 0
)
The blind has an anti-pinch system.



91

SITTING COMFORTABLY


Electric windows controls
Sliding sun visors




105

17
FAMILIARISATION

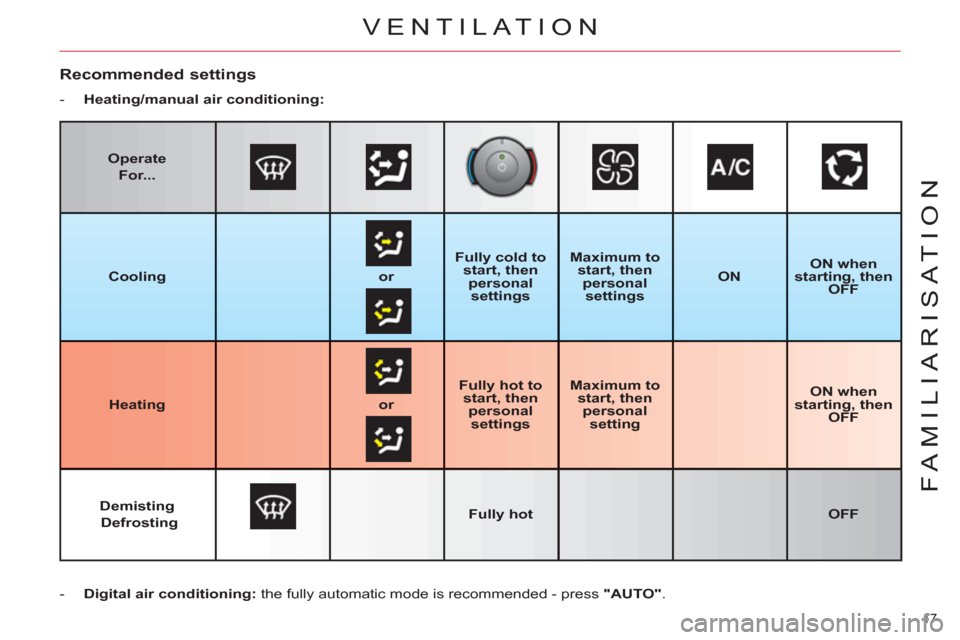

Recommended settings



- Heating/manual air conditioning:




- Digital air conditioning:
the fully automatic mode is recommended - press "AUTO"
.

Operate


For...





Cooling



or

Fully cold to
start, then
personal
settings

Maximum to
start, then
personal
settings

ON

ON when
starting, then
OFF


Heating




or

Fully hot to
start, then
personal
settings

Maximum to
start, then
personal
setting




ON when
starting, then
OFF


Demisting

Defrosting




Fully hot



OFF


VENTILATION

18
FAMILIARISATION

Seat belts not fastened/
unfastened warning lamp
This warning lamp informs you if
the driver’s or front passenger’s
seat belt is not fastened (de-
pending on model), and if the
front passenger’s (depending
on model) or the second-row
passengers’ seat belts are unfastened.
The illuminated positions represent
those whose seat belts are not fas-
tened/unfastened.
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This function can be deactivated by
pressing button A
for more than two
seconds.

Tyre under-inflation detection

This function warns you if a tyre is de-
fl ated or punctured.
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp
comes on, and a vehicle outline
is displayed, accompanied by a
message and an audible signal.
Under-infl ation warning
The STOP
warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture


41




127




89

MONITORING


Automatic central locking
Instrument panel


with multifunction screen A or C

with the MyWay or NaviDrive
multifunction screen


1.
Instrument panel.

2.
Multifunction screen.

3.
Control buttons.

4.
Warning lamps display zone.



31




32



Manual central locking

You can use electrical central locking or
unlocking by pressing on button A
.
If one of the doors is open or is not
closed properly, central locking will not
work.
