PRACTICAL INFORMATION

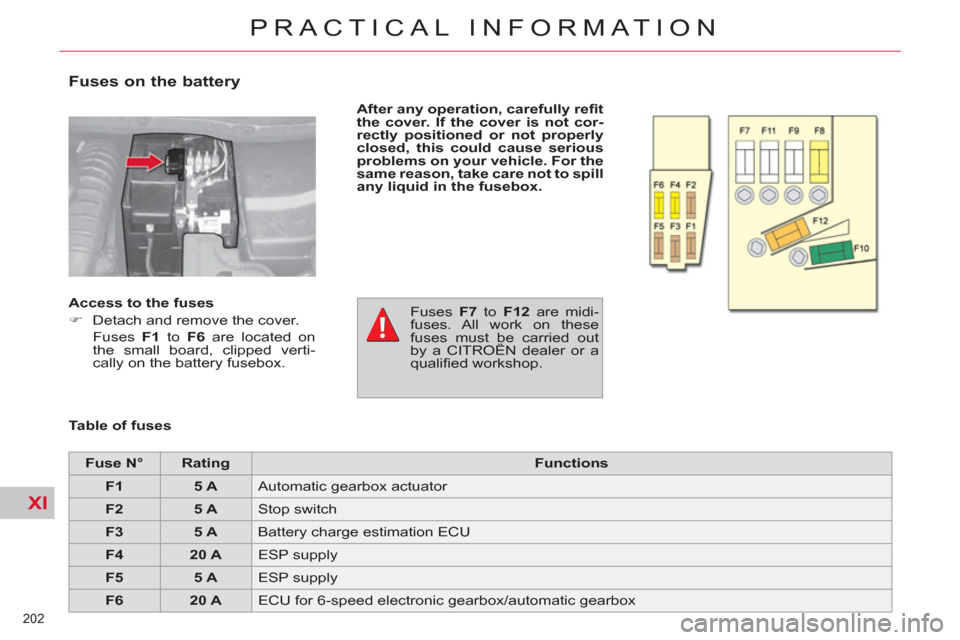

Fuses on the battery


After any operation, carefully refi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.



Table of fuses

Access to the fuses


)
Detach and remove the cover.
Fuses F1
to F6
are located on
the small board, clipped verti-
cally on the battery fusebox.
Fuses F7
to F12
are midi-
fuses. All work on these
fuses must be carried out
by a CITROËN dealer or a
qualifi ed workshop.


Fuse N°



Rating



Functions




F1



5 A

Automatic gearbox actuator


F2



5 A

Stop switch


F3



5 A

Battery charge estimation ECU


F4



20 A

ESP supply


F5



5 A

ESP supply


F6



20 A

ECU for 6-speed electronic gearbox/automatic gearbox

XI
212
PRACTICAL INFORMATION
The fi tting of electrical
equipment or accessories
which are not recommend-
ed by CITROËN may result in a
failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
range of recommended equipment
and accessories.

Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
"Multimedia":
Bluetooth
® hands-free
system, audio systems, portable sat-
ellite navigation system, DVD player,
USB Box, speakers, 230 V/50 Hz
socket, 230 V/12 V power supply
adaptor, WiFi on board... You can also obtain products for
cleaning and maintenance (exterior
and interior), topping up (screen-
wash...) and replacement cartridges
(for the temporary puncture repair
kit...) from the CITROËN dealer
network.

Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).

338

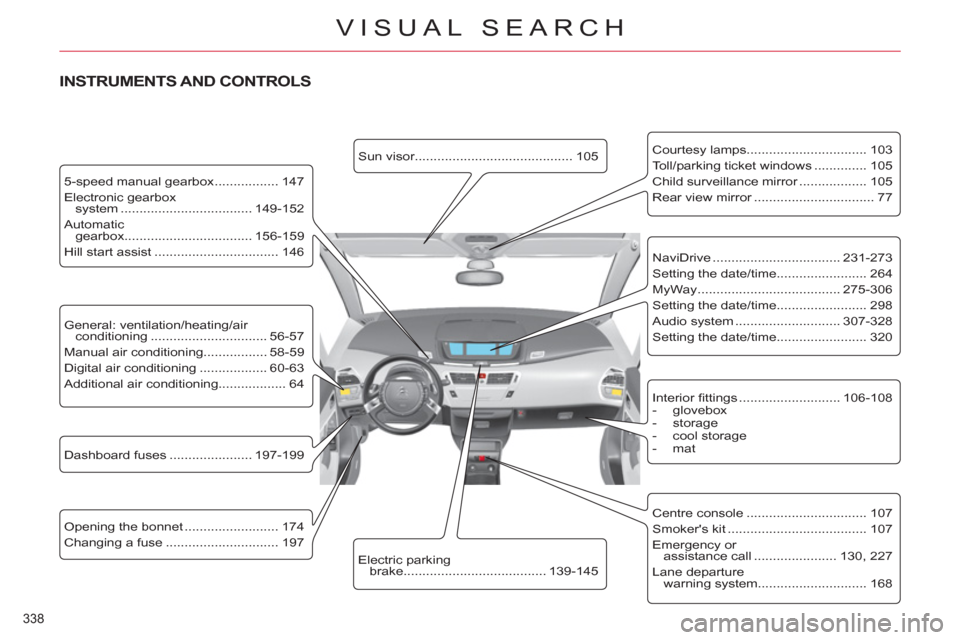

VISUAL SEARCH
