cruise control Citroen C4 2012 2.G Owner's Manual

CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Seat belts 131Airbags 135
■■■■■■■■■
VIII-SAFETY 126Î138
Electric parking brake 139Hill start assist 146Manual gearbox 147Gear shift indicator 1486-speed electronic gearbox system 149Stop & Start 153Automatic gearbox 156Fixed centred controlssteering wheel 160Speed limiter 162Cruise control 164Parking space sensors 166Lane departure warning system 168Parking sensors 169Pneumatic suspension 171
■■■■■
■■■
■■■■■■
IX - DRIVING 139Î172
Bonnet 174Running out of fuel (Diesel) 176Petrol engines 177Diesel engines 178Checking levels 179Checks 181
■■■■■■
X - CHECKS 173Î 182
Temporary puncture repair kit 183Changing a wheel 186Changing a bulb 190Changing a fuse 19712 V battery 203Energy economy mode 206Towing the vehicle 207Towing a trailer 209Roof bars 210Very cold climate screen 210Accessories 211
■■■■■■■■■■■
XI - PRACTICALINFORMATION 183Î 212
Petrol engines 213Petrol weights 214Diesel engines 215Diesel weights 217Petrol/Diesel weights - commercial
versions 221Dimensions 223Identifi cation markings 226
■■■■■
■■
XII - TECHNICALDATA 213Î226
Emergency or assistance 227NaviDrive 231MyWay 275Audio system 307Video pack 329
■■■■■
AUDIO andTELEMATICS 227 Î336
VISUALSEARCH 337 Î 341
ALPHABETICALINDEX 342 Î 348

9
FAMILIARISATION

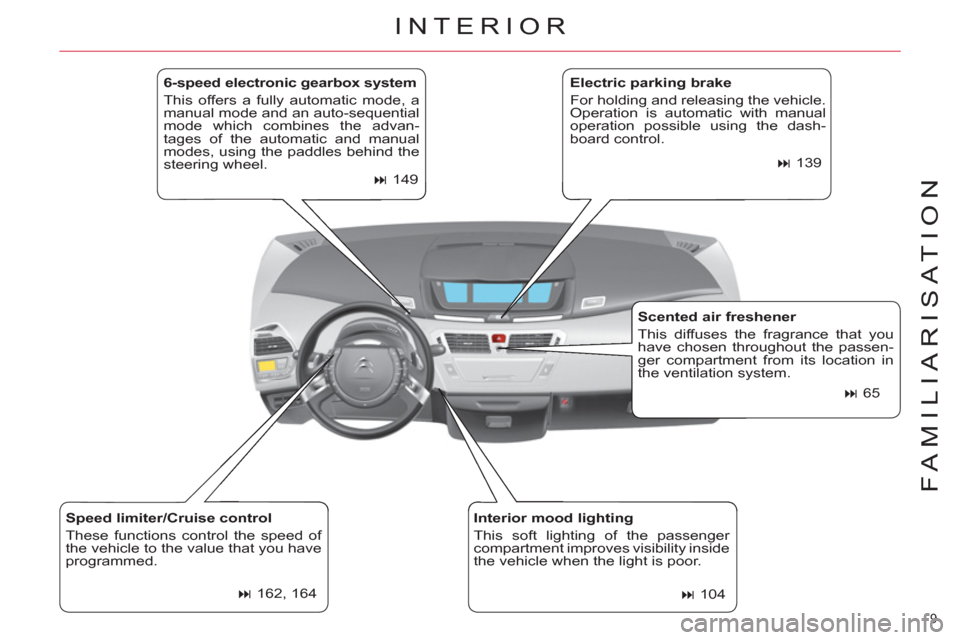

6-speed electronic gearbox system
This offers a fully automatic mode, a
manual mode and an auto-sequential
mode which combines the advan-
tages of the automatic and manual
modes, using the paddles behind the
steering wheel.



149


Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.



162, 164

Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.



139


Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.



65


Interior mood lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



104



INTERIOR

11
FAMILIARISATION

8.
Controls:


- Trip mileage recorder reset
button

- Lighting rheostat

9.
Warning lamps display (with the
MyWay or NaviDrive multifunction
screen)

10.
Electric parking brake

11 .
Instrument panel

12.
Hazard warning lamps

13.
Switch panels:


- Emergency or assistance

- Lane departure warning system

14.
ESP deactivation button

15.
Steering lock - Ignition switch

16.
Multifunction screen steering
mounted controls

17.
Horn


1.
Controls:


- Lighting

- Direction indicators

- Front and rear foglamps

2.
Paddles for automatic gearbox or
6-speed electronic gearbox system

3.
Cruise control and speed limiter
steering mounted controls

4.
Direction indicator warning lamps

5.
Audio and telematics system
steering mounted controls

6.
Gear lever for automatic gearbox or
6-speed electronic gearbox system

7.
Controls:


- Windscreen wipe

- Screenwash

- Rear screen wipe

- Trip computer

INSTRUMENTS AND CONTROLS


18.
Optional function controls
(on steering wheel)

19.
Fusebox access cover

20.
Controls:


- Fuel fi ller fl ap

- Front and rear parking sensors

- Stop & Start

- Volumetric alarm deactivation

- Headlamp adjustment

21.
Bonnet release

22.
Mirror controls

24
FAMILIARISATION

Ring B

Ring D: rear screen wipe
Stop.
Intermittent.
Timed wash and wipe.


Fixed centred controls steering
wheel
Lighting stalk


Ring A



95


Stalk C: windscreen wipe



100


DRIVING



1.
Off

2.
Automatic illumination of headlamps

3.
Sidelamps

4.
Dipped/main beam headlamps
Front foglamps
Rear foglamp


Wiper stalk



1.
Optional function controls

2.
Cruise control/speed limiter and
parking space sensor

3.
Audio system controls

4.
Multifunction screen controls



94


Switching on "AUTO" mode


)
Press the stalk down and release.


Switching off "AUTO" mode


)
Press the stalk up and return it to
position "0"
.
The automatic rain sensitive wipers
must be reactivated each time the ve-
hicle is started.

Under certain climatic conditions
(low temperature, humid), the pres-
ence of condensation on the inner
surfaces of the headlamps and rear
lamps is not an indication of a fault;
this disappears a few minutes after
switching on the lamps.



160

5.
Horn



126

6.
Warning lamps for direction indica-
tors and vehicle lamps



33

28
FAMILIARISATION
DRIVING

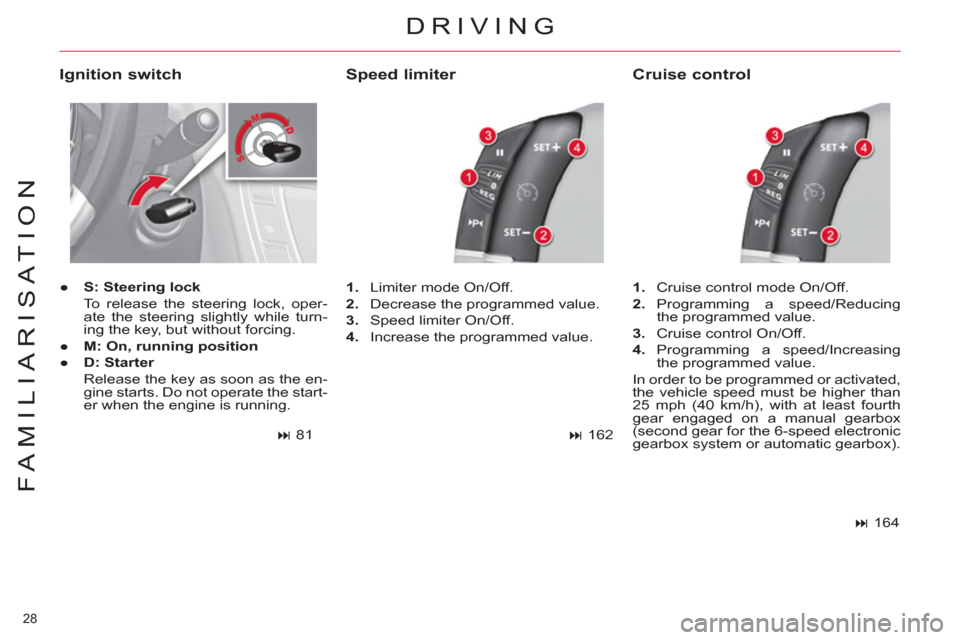

Ignition switch



●
S: Steering lock

To release the steering lock, oper-
ate the steering slightly while turn-
ing the key, but without forcing.

●
M: On, running position


●
D: Starter

Release the key as soon as the en-
gine starts. Do not operate the start-
er when the engine is running.



81


1.
Cruise control mode On/Off.

2.
Programming a speed/Reducing
the programmed value.

3.
Cruise control On/Off.

4.
Programming a speed/Increasing
the programmed value.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Cruise control




164


1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Speed limiter On/Off.

4.
Increase the programmed value.


Speed limiter




162

29
FAMILIARISATION

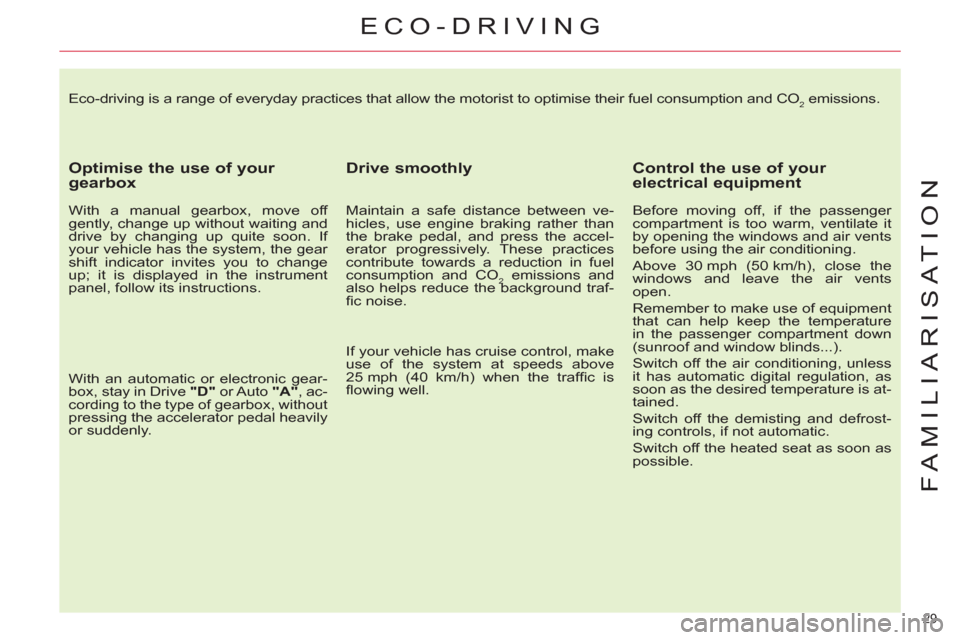

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change
up; it is displayed in the instrument
panel, follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.
ECO-DRIVING

I
31
MONITORING

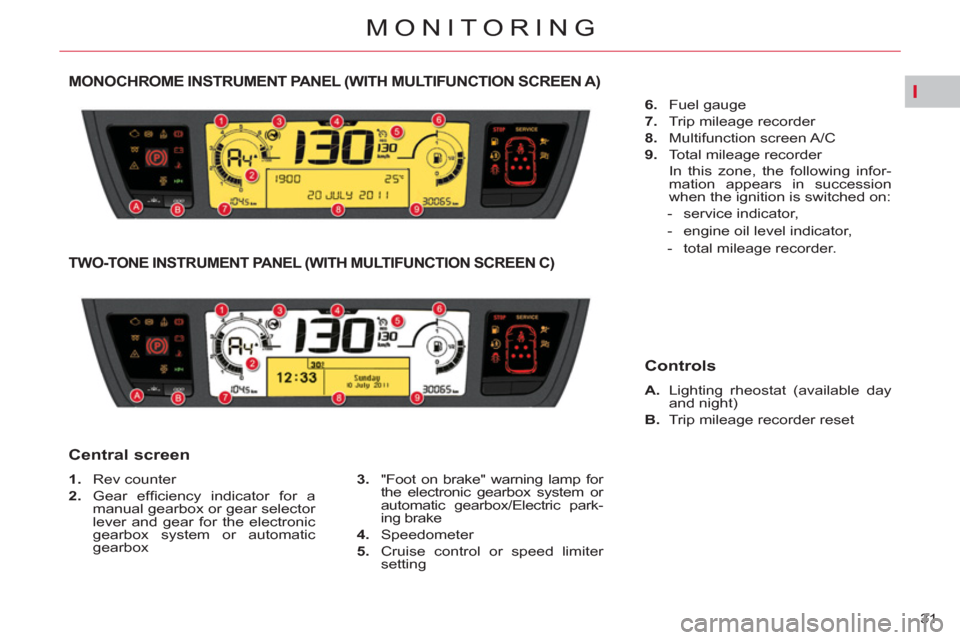

MONOCHROME INSTRUMENT PANEL (WITH MULTIFUNCTION SCREEN A)


1.
Rev counter

2.
Gear effi ciency indicator for a
manual gearbox or gear selector
lever and gear for the electronic
gearbox system or automatic
gearbox
3.
"Foot on brake" warning lamp for
the electronic gearbox system or
automatic gearbox/Electric park-
ing brake

4.
Speedometer

5.
Cruise control or speed limiter
setting

A.
Lighting rheostat (available day
and night)

B.
Trip mileage recorder reset



Central screen
Controls

TWO-TONE INSTRUMENT PANEL (WITH MULTIFUNCTION SCREEN C)


6.
Fuel gauge

7.
Trip mileage recorder

8.
Multifunction screen A/C

9.
Total mileage recorder
In this zone, the following infor-
mation appears in succession
when the ignition is switched on:


- service indicator,

- engine oil level indicator,

- total mileage recorder.

I
32
MONITORING

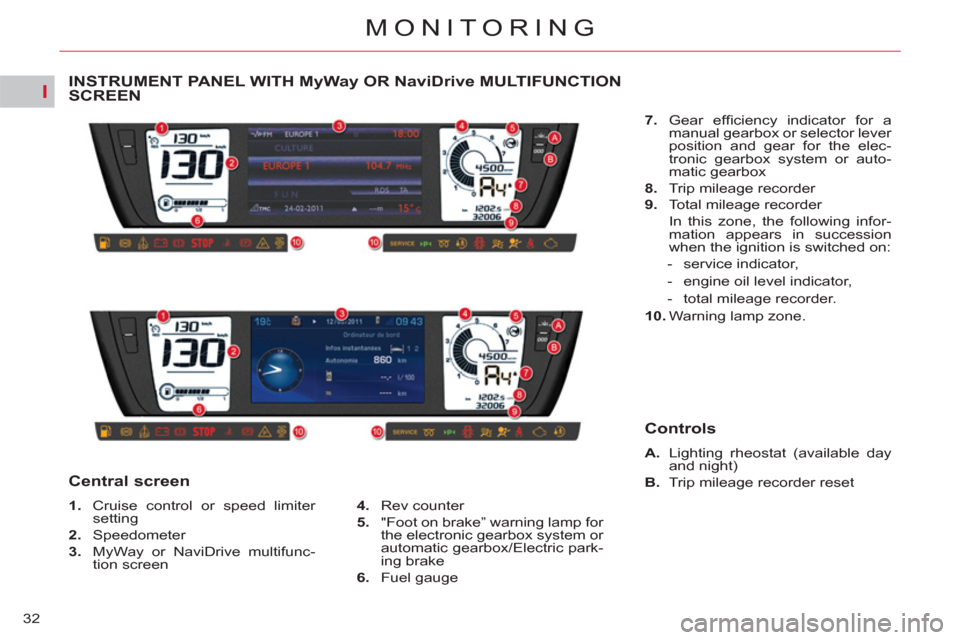

INSTRUMENT PANEL WITH MyWayOR NaviDriveMULTIFUNCTION
SCREEN


1.
Cruise control or speed limiter
setting

2.
Speedometer

3.
MyWay or NaviDrive multifunc-
tion screen
4.
Rev counter

5.
"Foot on brake” warning lamp for
the electronic gearbox system or
automatic gearbox/Electric park-
ing brake

6.
Fuel gauge

A.
Lighting rheostat (available day
and night)

B.
Trip mileage recorder reset



Central screen
Controls


7.
Gear effi ciency indicator for a
manual gearbox or selector lever
position and gear for the elec-
tronic gearbox system or auto-
matic gearbox

8.
Trip mileage recorder

9.
Total mileage recorder
In this zone, the following infor-
mation appears in succession
when the ignition is switched on:


- service indicator,

- engine oil level indicator,

- total mileage recorder.

10.
Warning lamp zone.

IX
160
DRIVING

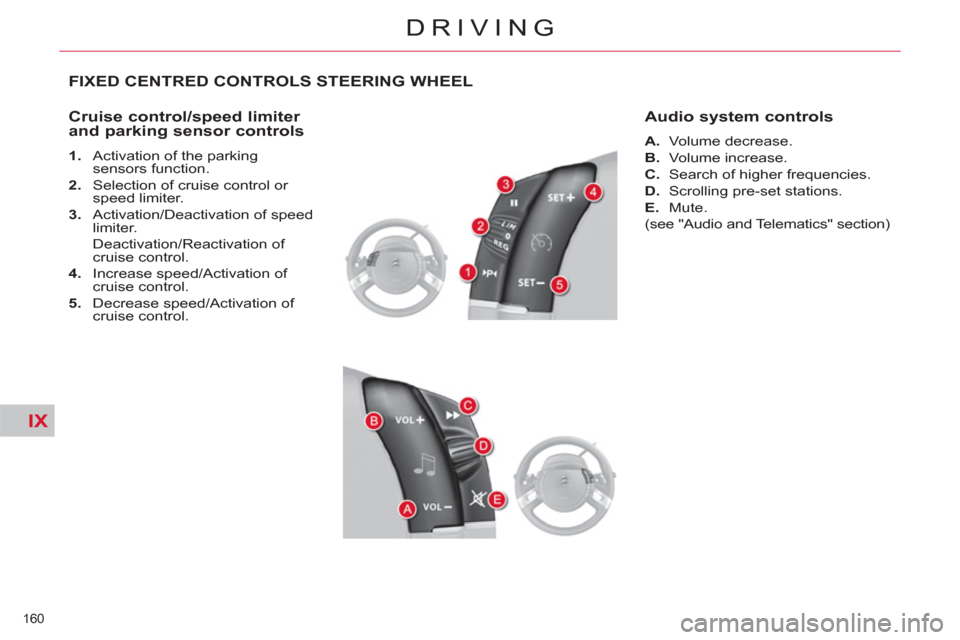

FIXED CENTRED CONTROLS STEERING WHEEL

Cruise control/speed limiter
and parking sensor controls


1.
Activation of the parking
sensors function.

2.
Selection of cruise control or
speed limiter.

3.
Activation/Deactivation of speed
limiter.
Deactivation/Reactivation of
cruise control.

4.
Increase speed/Activation of
cruise control.

5.
Decrease speed/Activation of
cruise control.



Audio system controls



A.
Volume decrease.

B.
Volume increase.

C.
Search of higher frequencies.

D.
Scrolling pre-set stations.

E.
Mute.
(see "Audio and Telematics" section)

IX
164
DRIVING

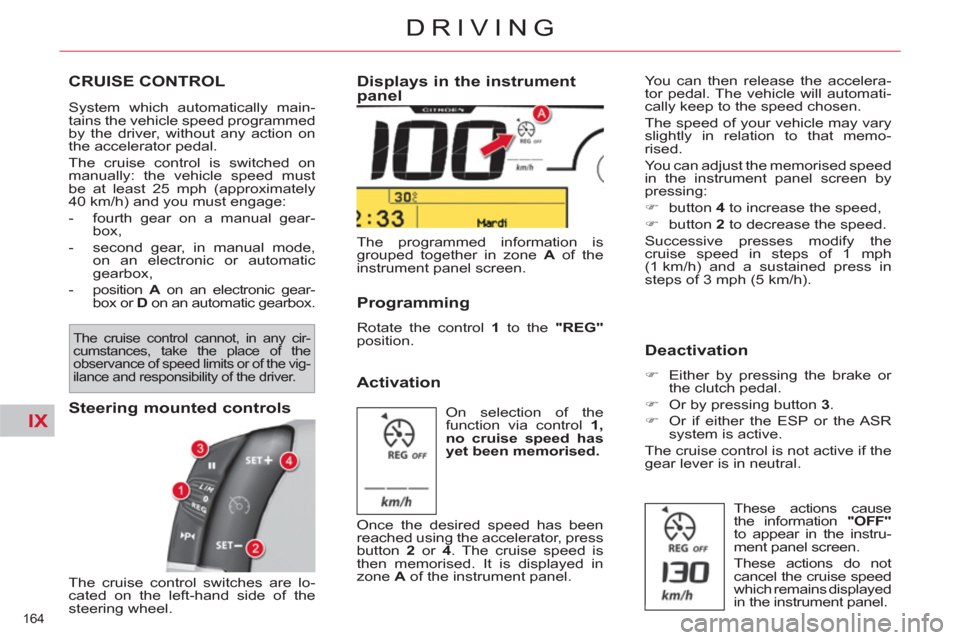

CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must
be at least 25 mph (approximately
40 km/h) and you must engage:


- fourth gear on a manual gear-
box,

- second gear, in manual mode,
on an electronic or automatic
gearbox,

- position A
on an electronic gear-
box or D
on an automatic gearbox.


Steering mounted controls

The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone A
of the
instrument panel screen.


Displays in the instrument
panel

Activation
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
in the instrument panel screen by
pressing:


)
button 4
to increase the speed,

)
button 2
to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph
(1 km/h) and a sustained press in
steps of 3 mph (5 km/h).


Deactivation



)
Either by pressing the brake or
the clutch pedal.

)
Or by pressing button 3
.

)
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral. On selection of the
function via control 1,
no cruise speed has
yet been memorised.



Programming

Rotate the control 1
to the "REG"

position.
Once the desired speed has been
reached using the accelerator, press
button 2
or 4
. The cruise speed is
then memorised. It is displayed in
zone A
of the instrument panel. These actions cause
the information "OFF"

to appear in the instru-
ment panel screen.
These actions do not
cancel the cruise speed
which remains displayed
in the instrument panel.
The cruise control cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the vig-
ilance and responsibility of the driver.
