Page 89 of 332
4
ACCESS
87

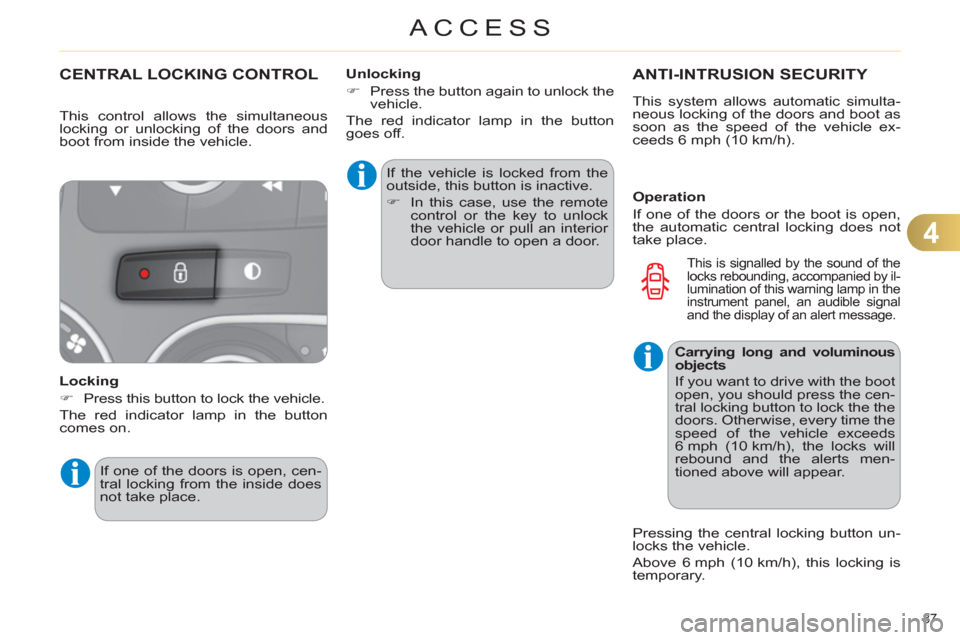

CENTRAL LOCKING CONTROL
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on. If the vehicle is locked from the
outside, this button is inactive.
)
In this case, use the remote
control or the key to unlock
the vehicle or pull an interior
door handle to open a door.
If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking
)
Press the button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
ANTI-INTRUSION SECURITY
Operation
If one of the doors or the boot is open,
the automatic central locking does not
take place.
This control allows the simultaneous
locking or unlocking of the doors and
boot from inside the vehicle.
This system allows automatic simulta-
neous locking of the doors and boot as
soon as the speed of the vehicle ex-
ceeds 6 mph (10 km/h).
Carrying long and voluminous
objects
If you want to drive with the boot
open, you should press the cen-
tral locking button to lock the the
doors. Otherwise, every time the
speed of the vehicle exceeds
6 mph (10 km/h), the locks will
rebound and the alerts men-
tioned above will appear.
Pressing the central locking button un-
locks the vehicle.
Above 6 mph (10 km/h), this locking is
temporary.
This is signalled by the sound of the
locks rebounding, accompanied by il-
lumination of this warning lamp in the
instrument panel, an audible signal
and the display of an alert message.
Page 90 of 332
4
ACCESS
88

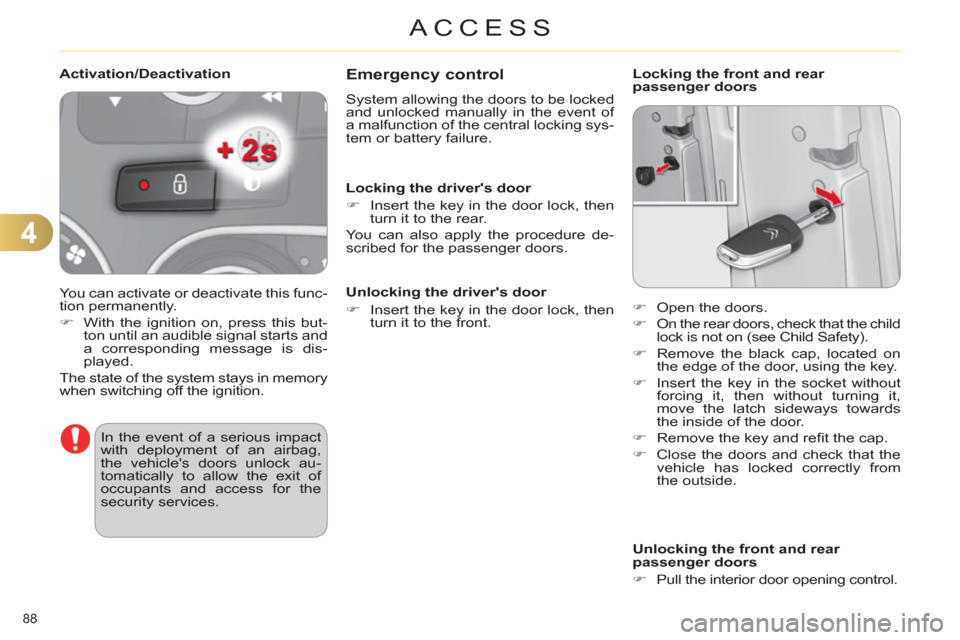

Emergency control
System allowing the doors to be locked
and unlocked manually in the event of
a malfunction of the central locking sys-
tem or battery failure.
Locking the driver's door
)
Insert the key in the door lock, then
turn it to the rear.
You can also apply the procedure de-
scribed for the passenger doors.
Unlocking the driver's door
)
Insert the key in the door lock, then
turn it to the front.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
)
Open the doors.
)
On the rear doors, check that the child
lock is not on (see Child Safety).
)
Remove the black cap, located on
the edge of the door, using the key.
)
Insert the key in the socket without
forcing it, then without turning it,
move the latch sideways towards
the inside of the door.
)
Remove the key and refi t the cap.
)
Close the doors and check that the
vehicle has locked correctly from
the outside.
Activation/Deactivation
You can activate or deactivate this func-
tion permanently.
)
With the ignition on, press this but-
ton until an audible signal starts and
a corresponding message is dis-
played.
The state of the system stays in memory
when switching off the ignition.
In the event of a serious impact
with deployment of an airbag,
the vehicle's doors unlock au-
tomatically to allow the exit of
occupants and access for the
security services.
Page 95 of 332
4
ACCESS
93

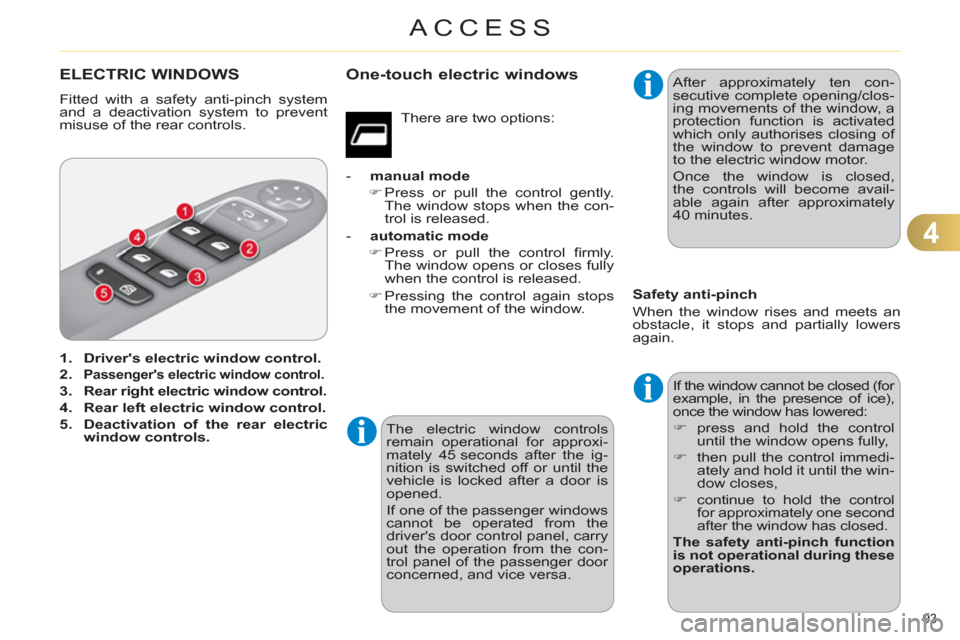

ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.
1.
Driver's electric window control.
2.
Passenger's electric window control.
3.
Rear right electric window control.
4.
Rear left electric window control.
5.
Deactivation of the rear electric
window controls.
The electric window controls
remain operational for approxi-
mately 45 seconds after the ig-
nition is switched off or until the
vehicle is locked after a door is
opened.
If one of the passenger windows
cannot be operated from the
driver's door control panel, carry
out the operation from the con-
trol panel of the passenger door
concerned, and vice versa. After approximately ten con-
secutive complete opening/clos-
ing movements of the window, a
protection function is activated
which only authorises closing of
the window to prevent damage
to the electric window motor.
Once the window is closed,
the controls will become avail-
able again after approximately
40 minutes.
If the window cannot be closed (for
example, in the presence of ice),
once the window has lowered:
)
press and hold the control
until the window opens fully,
)
then pull the control immedi-
ately and hold it until the win-
dow closes,
)
continue to hold the control
for approximately one second
after the window has closed.
The safety anti-pinch function
is not operational during these
operations.
There are two options:
- manual mode
)
Press or pull the control gently.
The window stops when the con-
trol is released.
- automatic mode
)
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.
)
Pressing the control again stops
the movement of the window.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
One-touch electric windows
Page 122 of 332
6
FITTINGS
120

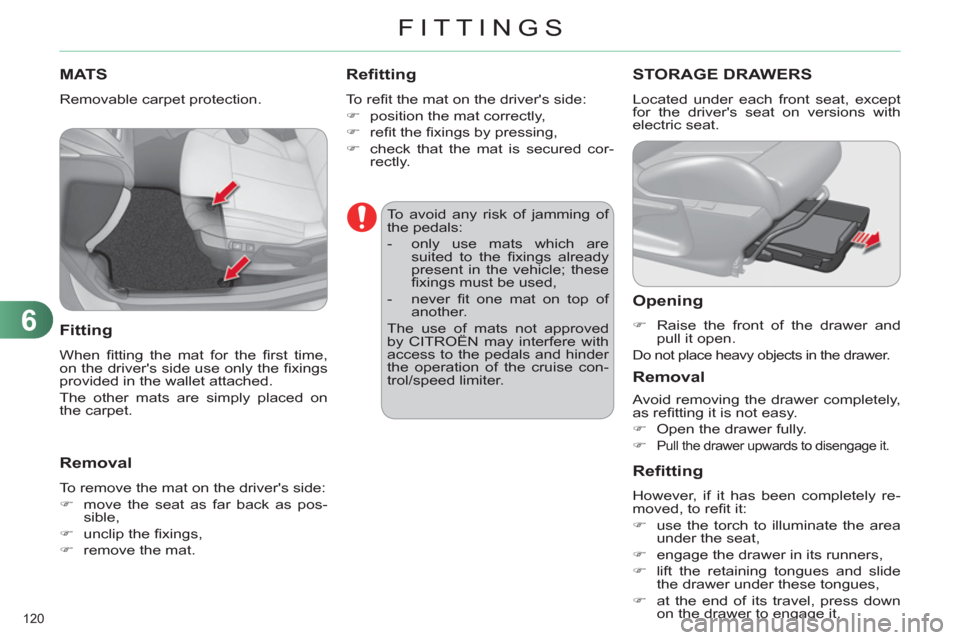

MATS
Removable carpet protection.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as pos-
sible,
)
unclip the fi xings,
)
remove the mat.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,
- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise con-
trol/speed limiter.
STORAGE DRAWERS
Located under each front seat, except
for the driver's seat on versions with
electric seat.
Opening
)
Raise the front of the drawer and
pull it open.
Do not place heavy objects in the drawer.
Removal
Avoid removing the drawer completely,
as refi tting it is not easy.
)
Open the drawer fully.
)
Pull the drawer upwards to disengage it.
Refitting
However, if it has been completely re-
moved, to refi t it:
)
use the torch to illuminate the area
under the seat,
)
engage the drawer in its runners,
)
lift the retaining tongues and slide
the drawer under these tongues,
)
at the end of its travel, press down
on the drawer to engage it.
Page 125 of 332
6
FITTINGS
123
To remove the shelf:
)
unhook the two cords,
)
raise the shelf slightly, then remove it.
There are several options for storing
the shelf:
- either upright behind the front
seats,
- or fl at at the base of the boot.

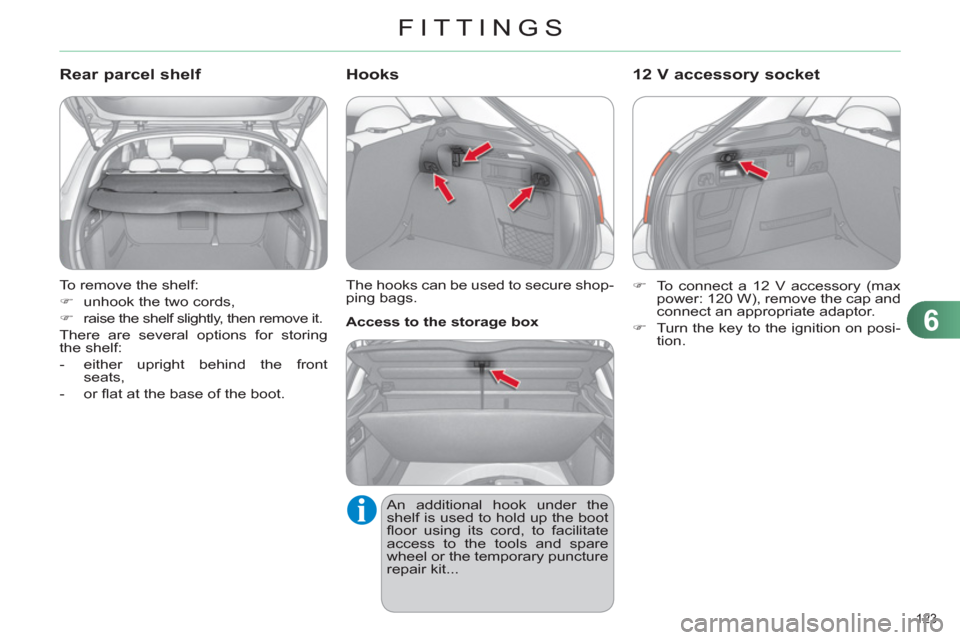

Rear parcel shelf
The hooks can be used to secure shop-
ping bags.
Hooks
An additional hook under the
shelf is used to hold up the boot
fl oor using its cord, to facilitate
access to the tools and spare
wheel or the temporary puncture
repair kit...
Access to the storage box
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on posi-
tion.
12 V accessory socket
Page 131 of 332
7
CHILD SAFETY
129
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using the seat belt
and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
Seat
Weight of the child/
indicative age
Less than 13 kg
(groups 0 (b)
and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to
≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to
≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to
≈ 10 years
Front passenger seat (c)
- fi xed
U(R1)
U(R1)
U(R1)
U(R1)
- height adjustable
U(R2)
U(R2)
U(R2)
U(R2)
Outer rear seats
U
U
U
U
Centre rear seat
X
X
X
X
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
U(R1)
: identical to U
, with the vehicle's seat backrest inclined fully forwards.
U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position.
X
: seating position not suitable for installing a child seat for the weight group indicated.
Page 132 of 332
7
CHILD SAFETY
130
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

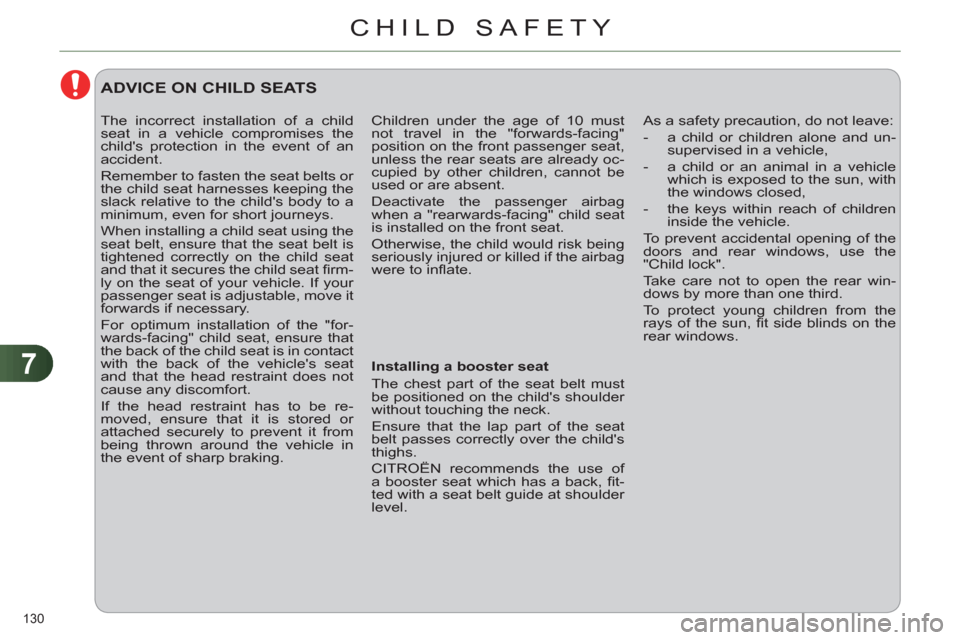

ADVICE ON CHILD SEATS
As a safety precaution, do not leave:
- a child or children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle. If your
passenger seat is adjustable, move it
forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Page 133 of 332
7
CHILD SAFETY
131

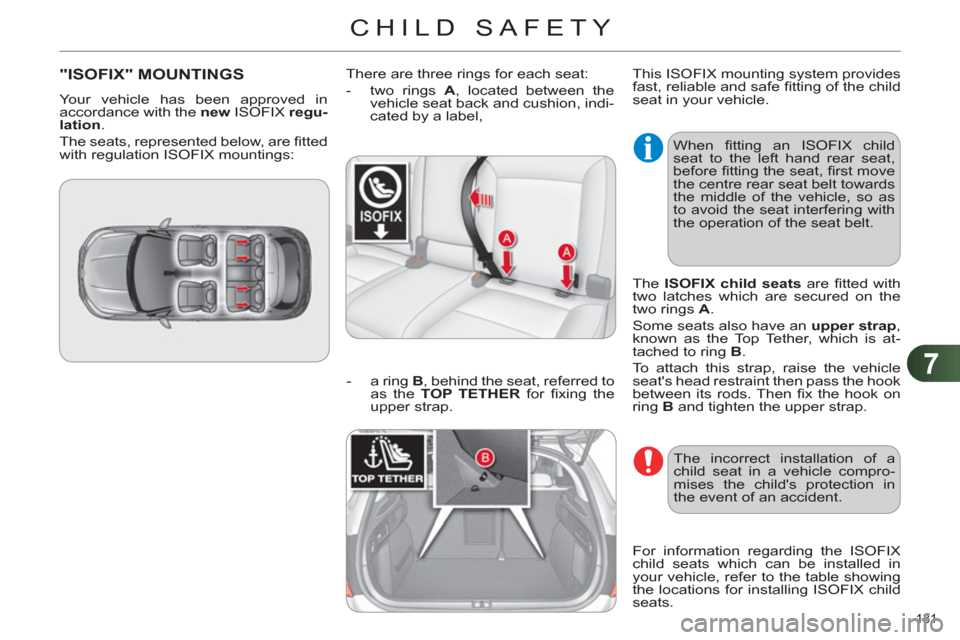

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new
ISOFIX regu-
lation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: There are three rings for each seat:
- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B
, behind the seat, referred to
as the TOP TETHER
for fi xing the
upper strap. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table showing
the locations for installing ISOFIX child
seats. When fi tting an ISOFIX child
seat to the left hand rear seat,
before fi tting the seat, fi rst move
the centre rear seat belt towards
the middle of the vehicle, so as
to avoid the seat interfering with
the operation of the seat belt.
The ISOFIX child seats
are fi tted with
two latches which are secured on the
two rings A
.
Some seats also have an upper strap
,
known as the Top Tether, which is at-
tached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.
Page 134 of 332
7
CHILD SAFETY
132

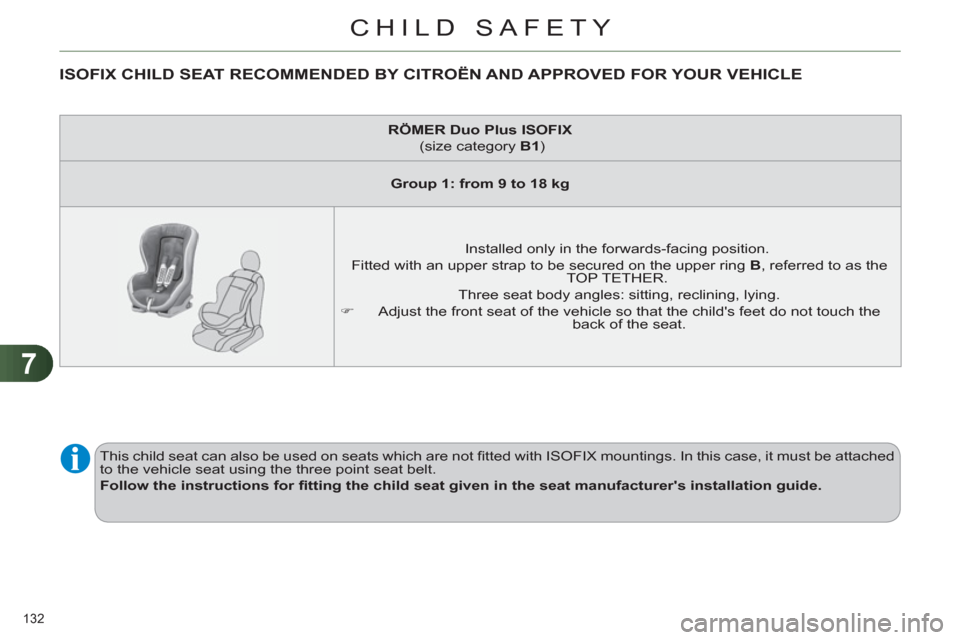

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
RÖMER
Duo Plus ISOFIX
(size category B1
)
Group 1: from 9 to 18 kg
Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as the
TOP TETHER.
Three seat body angles: sitting, reclining, lying.
)
Adjust the front seat of the vehicle so that the child's feet do not touch the
back of the seat.
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.
Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.
Page 135 of 332
7
CHILD SAFETY
133
*
Infant car seats and "car cots" cannot be installed on the front passenger seat.
**
The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
LOCATIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to
G
, is indicated on the child seat next to the ISOFIX logo.
IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.
IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:
- "rear facing" fi tted with an upper strap or a stay,
- "forward facing" fi tted with a stay,
- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings".
Weight of the child
/indicative age
Less than
10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat
Infant car
seat
*
"rear facing"
"rear facing"
"forward facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
ISOFIX child seats universal
and semi-universal which
can be installed on the rear
outer seats
IL-SU
**
IL-SU
IL-SU
IUF
IL-SU
