Page 4 of 332
CONTENTS
2
Monochrome screen A 51
Monochrome screen C 53
Colour screen and map 56
Trip computer 59
2 - MULTIFUNCTION
SCREENS 51 Î 62
Ventilation 63
Manual air conditioning 65
Dual-zone digital air
conditioning 67
Rear screen demist - defrost 70
Front seats 71
Rear seats 76
Mirrors 77
Steering wheel adjustment 79
3 - COMFORT 63 Î 79
Remote control key 80
Alarm 89
Doors 91
Boot 92
Electric windows 93
Panoramic sunroof 95
Fuel tank 96
Misfuel prevention (Diesel) 98
4 - ACCESS 80 Î 98
Lighting controls 99
Automatic illumination
of headlamps 103
Welcome lighting 104
Headlamp adjustment 105
Directional lighting 106
Wiper controls 108
Automatic rain sensitive wipers 109
Courtesy lamps 111
Interior mood lighting 112
Boot lamp 112
5 - VISIBILITY 99 Î 11 2
Interior fi ttings 113
Centre consoles 116
Front armrest 117
Boot fi ttings 122
Luggage cover
(enterprise version) 125
6 - FITTINGS 113 Î 125
Instrument panels 28
Rev counter 32
Warning and indicator lamps 33
Indicators 44
Manual test 47
Time and units 48
Customisation 50
FAMILIARISATION 4 Î 25
1 - MONITORING 28 Î 50
Child seats 126
ISOFIX child seats 131
Child lock 134
7 - CHILD SAFETY 126 Î 134 ECO-DRIVING 26 Î 27
Page 20 of 332
18
MONITORING
Side switch panel
Multifunction steering wheel
Cruise control/speed limiter
controls
171, 173
Optional functions controls
1.
Black panel (black screen).
49
2.
Dashboard lighting dimmer.
49
or
Control of the central instrument
panel screen associated with the
satellite navigation system.
57
3.
Courtesy lamp on/off.
111
or
Parking space sensors.
175
Audio system controls
234, 285
Bluetooth system or telephone
controls
234, 285
Illumination of the warning lamp indi-
cates the state of the system.
A.
Deactivation of the ESP/ASR system.
138
B.
Deactivation of the parking sensors.
177
C.
Deactivation of the Stop & Start system.
163
D.
Activation of the blind spot sensor
system.
167
E.
Activation of the lane departure
warning system.
166
F.
Deactivation of the volumetric alarm
protection.
89
Page 84 of 332
4
ACCESS
82
Locking the vehicle
)
Press the closed padlock to
lock the vehicle.
Normal locking using the remote
control
Normal locking using the key
)
Turn the key towards the rear in the
driver's door lock to lock the vehicle.
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Folding the key
)
First press this button to fold the key.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Locking is confi rmed by fi xed lighting
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
fold at the same time.
In low light, locking also brings on of the
guide-me-home lighting (see "Visibility").
If one of the doors or the boot
is still open, the central locking
does not take place; the vehicle
locks itself then unlocks straight
away, identifi able by the sound
of the locks rebounding.
When the vehicle is locked, if it
is unlocked inadvertently, it will
lock itself again automatically af-
ter thirty seconds unless a door
or the boot is opened. The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Closing the windows using the
3-button remote control
)
Press and hold down the
closed padlock until the
level of closing is achieved.
The windows stop when
you release the button.
When closing the windows using
the remote control you must en-
sure that nothing prevents their
correct closing.
If you want to leave the windows
partly open, it is necessary to
deactivate the volumetric alarm
protection.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

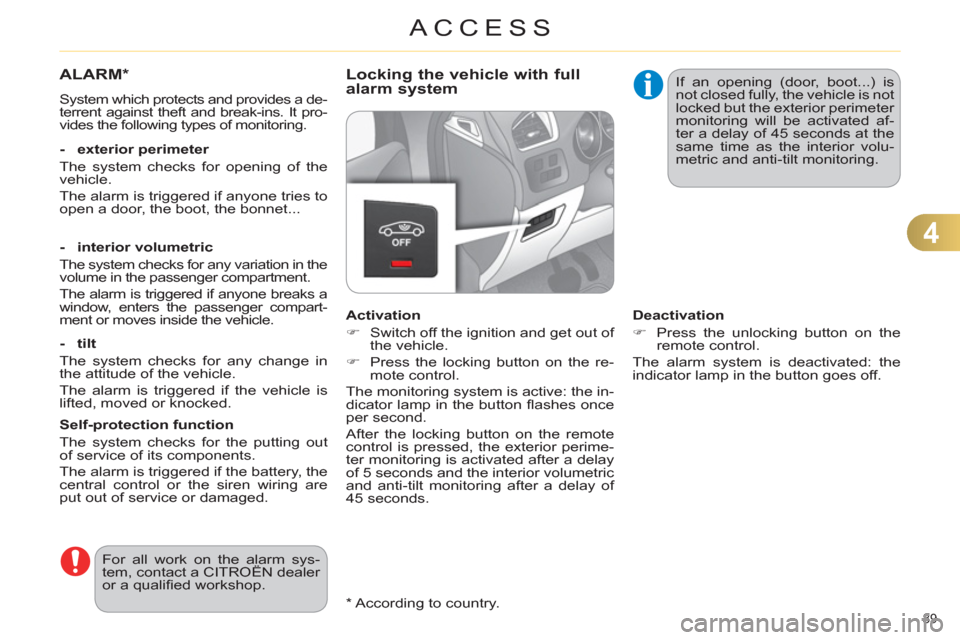

Page 91 of 332
4
ACCESS
89
*
According to country.
ALARM *
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring.
- exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compart-
ment or moves inside the vehicle.
- tilt
The system checks for any change in
the attitude of the vehicle.
The alarm is triggered if the vehicle is
lifted, moved or knocked.
Self-protection function
The system checks for the putting out
of service of its components.
The alarm is triggered if the battery, the
central control or the siren wiring are
put out of service or damaged.
For all work on the alarm sys-
tem, contact a CITROËN dealer
or a qualifi ed workshop.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Press the locking button on the re-
mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds. If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated af-
ter a delay of 45 seconds at the
same time as the interior volu-
metric and anti-tilt monitoring.
Deactivation
)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.

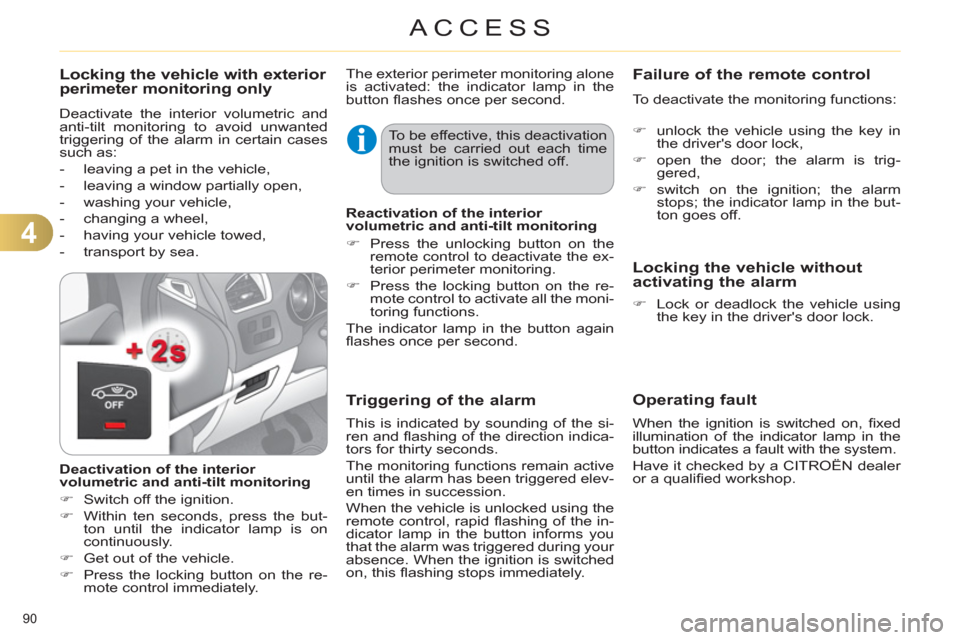

Page 92 of 332
4
ACCESS
90
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric and
anti-tilt monitoring to avoid unwanted
triggering of the alarm in certain cases
such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
)
Switch off the ignition.
)
Within ten seconds, press the but-
ton until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the re-
mote control immediately. The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
To be effective, this deactivation
must be carried out each time
the ignition is switched off.
Reactivation of the interior
volumetric and anti-tilt monitoring
)
Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
)
Press the locking button on the re-
mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
The monitoring functions remain active
until the alarm has been triggered elev-
en times in succession.
When the vehicle is unlocked using the
remote control, rapid fl ashing of the in-
dicator lamp in the button informs you
that the alarm was triggered during your
absence. When the ignition is switched
on, this fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
)
unlock the vehicle using the key in
the driver's door lock,
)
open the door; the alarm is trig-
gered,
)
switch on the ignition; the alarm
stops; the indicator lamp in the but-
ton goes off.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Page 206 of 332
11
PRACTICAL INFORMATION
204
Dashboard fuses
The fuseboxes are located in the lower
dashboard (left-hand side).
Access to the fuses
)
Refer to the paragraph "Access to
the tools".
Fuse tables
Fusebox 1
Fuse N°
Rating
Functions
F8
3 A
Alarm siren, alarm ECU.
F13
10 A
Cigarette lighter.
F14
10 A
12 V socket in boot.
F16
3 A
Lighting for the large multifunctional storage unit,
rear map reading lamps, glove box illumination.
F17
3 A
Sun visor illumination, front map reading lamps.
F28
15 A
Audio system, radio (after-market).
F30
20 A
Rear wiper.
F32
10 A
Hi-Fi amplifi er.
Page 217 of 332
11
PRACTICAL INFORMATION
215
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Comfort":
door defl ectors, side window blinds,
rear screen blind, isotherm module,
coat hanger fi xed to head restraint,
moveable courtesy mirror, reading
lamp, mirror for caravan, speed limiter/
cruise control, parking sensors...
"Transport systems":
boot carpet, boot liner, boot net, boot
spacers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
towbar wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest,
alloy wheels, wheel embellishers,
chrome exhaust tailpipe, chrome mirror
shells, chrome door aperture fi nishers,
tailgate lower chrome fi nisher...
*
To avoid any risk of jamming the pedals:
- ensure that mats are correctly posi-
tioned and secured,
- never fi t one mat on top of another.
"Security and safety":
anti-intrusion alarm, microwave sensor,
anti-tilt sensor, stolen vehicle tracking
system, child seats and booster cushions,
breathalyser, fi rst aid kit, fi re extinguisher,
warning triangle, high visibility vest, dog
guard, wheel security bolts, snow chains,
non-slip covers, front foglamp kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, door sill protectors, mud fl aps,
door protective rubbing strips, bumper pro-
tection strips, vehicle cover...
If a towbar and wiring harness
are fi tted outside the CITROËN
dealer network, the installation
must be done using the vehicle's
electrical pre-equipment and in
line with the manufacturer's rec-
ommendations.
Page 245 of 332
243
1
2
3

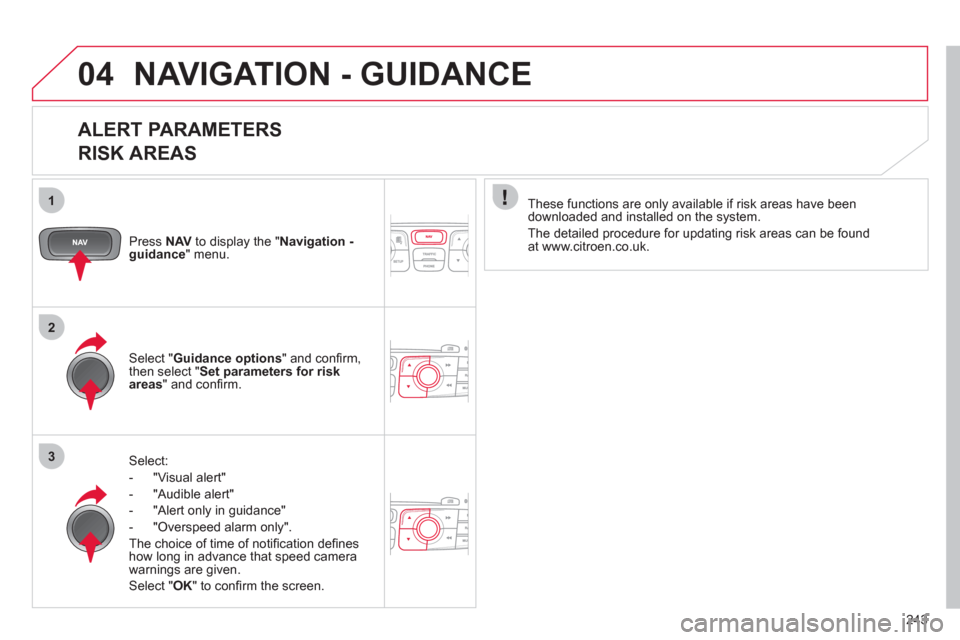

04 NAVIGATION - GUIDANCE
ALERT PARAMETERS
RISK AREAS
Press NAV
to display the " Navigation -
guidance
" menu.
Select:
- "Visual alert"
- "Audible alert"
- "Alert only in guidance"
- "Overspeed alarm only".
The choice of time of notifi cation defi nes
how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select " Set parameters for risk
areas
" and confi rm.
These functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updating risk areas can be found
at www.citroen.co.uk.
Page 319 of 332
317
VISUAL SEARCH
EXTERIOR
Remote control ........................... 80-86
- opening/closing
- antitheft protection
- starting
- battery
Wiper controls..........................108-110
Changing a wiper blade ................. 209
Door mirrors ................................ 77-78
Blind spot sensors .................. 167-169
Boot ........................................... 81, 92
Temporary puncture repair kit ...188-192
Changing a wheel ................... 193-196
- tools
- removing/refi tting
Changing bulbs....................... 201-202
- rear lamps
- 3rd brake lamp
- number plate lamp
Parking sensors ...................... 177-178
Parking space sensors ........... 175-176
Towbar ........................................... 213
Towing .....................................211-212
Accessories ............................ 215-216
Roof bars ....................................... 210
Panoramic sunroof .......................... 95
Braking assistance ........................ 137
Trajectory control .................... 138-139
Tyre under-infl ation detection ........ 136
Tyre pressures ....................... 192, 228
Lighting controls ....................... 99-103
Headlamp adjustment.................... 105
Welcome lighting ........................... 104
Directional lighting systems .... 106-107
Changing bulbs....................... 197-200
- front lamps
- front foglamps
- side repeaters
Doors ......................................... 87, 91
- opening/closing
- emergency control
Child lock ....................................... 134
Electric windows ......................... 93-94
Alarm .......................................... 89-90
Fuel tank ..................................... 96-97
Misfuel prevention ........................... 98
Page 323 of 332
321
ALPHABETICAL INDEX
A ABS and EBFD systems ............137
Accessories ................................215
Accessory socket,
12 V .................. 115, 116, 119, 123
Adjusting headlamps ..................105
Adjusting head restraints ..............73
Adjusting seat belt height ...140, 141
Adjusting the steering wheel ........79
Airbags, curtain ..................145, 146
Airbags, front ......................143, 146
Airbags, lateral ...................145, 146
Air conditioning .............................26
Air conditioning, digital ...........64, 67
Air conditioning, manual .........64, 65
Air fi lter .......................................186
Air fl ow .........................................26
Air vents .......................................63
Alarm ............................................89
Anti-lock braking system (ABS) ...137
Anti-pinch .....................................93
Anti-theft .......................................83
Armrest, front ..................... 117, 118
Armrest, rear ..............................121
Ashtray, portable ........................ 114
Assistance call ...................139, 230
Audible warning ..........................135
Audio streaming
(Bluetooth) ........................270, 296
Audio system ..................51, 53, 283
Automatic illumination
of headlamps ....................100, 103
Automatic operation
of hazard warning lamps ..........135
Automatic rain sensitive
windscreen wipers ............108, 109
Auxiliary socket ..................271, 295
Auxiliary sockets ........................ 115B Battery ................................186, 207
Battery, charging ........................207
Battery, remote control ............84-86
Black panel ...................................49
Blind spot sensors ......................167
Bluetooth (hands-free) .......254, 297
Bluetooth (telephone) .................254
Bonnet ........................................180
Bonnet stay ................................180
Boot ..............................................92
Boot lamp ........................... 112, 124
Brake discs .................................187
Brake lamps ...............................201
Brake pads .................................187
Brakes ........................................187
Braking assistance system .........137
C Capacity, fuel tank ........................96
CD ..............................................290
CD MP3 ..............................291, 292
Central locking .......................82, 87
Centre console ........................... 116
Changing a bulb .................197, 201
Changing a fuse .........................203
Changing a wheel ......................193
Changing a wiper blade ..... 110, 209
Changing the date ..............273, 308
Changing the remote
control battery ......................84, 85
Changing the time ........48, 273, 308
CHECK ...................................31, 47
Checking levels ..................184, 185
Checking the engine oil level .......44
Checking tyre pressures
(using the kit) ............................188
Checks ...............182, 183, 186, 187
Child lock ....................................134C Children ......................129, 132, 133
Child seats ................. 126, 128-130
Cigar lighter ................................ 115
Clock ............................................48
Closing the boot .....................82, 92
Closing the doors ...................82, 91
Cold climate screen ....................210
Connectors, audio ...... 115, 293, 295
Coolant level ..............................184
Courtesy lamps .................. 104, 111
Courtesy mirror .......................... 114
Cruise control .....................170, 173
Cup holder .................................. 116
D Date (setting) ..............................273
Daytime running
lamps ........................100, 197, 199
Deactivating
the passenger airbag ...............143
Defrosting .....................................70
Diesel additive level ...................185
Dimensions ................................227
Dipped beam ................99, 197, 199
Dipstick .................................44, 184
Directional lighting ..............106, 107
Direction
indicators ...102, 135, 197, 198, 201
Doors ............................................91
Doors emergency control .............88
Door trays ................................... 113
Driving positions (memorising) .....75
Dynamic emergency
braking .............................147, 150
E EBA (Emergency braking
assistance) ...............................137
Eco-driving ...................................26
