FAMILIARISATION
ROOF CONSOLES - CENTRE CONSOLES




A.
Rear view mirror.

B.
Emergency call/Warning lamps
display for front passenger's airbag
and seat belt/Assistance call.

C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.

D.
Microphone for audio and telematic
system.

E.
Panoramic sunroof blind control.




1.
Central adjustable air vents.

2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.

3.
Audio system or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating/air conditioning controls.

6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.

7.
Gear lever, manual or automatic
gearbox.

8.
Manual parking brake.

9.
Portable ashtray.

10.
Large open storage or front
armrest.

21
FAMILIARISATION
DRIVING SAFELY


6-speed electronic gearbox
system
Displays in the instrument panel
Moving off
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Steering mounted "-"
control paddle.

3.
Steering mounted "+"
control paddle.

The gear engaged or the driving mode
selected appears in the instrument pan-
el screen.

N.
Neutral.

R.
Reverse.

1 to 6.
Gears engaged.

AUTO.
Automated mode.



)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear by pulling the gear
lever 1
towards position A
or M
,
or
Engage reverse by pushing the gear
lever 1 towards position R
.

)
Release the parking brake.

)
Take your foot off the brake pedal
then accelerate.



156

22
DRIVING SAFELY


Automatic gearbox


This six-speed gearbox offers the
choice between the comfort of automat-
ic operation or the pleasure of manual
gearchanging.


1.
Gear lever.

2.
"S"
(sport)
button.

3.
" 7
"
(snow)
button.

Displays in the instrument panel

Moving off


)
With your foot on the brake pedal,
select position P
or N
.

)
Start the engine.

)
Then select position R
, D
or M
.

)
Take your foot off the brake pedal,
then accelerate away.



159




Hill start assist

The driving mode selected and/or the
gear engaged appear in the left hand
instrument panel screen.

P.
Park.

R.
Reverse.

N.
Neutral.

D.
Drive (automatic operation).

S.
S

port
programme.


7
.
Snow
programme.

1 to 6.
Gear engaged.

-.
Invalid value in manual opera-
tion. Your vehicle is fi tted with a system
which holds your vehicle stationary mo-
mentarily, the time to move your foot
from the brake to the accelerator, to
help with moving off on a gradient.
This function is only active when:


- the vehicle is completely station-
ary with your foot on the brake pedal,

-
certain conditions of gradient are met,


- the driver's door is closed.



162
Do not get out of the vehicle dur-
ing the hill start assist temporary
holding phase.

25
FAMILIARISATION
DRIVING SAFELY

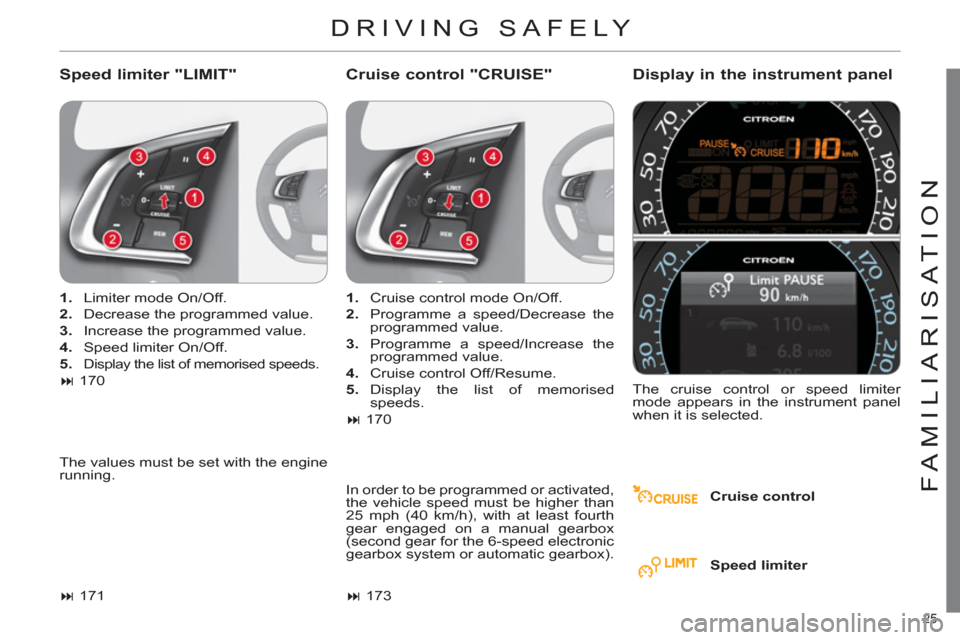

Speed limiter "LIMIT"
Cruise control "CRUISE"
Display in the instrument panel


Cruise control

1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.

5.

Display the list of memorised speeds.



170




171


1.
Cruise control mode On/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.

5.
Display the list of memorised
speeds.


170




173
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
The values must be set with the engine
running.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Speed limiter

26
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.













































ECO-DRIVING

1
MONITORING
28

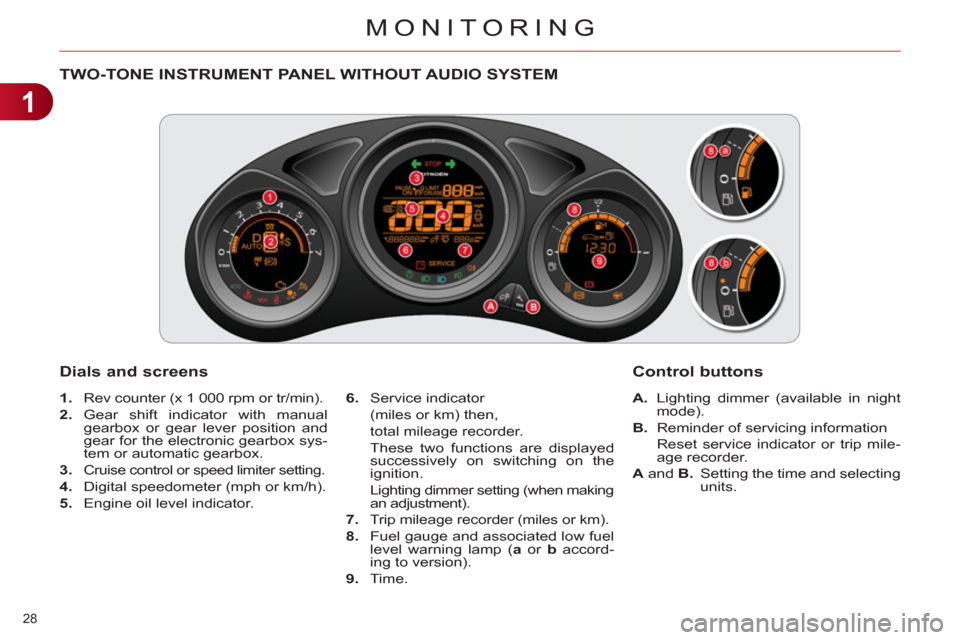

TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.



Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information
Reset service indicator or trip mile-
age recorder.

A
and B.
Setting the time and selecting
units.

1
MONITORING
29

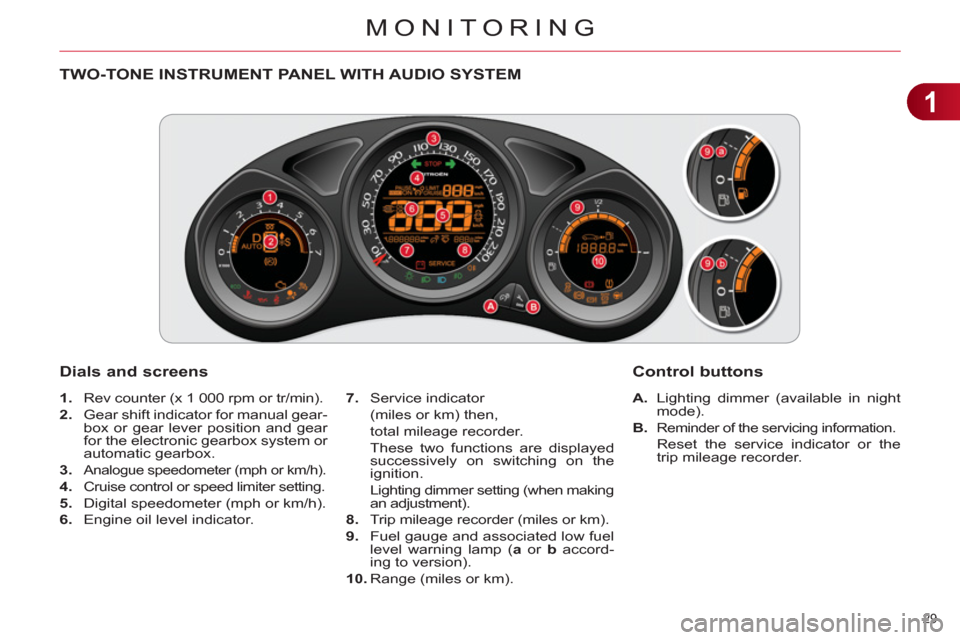

TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.

Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).



Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator for manual gear-
box or gear lever position and gear
for the electronic gearbox system or
automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.

1
MONITORING
30

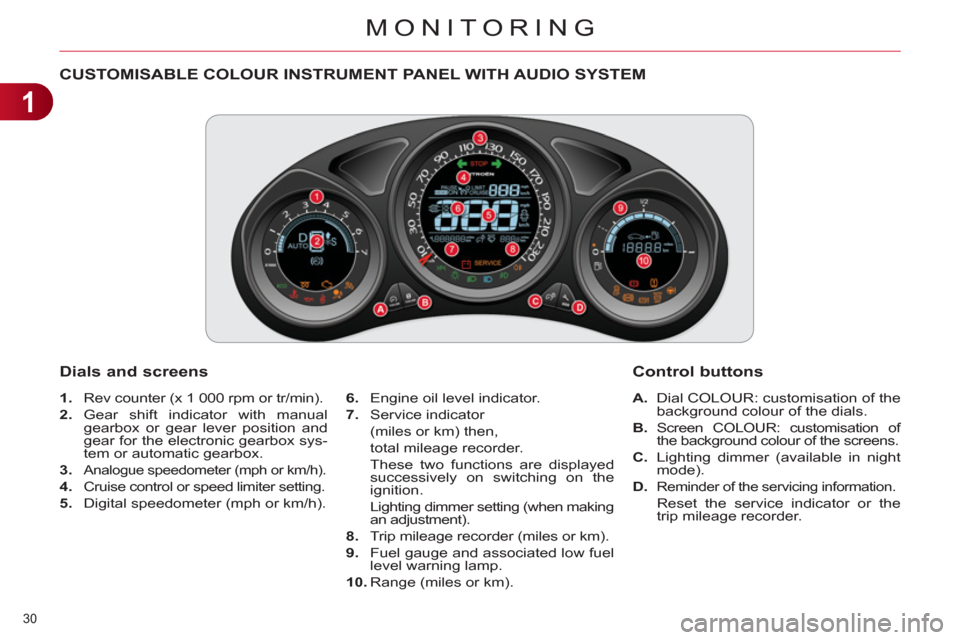

CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation of
the background colour of the screens.

C.
Lighting dimmer (available in night
mode).

D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.



Dials and screens


6.
Engine oil level indicator.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp.

10.
Range (miles or km).



Control buttons

1
MONITORING
31















CUSTOMISABLE COLOUR INSTRUMENT PANEL ASSOCIATED WITH THE SATELLITE NAVIGATION
SYSTEM


1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Speedometer (mph or km/h).


Dials and screens


4.
Central screen associated with the
satellite navigation system.

5.
Fuel gauge and associated low fuel
level warning lamp.

6.
Trip mileage recorder (miles or km).

7.
Service spanner (if a service is due
or missed),
total mileage recorder.
(miles or km)


A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation
of the background colour of the
screens.

C.
Dashboard lighting dimmer (in night
mode).

D.
Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset service indicator or trip mileage
recorder.



Control buttons

1
MONITORING
32


1.
Cruise control or speed limiter set-
tings.

2.
Engine oil level indicator.
Reminder of servicing information.
These functions are displayed suc-
cessively on switching on the igni-
tion, after the welcome sequence
and before display of the available
active functions.
Alert or information messages may ap-
pear temporarily.

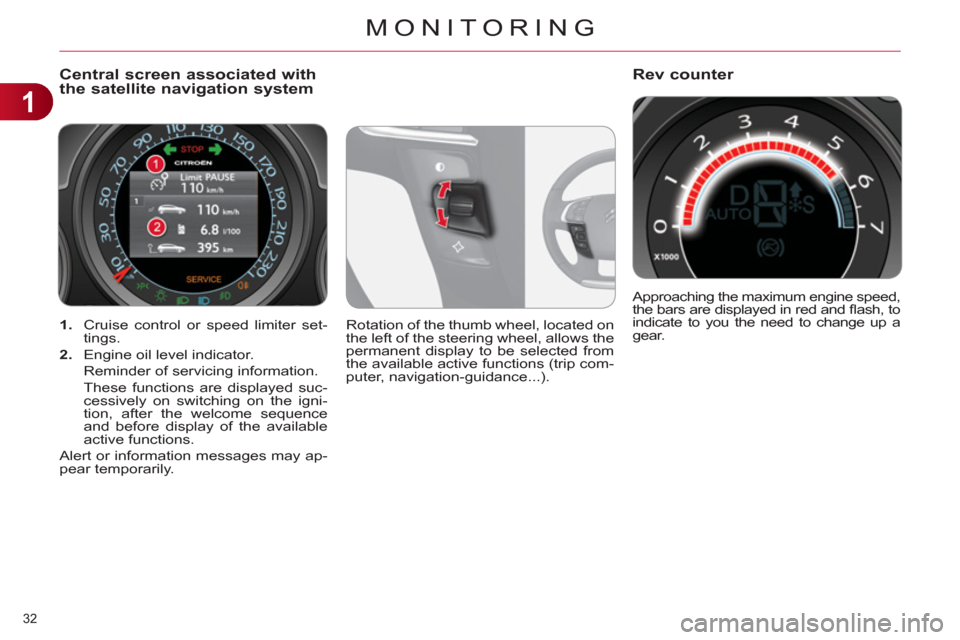

Central screen associated with
the satellite navigation system




Rev counter

Approaching the maximum engine speed,
the bars are displayed in red and fl ash, to
indicate to you the need to change up a
gear. Rotation of the thumb wheel, located on
the left of the steering wheel, allows the
permanent display to be selected from
the available active functions (trip com-
puter, navigation-guidance...).
