Page 6 of 332
4
EXTERIOR
Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.
175
Stop & Start system
This system puts the engine temporar-
ily on standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.
163
Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
104
Directional lighting
This lighting automatically provides
additional visibility when cornering.
106
Cornering lighting
At low speed, this lighting automati-
cally provides additional visibility
when cornering, at junctions, when
parking... making use of the corre-
sponding front foglamp.
107
Page 8 of 332
6
OPENING

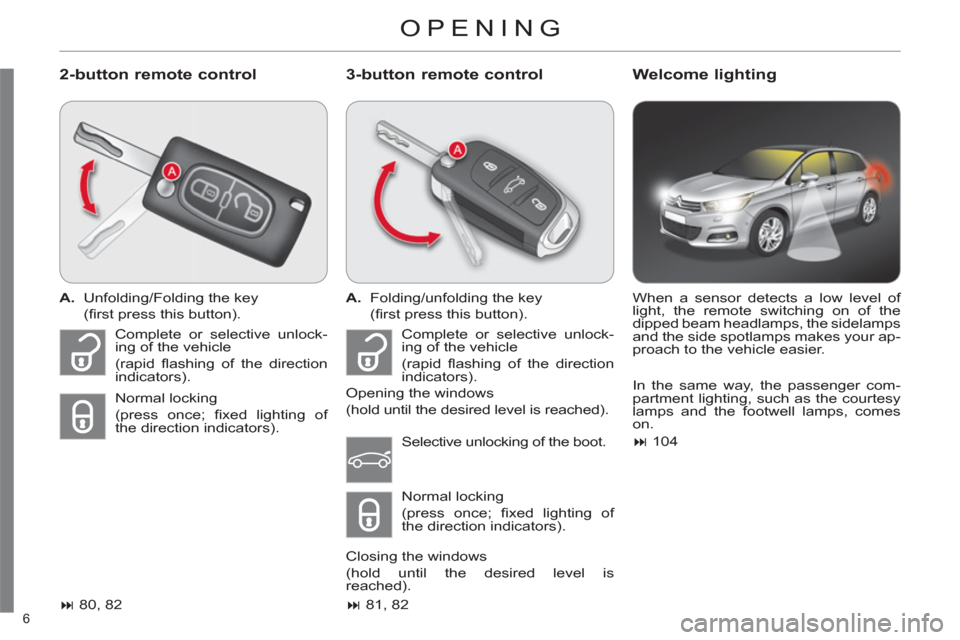

2-button remote control
3-button remote control
Welcome lighting
A.
Unfolding/Folding the key
(fi rst press this button).
80, 82
A.
Folding/unfolding the key
(fi rst press this button).
81, 82
When a sensor detects a low level of
light, the remote switching on of the
dipped beam headlamps, the sidelamps
and the side spotlamps makes your ap-
proach to the vehicle easier. Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Normal locking
(press once; fi xed lighting of
the direction indicators). Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Opening the windows
(hold until the desired level is reached).
Selective unlocking of the boot.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Closing the windows
(hold until the desired level is
reached). In the same way, the passenger com-
partment lighting, such as the courtesy
lamps and the footwell lamps, comes
on.
104
Page 9 of 332
7
FAMILIARISATION
OPENING
Boot
2-button remote control
3-button remote control
Fuel tank
Panoramic sunroof
1.
Unlocking the vehicle.
2.
Opening the boot.
80, 92
1.
Selective unlocking of the boot.
2.
Opening the boot.
81, 92
A.
Opening the fuel fi ller fl ap.
Capacity of the fuel tank: approximately
60 litres.
1.
Opening the blind (four positions
possible).
2.
Closing the blind (initial position).
96
95
Page 38 of 332
1
MONITORING
36
Service
temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:
- the opening of the doors, boot or
bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").
For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.
fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
Foot on the
brake pedal
fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.
Page 79 of 332
3
COMFORT
77
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
Demisting - Defrosting
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Adjustment
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from be-
hind.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on,
pull the control A
in the central posi-
tion rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on,
pull the control A
in the central posi-
tion rearwards.
Never fold or unfold the electric
folding mirrors manually.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
Page 82 of 332
4
ACCESS
80
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the door
lock or from a distance. It is also used
to locate and start the vehicle, as well
as providing protection against theft.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to un-
lock the other doors and the boot.
Selective unlocking using the
remote control
)
Turn the key towards the front in the
driver's door lock to unlock the ve-
hicle completely.
Complete unlocking using the
remote control
)
Press the open padlock
to unlock the vehicle com-
pletely.
Opening the vehicle using the
2-button remote control
Unfolding the key
)
Press this button to unfold the key.
Unlocking using the key
Unlocking is confi rmed by rapid fl ash-
ing of the direction indicators for ap-
proximately two seconds.
According to the version of your vehi-
cle, the door mirrors unfold at the same
time.
In low light, the unlocking also brings on
the exterior and interior welcome light-
ing (see the "Visibility section).
Programming unlocking
Setting the total or selective un-
locking is done via the vehicle
confi guration menu.
Complete unlocking is activated by
default.
Page 83 of 332
4
ACCESS
81
Unlocking the vehicle using the
3-button remote control
Unfolding the key
)
Press this button to unfold the key.
)
Press the open padlock
to unlock the vehicle com-
pletely.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to un-
lock the other doors and the boot.
Selective unlocking using the
remote control
)
Maintain the press on the
open padlock until the de-
sired opening is obtained.
The windows stop as soon
as you release the button.
Opening the windows using the
remote control
Unlocking using the key
)
Turn the key forwards in the driver's
door lock to unlock the vehicle com-
pletely.
Programming unlocking
Unlocking is confi rmed by rapid fl ash-
ing of the direction indicators for ap-
proximately two seconds.
According to the version of your vehi-
cle, the door mirrors unfold at the same
time.
In low light, unlocking also brings on the
exterior and interior welcome lighting
(see the "Visibility" section).
Selective unlocking of the boot
)
Press the middle button on
the remote control to unlock
the boot. The doors remain
locked.
Setting the selective unlocking
of the boot is done via the ve-
hicle confi guration menu.
Selective unlocking of the boot is acti-
vated by default.
Programming the unlocking
Complete unlocking using the
remote control Selective unlocking is confi rmed by
rapid fl ashing of the direction indicators
for approximately two seconds.
If selective unlocking of the boot is de-
activated, pressing this button also un-
locks the doors. The complete or selective door
unlocking parameter is set
via the vehicle confi guration
menu.
Remember to lock your boot
again by pressing the closed
padlock.
Page 84 of 332
4
ACCESS
82
Locking the vehicle
)
Press the closed padlock to
lock the vehicle.
Normal locking using the remote
control
Normal locking using the key
)
Turn the key towards the rear in the
driver's door lock to lock the vehicle.
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Folding the key
)
First press this button to fold the key.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Locking is confi rmed by fi xed lighting
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
fold at the same time.
In low light, locking also brings on of the
guide-me-home lighting (see "Visibility").
If one of the doors or the boot
is still open, the central locking
does not take place; the vehicle
locks itself then unlocks straight
away, identifi able by the sound
of the locks rebounding.
When the vehicle is locked, if it
is unlocked inadvertently, it will
lock itself again automatically af-
ter thirty seconds unless a door
or the boot is opened. The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Closing the windows using the
3-button remote control
)
Press and hold down the
closed padlock until the
level of closing is achieved.
The windows stop when
you release the button.
When closing the windows using
the remote control you must en-
sure that nothing prevents their
correct closing.
If you want to leave the windows
partly open, it is necessary to
deactivate the volumetric alarm
protection.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Page 86 of 332
4
ACCESS
84
Operating fault with the
2-button remote control
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of malfunction
of the remote control, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Battery ref.: CR1620/3 volts.
Changing the battery
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its loca-
tion.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
If the problem persists, contact
a CITROËN dealer as soon as
possible.
