Page 57 of 340
2
MULTIFUNCTION SCREENS
55
COLOUR SCREEN
From the navigation system control
panel, to select one of the applications:
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,
turn the dial A
to select a function,
an item in a list,
press button B
to confi rm the selec-
tion,
or
press the "Back"
button to aban-
don the current operation and return
to the previous display.
With repeated presses on the C
"MODE"
button, the screen displays:
- "RADIO / MEDIA" * ,
- "TELEPHONE" * ,
- "FULL SCREEN MAP" * ,
- "MAP IN A WINDOW" * ,
- "TRIP COMPUTER".
Controls
"SETUP" menu
Press the "SETUP"
button to open
the confi guration menu:
- "Sound choice",
- "Display confi guration",
- "Speech synthesis setting".
- "Select language",
- "Defi ne vehicle parameters",
- "Alert log".
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Displays in the screen
Depending on the context, it displays
the following information:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- parking sensor information,
- parking space measurement,
- audio functions,
- directory and telephone informa-
tion,
- satellite navigation system informa-
tion,
- trip computer,
- alert messages,
- settings menus for the screen, the
satellite navigation system and ve-
hicle systems.
*
For more information on these appli-
cations, refer to the "Audio and telem-
atics" section.
Page 64 of 340
3
COMFORT
62
RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:
To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles, the
vents and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the air conditioning system.
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly.
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the mainte-
nance and warranty guide.
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.
The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is
running. To maintain a comfortable temperature in the passenger compart-
ment, you can temporarily deactivate the Stop & Start system (see the
corresponding section).
Page 68 of 340
3
COMFORT
66
For maximum cooling or heating
of the passenger compartment,
it is possible to exceed the mini-
mum value 14 or the maximum
value 28.
Turn control 2
or 3
to the left
until "LO"
is displayed or
to the right until "HI"
is dis-
played.
See "Front demisting - defrosting".
4. Automatic visibility programme
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The the "AUTO"
indicator lamps go off; the other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO"
button returns
the system to completely automatic
operation.
2. Driver's side adjustment
The driver and front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
3. Passenger's side adjustment
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
Page 76 of 340
3
COMFORT
74

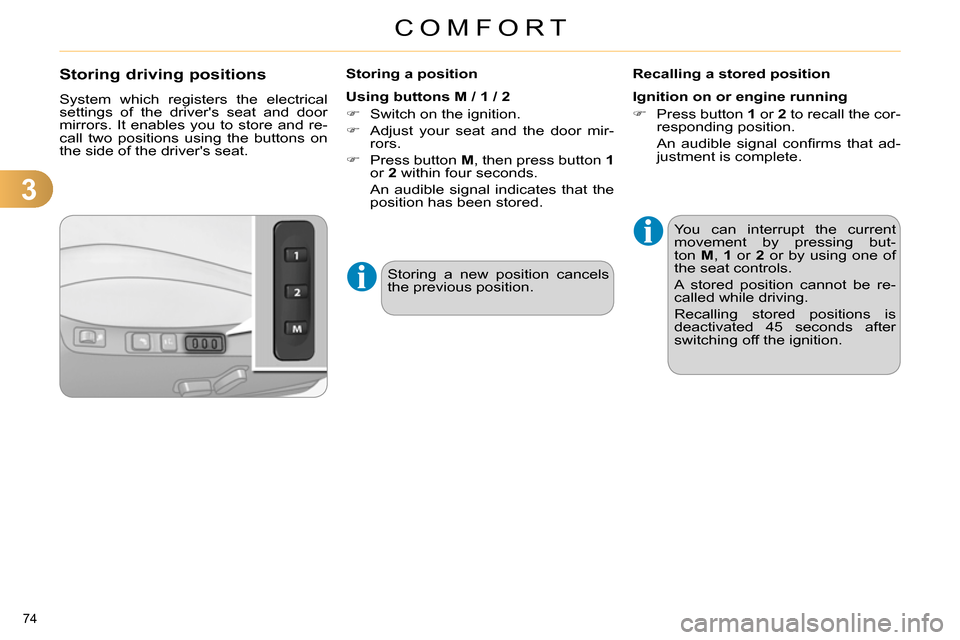

Storing driving positions
System which registers the electrical
settings of the driver's seat and door
mirrors. It enables you to store and re-
call two positions using the buttons on
the side of the driver's seat.
Storing a position
Using buttons M / 1 / 2
Switch on the ignition.
Adjust your seat and the door mir-
rors.
Press button M
, then press button 1
or 2
within four seconds.
An audible signal indicates that the
position has been stored.
Recalling a stored position
Ignition on or engine running
Press button 1
or 2
to recall the cor-
responding position.
An audible signal confi rms that ad-
justment is complete.
You can interrupt the current
movement by pressing but-
ton M
, 1
or 2
or by using one of
the seat controls.
A stored position cannot be re-
called while driving.
Recalling stored positions is
deactivated 45 seconds after
switching off the ignition.
Storing a new position cancels
the previous position.
Page 77 of 340
3
COMFORT
75

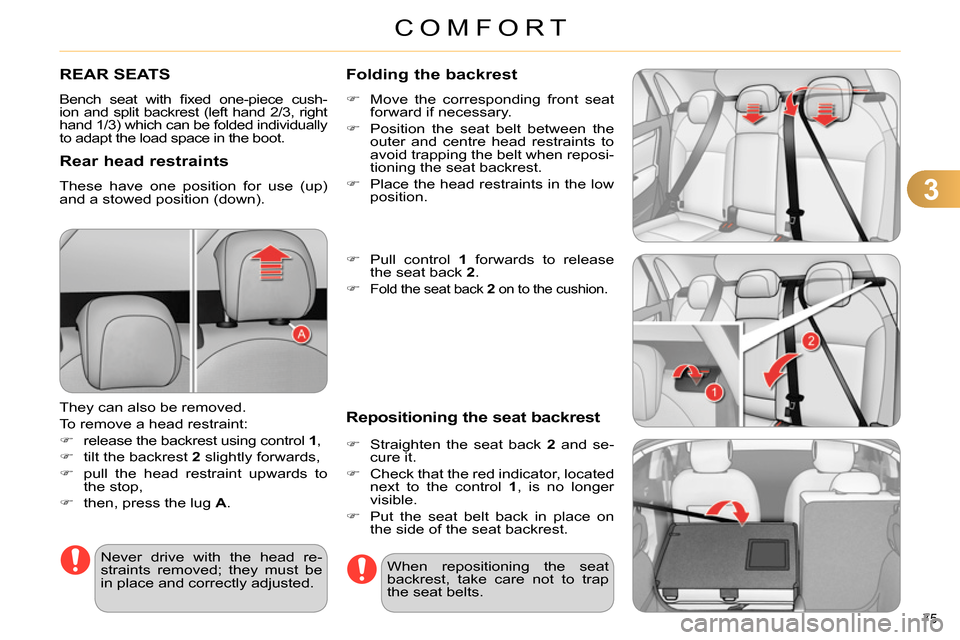

REAR SEATS
Bench seat with fi xed one-piece cush-
ion and split backrest (left hand 2/3, right
hand 1/3) which can be folded individually
to adapt the load space in the boot.
Rear head restraints
These have one position for use (up)
and a stowed position (down).
They can also be removed.
To remove a head restraint:
release the backrest using control 1
,
tilt the backrest 2
slightly forwards,
pull the head restraint upwards to
the stop,
then, press the lug A
.
Never drive with the head re-
straints removed; they must be
in place and correctly adjusted. When repositioning the seat
backrest, take care not to trap
the seat belts.
Folding the backrest
Move the corresponding front seat
forward if necessary.
Position the seat belt between the
outer and centre head restraints to
avoid trapping the belt when reposi-
tioning the seat backrest.
Place the head restraints in the low
position.
Pull control 1
forwards to release
the seat back 2
.
Fold the seat back 2
on to the cushion.
Repositioning the seat backrest
Straighten the seat back 2
and se-
cure it.
Check that the red indicator, located
next to the control 1
, is no longer
visible.
Put the seat belt back in place on
the side of the seat backrest.
Page 78 of 340
3
COMFORT
76
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
Demisting - Defrosting
Move control A
to the right or to the left
to select the corresponding mirror.
Move control B
in all four directions
to adjust.
Return control A
to the central posi-
tion.
Adjustment
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from be-
hind.
Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on,
pull the control A
in the central posi-
tion rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Unfolding
From outside: unlock the vehicle us-
ing the remote control or the key.
From inside: with the ignition on,
pull the control A
in the central posi-
tion rearwards.
Never fold or unfold the electric
folding mirrors manually.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
Page 79 of 340
3
COMFORT
77
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Programming
With the engine running, engage re-
verse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching on
With the engine running, engage re-
verse gear.
Move control A
to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Switching off
Exit reverse gear and wait ten seconds.
or
Return control A
to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Page 89 of 340
4
ACCESS
87
Emergency control
System allowing the doors to be locked
and unlocked manually in the event of
a malfunction of the central locking sys-
tem or battery failure.
Locking the driver's door
Insert the key in the door lock, then
turn it to the rear.
You can also apply the procedure de-
scribed for the passenger doors.
Unlocking the driver's door
Insert the key in the door lock, then
turn it to the front.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control.
Open the doors.
On the rear doors, check that the
child lock is not on (see the corre-
sponding section).
Remove the black cap, located on
the edge of the door, using the key.
Insert the key in the socket without
forcing it, then without turning it,
move the latch sideways towards
the inside of the door.
Remove the key and refi t the cap.
Close the doors and check that the
vehicle has locked correctly from
the outside.
Activation / Deactivation
You can activate or deactivate this func-
tion permanently.
With the ignition on, press this but-
ton until an audible signal starts and
a corresponding message is dis-
played.
the state of the system stays in memory
when switching off the ignition.
Page 101 of 340
5
VISIBILITY
99
Model without AUTO lighting
Model with AUTO lighting
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.
Lighting off / daytime running lamps.
Automatic illumination of head-
lamps.
B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Sidelamps.
Dipped headlamps or main
beam headlamps.
Displays
Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.
Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.
This function is assured:
- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.
- for other countries where it is pro-
vided,
by the use of dedicated lamps; this
function can be activated or deac-
tivated via the vehicle confi guration
menu.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are not
illuminated, except in night mode with
manual or automatic illumination of
headlamps.
Page 103 of 340
5
VISIBILITY
101

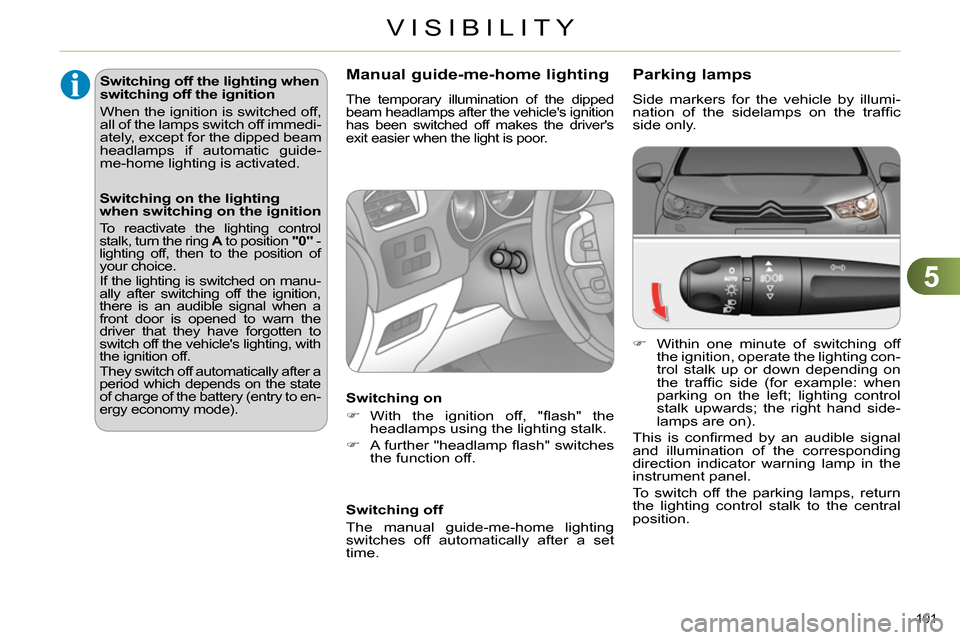

Parking lamps
Side markers for the vehicle by illumi-
nation of the sidelamps on the traffi c
side only.
Within one minute of switching off
the ignition, operate the lighting con-
trol stalk up or down depending on
the traffi c side (for example: when
parking on the left; lighting control
stalk upwards; the right hand side-
lamps are on).
This is confi rmed by an audible signal
and illumination of the corresponding
direction indicator warning lamp in the
instrument panel.
To switch off the parking lamps, return
the lighting control stalk to the central
position.
Switching off the lighting when
switching off the ignition
When the ignition is switched off,
all of the lamps switch off immedi-
ately, except for the dipped beam
headlamps if automatic guide-
me-home lighting is activated.
Manual guide-me-home lighting
The temporary illumination of the dipped
beam headlamps after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.
Switching on
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Switching on the lighting
when switching on the ignition
To reactivate the lighting control stalk, turn the ring A
to position "0"
- lighting off, then to the position of
your choice.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
They switch off automatically after a
period which depends on the state
of charge of the battery (entry to en-
ergy economy mode).
