CD player Citroen C4 2014 2.G Owner's Guide

06
313
Press 
to display the audio settings
menu.

The settings available are:


- Ambience,

- Bass,

- Treble,

- Loudness,

- Distribution: Personalised or Driver,

- Left / right balance,

- Fader (front / rear balance),

- Auto. volume.



Screen C


The distribution (or spatialisation using the Arkamys© system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.

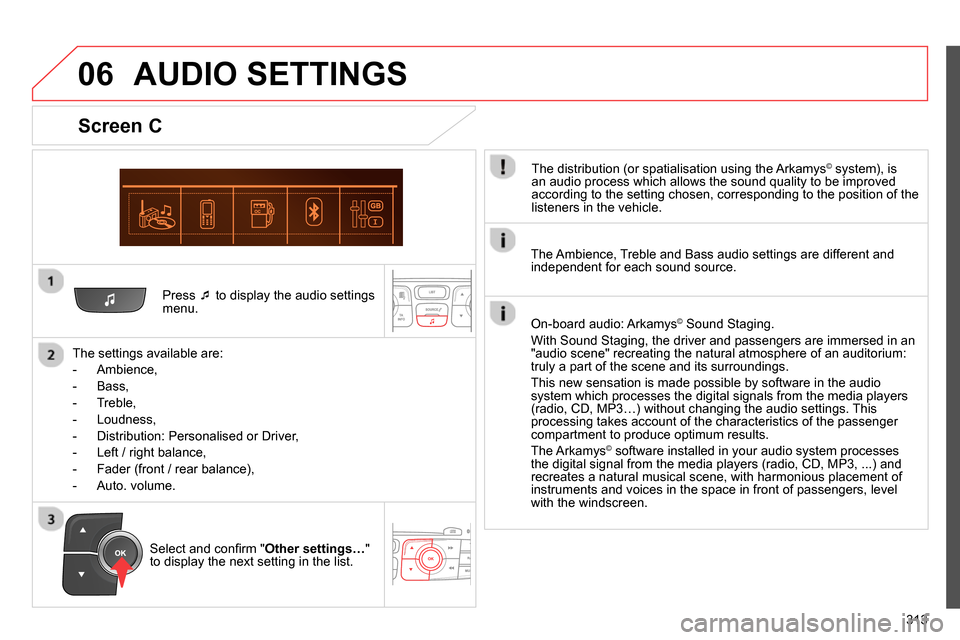

AUDIO SETTINGS


Select and confi rm " Other settings…
"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.



On-board audio: Arkamys
©
Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
© software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.

319

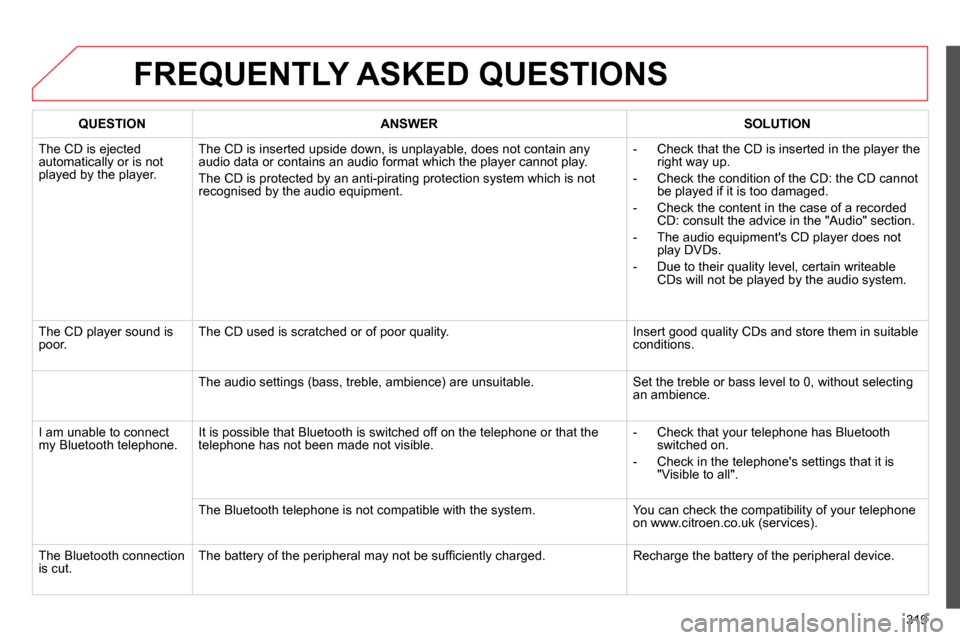

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
I am unable to connect
my Bluetooth telephone. It is possible that Bluetooth is switched off on the telephone or that the
telephone has not been made not visible.

- Check that your telephone has Bluetooth
switched on.

- Check in the telephone's settings that it is
"Visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.citroen.co.uk (services) .
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.

320

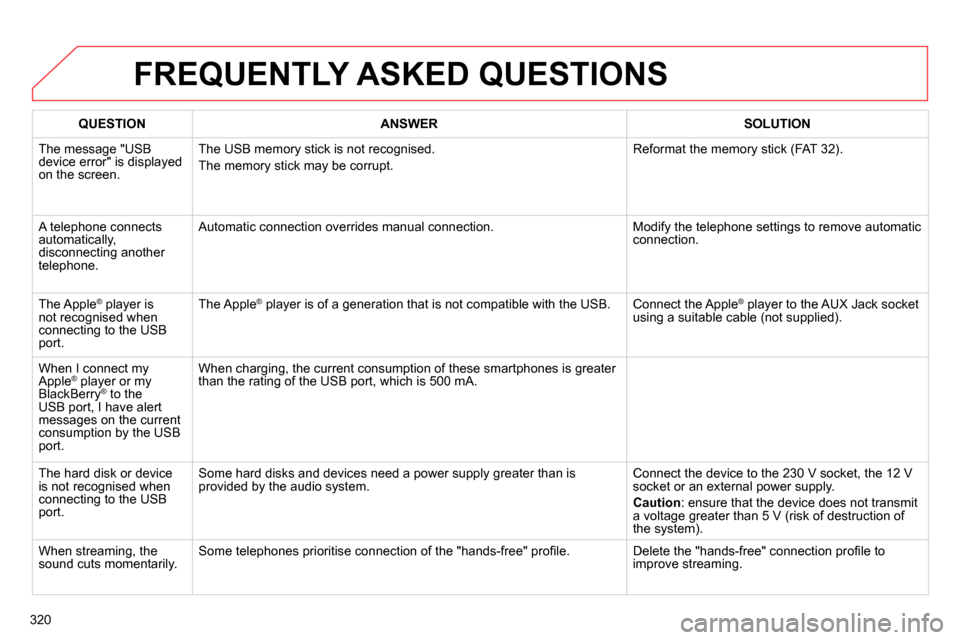

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The message "USB
device error" is displayed
on the screen. The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick (FAT 32).
A telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection. Modify the telephone settings to remove automatic
connection.
The Apple
®
player is
not recognised when
connecting to the USB
port. The Apple ®
player is of a generation that is not compatible with the USB. Connect the Apple ®
player to the AUX Jack socket
using a suitable cable (not supplied).
When I connect my
Apple
® player or my
BlackBerry ® to the
USB port, I have alert
messages on the current
consumption by the USB
port. When charging, the current consumption of these smartphones is greater
than the rating of the USB port, which is 500 mA.
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V
socket or an external power supply.

Caution
: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to
improve streaming.

329
ALPHABETICAL INDEX
KMassage function ....................... 73
Mat.............................................. 119
Menu, main ................................ 292
Mini fuel level ............................... 95
Mirror, rear view ........................... 78
Mirrors, door .................. 76, 77, 172
Misfuel prevention ....................... 97
Mountings
for ISOFIX seats ..................... 134
MP3 CD ............................. 272, 298
Music media players .................. 271Parking space sensor ............... 180
Particle emission fi lter......... 190-191
Passenger
compartment fi lter ................... 191
Personalisation ............................ 48
Player, CD MP3 ................. 272, 298
Port, USB............................114, 300
Priming the fuel system ............. 186
Protecting children .............. 125-138,
145, 147
Puncture .................................... 193 Keeping children
safe .................. 125-138, 145, 147
Key in ignition warning................. 82
Key with remote
control ..................... 79, 81, 82, 85
LLabels, identifi cation .................. 231
Lamps, warning
and indicator ................. 32, 39, 42
Lane Departure Warning System
(LDWS) ................................... 171
Level, brake fl uid ....................... 189
Level, power steering fl uid ......... 189
Levels and checks .............. 185-192
Lighting bulbs
(replacement) .................. 203-208
Lighting control stalk ............ 98, 101
Lighting dimmer ................ 28-30, 47
Lighting,
guide-me home............... 101, 102
Lighting, interior .................. 110, 111
Loading ................................ 26, 217
Load reduction mode ................. 216
Load space cover ...................... 124
Locating your vehicle ................... 81
Locking from the inside................ 86
Locking the boot .......................... 91
Long objects, transporting ......... 120
Luggage retaining strap ............. 121
MMain beam ................... 98, 203, 205
Maintenance ................................ 26
Map reading lamps ..................... 110
Markings,
identifi cation............................ 231Navigation.................................. 241
Number plate lamps .................. 208
Oil fi lter ...................................... 191
Oil level ................................ 43, 189
Opening the bonnet ................... 185
Opening the boot ......................... 91
Opening the doors ....................... 90
Opening the panoramic
sunroof blind ............................. 94
Operation indicator
lamps ................................... 32-42
Paint colour code ....................... 231
Panoramic
glass sunroof ............................ 94
Parcel shelf, rear ............... 122, 124
Parking brake .................... 157, 192
Parking brake, electric ....... 150, 192
Parking lamps ............................ 101
Parking sensors, front................ 183
Parking sensors, rear ................ 182 N
O
PRRadio ................................. 267, 293
Radio pre-equipment ................. 221
RCA sockets ...............114, 276, 302
Rear screen (demisting) .............. 69
Recharging the battery .............. 215
Reduction of electrical load ....... 216
Regeneration of the particle
emissions fi lter ........................ 191
Reinitialising
the electric windows ................. 92
Reinitialising the remote
control ................................. 83, 84
Remote control ....................... 79-85
Removable screen
(snow shield) .......................... 217
Removing a wheel ..................... 200
Removing the mat ...................... 119
Repair kit, puncture ................... 193
Replacing bulbs .................. 203-208
Replacing fuses .................. 209-212
Replacing the air fi lter ................ 191
Replacing the oil fi lter ................ 191
Replacing the passenger
compartment fi lter ................... 191
