1
MONITORING
36


Warning lamp



is on



Cause



Action/Observations








Anti-lock
Braking
System (ABS)


fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a CITROËN dealer or a qualifi ed
workshop without delay.



Engine
autodiagnosis
system


fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a
qualifi ed workshop.

fi xed. The emission control system
has a fault. The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.




Low fuel level


fi xed,
accompanied
by and audible
signal and a
message. When it fi rst comes on there
remains approximately
6
litres
of fuel in the tank.
At this point, you begin to use
the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
Until suffi cient fuel is added, this warning
lamp will come on every time the ignition
is switched on, accompanied by an
audible signal and a message.
This audible signal and message are
repeated with increasing frequency as
the fuel level drops towards "0"
.
Fuel tank capacity: approximately
60 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.

4

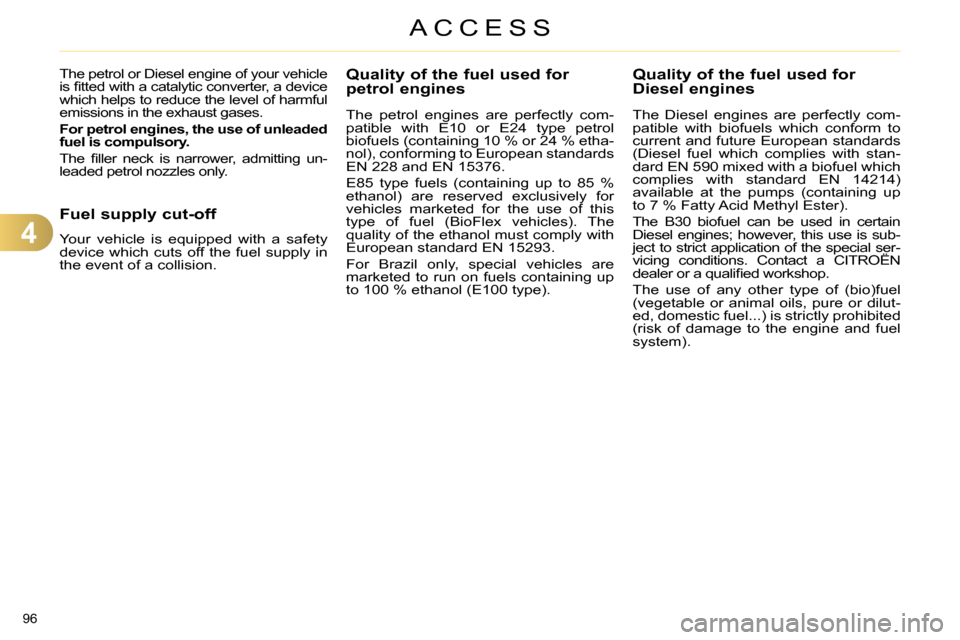

ACCESS
96










Quality of the fuel used for
petrol engines

The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).













Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use is sub-
ject to strict application of the special ser-
vicing conditions. Contact a CITROËN
dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).

The petrol or Diesel engine of your vehicle
is fi tted with a catalytic converter, a device
which helps to reduce the level of harmful
emissions in the exhaust gases.

For petrol engines, the use of unleaded
fuel is compulsory.
The fi ller neck is narrower, admitting un-
leaded petrol nozzles only.



Fuel supply cut-off

Your vehicle is equipped with a safety
device which cuts off the fuel supply in
the event of a collision.

12

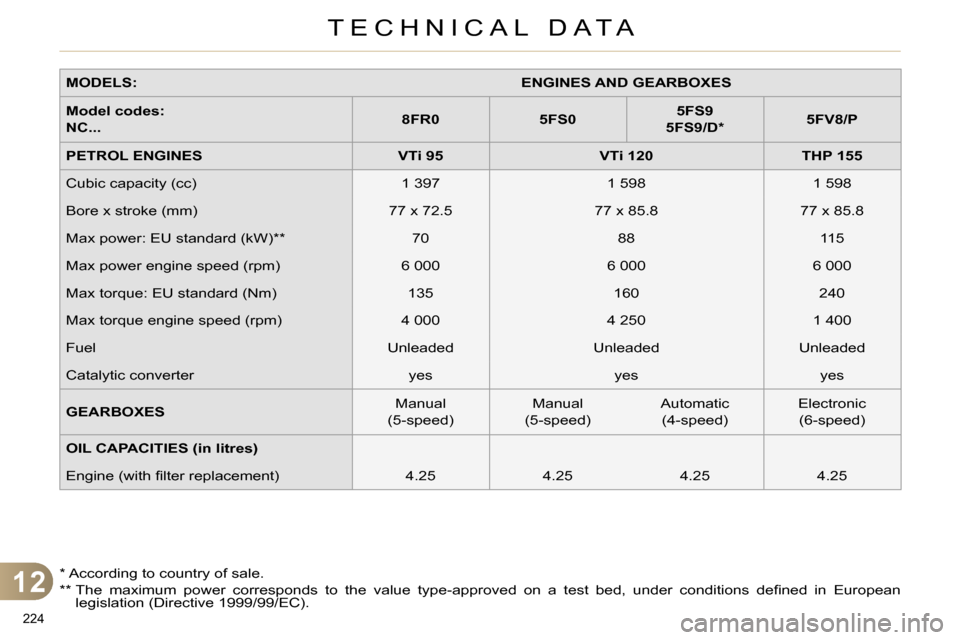

TECHNICAL DATA
224

MODELS:


ENGINES AND GEARBOXES



Model codes:


NC...


8FR0



5FS0



5FS9

5FS9/D *



5FV8/P



PETROL ENGINES


VTi 95



VTi 120



THP 155


Cubic capacity (cc)
1 397
1 598
1 598
Bore x stroke (mm)
77 x 72.5
77 x 85.8
77 x 85.8
Max power: EU standard (kW) **
70
88
115
Max power engine speed (rpm)
6 000
6 000
6 000
Max torque: EU standard (Nm)
135
160
240
Max torque engine speed (rpm)
4 000
4 250
1 400
Fuel
Unleaded
Unleaded
Unleaded
Catalytic converter
yes
yes
yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)
Electronic
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
4.25
4.25
4.25
4.25

* According to country of sale.

**
The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European
legislation (Directive 1999/99/EC).

12
TECHNICAL DATA
226

MODELS:


ENGINES AND GEARBOXES



Model codes:
NC...


9HJC



9HP0



9HR8

9HR8
/ S



9HR8/PS

9HR8/1PS

9HR8/2PS



RHE8



DIESEL ENGINES


HDi 90



HDi 90 PEF



HDi 110 PEF



HDi 150 PEF


Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power * : EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
4 000
4 000
3 600
3 750
Max torque: EU standard (Nm)
230
230
270
340

Max torque engine speed (rpm)
1 750
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
no
yes
yes
yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-

.../S:
model fi tted with Stop & Start.

.../1:
model fi tted with low rolling resistance tyres (for example: MICHELIN Energy Saver).

.../2:
model fi tted with very low rolling resistance tyres.
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation
(Directive 1999/99/EC).
