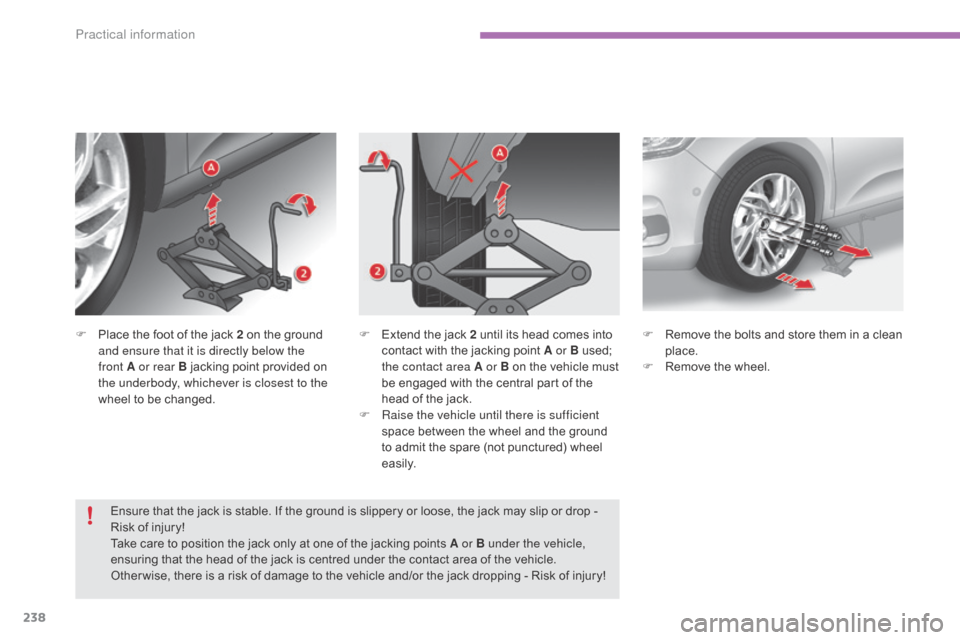

F Place  the   foot   of   the   jack   2   on   the   ground  a
nd ensure that it is directly below the
front
A or rear B   jacking   point   provided   on
t

he underbody, whichever is closest to the
wheel
  to   be   changed.
Ensure
  that   the   jack   is   stable.   If   the   ground   is   slippery   or   loose,   the   jack   may   slip   or   drop   -
R

isk   of   injury!
Take
  care   to   position   the   jack   only   at   one   of   the   jacking   points   A or B under the vehicle,
ensuring
  that   the   head   of   the   jack   is   centred   under   the   contact   area   of   the   vehicle.
O

ther wise,   there   is   a   risk   of   damage   to   the   vehicle   and/or   the   jack   dropping   -   Risk   of   injury!F
 R emove   the   bolts   and   store   them   in   a   clean  p
lace.
F

R
emove   the   wheel.
F
 E xtend   the   jack   2   until   its   head   comes   into  c
ontact   with   the   jacking   point   A or B   used;
t

he contact area A or B   on   the   vehicle   must
b

e   engaged   with   the   central   part   of   the
h

ead   of   the   jack.
F

Ra
ise the vehicle until there is sufficient
space
  between   the   wheel   and   the   ground
t

o   admit   the   spare   (not   punctured)   wheel
e

asily.
