navigation Citroen C4 AIRCROSS 2012 1.G User Guide

227
03NAVIGATION - GUIDANCE
Manoeuvre icon: indicates whether the


A. driver should turn left or right at the next junction indicated by the guidance and thedistance to this junction.
Guidance route: indicates the route to the
B. destination.
Vehicle marker: indicates the position of
C. the vehicle while driving.
TMC icon: displays traffi c information
D. such as traffi c jams, road works, etc.
When the icon is touched, detailed TMC information can be viewed.
Orientation mark: indicates the orientation

E. of the map displayed.
Map scale: indicates the scale of the map

F. displayed.
Name of the street: indicates the name of

G. the current street.
Direction frame: displays the number of

H. the next road or the name of the nextstreet which the driver should turn into.
Destination/intermediate destination icon:

I. indicates the direction of the destinationor intermediate destination.
Two-map displa
y.
Single map display.

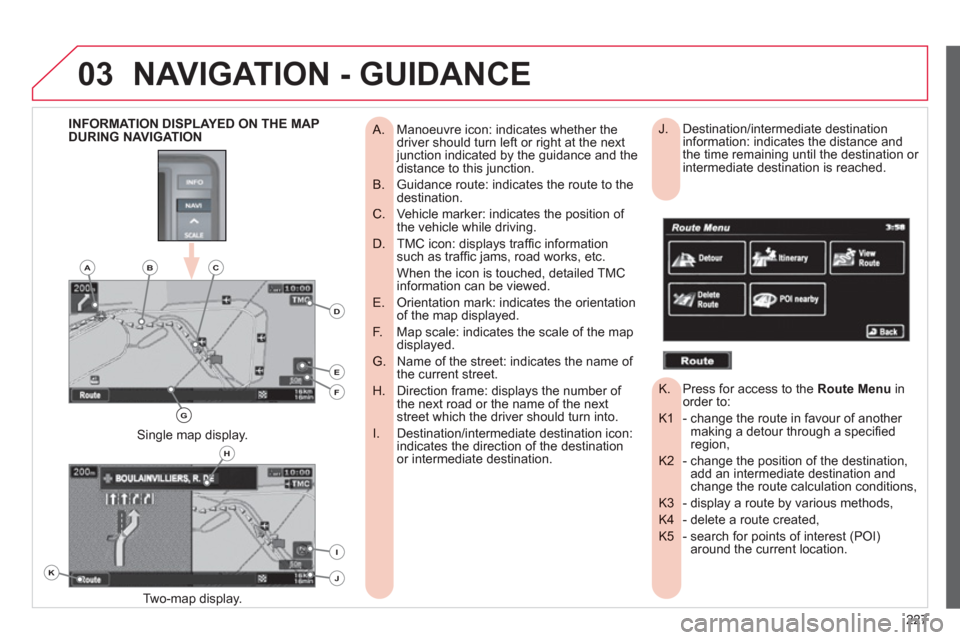

INFORMATION DISPLAYED ON THE MAP
DURING NAVIGATION Destination/intermediate destination

J. information: indicates the distance and
the time remaining until the destination or
intermediate destination is reached.
Press for access to the
K. Route Menuinorder to:
- change the route in favour of another K1 making a detour through a specifi edregion,
- change the position of the destination, K2 add an intermediate destination and change the route calculation conditions,
- display a route by various methods, K3
- delete a route created, K4
- search for points of interest (POI) K5 around the current location.


K
H
E
F
BCA
D
G
I
J

228
03
- Select a location using the name of a point of B interest (POI).
Select:
- the country,
B1
- the city,
B2
- the name of a stored POI,
B3
- a POI category (airport, bowling alley, bus station,
B4 car park, service station, hotel, cinema, ...),
- a detailed POI list.
B5
- Select a location using an advanced search based
C on a POI:
- around the current location,
C1
- on the current route,
C2
- in the vicinity of the destination,
C3
- on a chosen street,
C4
- along a motorway or in the vicinity of the exit,
C5
- by scrolling the map,
C6
- taking the point of departure of the current route,
C7
- specifying the latitude/longitude coordinates.
C8
- Select a location using the address or street name

A of the destination. Select:
- the country,
A1
- the city,
A2
- the street,
A3
- the house number,
A4
- the name of a junction,
A5
- to select the search using either a number or a
A6 junction.
You have a maximum of 100 points of interest (POI) within a radius of approximately 60 miles (100 km).

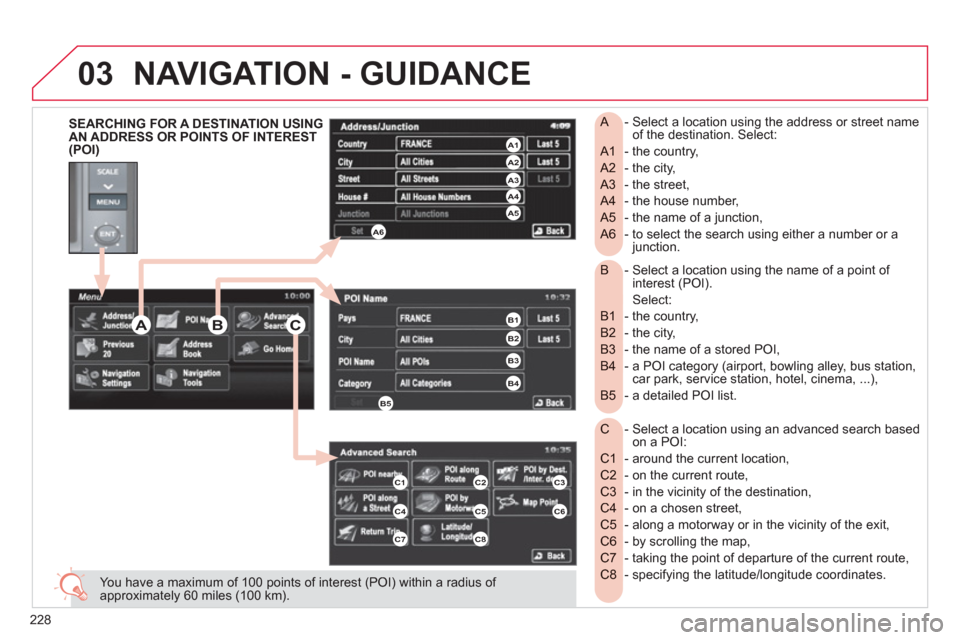

SEARCHING FOR A DESTINATION USING
AN ADDRESS OR POINTS OF INTEREST
(POI)
NAVIGATION - GUIDANCE
C3
C6
ABC
A4 A3 A2 A1
A6A5
B1
B2
B3
B4
B5
C1C2
C4C5
C7C8

229
03

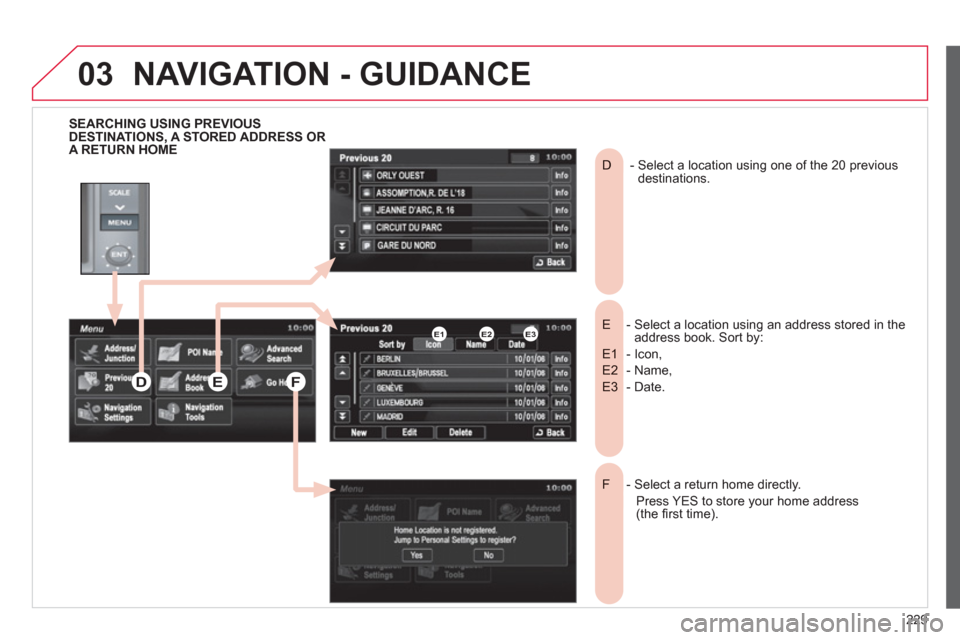

SEARCHING USING PREVIOUSDESTINATIONS, A STORED ADDRESS OR A RETURN HOME
- Select a location using an address stored in the E address book. Sort by:
- Icon, E1
- Name, E2
- Date.E3
- Select a location using one of the 20 previousD destinations.
- Select a return home directly. F
Press YES to store your home address (the fi rst time).
NAVIGATION - GUIDANCE
E2 E1E3
DEF

230
03

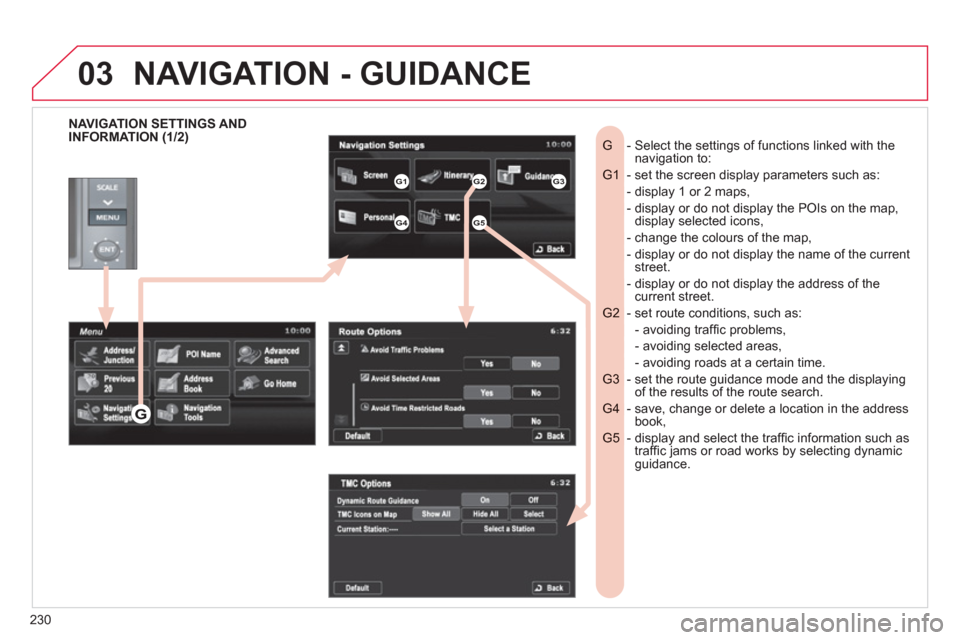

NAVIGATION SETTINGS AND
INFORMATION (1/2) - Select the settings of functions linked with the G navigation to:
- set the screen display parameters such as: G1
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected icons,
- change the colours of the map,
- display or do not display the name of the currentstreet.
- display or do not display the address of the current street.
- set route conditions, such as:G2



- avoiding traffi c problems,


- avoiding selected areas,


- avoiding roads at a certain time.
- set the route guidance mode and the displayingG3 of the results of the route search.
- save, change or delete a location in the addressG4 book,
- display and select the traffi c information such as G5 traffi c jams or road works by selecting dynamic guidance.

NAVIGATION - GUIDANCE
G1G2G3
G4G5
G

231
03
- Select basic information relating to theH navigation as well as a pre-set routedemonstration to:
- choose to divert your route to avoid certain H1 areas,
- select a location using an advanced searchH2 based on a POI along a motorway or in the
vicinity of the motorway exit,
- start/stop the demonstration, H3
- recall a stored map screen.H4

NAVIGATION SETTINGS AND
INFORMATION (2/2)
NAVIGATION - GUIDANCE
H1H2
H3H4
H

232
03

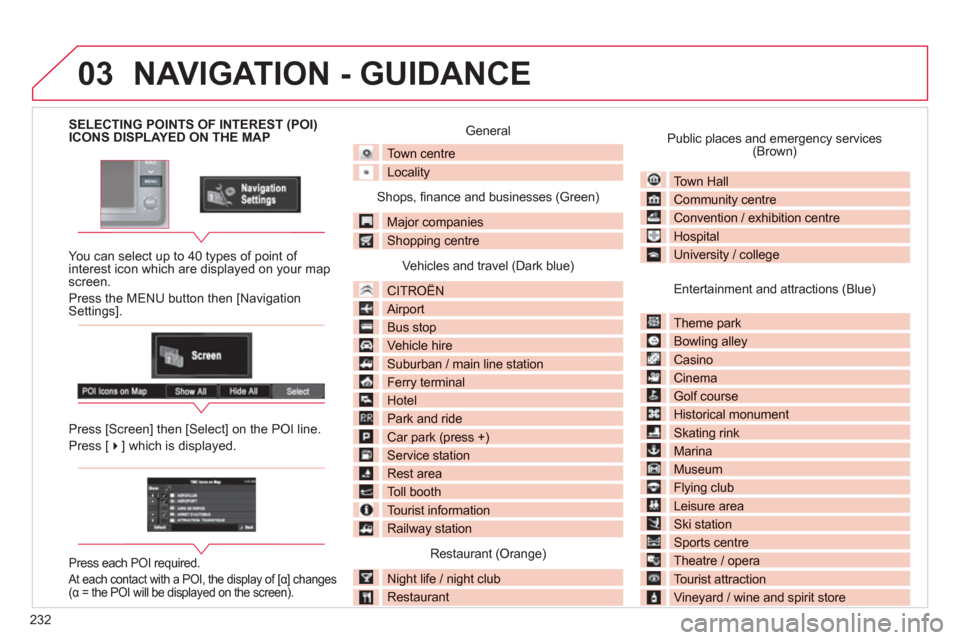

SELECTING POINTS OF INTEREST (POI) ICONS DISPLAYED ON THE MAP

You can select up to 40 t
ypes of point of interest icon which are displayed on your map screen.
Press the MENU button then [Navi
gation Settings].

Press [
Screen] then [Select] on the POI line.

Press [] which is displayed.

Press each POI required.

At each contact with a POI, the display of [α] changes(α = the POI will be displayed on the screen).
General

Town centre

Locality
Shops, fi nance and businesses (Green)
Major companies
Shopping centre

Vehicles and travel (Dark blue)
CITROÀN

Airport
Bus stop
Vehicle hire
Suburban / main line station

Ferry terminal

Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station

Restaurant (Orange)
Night life / night club
Restaurant
Public places and emergency services(Brown)
Town Hall
Community centrey
Convention / exhibition centre

Hospitalp

University / college

Entertainment and attractions (Blue)

Theme park p

Bowling alley gy
Casino
Cinema
Golf course
Historical monument
Skating rink g

Marina

Museum

Flying clubyg
Leisure area
Ski station
Sports centrep

Theatre / opera p

Tourist attraction

Vineyard / wine and spirit store

NAVIGATION - GUIDANCE

233
03

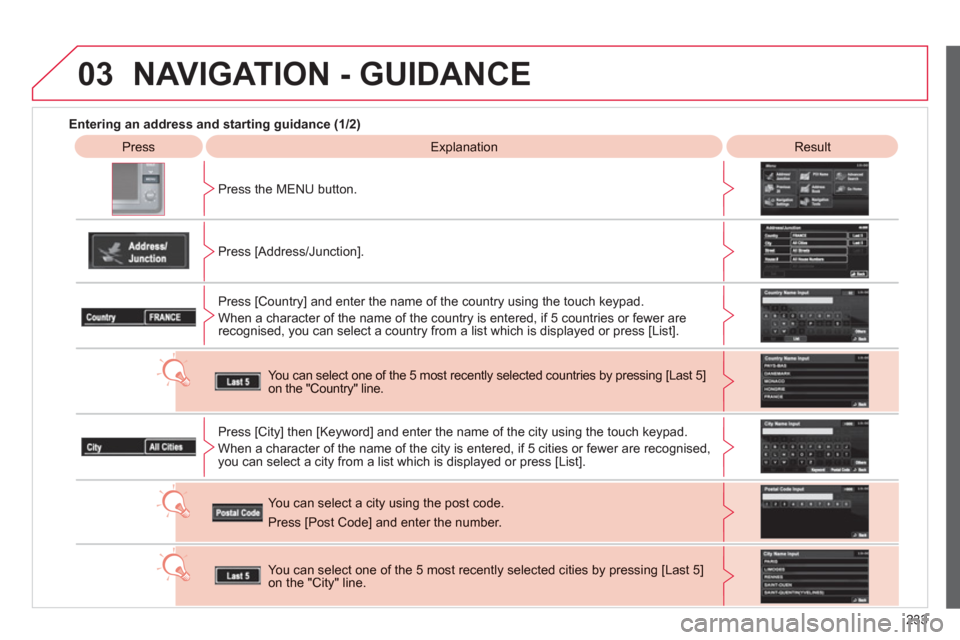

Entering an address and starting guidance (1/2)

Press
ExplanationResult
Pr
ess the MENU button.

Press [Address
/Junction].
Press [Countr
y] and enter the name of the country using the touch keypad.
When a character of the name of the countr
y is entered, if 5 countries or fewer are
recognised, you can select a country from a list which is displayed or press [List].

You can select one of the 5 most recently selected countries by pressing [Last 5]on the "Country" line.

Press [
City] then [Keyword] and enter the name of the city using the touch keypad.
When a character o
f the name of the city is entered, if 5 cities or fewer are recognised,you can select a city from a list which is displayed or press [List].

You can select a city using the post code.


Press [Post Code] and enter the number.
NAVIGATION - GUIDANCE


You can select one of the 5 most recently selected cities by pressing [Last 5] on the "City" line.

234
03

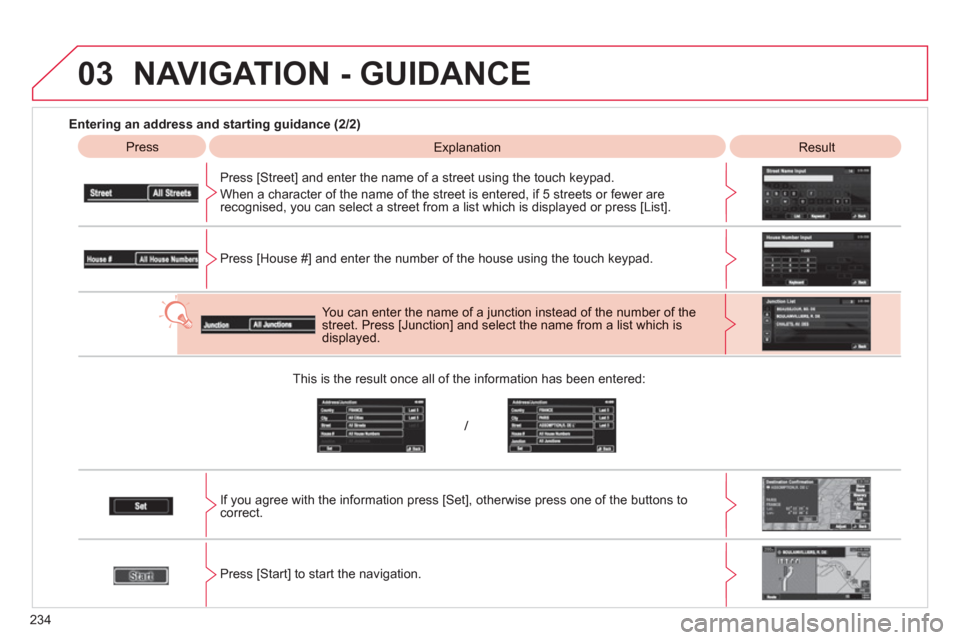

Entering an address and starting guidance (2/2)

Press


Explanation Result

Press [Street] and enter the name of a street usin
g the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer are
reco
gnised, you can select a street from a list which is displayed or press [List].

Press [House
#] and enter the number of the house using the touch keypad.
You can enter the name of a junction instead of the number of thestreet. Press [Junction] and select the name from a list which isdisplayed.
Thi
s is the result once all of the information has been entered:

If
you agree with the information press [Set], otherwise press one of the buttons to correct.

Press [Start] to start the navi
gation.

/

NAVIGATION - GUIDANCE

235
03


TRAFFIC INFORMATION
Press
Explanation

Result
Press [Route].
Press [Displa
y new route].
The s
ystem offers a detour route (dynamic guidance).
Press [Back] and enter to return to the previous screen.
The s
ystem asks you to confi rm or not the new route.
Press [Yes] to confi rm your choice. The system displays the name of the new route.
Press [No] to not register the route.



During navigation, the system gives you traffi c
information received in real time.
The s
ystem can then suggest a detour route, if dynamic guidance has been activated by pressingMENU, [Navigation settings] then [TMC].
NAVIGATION - GUIDANCE

240
04
PLAYING AN AUDIO CD

When the audio
CD is inserted in the player, playing of the tracks is automatic and they can be recorded onto the hard disk.
Simultaneous access to the music reco
gnition service "Gracenote CDDB" on the hard disk permits display of the
title information. The recording speed may be slower than 4x due to the processing
load on the equipment or the condition o
f the audio CD.
I
f jumps or other errors occur, return to the beginning of the track
and start the recording again.
Even if there is no
gap between the tracks on the CD, a brief silencebetween tracks is stored on the hard disk.






















CD PLAYER

AUDIO / VIDEO
RECORDING ONTO THE MUSIC SERVER
The tracks o
f audio CDs (not MP3/WMA) can berecorded onto the hard disk at approximately 4x speed(e.g.: 60 minutes converted to 15 minutes) and stored on the musicserver.
The sounds recorded ma
y be altered by the noise present and thequality of the sound may differ from the original.
The tracks recorded on the music server cannot be re
produced onanother medium (CD-R/RW, HDD, etc ...).
Previousl
y recorded tracks cannot be recorded again from
the same CD.
Switching off the engine or removing the CD during recording will
result in the tracks being faulty.
The operation o
f the navigation system may slow down during
recording.
WHAT IS THE GRACENOTE CDDB?
The title information for the track currentl
y being playedcan be obtained from the "Gracenote CDDB" databasestored on the hard disk.
The Gracenote company uses this standard to identifythe music and the associated information such as:


- the title of the album,

- the name of the artist,

- the title of the tracks,

- the genre, ...
For further details, consult the site: www.gracenote.com.
The Gracenote CDDB database incorporated in this equipment
cannot guarantee the content of the data 100%. You can update thisdatabase using a DVD sold separately.
COPYRIGH
T

Your Audio equipment may allow you to listen to music which is
usually protected by copyright in accordance with current nationaland international standards. Please consult these standards andcomply with them.
Your Audio-Telematic s
ystem allows you to listen to audio CDs(CDDA, CD-Text, CD-R/RW) or MP3 and WMA CDs.
