dashboard Citroen C4 AIRCROSS 2012 1.G Owner's Manual

24
Monitoring

















Instrument panel
1.
Rev counter. 2.
Speedometer.
Screen t
ype 2
3.
Instrument panel display screen:


- Warning and status displays.

- Total and tri
p distance recorders.

- Ser vice indicator.

- Coolant temperature.

- Trip computer information.

- Cruise control settin
g.

- Gear shift indicator recommendations.

- Settings menu (display, sound...).

- Fuel level.

- Ambient temperature.

- Transmission mode.

Panel
grouping together the dials and warning/indicator lamps. These inform the driver of the activation/deactivation of a system or of theoccurrence of a fault.
Screen t
ype 1
Management of the display is done using the INFO
button located on the dashboard to the left of the instrument panel.

30
Monitoring
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.This is may be accompanied by an audible signal and a message in the screen.
Warning lampis onCauseAction / Observations
ASC/TCLfixed. The ASC/ TCL off switch, located at
the bottom of the dashboard (driver'sside) has been pressed.
A
SC/TCL is deactivated.
ASC: active stability control .
TCL: traction control. Press the button to activate the A
SC/TCL.
The ASC/TCL system is automatically activated on starting the vehicle.
Stop & Star tsystem (Auto Stop & Go)
fixed. The off switch for the Stop & Star t (AS&G) system, located at the bottom
of the dashboard (driver's side) has been pressed.
The Stop & Start (AS&G) system is deaactivated.Press the switch a
gain to activate the Stop & Star t(AS&G) system.

1
31
Monitoring








Instrument panel screen


Each time the engine is started: warning lamps and/or messages come on, applying a checking self test. They go off after a few seconds.


When
you want to see the trip computer information, you can choose to ignore the aler ts, by pressing the INFO
button on the dashboard.

The messa
ges displayed may vary according to the type of display screen (type 1 or type 2) in the instrument panel.
Cer tain messages are only displayed in the type 2 screen.
When this symbol appears: make a
short press. When this symbol appears: make a longpress.
Ignition off.Ignition on (with a manual gearbox).Ignition on (with a CVT gearbox).

Warnings and alerts


When an aler t occurs, the displayed information then disappears. the warning lamp and its associated message appear, accompanied if appropriate by
an audible signal.
When there are several aler ts, they are displayed in turn and this symbol appears. It remains displayed while there are still alerts.
You will then be able to displa
y the aler ts again by pressing the INFO
button several times to cycle through the trip computer information and return to
the alerts.

48
Monitoring
The various menus may change between
the type 1 instrument panel and the type 2
instrument panel.
Adjusting vehicle settings
When the vehicle is stationary, it allows theyuser to change the following settings:


- the reinitialisation mode for average fuel consumption andaverage speed,
)Press and hold the INFObutton for a fewseconds to display the menu screen.
)In the menu screen, press the INFO
button
to select a function from the list:
- the
fuel consumption units,
- the temperature displa
y unit,
- the display language,
- activation/deactivation of the sound whenpressing the INFO
button,- the break (rest) reminder display interval,
- restore the factory settings.
To change the settings, you must stopthe vehicle and switch on the ignition.
Apply the parking brake and place the gear lever in neutral. With the ignition on
, press the INFObutton
on the dashboard, to the left of the instrumentpanel, several times in succession until the
"SETTINGS MENU" screen is displayed.


Operation
MENU1/3:-1 - 2, A - M, A - P*
(choice of the type of reset of average fuel consumption andaverage speed),

- AVG UNIT(choice of the fuel consumption
units),

- choice of the temperature display unit,-LANGUAGE(option of the display
language),

*
According to display language.
For your safety, when the vehicle is moving
, the function settings are not displayed when you press the INFObutton.

1
59
Monitoring





Lighting dimmer

System for manual adjustment of the brightness of the instruments and controls in relation to theexterior brightness.
There is an audible signal and the intensity of the lighting increases eachtime the button is pressed.
With the li
ghting on or off, press the button
to change the intensity of the lighting of the instruments and controls in "day" or "night"mode.
When the lighting reaches the maximum
setting, press again to change to the minimum
settin
g.
When the lighting reaches the required intensity, release the button.

With the vehicle's li
ghting off, only the
brightness of the instrument panel is modified.
The setting is saved when the ignition switch is
turned to OFF.

Wit the vehicle's li
ghting on, the brightness of
the entire dashboard (instrument panel, screen,
air conditioning control panel...) is modified.

89
3
Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in per fect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.











Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is very high, firstventilate the passenger compartment for
a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.

The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.


When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.

154
Safety

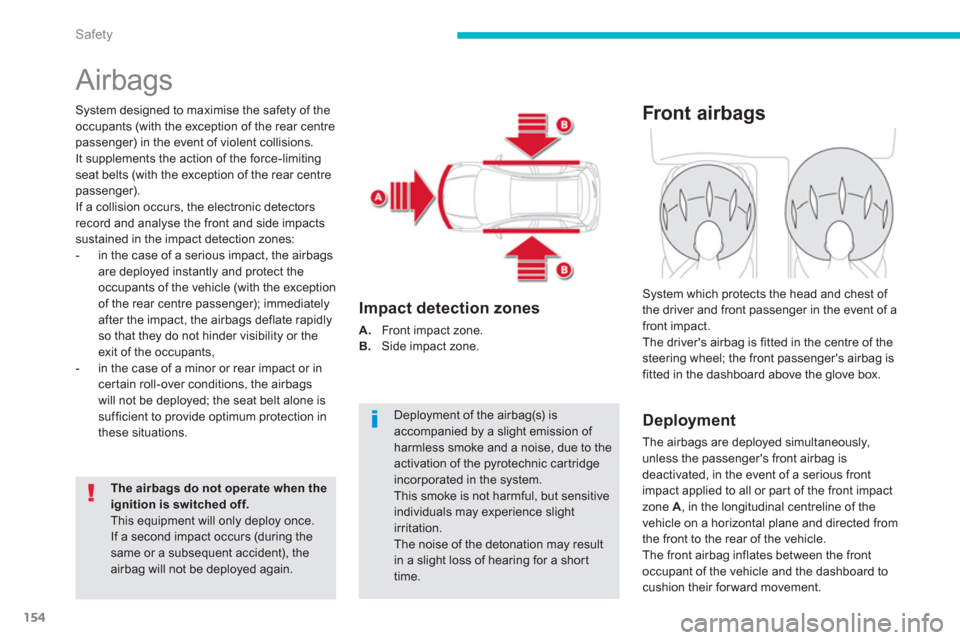

Airbags
System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limiting seat belts (with the exception of the rear centrepassenger).
If a collision occurs, the electronic detectors record and analyse the front and side impacts sustained in the impact detection zones:
- in the case of a serious impact, the airbagsare deployed instantly and protect the
occupants of the vehicle (with the exception
of the rear centre passenger); immediately after the impact, the airbags deflate rapidlyso that they do not hinder visibility or the
exit of the occupants,
- in the case of a minor or rear impact or incer tain roll-over conditions, the airbags
will not be deployed; the seat belt alone is
sufficient to provide optimum protection in
th
ese situations.
The airbags do not operate when the ignition is switched off. This equipment will only deploy once.
If a second impact occurs (during thesame or a subsequent accident), theairbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation.
The noise of the detonation may result in a slight loss of hearing for a shorttime.

Impact detection zones
A.
Front impact zone. B.
Side impact zone.
Front airbags


Deployment

The airbags are deployed simultaneously,
unless the passenger's front airbag is
deactivated, in the event of a serious front
impact applied to all or par t of the front impact
zone A , in the longitudinal centreline of the
vehicle on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their forward movement.
System which protects the head and chest of
the driver and front passenger in the event of a
front impact.
The driver's airba
g is fitted in the centre of the steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.

156
Safety

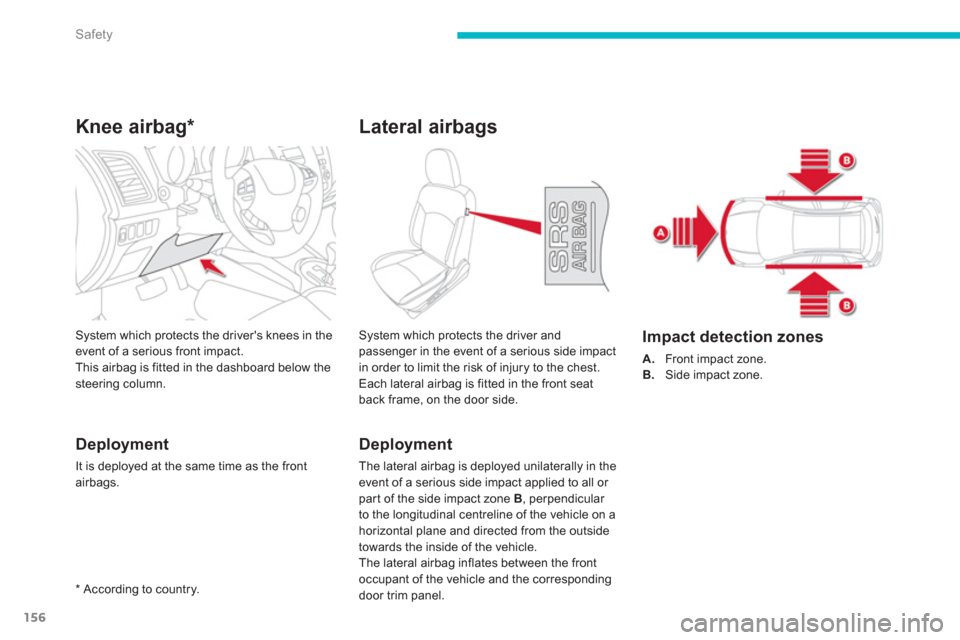

Knee airbag *
Deployment
It is deployed at the same time as the front airbags.
System which protects the driver's knees in theevent of a serious front impact.
This airbag is fitted in the dashboard below the steering column.
System which protects the driver and
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest.
Each lateral airbag is fitted in the front seat back frame, on the door side.


Deployment
The lateral airbag is deployed unilaterally in theevent of a serious side impact applied to all or par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
t
owards the inside of the vehicle.
The lateral airbag inflates between the front
occupant of the vehicle and the corresponding door trim panel.


Impact detection zones
A.Front impact zone.
B.Side impact zone.
*
According to country.
Lateral airbags

158
Safety

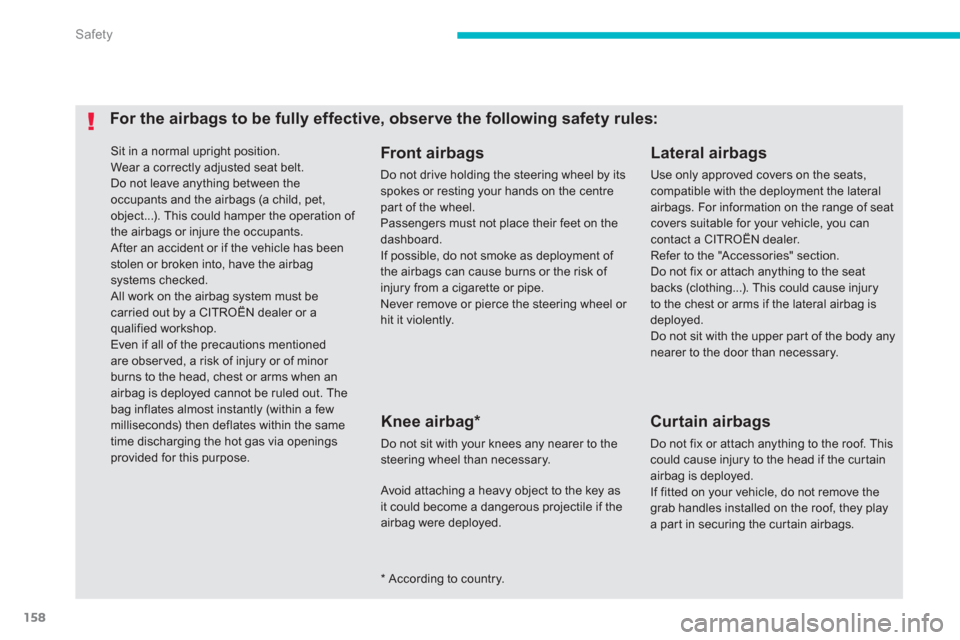

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between theoccupants and the airbags (a child, pet,object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualified workshop.
Even if all of the precautions mentioned are obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a few milliseconds) then deflates within the same
time discharging the hot gas via openings provided for this purpose.
Knee airbag
*
Do not sit with your knees any nearer to the steering wheel than necessary.


Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
For the airbags to be fully effective, observe the following safety rules:
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags. For information on the range of seatcovers suitable for your vehicle, you can contact a CITROËN dealer. Refer to the "Accessories" section.Do not fix or attach anything to the seat backs (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.Do not sit with the upper par t of the body anynearer to the door than necessary.


*
According to country.


Avoid attaching a heavy object to the key asit could become a dangerous projectile if theairbag were deployed.




Curtain airbags

Do not fix or attach anything to the roof. Thiscould cause injury to the head if the cur tainairbag is deployed.
If fitted on your vehicle, do not remove the grab handles installed on the roof, they playa par t in securing the cur tain airbags.

187
7
Practical information

Dashboard fuses

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Open the cover and remove it completely
by pulling it towards you.
Fuse N°RatingFunctions
1*30 A Cabin fan.
2 15 A
Brake lam
ps, third brake lamp.
310 A
Rear foglamps.
430 A Windscreen wiper, screenwash.
620 A
Central locking, electric door mirrors.
7 15 A
Audio equipment, telematics, USB unit, Bluetooth s
ystem.
87. 5 A
Remote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
915 A
Instrument panel and interior lighting.
1015 A
Hazard warning lamps
1115 A Rear wiper.
12 7.5
A Instrument panel, multifunction screen, parking sensors, heated seats, heated rear screen, electric blind, automatic headlampadjustment.
1
315 A
Cigarette lighter, accessory socket.
1520 A
Electric blind.
1
610 A Door mirrors, audio equipment.
