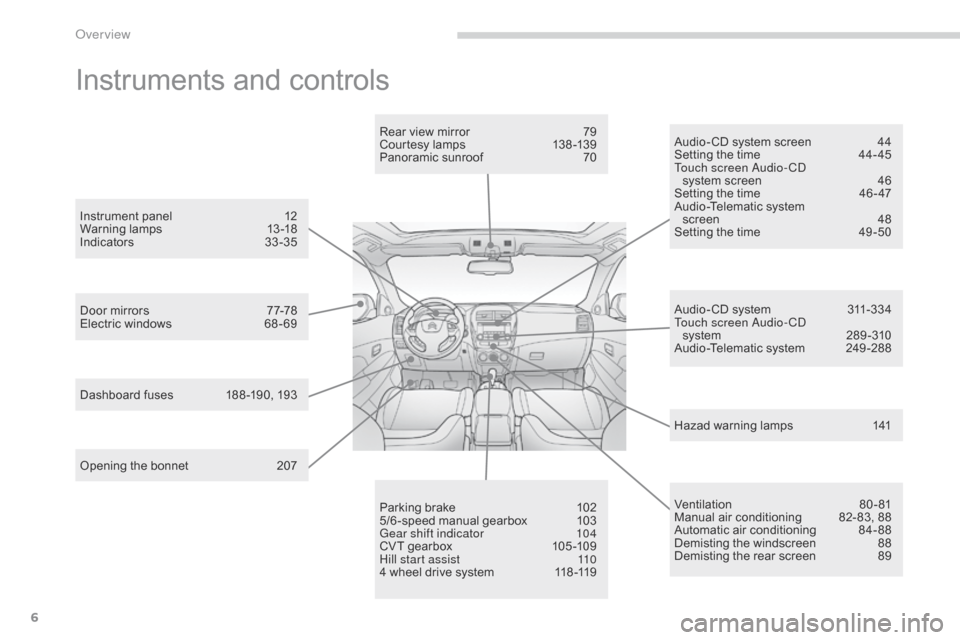

Instruments and controls
Opening the bonnet 207
Door mirrors
7
7-78
Electric windows
6
8 - 69Rear view mirror
7
9
Courtesy lamps
1
38 -139
Panoramic sunroof
7
0
Dashboard fuses
1
88 -190, 193
Instrument panel
1
2
Warning lamps
1
3-18
Indicators
33
-35
Audio- CD system screen
4
4
Setting the time
4
4- 45
Touch screen Audio- C
d

system screen
4
6
Setting the time
4
6 - 47
Audio-Telematic system screen
4
8
Setting the time
4
9 -50
Parking brake
1
02
5/6 -speed manual gearbox

1
03
Gear shift indicator

1
04
CVT gearbox

1
05 -109
Hill start assist

1
10
4 wheel drive system

1
18 -119Audio- CD system

3
11-334
Touch screen Audio- C
d

system
2
89 -310
Audio-Telematic system
2
49 -288
Ventilation
8
0-81
Manual air conditioning

8
2- 83, 88
Automatic air conditioning

8
4- 88
Demisting the windscreen
8

8
Demisting the rear screen

8
9
Hazad warning lamps

1
41
over view

10
C4-Aircross_en_Chap00c_eco-conduite_ed01-2014

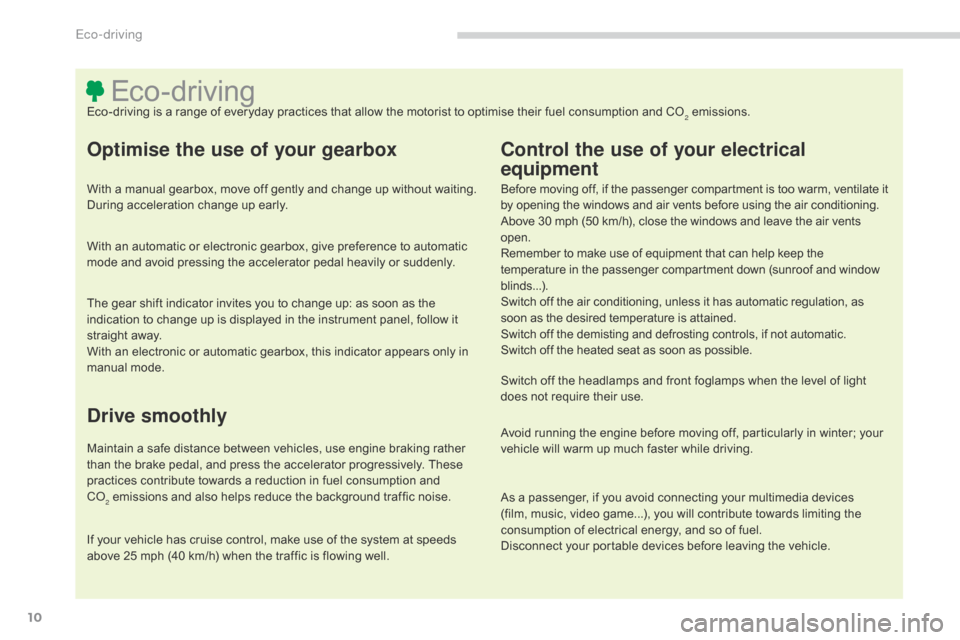

Eco-drivingEco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you to change up: as soon as the
indication to change up is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and
Co
2 emissions and also helps reduce the background traffic noise.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Eco-driving

14
Warning lamps
When the engine is running or the vehicle is being driven, the
illumination of one of the following warning lamps indicates a
malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel or appears in the
instrument panel screen.Warning /indicator lampis on Cause Action / Observations
Parking brake
/
Brake fluid
level
/ Electronic
brake force
distribution fixed.
It comes on for a few seconds, then
goes off when the ignition is switched
to "ON".
The parking brake is on or not fully
released. It is accompanied by a message. Release the parking brake
to make the warning lamp go off.
The brake fluid level is too low. It is accompanied by a message. Top up with brake fluid and contact a CITROËN dealer or a qualified workshop.
The electronic brake force distribution
(EBFD) is faulty. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
Battery charge *fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
The illumination of a warning lamp may be accompanied by the display
of an additional message, to assist you in identifying the problem.
If you encounter any problems, you should contact a CITROËN dealer
or a qualified workshop.
* According to destination country.
Monitoring

24
Screen 1 Screen 2Cause Solution - ActionObservations
The brake fluid level is too low. Top up using a brake fluid listed by
CITROËN.If the problem persists, contact
a CITRoËn
dealer or a qualified
workshop.
Fault with the braking system. You must stop as soon as it is safe to do so.Have the system checked by a
CITR
oËn

dealer or a qualified
workshop.
Fault with the anti-lock braking
system (ABS). Contact a CITR
oËn

dealer or a
qualified workshop. The vehicle retains conventional
braking without assistance but you
are advised to stop.
The tyre pressure is too low in one
or more tyres. Check the tyre pressures as soon
as possible.
This check should preferably
be done with the tyres cold.
You must reinitialise the system
after adjusting one or more tyre
pressures or after changing one or
more wheels.
For more information, refer to the
"Under-inflation detection system"
section.If the problem persists, contact
a C
ITR
oËn d

ealer or a qualified
workshop.
There is a fault with the under-
inflation detection system and/or
at least one wheel does not have a
detected sensor. The tyre pressures are no longer
monitored.
Have the system checked by a
CITR
oËn

dealer or a qualified
workshop.
Monitoring

27
C4-Aircross_en_Chap01_controle-de-marche_ed01-2014
Screen 1 Screen 2Cause Solution - ActionObservations
You have moved off with the parking
brake not fully released.Release the parking brake.
The oil pressure is too low or there
is a fault with the engine lubrication
system. Stop the vehicle and contact a
CITR
oËn

dealer or a qualified
workshop.
Battery charge fault. Stop the vehicle and contact a
CITR
oËn

dealer or a qualified
workshop.
Airbag or pretensioner fault. Contact a CITR
oËn

dealer or a
qualified workshop to have the
systems checked.
Fault with automatic headlamp
adjustment system. Contact a CITR
oËn

dealer or a
qualified workshop. Only on vehicles fitted with xenon
headlamps.
Fault with the stability control
system (ASC). Contact a CITR
oËn

dealer or a
qualified workshop.
Fault with the four wheel drive
transmission system. Contact a CITR
oËn

dealer or a
qualified workshop.
1
Monitoring

29
C4-Aircross_en_Chap01_controle-de-marche_ed01-2014

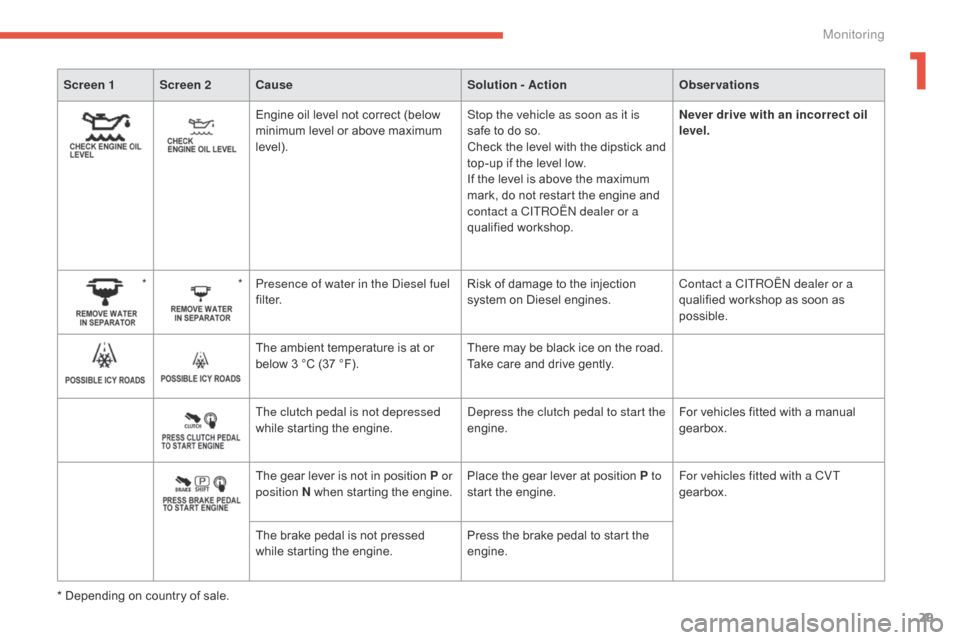

Screen 1 Screen 2Cause Solution - ActionObservations
Engine oil level not correct (below
minimum level or above maximum
level).Stop the vehicle as soon as it is
safe to do so.
Check the level with the dipstick and
top-up if the level low.
If the level is above the maximum
mark, do not restart the engine and
contact a CITR
oËn

dealer or a
qualified workshop. Never drive with an incorrect oil
level.
* * Presence of water in the
d
i
esel fuel
f i l t e r. Risk of damage to the injection
system on Diesel engines.Contact a CITR
oËn

dealer or a
qualified workshop as soon as
possible.
The ambient temperature is at or
below 3 °C (37 °F). There may be black ice on the road.
Take care and drive gently.
The clutch pedal is not depressed
while starting the engine.
de

press the clutch pedal to start the
engine. For vehicles fitted with a manual
gearbox.
The gear lever is not in position P or
position N when starting the engine. Place the gear lever at position P to
start the engine.For vehicles fitted with a CVT
gearbox.
The brake pedal is not pressed
while starting the engine. Press the brake pedal to start the
engine.
* Depending on country of sale.
1
Monitoring

37
C4-Aircross_en_Chap01_controle-de-marche_ed01-2014

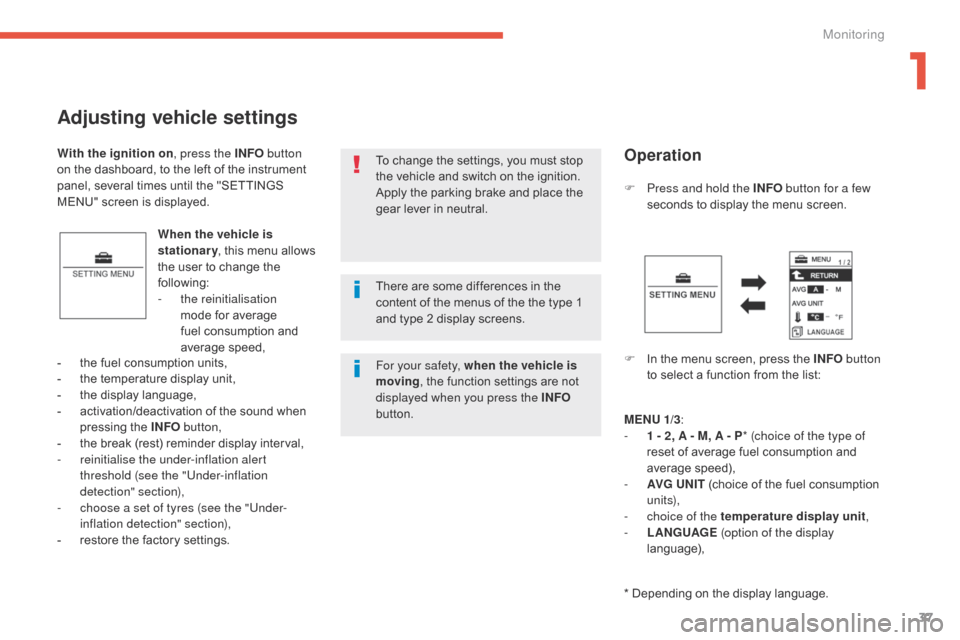

Adjusting vehicle settings
When the vehicle is
stationary, this menu allows
the user to change the
following:
-
th

e reinitialisation
mode for average
fuel consumption and
average speed, F

P
ress and hold the INFO
button for a few
seconds to display the menu screen.
F
I
n the menu screen, press the INFO button
to select a function from the list:
-

t

he fuel consumption units,
-

t

he temperature display unit,
-
t

he display language,
-

a

ctivation/deactivation of the sound when
pressing the INFO button,
-

t

he break (rest) reminder display interval,
-
r

einitialise the under-inflation alert
threshold (see the "Under-inflation
detection" section),
-

c

hoose a set of tyres (see the "Under-
inflation detection" section),
-

r

estore the factory settings. To change the settings, you must stop
the vehicle and switch on the ignition.
Apply the parking brake and place the
gear lever in neutral.
With the ignition on
, press the INFO button
on the dashboard, to the left of the instrument
panel, several times until the "SETTINGS
MENU" screen is displayed.
Operation
MENU 1/3:
- 1 - 2 , A - M, A - P * (choice of the type of
reset of average fuel consumption and
average speed),
-

AV
G UN IT (choice of the fuel consumption
un i t s),
-

c
hoice of the temperature display unit ,
-

L
ANGUAGE (option of the display
language),
* Depending on the display language.
There are some differences in the
content of the menus of the the type 1
and type 2 display screens.
For your safety, when the vehicle is
moving
, the function settings are not
displayed when you press the INFO
button.
1
Monitoring

98
C4-Aircross_en_Chap04_conduite_ed01-2014

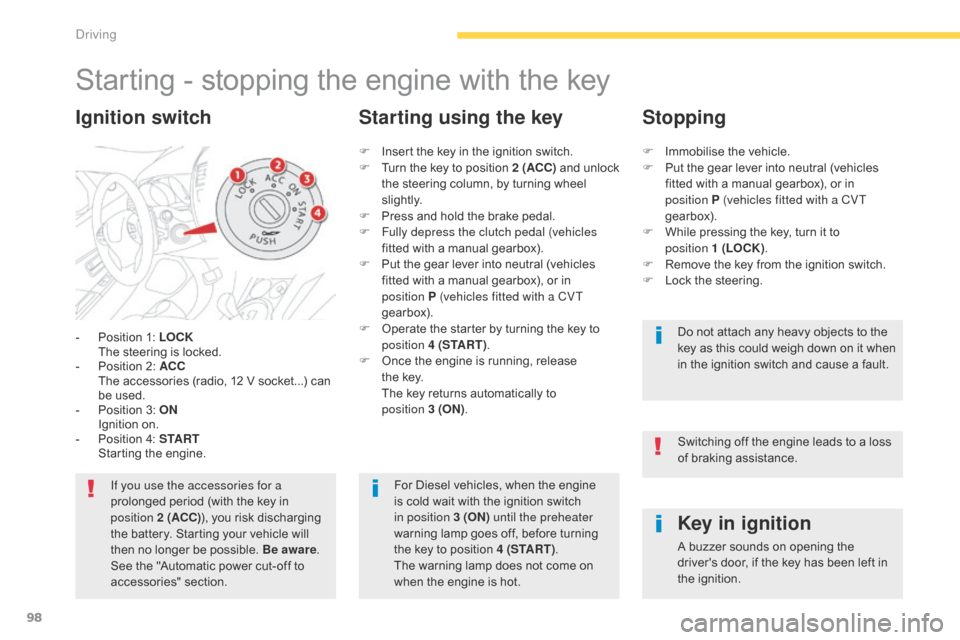

Starting - stopping the engine with the key
- Position 1: LOCK The steering is locked.
-

P
osition 2: ACC
T

he accessories (radio, 12 V socket...) can
be used.
-

P
osition 3: ON
I

gnition on.
-

P
osition 4: S TA R T
S

tarting the engine.
Ignition switch
If you use the accessories for a
prolonged period (with the key in
position 2 (ACC) ), you risk discharging
the battery. Starting your vehicle will
then no longer be possible. Be aware .
See the "Automatic power cut-off to
accessories" section.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left in
the ignition.
F

I

nsert the key in the ignition switch.
F

T

urn the key to position
2 (ACC) and unlock
the steering column, by turning wheel
s li g ht l y.
F

P

ress and hold the brake pedal.
F

F

ully depress the clutch pedal (vehicles
fitted with a manual gearbox).
F

P

ut the gear lever into neutral (vehicles
fitted with a manual gearbox), or in
position


P (vehicles fitted with a CVT
gearbox).
F

O

perate the starter by turning the key to
position 4 (S TA R T ) .
F

O

nce the engine is running, release
the

key.
T

he key returns automatically to
position


3


(ON)
.
Starting using the key Stopping
F Immobilise the vehicle.
F
P ut the gear lever into neutral (vehicles
fitted with a manual gearbox), or in
position


P (vehicles fitted with a CVT
gearbox).
F

W
hile pressing the key, turn it to
position


1 (LOCK).
F

R
emove the key from the ignition switch.
F

L
ock the steering.Do not attach any heavy objects to the
key as this could weigh down on it when
in the ignition switch and cause a fault.
For Diesel vehicles, when the engine
is cold wait with the ignition switch
in position 3 (ON) until the preheater
warning lamp goes off, before turning
the key to position 4 (S TA R T ) .
The warning lamp does not come on
when the engine is hot. Switching off the engine leads to a loss
of braking assistance.
driving
