15
C4-Aircross_en_Chap01_controle-de-marche_ed01-2014

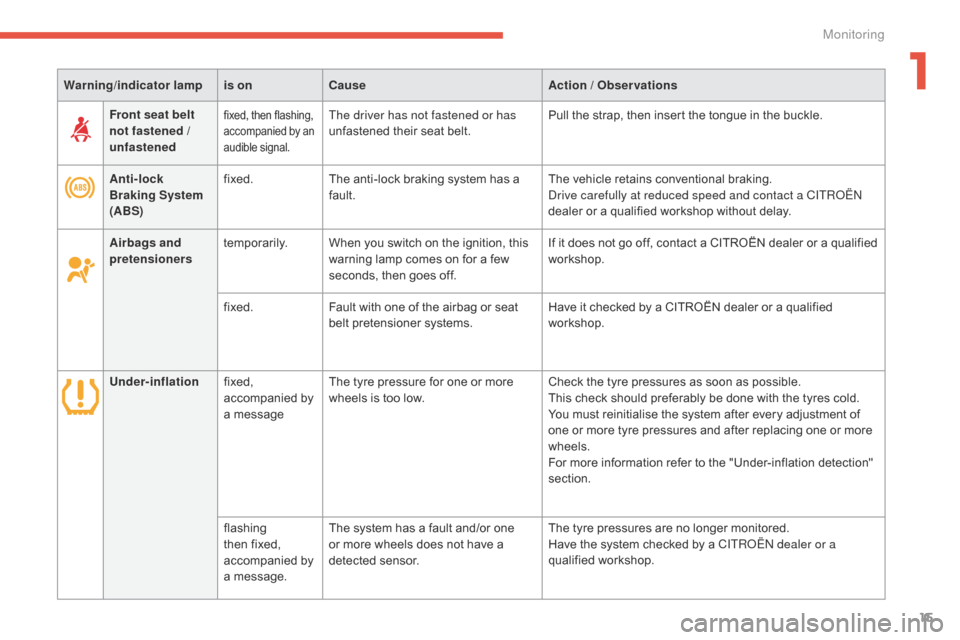

Warning/indicator lampis on Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
dr

ive carefully at reduced speed and contact a CITR
oËn

dealer or a qualified workshop without delay.
Front seat belt
not fastened /
unfastened
fixed, then flashing,
accompanied by an
audible signal.The driver has not fastened or has
unfastened their seat belt.
Pull the strap, then insert the tongue in the buckle.
Airbags and
pretensioners temporarily.
When you switch on the ignition, this
warning lamp comes on for a few
seconds, then goes off. If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed. Fault with one of the airbag or seat
belt pretensioner systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Under-inflation fixed,
accompanied by
a messageThe tyre pressure for one or more
wheels is too low.
Check the tyre pressures as soon as possible.
This check should preferably be done with the tyres cold.
You must reinitialise the system after every adjustment of
one or more tyre pressures and after replacing one or more
wheels.
For more information refer to the "Under-inflation detection"
section.
flashing
then fixed,
accompanied by
a message. The system has a fault and/or one
or more wheels does not have a
detected sensor.
The tyre pressures are no longer monitored.
Have the system checked by a C
ITR
oËn d

ealer or a
qualified workshop.
1
Monitoring

71
C4-Aircross_en_Chap03_confort_ed01-2014

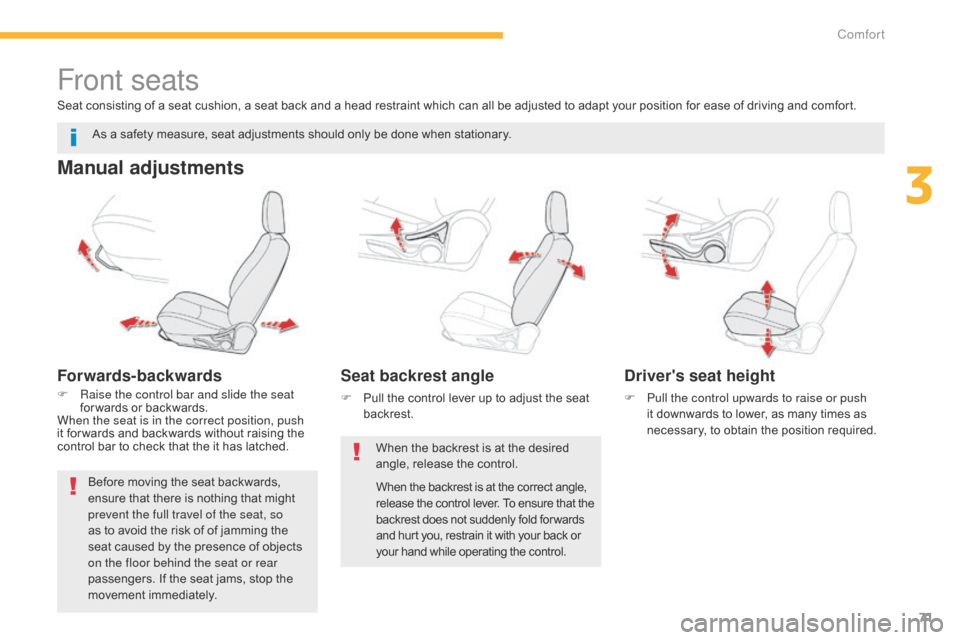

Front seats
Manual adjustments
Forwards-backwards
F Raise the control bar and slide the seat for wards or backwards.
When the seat is in the correct position, push
it for wards and backwards without raising the
control bar to check that the it has latched.
Seat backrest angle
F Pull the control lever up to adjust the seat
backrest.
When the backrest is at the desired
angle, release the control.
As a safety measure, seat adjustments should only be done when stationary.
Driver's seat height
F Pull the control upwards to raise or push
it downwards to lower, as many times as
necessary, to obtain the position required.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
When the backrest is at the correct angle,
release the control lever. To ensure that the
backrest does not suddenly fold for wards
and hurt you, restrain it with your back or
your hand while operating the control.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so
as to avoid the risk of of jamming the
seat caused by the presence of objects
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
3
Comfort

72
C4-Aircross_en_Chap03_confort_ed01-2014

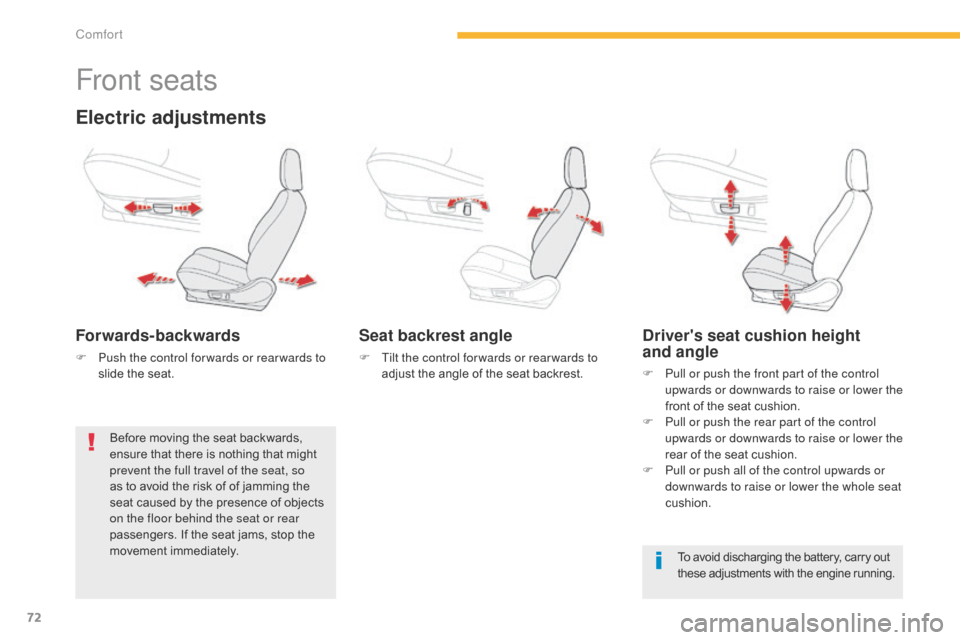

Front seats
Electric adjustments
Forwards-backwards
F Push the control for wards or rear wards to slide the seat.
Seat backrest angle
F Tilt the control for wards or rear wards to adjust the angle of the seat backrest.
Driver's seat cushion height
and angle
F Pull or push the front part of the control upwards or downwards to raise or lower the
front of the seat cushion.
F

P
ull or push the rear part of the control
upwards or downwards to raise or lower the
rear of the seat cushion.
F

P
ull or push all of the control upwards or
downwards to raise or lower the whole seat
cushion.
To avoid discharging the battery, carry out
these adjustments with the engine running.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so
as to avoid the risk of of jamming the
seat caused by the presence of objects
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
Comfort

133
C4-Aircross_en_Chap05_visibilite_ed01-2014

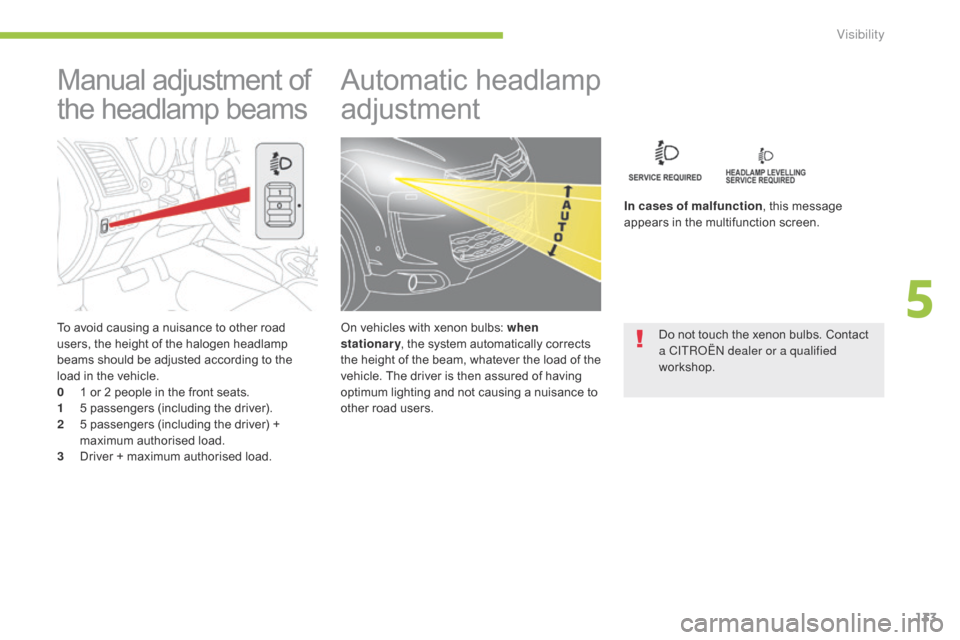

To avoid causing a nuisance to other road
users, the height of the halogen headlamp
beams should be adjusted according to the
load in the vehicle.
0
1 o
r 2 people in the front seats.
1

5
passengers (including the driver).
2

5 p
assengers (including the driver) +
maximum authorised load.
3

D
river + maximum authorised load.
Manual adjustment of
the headlamp beams Automatic headlamp
adjustment
In cases of malfunction
, this message
appears in the multifunction screen.
Do not touch the xenon bulbs. Contact
a CITR
oËn

dealer or a qualified
workshop.
On vehicles with xenon bulbs: when
stationary
, the system automatically corrects
the height of the beam, whatever the load of the
vehicle. The driver is then assured of having
optimum lighting and not causing a nuisance to
other road users.
5
Visibility

149
C4-Aircross_en_Chap06_securite_ed01-2014

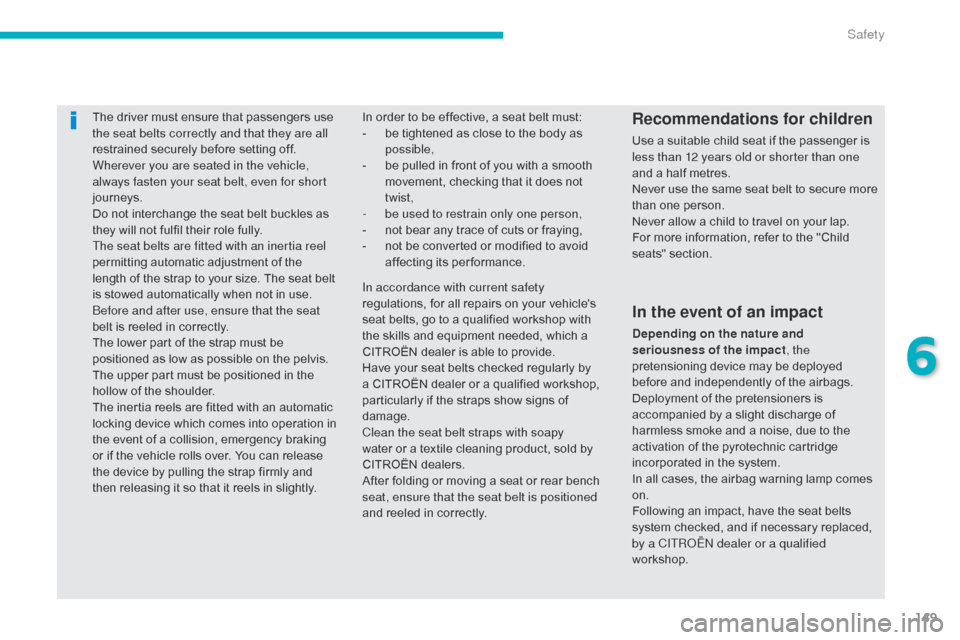

The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
be
fore and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information, refer to the "Child
seats" section.
In order to be effective, a seat belt must:
-
b
e tightened as close to the body as
possible,
-

b

e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b

e used to restrain only one person,
-

n

ot bear any trace of cuts or fraying,
-

n

ot be converted or modified to avoid
affecting its performance.
In the event of an impact
Depending on the nature and
seriousness of the impact , the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITR
oËn

dealer or a qualified
workshop.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
6
Safety
