Page 228 of 368

226
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

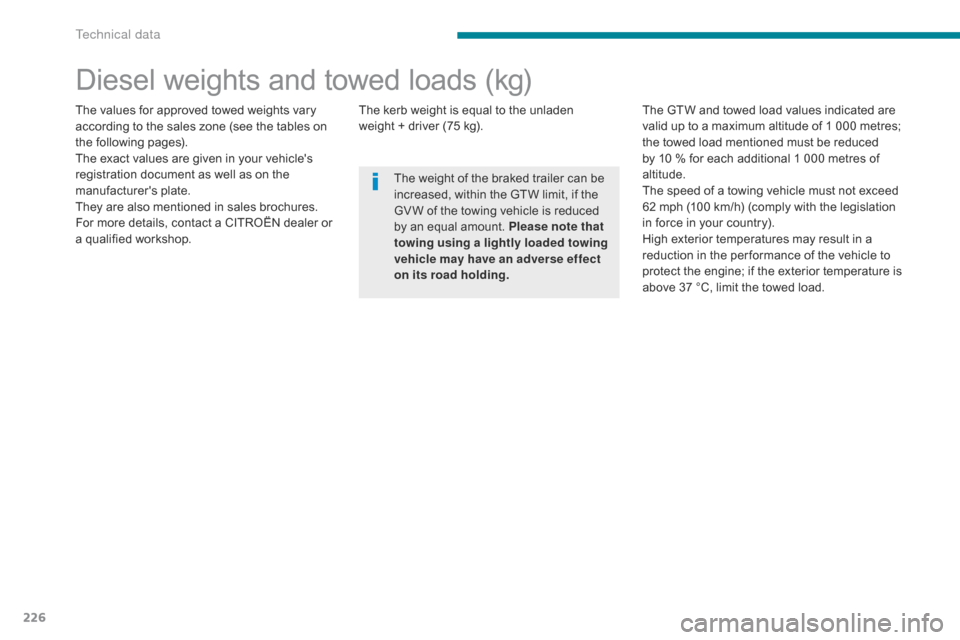

Diesel weights and towed loads (kg)
The values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a CITROËN dealer or
a qualified workshop.The kerb weight is equal to the unladen
weight
+ driver (75 kg).The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.
The weight of the braked trailer can be
increased, within the GTW limit, if the
GV W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
Technical data
Page 229 of 368

227
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

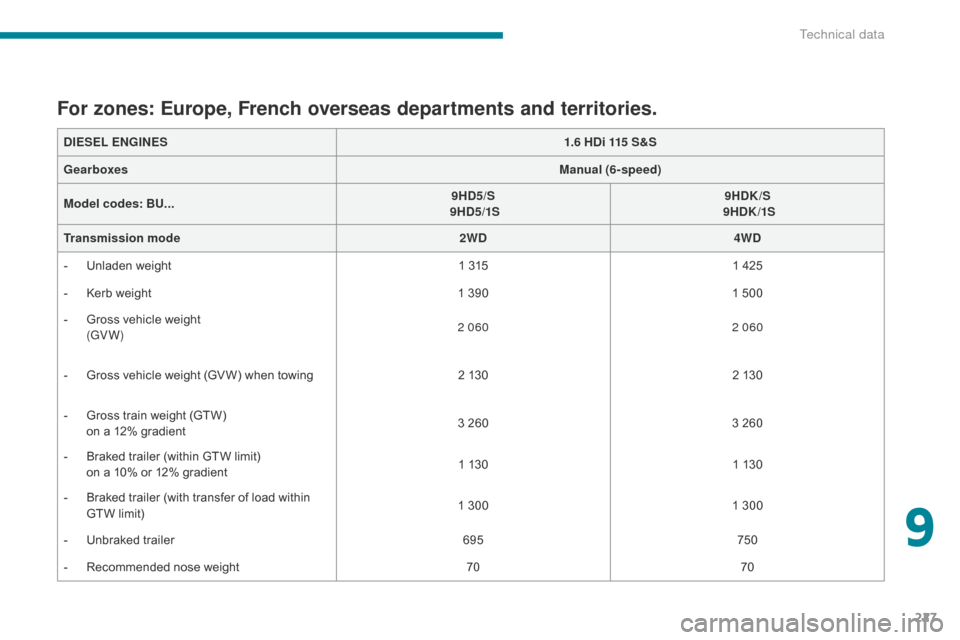

DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD5/S
9HD5/1S 9HDK/S
9HDK /1S
Transmission mode 2WD4WD
-
U
nladen weight 1 3151 425
-
K
erb weight 1 3901 500
-
G
ross vehicle weight
(GV W) 2 060
2 060
-
G
ross vehicle weight (GV W) when towing 2 1302 130
-
G
ross train weight (GTW)
o
n a 12% gradient 3 260
3 260
-
B
raked trailer (within GTW limit)
o
n a 10% or 12% gradient 1 130
1 130
-
B
raked trailer (with transfer of load within
GTW limit) 1 300
1 300
-
U
nbraked trailer 695750
-
R
ecommended nose weight 7070
For zones: Europe, French overseas departments and territories.
9
Technical data
Page 230 of 368

228
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

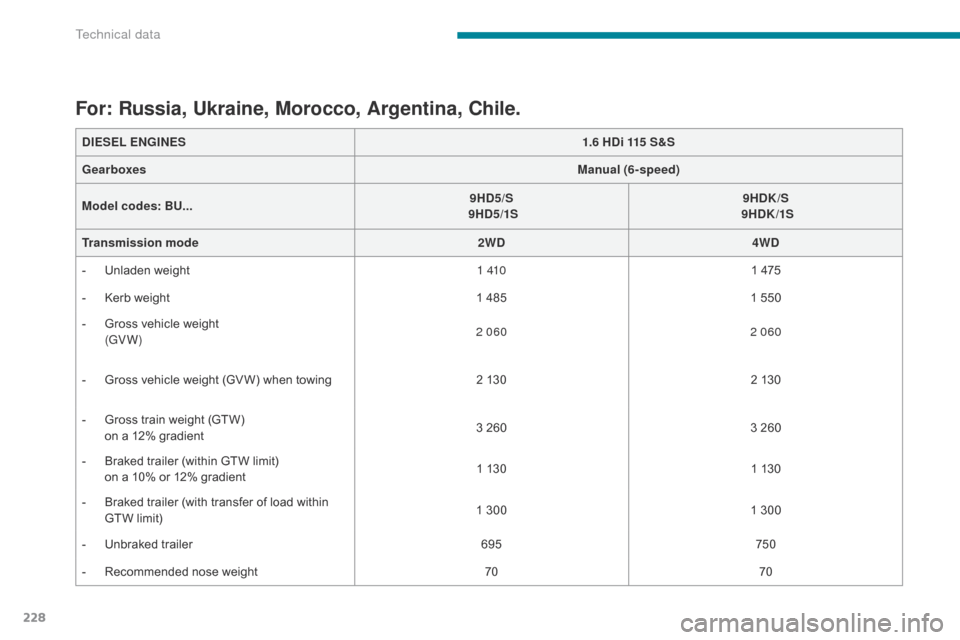

DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD5/S
9HD5/1S 9HDK/S
9HDK /1S
Transmission mode 2WD4WD
-
U
nladen weight 1 4101 475
-
K
erb weight 1 4851 550
-
G
ross vehicle weight
(GV W) 2 060
2 060
-
G
ross vehicle weight (GV W) when towing 2 1302 130
-
G
ross train weight (GTW)
o
n a 12% gradient 3 260
3 260
-
B
raked trailer (within GTW limit)
o
n a 10% or 12% gradient 1 130
1 130
-
B
raked trailer (with transfer of load within
GTW limit) 1 300
1 300
-
U
nbraked trailer 695750
-
R
ecommended nose weight 7070
For: Russia, Ukraine, Morocco, Argentina, Chile.
Technical data
Page 231 of 368

229
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

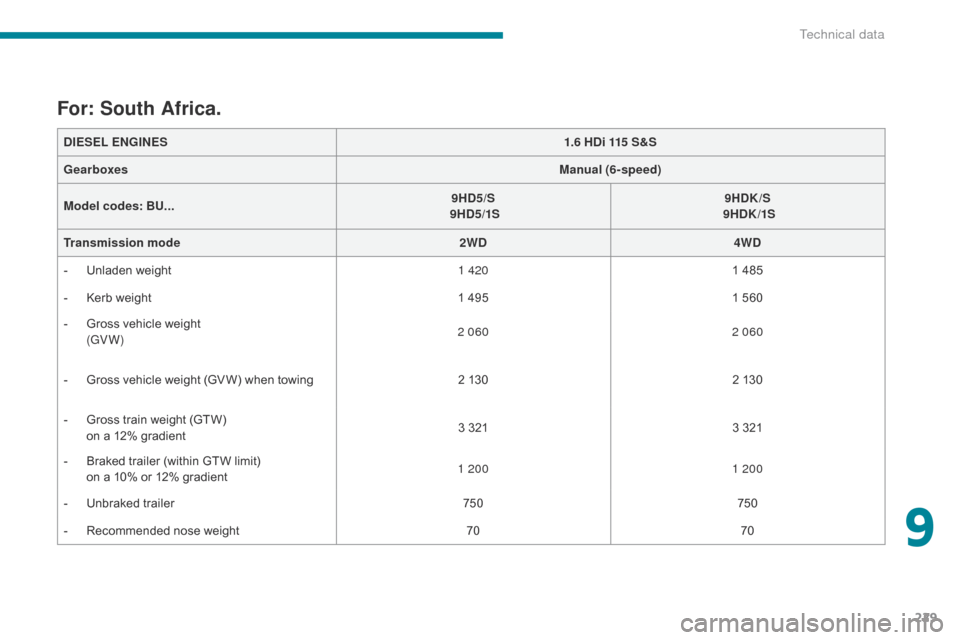

DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD
5/S
9HD5/1S 9HDK/S
9HDK /1S
Transmission mode 2WD4WD
-
U
nladen weight 1 4201 485
-
K
erb weight 1 4951 560
-
G
ross vehicle weight
(GV W) 2 060
2 060
-
G
ross vehicle weight (GV W) when towing 2 1302 130
-
G
ross train weight (GTW)
o
n a 12% gradient 3 321
3 321
-
B
raked trailer (within GTW limit)
o
n a 10% or 12% gradient 1 200
1 200
-
U
nbraked trailer 750750
-
R
ecommended nose weight 7070
For: South Africa.
9
Technical data
Page 232 of 368

230
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

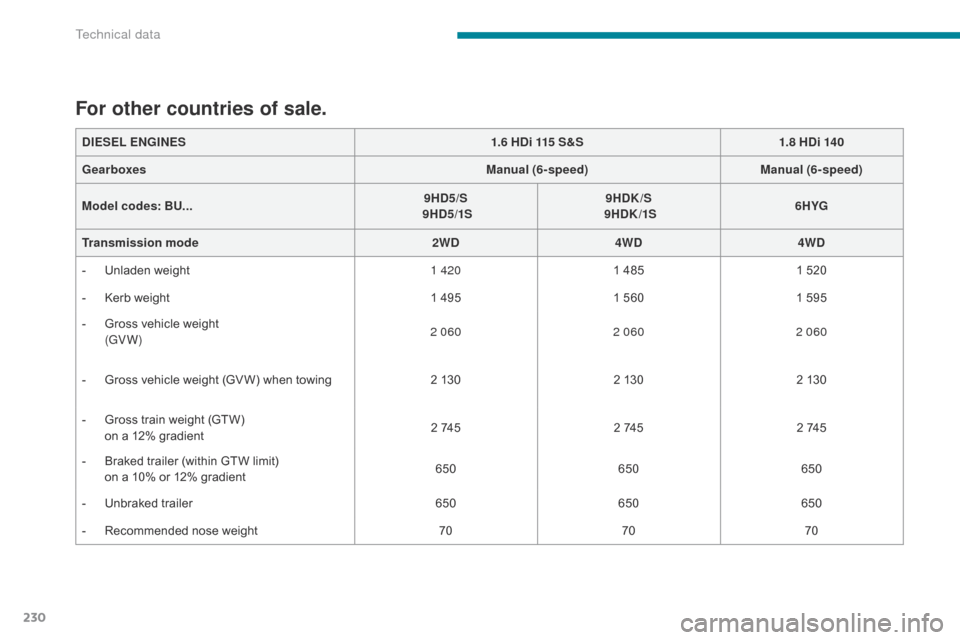

DIESEL ENGINES1.6 HDi 115 S&S1.8 HDi 140
Gearboxes Manual (6-speed)Manual (6-speed)
Model codes: BU... 9HD5/S
9HD5/1S 9HDK/S
9HDK /1S 6HYG
Transmission mode 2WD4WD4WD
-
U
nladen weight 1 4201 485 1 520
-
K
erb weight 1 4951 560 1 595
-
G
ross vehicle weight
(GV W) 2 060
2 0602 060
-
G
ross vehicle weight (GV W) when towing 2 1302 1302 130
-
G
ross train weight (GTW)
o
n a 12% gradient 2 745
2 7452 745
-
B
raked trailer (within GTW limit)
o
n a 10% or 12% gradient 650
650650
-
U
nbraked trailer 650650650
-
R
ecommended nose weight 707070
For other countries of sale.
Technical data
Page 234 of 368

232
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

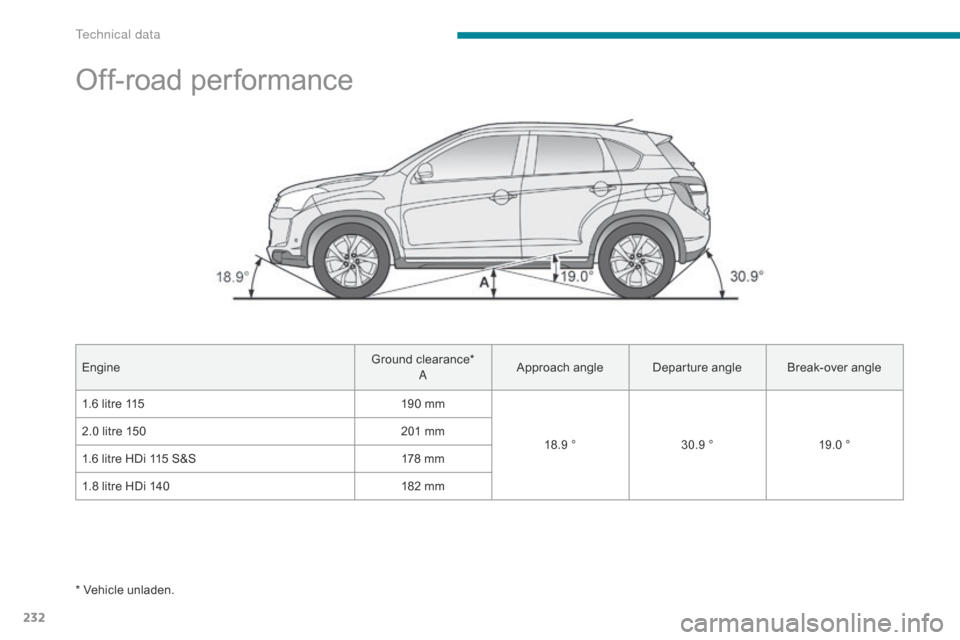

Off-road performance
EngineGround clearance*
A Approach angle
Departure angleBreak-over angle
1.6 litre 115 190 mm
18.9 °30.9 ° 19.0 °
2.0 litre 150
201 mm
1.6 litre HDi 115 S&S 178 mm
1.8 litre HDi 140 182 mm
* Vehicle unladen.
Technical data
Page 235 of 368

233
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

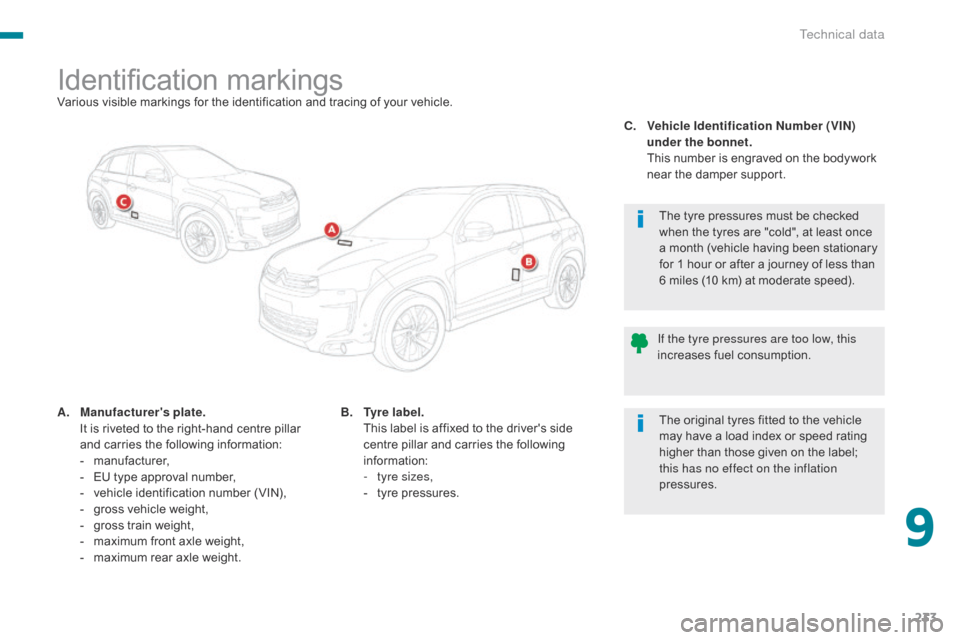

Identification markingsVarious visible markings for the identification and tracing of your vehicle.
A.
M
anufacturer's plate.
I
t is riveted to the right-hand centre pillar
and carries the following information:
-
ma
nufacturer,
-
E
U type approval number,
-
v
ehicle identification number (VIN),
-
g
ross vehicle weight,
-
g
ross train weight,
-
m
aximum front axle weight,
-
m
aximum rear axle weight. The tyre pressures must be checked
when the tyres are "cold", at least once
a month (vehicle having been stationary
for 1 hour or after a journey of less than
6 miles (10 km) at moderate speed).
If the tyre pressures are too low, this
increases fuel consumption.
B.
T
yre label.
T
his label is affixed to the driver's side
centre pillar and carries the following
information:
-
t
yre sizes,
-
t
yre pressures.C.
V
ehicle Identification Number (VIN)
under the bonnet.
T
his number is engraved on the bodywork
near the damper support.
The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.
9
