DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD
5/S
9HD5/1S 9HDK/S

9HDK /1S
Transmission mode 2WD4WD
-

U
nladen weight 1 4201 485
-

K
erb weight 1 4951 560
-

G
ross vehicle weight
(GV W) 2 060
2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 321
3 321
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 200
1 200
-

U
nbraked trailer 750750
-

R
ecommended nose weight 7070
For: South Africa.
9
Technical data

230
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
DIESEL ENGINES1.6 HDi 115 S&S1.8 HDi 140
Gearboxes Manual (6-speed)Manual (6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S 6HYG
Transmission mode 2WD4WD4WD
-

U
nladen weight 1 4201 485 1 520
-

K
erb weight 1 4951 560 1 595
-

G
ross vehicle weight
(GV W) 2 060
2 0602 060
-

G
ross vehicle weight (GV W) when towing 2 1302 1302 130
-

G
ross train weight (GTW)


o
n a 12% gradient 2 745
2 7452 745
-

B
raked trailer (within GTW limit)


o
n a 10% or 12% gradient 650
650650
-

U
nbraked trailer 650650650
-

R
ecommended nose weight 707070
For other countries of sale.
Technical data

231
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

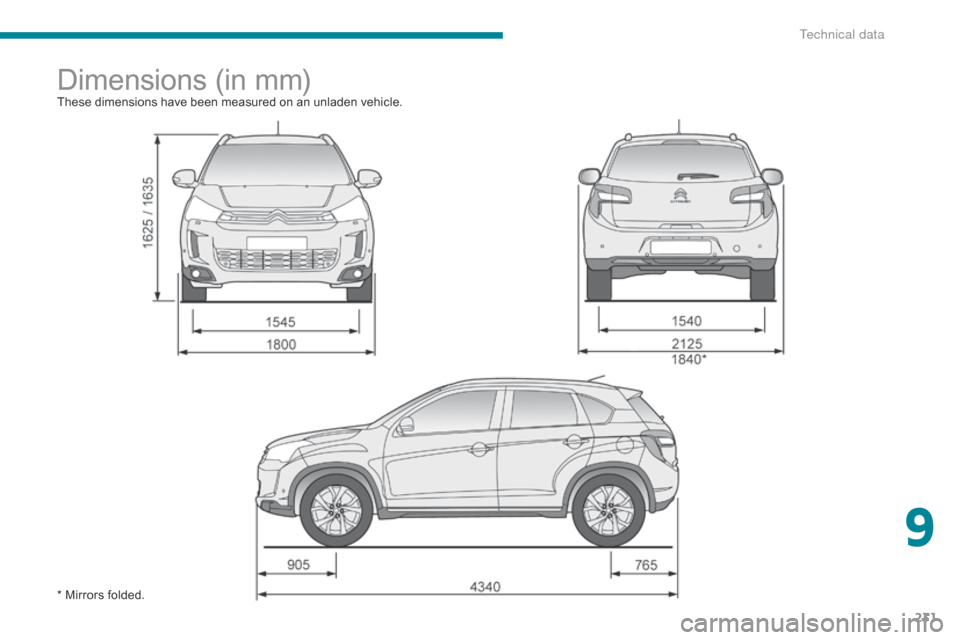

Dimensions (in mm)These dimensions have been measured on an unladen vehicle.
* Mirrors folded.
9
T

232
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
Off-road performance
EngineGround clearance*
A Approach angle
Departure angleBreak-over angle
1.6 litre 115 190 mm
18.9 °30.9 ° 19.0 °
2.0 litre 150
201 mm
1.6 litre HDi 115 S&S 178 mm
1.8 litre HDi 140 182 mm
* Vehicle unladen.
Technical data

233
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
Identification markingsVarious visible markings for the identification and tracing of your vehicle.
A.
M
anufacturer's plate.
I

t is riveted to the right-hand centre pillar
and carries the following information:
-
ma

nufacturer,
-

E
U type approval number,
-

v
ehicle identification number (VIN),
-

g
ross vehicle weight,
-

g
ross train weight,
-

m
aximum front axle weight,
-

m
aximum rear axle weight. The tyre pressures must be checked
when the tyres are "cold", at least once
a month (vehicle having been stationary
for 1 hour or after a journey of less than
6 miles (10 km) at moderate speed).
If the tyre pressures are too low, this
increases fuel consumption.
B.
T

yre label.
T

his label is affixed to the driver's side
centre pillar and carries the following
information:
-

t
yre sizes,
-

t
yre pressures.C.
V

ehicle Identification Number (VIN)
under the bonnet.
T

his number is engraved on the bodywork
near the damper support.
The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.
9
Technical data

234
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
T

235
SPEAK
Press this button to activate voice recognition ("
Listening" is displayed).
During a voice recognition, press this button briefly to put this voice recognition on hold.
Make a long press on this button to deactivate voice recognition.
Press this button briefly to activate voice recognition, even during a call. ANSWER A CA
ll
Press

this button to accept an incoming call.
In the event of a 2
nd incoming call, press
to put the 1st call on hold and speak to the
second caller.
In this case, press briefly to switch from one
call to the other.
To establish a three-way conversation,
press on SPEAK to change from voice
recognition and say " Incorporate the call".
END CA
ll
Press this button to reject an incoming call.
During a conversation, press this button to
end the call.
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

236
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
By default, the voice recognition system is in English.
Press this button. Say "Setup".
Say "Language".
Say the language of your choice in English, example:
say "French" for French.
Say "Ye s " to start the change of language process
Say "No" to return to steps 4 to 7.
The system says "Select a language: English, Spanish, French,
German or Italian".
The system then says "French selected. Is this correct?"
The system repeats the language chosen and completes the
change of language process.
If you do not start the training procedure within around 3
minutes of
pressing SPEAK, the process is cancelled.
If you press SPEAK within 5 seconds following the play of a voice
command, this command is saved again. What is the Bluetooth
® hands-free telephone with voice
recognition?
The system uses wireless communication technology known as
Bluetooth
® which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth® compatible mobile telephone.
You can make telephone calls using a microphone located in
the courtesy lamp, making use of the simple steering mounted
controls or by the voice recognition function with voice commands.
Five

languages are available: English (the default), Spanish,
French, German and Italian.
Change the voice command language

237
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
Training the user's voice
You can use the user voice training function to create a voice model
for one person per language.
The characteristics of your voice and your pronunciation are saved
in this model to provide the best voice recognition.
The vehicle must be stationary with the parking brake applied.
Switch off your telephone during the operation to avoid any
interruption.
Press this button. The system says the first of 45 standard phrases.
Say "Word training ". When you are ready to start, press and
hold this button.
Repeat each of the phrases in the table on the following
page.
The system saves your voice and moves on to the next
command.
Continue the process until all of the phrases have been
saved.
An explanation message is given. After playing all the voice commands, the system says "
The word
training is complete" and ends the process.
If you do not start the programming process within approximately
3
minutes after pressing the SPEAK button, the process is
cancelled.
If you press the SPEAK button within 5 seconds of the play of a
voice command, this command is saved again.

238
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
Voice training commands
1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4 903
4 235 - 3 494
5 315- 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305
11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5 015
14 (888) 555 - 1 212
15 0 123 456 789 16
55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33
No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40 Configure the confirmation requests
41 Configure the language
42 Configure the matching options
43 Match a telephone
44 Transfer the call
45 Ye s
