fuel cap Citroen C4 AIRCROSS 2017 1.G Owner's Manual

35
C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016
When the engine is
running, this indicates the
temperature of the coolant.
Range
When the engine is
running, this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over the
last few miles/kilometres
travelled. This value may vary following a change
in the style of driving or the relief,
resulting in a large variation in the
current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. Therefore,
you must fill the tank whenever
possible.
Coolant temperature
gauge
If the bar is close to the critical
position located
on the right, the temperature is too high.
The symbol flashes when your engine is
overheating.
You must stop your vehicle as soon as it is
safe to do so.
Wait a few minutes before switching off the
engine. When the range is less than 30 miles (50 km)
,
dashes are displayed.
Refuel as soon as possible. The display of the
range is updated.
Wait for the engine to cool before
topping up the level. The cooling system
is pressurised.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level,
if
necessary.
Contact a CITROËN dealer or a
qualified workshop. When you disconnect the battery,
the previous fuel consumption data
is lost and the value displayed will be
different from that displayed before the
battery was disconnected. The distance
displayed must be considered an
approximate indication.
1
Instruments

173
C4-Aircross_en_Chap07_info-pratiques_ed01-2016
When the symbol begins to flash
rapidly (approximately twice per
second), there is not much fuel
remaining in your tank (approximately
5
litres).
You must fill the tank to avoid running
out of fuel.

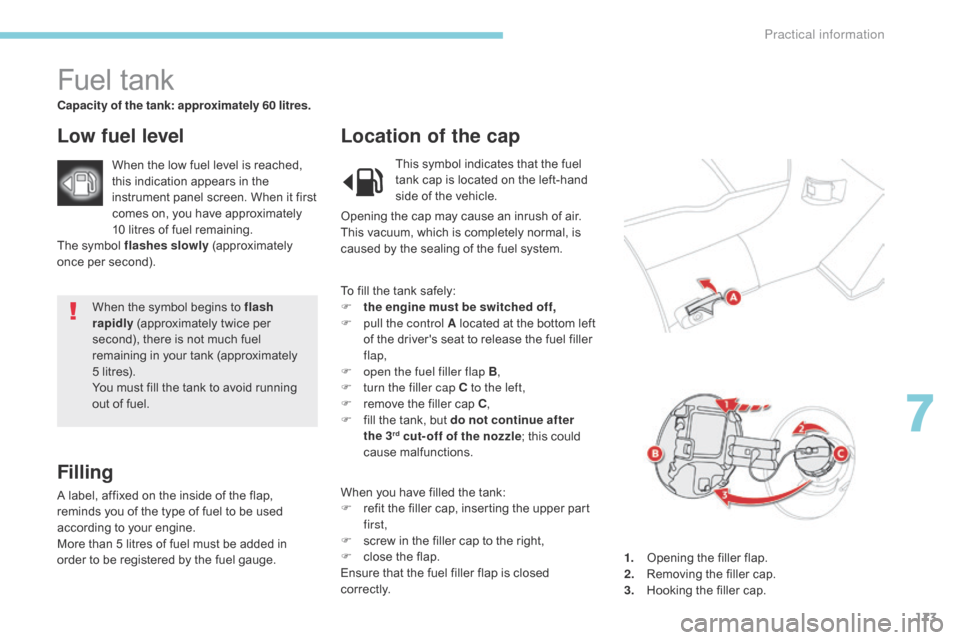

Fuel tank
Capacity of the tank: approximately 60 litres.
Low fuel level
Filling
A label, affixed on the inside of the flap,
reminds you of the type of fuel to be used
according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge.
Location of the cap
When the low fuel level is reached,
this indication appears in the
instrument panel screen. When it first
comes on, you have approximately
10 litres of fuel remaining.
The symbol flashes slowly (approximately
once per second).
1.
O

pening the filler flap.
2.
R

emoving the filler cap.
3.
H

ooking the filler cap.
To fill the tank safely:
F

t
he engine must be switched off,
F

p
ull the control A located at the bottom left
of the driver's seat to release the fuel filler
flap,
F

o
pen the fuel filler flap B,
F

t
urn the filler cap C to the left,
F

r
emove the filler cap C,
F

f
ill the tank, but do not continue after
the
3
rd cut- off of the nozzle; this could
cause malfunctions.
When you have filled the tank:
F

r

efit the filler cap, inserting the upper part
first,
F

s

crew in the filler cap to the right,
F

c

lose the flap.
Ensure that the fuel filler flap is closed
c o r r e c t l y. This symbol indicates that the fuel
tank cap is located on the left-hand
side of the vehicle.
Opening the cap may cause an inrush of air.
This vacuum, which is completely normal, is
caused by the sealing of the fuel system.
7
Practical information

182
C4-Aircross_en_Chap07_info-pratiques_ed01-2016
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.
Diesel engines
1. Screenwash and headlamp wash fluid reservoir.
2.
C

oolant reservoir.
3.
B

rake fluid reservoir.
4.
B

attery.
5.
F

usebox.
6.
A

ir filter.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
9.
P

riming pump*. 1.6
HDi 115 S&S
1.8 HDi 140
* According to engine.
Practical information

219
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S : model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES
1.6 litre 1152.0 litre 150
GEARBOXES Manual
(5-speed) CVT
(6-speed) Manual
(5-speed) CVT
(6-speed)
Model codes : BU... NKZ0

NKZ0/S NKZ9
NKZ9/S AFYR

AFZ7 AFYV
AFZM AFYT

AFZH AFZ9 AFYW

AFZP
AFZC
Transmission mode 2WD2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: EU standard (kW) 86113
Max power engine speed (rpm) 6 0006 000
Max torque: EU standard (Nm) 15 419 9
Max torque engine speed (rpm) 4 0004 200
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
OIL CAPACITY (in litres)
Engine (with filter replacement) 4.24.3
9
Technical data

225
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S and .../1S : model fitted with the Stop & Start (AS&G) function.
DIESEL ENGINES
1.6 HDi 115 S&S1.8 HDi 140
GEARBOXES Manual
(6-speed) Manual
(6-speed)
Model codes : BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S 6HYG
Transmission mode 2WD4WD4WD
Cubic capacity (cc) 1 5601 798
Bore x stroke (mm) 77 x 88.383 x 83.1
Max power*: EU standard (kW) 84103
Max power engine speed (rpm) 3 6004 000
Max torque: EU standard (Nm) 270290
Max torque engine speed (rpm) 1 7502 000 to 3 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter (FAP) Ye sYe s
OIL CAPACITY (in litres)
Engine (with filter replacement) 3.755.3
9
Technical data

337
C4-Aircross_en_Chap11_index-alpha_ed01-2016
ABS and EBFD systems ...............................14 3
Accessories .............................. ....................141
Access to bulbs
............................................. 20

0
Active stability control (ASC)

........................14

5
Adjusting headlamps
.................................... 13

3
Adjusting head restraints

................................73
A

djusting the date
........................................... 46
A

djusting the height and reach
of the steering wheel

....................................78
A

djusting the seat
..............................
....... 71, 72
Adjusting the seat belt height

.......................14

7
Adjusting the temperature

..............................83
A

djusting the time
.............................. 4

4, 46, 48
Advice on driving

..............................
..............97
Airbag, knee

.......................................... 15

3, 155
Airbags
...............

........................................... 151
Airbags, curtain
..................................... 15

4, 155
Airbags, front......................................... 151, 155
Airbags, lateral
...................................... 15

3, 155
Air conditioning
...............................

................10
Air conditioning, automatic

.......................8
0, 83
Air conditioning, manual
........................... 8

0, 81
Air intake

...............
.......................................... 83
Air vents
..............................

............................79
Alarm
............................................................... 65
A

nti-lock braking system (ABS)
....................14

3
Anti-theft
..............................

.........................102
Armrest, front

......................................7
3, 89, 92
Armrest, rear

................................................... 75
A

shtray, portable
.......................................8
9, 91
Audio- CD system

.................................. 3

13 - 3 3 6
Audio streaming (Bluetooth)

................333

, 334
Audio- CD system, touch screen

............2

8 9 - 311
Audio-telematic system, touch screen
........................................ 2

47-2 8 8Battery ...............................
............
186, 211, 214
Battery, charging ............................... ....211, 214
Battery, remote control

.............................6

0, 61
Blind, panoramic roof

......................................70
B

luetooth (telephone)
............................2

3 5 - 2 41
Bonnet
...............

............................................180
Boot
........

.........................................................63
Bottle holder

...............................
.....................89
Brake discs

....................................................18

8
Brake lamps

...............................
...................203
Brakes
........................................................... 18

8
Braking assistance system

...........................14

3
Bulbs (changing)
.......................... 1

99, 203, 204
A
Checking tyre pressures (using the kit) .............................. ................189
Checks
...............

...................181, 182, 18 6, 188
Child lock

...............................
........................171
Children
...............................

..........................165
Child seats

............ 1
50, 156, 157, 161-163, 170
Child seats, ISOFIX

...................... 1
65, 167, 169
Cigar lighter

...............................
......................91
Closing the boot

...............................
.........54, 63
Closing the doors

...............................
.......54, 57
Control, emergency boot release

...................63
C

ontrols for air conditioning
............................83
C

ontrol stalk, lighting
.................................... 12

7
Control stalk, wipers

.............................13

4, 13 6
Courtesy lamp, front

..................................... 13

8
Courtesy lamp, rear

...................................... 13

8
Cruise control
................................................ 12

0
Cup holder

...............................
........................89
B
Capacity, fuel tank .............................. ..........173
Cap, fuel filler ................................................ 17
3
Card, SD

..............................
........ 263, 279, 280
CD changer

...............................
....................328
Central locking

..........................................5
4, 57
Changing a bulb
........................... 1

99, 203, 204
Changing a fuse
............................................ 20

5
Changing a wheel

...............................
..193, 19 4
Changing a wiper blade

................................17

6
Changing the remote control battery

..............60
C

hecking the engine oil level
........................18

3
Checking the levels

................................ 18

3 -185
C
DDAB (Digital Audio Broadcasting) - Digital radio ........................ 2 75, 303, 304, 325
Date (setting)

...............................
....................46
Daytime running lamps

......................... 1
30, 201
Daytime running lamps, LED

........................2

01
Deactivating ASC
...............................

...........145
Deactivating the passenger
airbag
.................................................. 15

1, 15 8
.
Alphabetical index
