bluetooth Citroen C4 AIRCROSS RHD 2011.5 1.G User Guide

274
09BLUETOOTH® TELEPHONE®

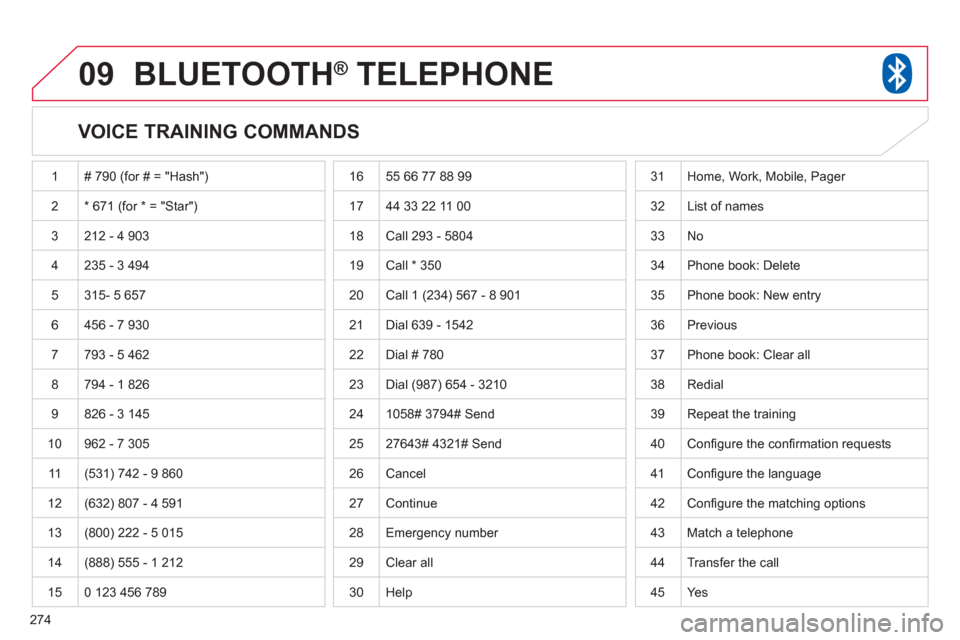

VOICE TRAINING COMMANDS

1 # 790 (for # = "Hash")
2* 671 (for * = "Star")
3 212 - 4 903

4 235 - 3 494
5
315- 5 657

6 456 - 7 930
7793 - 5 462

8 794 - 1 826
9 826 - 3 145
1
0 962 - 7 305
11(531) 742 - 9 860

12 (632) 807 - 4 591

13 (800) 222 - 5 015
14(888) 555 - 1 212
1
5 0 123 456 789

16 55 66 77 88 99
17
44 33 22 11 00
1
8 Call 293 - 5804

19 Call * 350
20 Call 1 (234) 567 - 8 901
21
Dial 639 - 1542
22
Dial # 780

23 Dial (987) 654 - 3210
24 1058
# 3794# Send
2
5
27643# 4321# Send
2
6 Cancel

27 Continue
28 Emergency number
29
Clear all

30 Help
31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
4
0 Confi gure the confi rmation requests
41
Confi gure the language
4
2 Confi gure the matching options
4
3 Match a telephone
44
Transfer the call
4
5 Yes

275
09
1
3
6
8
2
5
7
4
BLUETOOTH® TELEPHONE®
For reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth ®mobile phone
with the audio system's hands-free function must be done with the vehicle stationary.

The systems says " Please say the 4 digits of a matching code".
Press this button.

The system confi rms the validity of the number spoken,answer "Ye s
".
Say " No" to return to step 7.
Say "Matching options
".

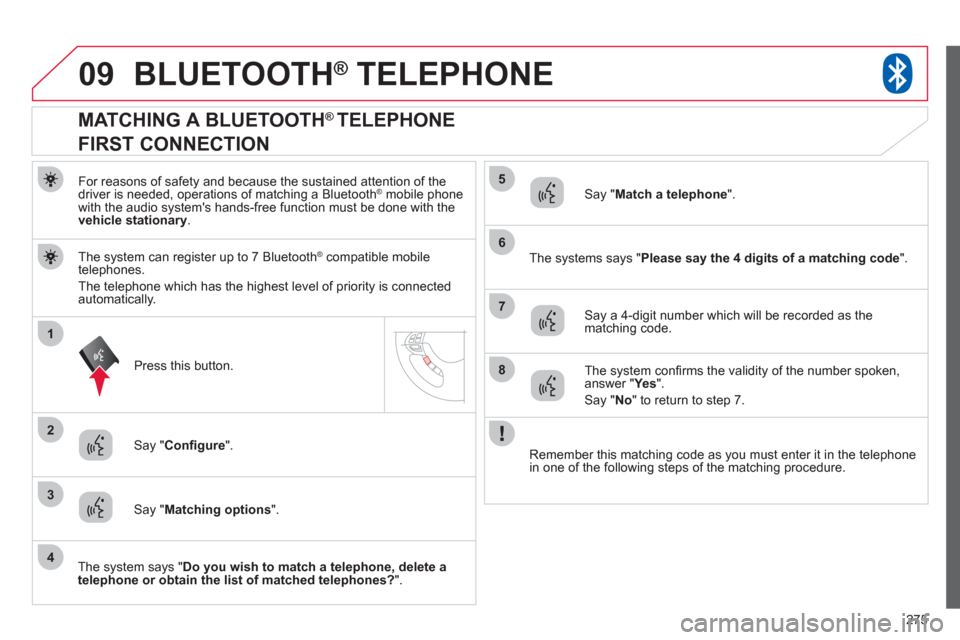

MATCHING A BLUETOOTH ®
TELEPHONE
FIRST CONNECTION
Say " Match a telephone ".
Say "Confi gure
". The system can register up to 7 Bluetooth
®compatible mobile
telephones.
The telephone which has the hi
ghest level of priority is connectedautomatically.

The s
ystem says "Do you wish to match a telephone, delete atelephone or obtain the list of matched telephones?
".
Sa
y a 4-digit number which will be recorded as the
matching code.

Remember this matching code as you must enter it in the telephone
in one of the following steps of the matching procedure.

276
10
09
9
11
12
13
14
15
16
17

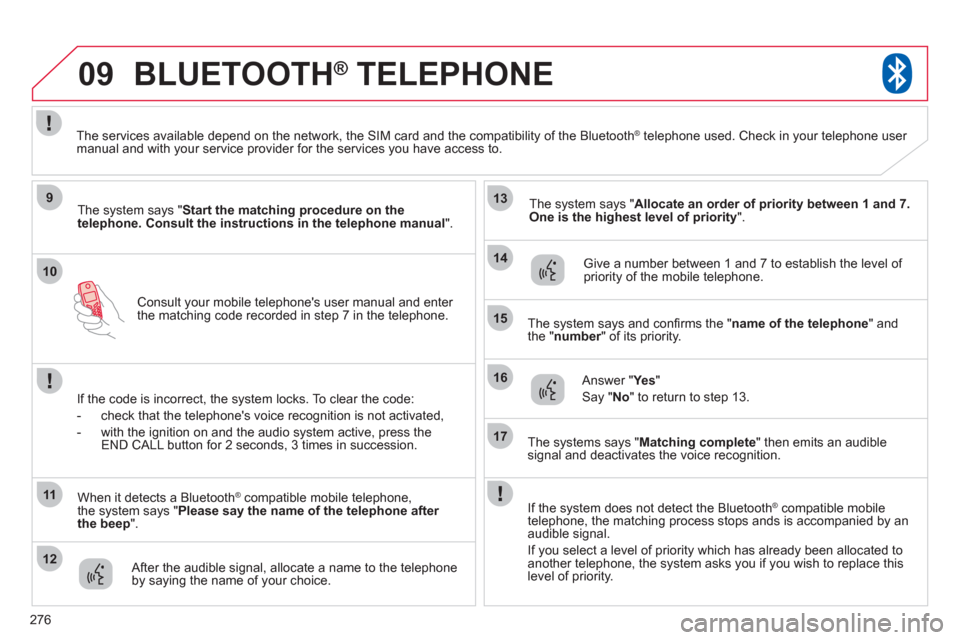

Consult your mobile telephone's user manual and enter
the matching code recorded in step 7 in the telephone.
BLUETOOTH® TELEPHONE®
The system says " Start the matching procedure on the
telephone. Consult the instructions in the telephone manual ".
If the code is incorrect, the s
ystem locks. To clear the code:
- check that the telephone's voice reco
gnition is not activated,
- w
ith the ignition on and the audio system active, press the
END CALL button for 2 seconds, 3 times in succession.

Wh
en it detects a Bluetooth ®compatible mobile telephone,
the system says " Please say the name of the telephone after
the beep".

After the audible signal, allocate a name to the telephone
by saying the name of your choice.The s
ystem says "Allocate an order of priority between 1 and 7.
One is the highest level of priority ".
Give a number between 1 and 7 to establish the level of
priority of the mobile telephone.
The system says and con
fi rms the " name of the telephone" andthe " number
" of its priority. r


Answer "Ye s"
Say " No" to return to step 13.
The systems says " Matching complete " then emits an audible signal and deactivates the voice recognition. The services available depend on the network, the
SIM card and the compatibility of the Bluetooth ®telephone used. Check in your telephone user
manual and with your service provider for the services you have access to.
I
f the system does not detect the Bluetooth® compatible mobile®
telephone, the matching process stops ands is accompanied by an audible signal.
If
you select a level of priority which has already been allocated toanother telephone, the system asks you if you wish to replace this
level of priority.

277
09
2
3
1
4
5
BLUETOOTH® TELEPHONE®

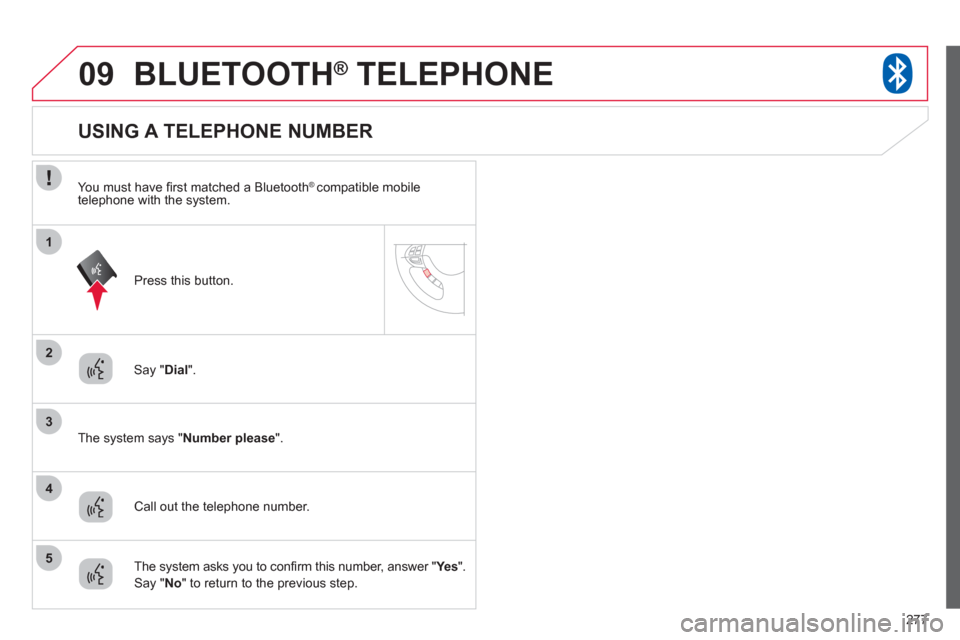

Say "Dial ".

The system says "Number
please
".






















USING A TELEPHONE NUMBER
Call out the telephone number.
Press this button.
The system asks you to confi rm this number, answer "Yes".
Say "No" to return to the previous step.
Y
ou must have fi rst matched a BluetoothÆ compatible mobile
telephone with the system.

278
09
3
4
7
8
9
10
11
1
2
5
6
12
14
13
BLUETOOTH® TELEPHONE®

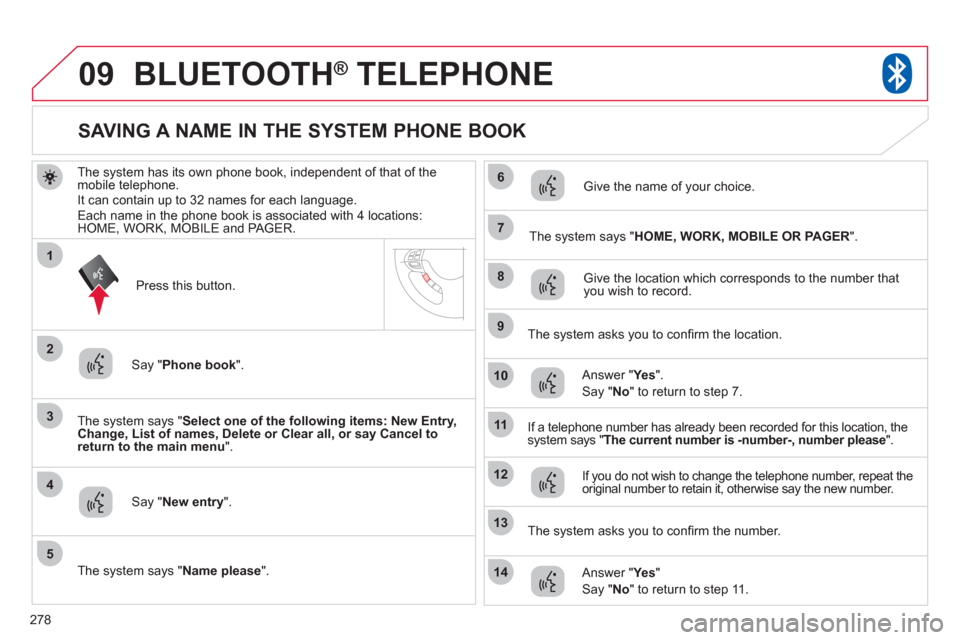

The system has its own phone book, independent of that of the mobile telephone.
It can contain up to 32 names for each language. Each name in the phone book is associated with 4 locations: HOME, WORK, MOBILE and PAGER.
The s
ystem says " Select one of the following items: New Entry,
Change, List of names, Delete or Clear all, or say Cancel toreturn to the main menu".

Say "New entry".
The system says "HOME, WORK, MOBILE OR PAGER".
Give the location which corresponds to the number thatyou wish to record.
The s
ystem asks you to confi rm the location.


Answer "Ye s".
Say " No" to return to step 7.
If a telephone number has alread
y been recorded for this location, the system says " The current number is -number-, number please".















SAVING A NAME IN THE SYSTEM PHONE BOOK
Press this button.

Sa
y "Phone book".
The system says " Name please
".
Give the name of your choice.
If
you do not wish to change the telephone number, repeat the
original number to retain it, otherwise say the new number.

Answer "Ye s"
Say " No" to return to step 11.
The s
ystem asks you to confi rm the number.

279
09
2
3
1
4
6
5
7
8
9
BLUETOOTH® TELEPHONE®

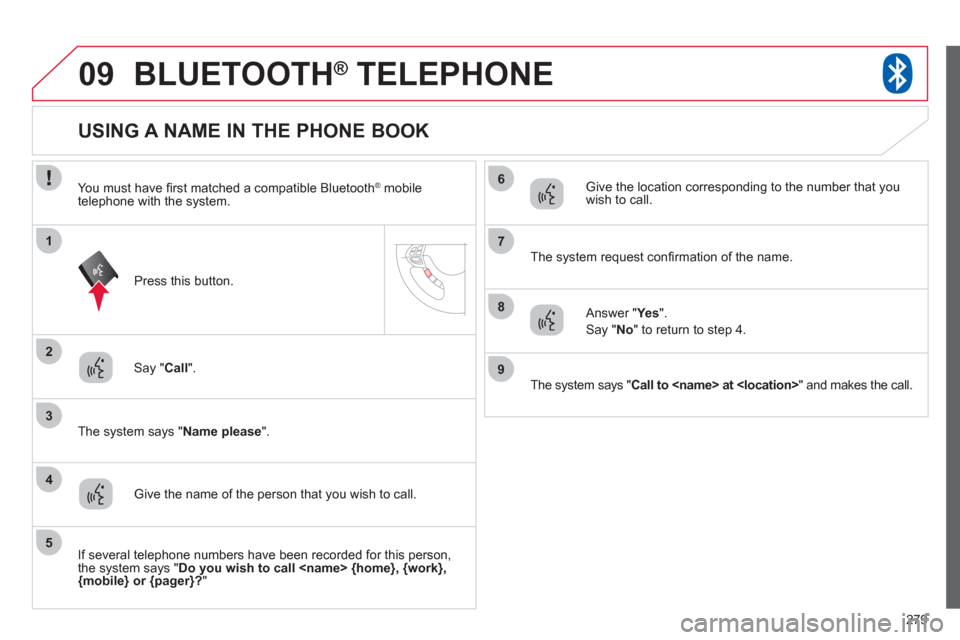

Say "Call
".

The s
ystem says "Name please".
















USING A NAME IN THE PHONE BOOK
Give the name of the person that you wish to call. Pr
ess this button.
Give the location corresponding to the number that you
wish to call.
You must have fi rst matched a compatible Bluetooth®mobiletelephone with the system.

If several telephone numbers have been recorded for this person,
t
he system says "Do you wish to call {home}, {work}, {mobile} or {pager}?"

The system request confi rmation of the name.


Answer " Ye s
".
Say "No
" to return to step 4.

The s
ystem says "Call to at " and makes the call.

280
09
1
2
1
BLUETOOTH® TELEPHONE®

The telephone ring is sent to the speaker by the front passenger'sseat.
I
f an audio source (CD, radio, ...) is in operation when the call isreceived, it is placed on MUTE and only the incoming call is heard.
When the i
gnition switch is in the ACC or ON position, the audiosystem is activated automatically if an incoming call is received, even if it was originally off.

At the end o
f the call, the audio system returns to its previous state.

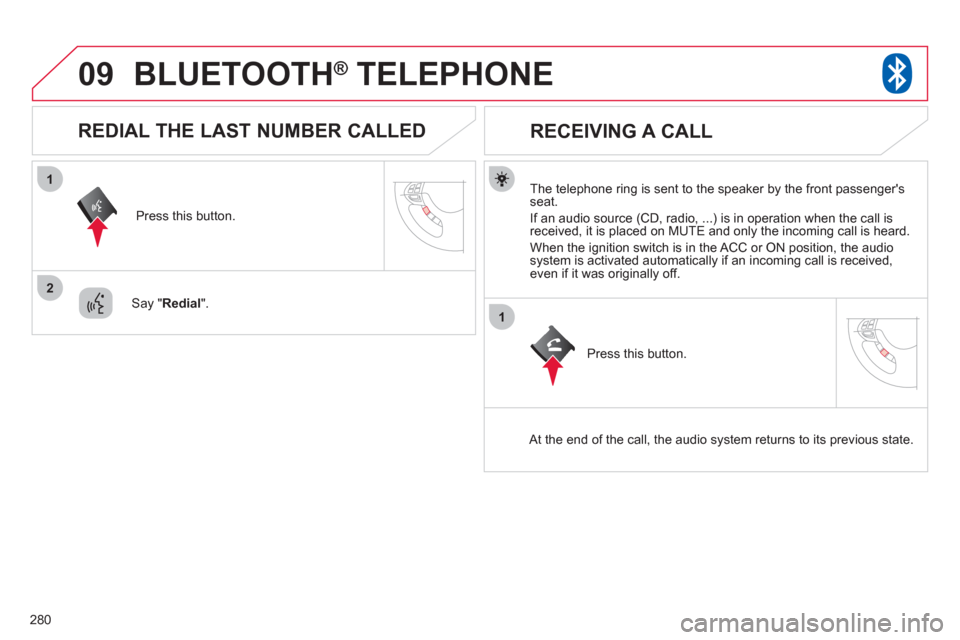

REDIAL THE LAST NUMBER CALLED
Press this button.

Sa
y "Redial".
















RECEIVING A CALL


Press this button.

281
09BLUETOOTH® TELEPHONE®

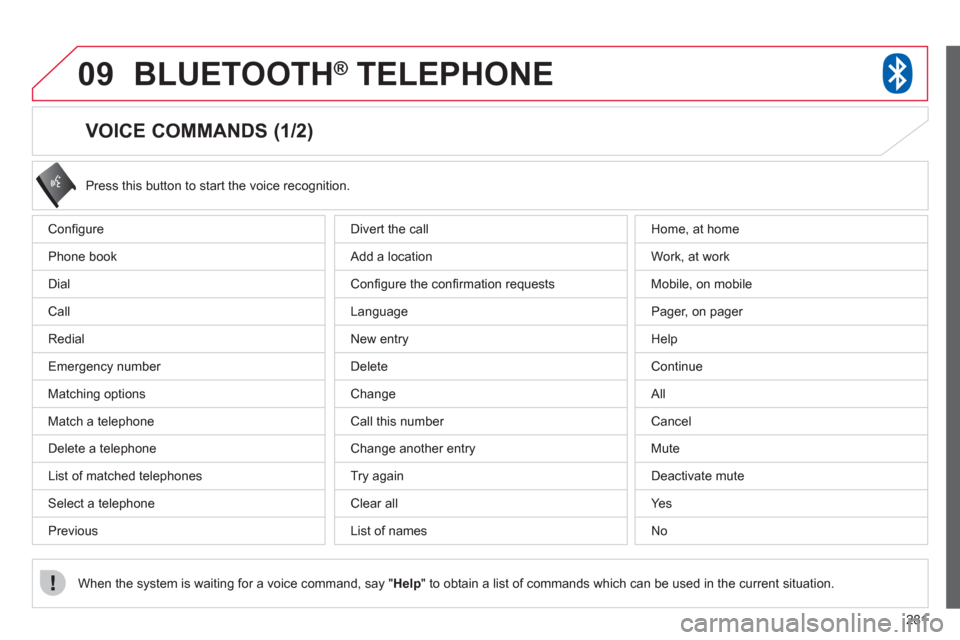

VOICE COMMANDS (1/2)
Confi gure
Ph
one book
Dial
Call
R
edial
Emer
gency number
Matchin
g options
Match a telephone
Delete a telephone
List o
f matched telephones
Select a telephone
Previous Press this button to start the voice recognition.
When the s
ystem is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current situation. Div
ert the call
A
dd a location
Confi
gure the confi rmation requests

Language
New entr
y
D
elete
Chan
ge

Call this number

Change another entry
Tr
y again

Clear all
Li
st of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
M
ute
D
eactivate mute
Y
es
No

282
09BLUETOOTH® TELEPHONE®

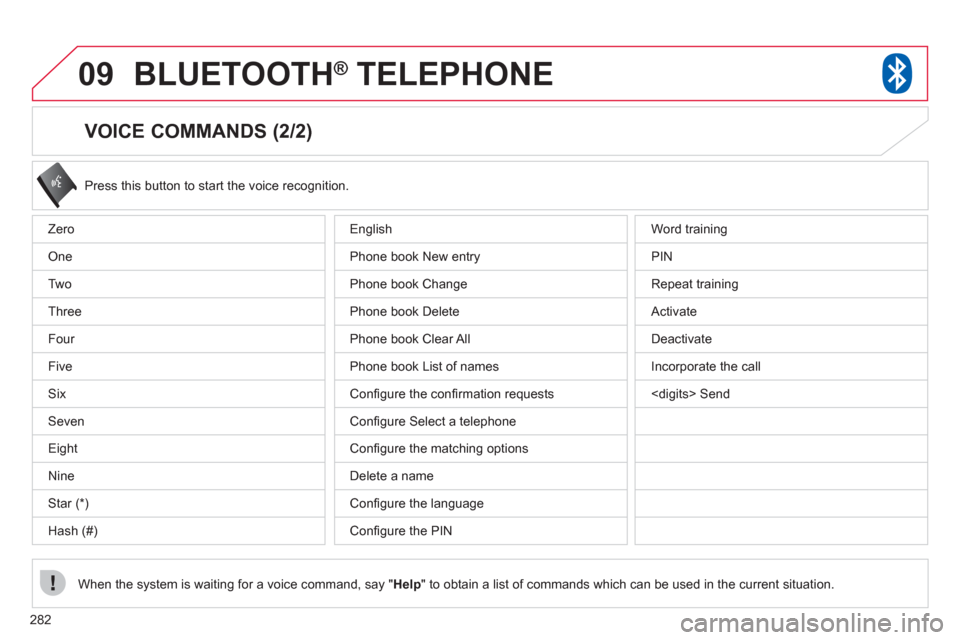

VOICE COMMANDS (2/2)

Press this button to start the voice recognition.
When the s
ystem is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current situation. Z
ero
One
Two
Three
F
our
Fiv
e
Six
Seven
Eight
Nin
e
Star
(*)
Hash
(#) Word trainin
g
PIN
Repeat training

Activate
D
eactivate
Incor
porate the call
gits> Send En
glish
Phone book New entr
y

Phone book Change

Phone book Delete
Phone book Clear All
Ph
one book List of names

Confi gure the confi rmation requests

Confi gure Select a telephone

Confi gure the matching options
D
elete a name

Confi gure the language

Confi gure the PIN

283

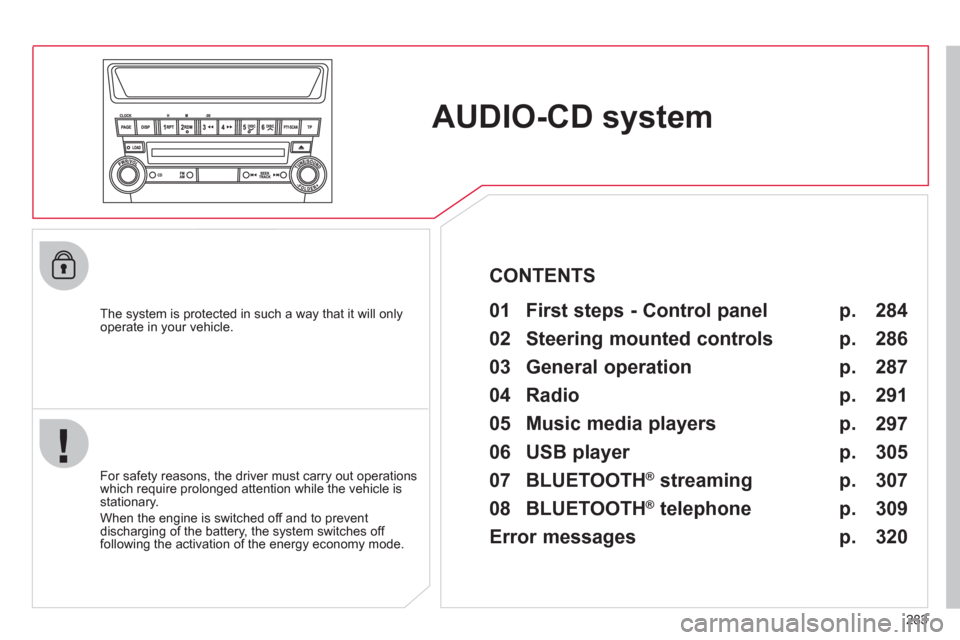

AUDIO-CD system


The system is protected in such a way that it will onlyoperate in your vehicle.

01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Radio

05 Music media players

06 USB player

07 BLUETOOTH
®
streaming

08 BLUETOOTH
®
telephone

Error messages p.
p.
p.
p.
p.
p.
p.
p.
p. 284
286
287
291
297
305
307
309
320
