stop start Citroen C4 AIRCROSS RHD 2013.5 1.G Owner's Guide

301

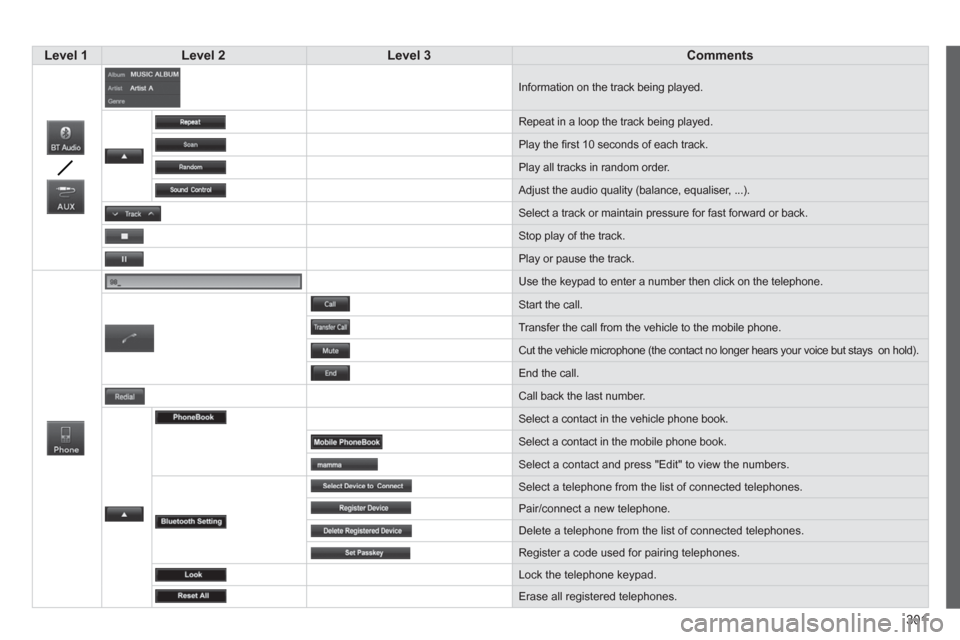

Level 1


Level 2


Level 3


Comments


Information on the track being played.
Repeat in a loop the track being played.
Play the fi rst 10 seconds of each track.
Play all tracks in random order.
Adjust the audio quality (balance, equaliser, ...).
Select a track or maintain pressure for fast forward or back.
Stop play of the track.
Play or pause the track.
Use the keypad to enter a number then click on the telephone.
Start the call.
Transfer the call from the vehicle to the mobile phone.

Cut the vehicle microphone (the contact no longer hears your voice but stays on hold).

End the call.
Call back the last number.
Select a contact in the vehicle phone book.
Select a contact in the mobile phone book.
Select a contact and press "Edit" to view the numbers.
Select a telephone from the list of connected telephones.
Pair/connect a new telephone.
Delete a telephone from the list of connected telephones.
Register a code used for pairing telephones.
Lock the telephone keypad.
Erase all registered telephones.

331
06

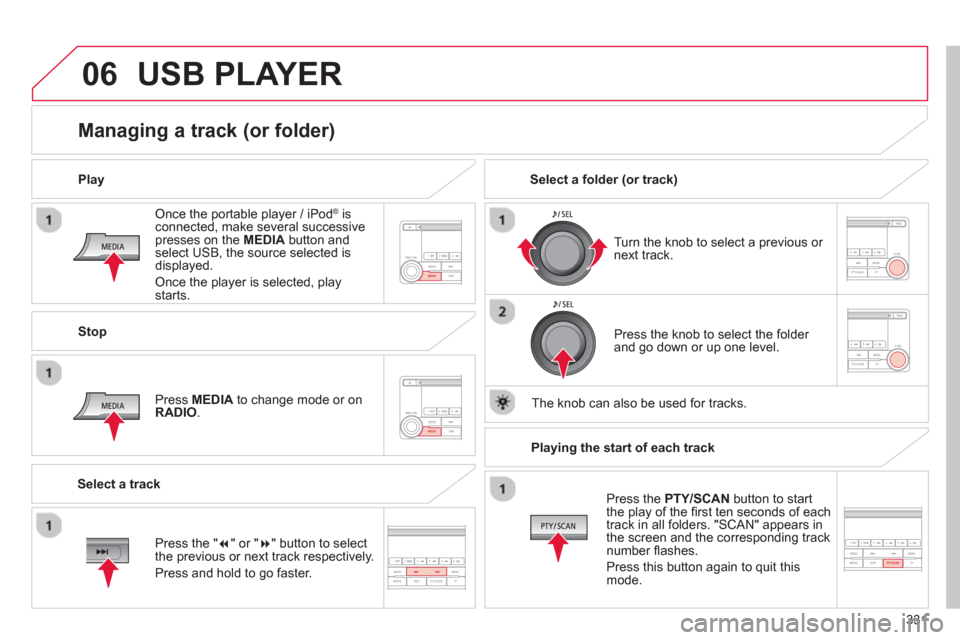

Once the portable player / iPod ®
is
connected, make several successive
presses on the MEDIA
button and
select USB, the source selected is
displayed.
Once the player is selected, play
starts.
Play













Managing a track (or folder)


Stop

Press MEDIA
to change mode or on
RADIO
.
Turn the knob to select a previous or
next track.
Select a folder (or track)

Select a track
Press the knob to select the folder
and go down or up one level.

The knob can also be used for tracks.

USB PLAYER


Press the "
" or "
" button to select
the previous or next track respectively.
Press and hold to go faster.
Playing the start of each track

Press the PTY/SCAN
button to start
the play of the fi rst ten seconds of each
track in all folders. "SCAN" appears in
the screen and the corresponding track
number fl ashes.
Press this button again to quit this
mode.

332
07

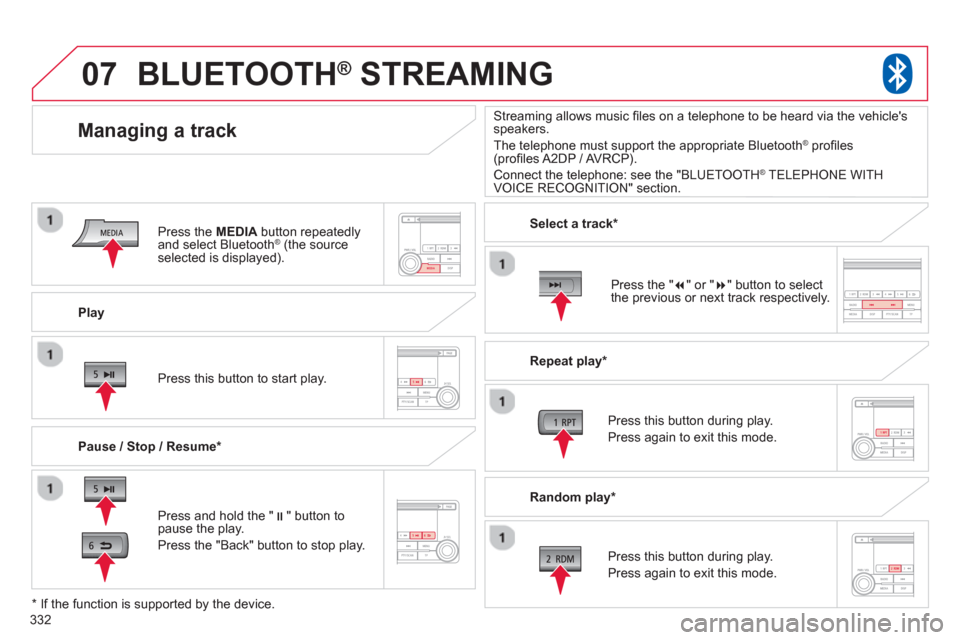

Play






Managing a track


Pause / Stop / Resume *






BLUETOOTH ®
STREAMING


Press and hold the "
" button to
pause the play.
Press the "Back" button to stop play.
Press this button to start play.
Select a track *


Repeat play *


Press this button during play.
Press again to exit this mode.

Press this button during play.
Press again to exit this mode.

*
If the function is supported by the device.
Random play *







Streaming allows music fi les on a telephone to be heard via the vehicle's
speakers.
The telephone must support the appropriate Bluetooth
®
profi les
(profi les A2DP / AVRCP).
Connect the telephone: see the "BLUETOOTH
® TELEPHONE WITH
VOICE RECOGNITION" section.


Press the MEDIA
button repeatedly
and select Bluetooth
® (the source
selected is displayed).

Press the "
" or "
" button to select
the previous or next track respectively.

340Alphabetical index
Screen (audio equipment) ................. 54, 56, 58
Screen, instrument panel .................... 24, 31- 43
Screen menu ................................ 298, 300, 302
Screenwash fluid level .................................. 221
Screenwash, front ......................................... 141
Screen-wash reser voir ................................. 221
Seat adjustment ........................................ 81, 82
Seat back storage pockets ........................... 105
Seat belts ............................................... 152-155
Seat belts warning lamp ............................... 153
Seat, rear bench .............................................85
Seats, electric ................................................. 82
Seats, rear .......................................................85
Serial number, vehicle .................................. 241
Ser vice indicator .............................................44
Ser vicing .........................................................22
Setting the clock ................................ 54, 56, 58
Sidelamps .....................................188, 190, 192
Side repeater ................................................ 191
Ski flap ............................................................86
Snow chains .................................................. 187
Spare wheel .................................................. 182
Speedometer .................................................. 24
Spotlamps, side ............................................ 191
Starting the vehicle ...............................108, 109
Steering mounted controls, audio ... 257, 295, 316
Stopping the vehicle .............................108, 109
Stop Start system (Auto Stop Go) ................ 121
Storage ............................................ 86, 101, 106
Stowing rings ........................................ 106, 107
Sun visor ....................................................... 101
System,
audio- CD .................................................... 313
System, audio-telematics .............................255Table of weights .....................226 -231, 233 -238
Tables of engines ..................................225, 232
TCL ................................................................ 150
Technical data ....................................... 225 -238
Telephone .....................................243, 292, 310
Temperature adjustment ...........................92, 95
Temperature, coolant ......................................46
Temporary tyre repair kit............................... 177
Third brake lamp ................................... 192, 193
Three flashes (direction indicators) .............. 147
TMC (Traffic info) .......................................... 273
Tools ...................................................... 181, 182
Total distance recorder ................................... 43
Touch screen audio- CD system ...................293
Touch screen audio-telematic system ..........255
To w b a r ........................................................... 207
Towed loads ...........................226 -231, 233 -238
Towing another vehicle .................................206
TP (Traffic information) ................ 275, 305, 322
Traction control (TCL) ................................... 150
Traffic information (TMC) .............................. 273
Trajectory control systems ............................ 150
Tyre pressures .............................................. 241
Ty r e s ................................................................22
ST
U
R
Radio .............................................278, 304, 319
Range ........................................................43, 46
RCA socket ...........................................104, 329
RDS .............................................. 278, 305, 321
Rear foglamp......................................... 135, 192
Rear screen (demisting) ..................................99
Recharging the battery .................................200
Recirculation / exterior air intake ..............93, 96
Regeneration of the particle
emissions filter ............................................223
Remote control .................................... 62- 65, 71
Removing a wheel ........................................ 183
Removing the mat ......................................... 101
Repair kit, puncture ....................................... 177
Replacing bulbs .....................................188 -193
Replacing fuses .................................... 194-199
Replacing the air filter ...................................222
Replacing the oil filter ...................................222
Replacing the passenger
compartment filter ......................................222
Replacing wiper blades.................................203
Rev counter ..................................................... 24
Reversing camera ......................................... 132
Reversing lamp ............................................. 192
Reversing lamps ........................................... 192
Roof bars .......................................................209
Roof blind ........................................................80
Routine checks .................................... 222, 224
Running out of fuel (Diesel) .......................... 218
Unlocking ..................................................62, 66
USB player ................................... 104, 282, 330

.
345
Visual search

Headlamp beam adjustment 139
Stop & Start (Auto Stop & Go)
f unc tion 121-123

Steering wheel adjustment 89
Horn 147
Cruise control 126 -128

Ignition switch, switching on/off 108

Instruments and controls (continued)


Lighting c ontrols 131-13 5

Bluetooth
®
telephone with voice
recognition 243 -254
Wiper c ontrols 140 -143


Steering mounted controld for Audio-CD,
touch screen Audio-CD, touch screen
Audio-Telematic systems
316, 295, 257
START/STOP button 109 -111
