Citroen C4 AIRCROSS RHD 2014 1.G Owner's Manual

249




BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

Say " Dial
".

The system says " Number please
".

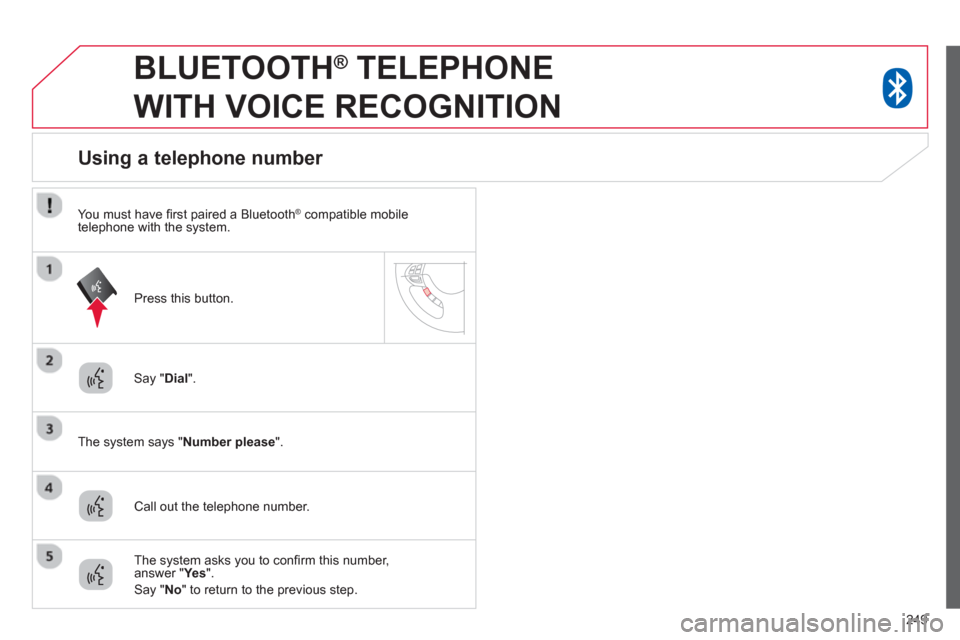

Using a telephone number


Call out the telephone number.
Press this button.

The system asks you to confi rm this number,
answer " Ye s
".
Say " No
" to return to the previous step.

You must have fi rst paired a Bluetooth
®
compatible mobile
telephone with the system.

250




BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

The system has its own phone book, independent of that of the
mobile telephone.
It can contain up to 32 names for each language.
Each name in the phone book is associated with 4 locations:
HOME, WORK, MOBILE and PAGER.

The system says " Select one of the following items: New Entry,
Change, List of names, Delete or Clear all, or say Cancel to
return to the main menu
".

Say " New entry
".
The system says " HOME, WORK, MOBILE OR PAGER
".

Give the location which corresponds to the number that
you wish to record.

The system asks you to confi rm the location.

Answer " Ye s
".
Say " No
" to return to step 7.

If a telephone number has already been recorded for this location,
the system says " The current number is -number-, number
please
".

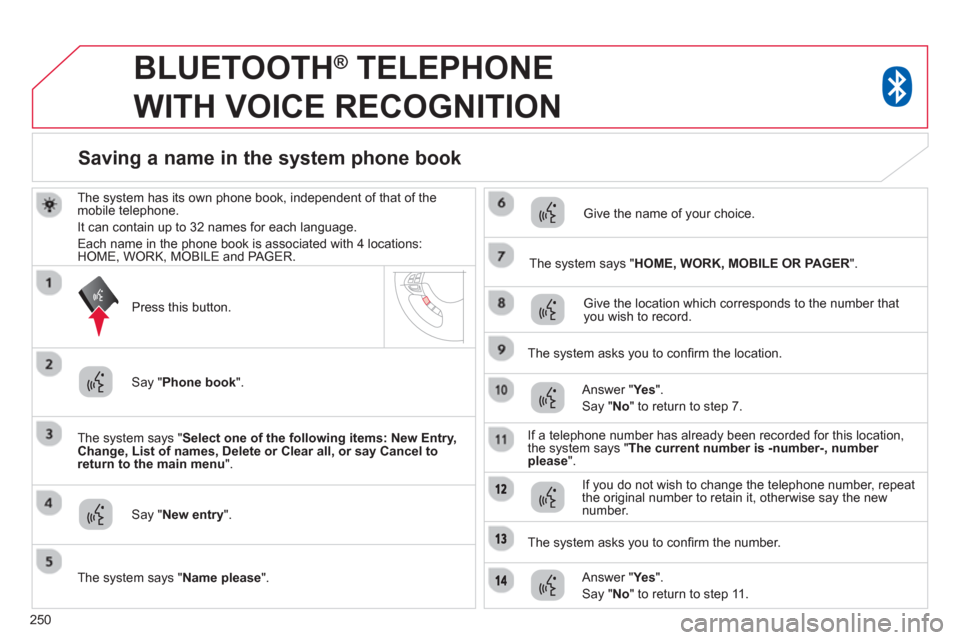

Saving a name in the system phone book


Press this button.

Say " Phone book
".

The system says " Name please
".
Give the name of your choice.

If you do not wish to change the telephone number, repeat
the original number to retain it, otherwise say the new
number.

Answer " Ye s
".
Say " No
" to return to step 11.

The system asks you to confi rm the number.

251




BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

Say " Cal

l
".

The system says " Name please
".

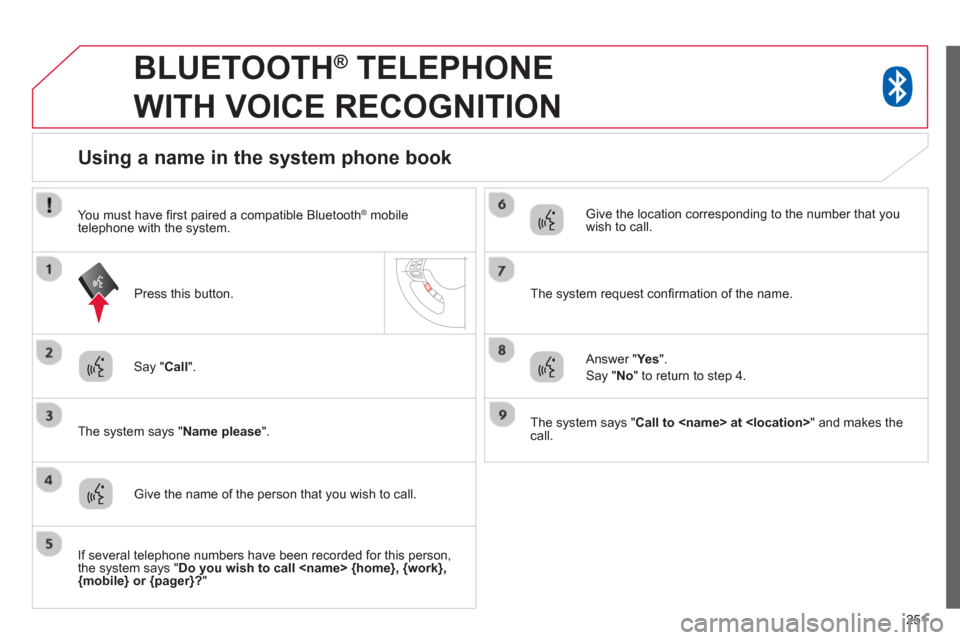

Using a name in the system phone book


Give the name of the person that you wish to call.
Press this button.
Give the location corresponding to the number that you
wish to call.
You must have fi rst paired a compatible Bluetooth
®
mobile
telephone with the system.

If several telephone numbers have been recorded for this person,
the system says " Do you wish to call {home}, {work},
{mobile} or {pager}?
"
The system request confi rmation of the name.

Answer " Ye s
".
Say " No
" to return to step 4.

The system says " Call to at
" and makes the
call.

252




BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

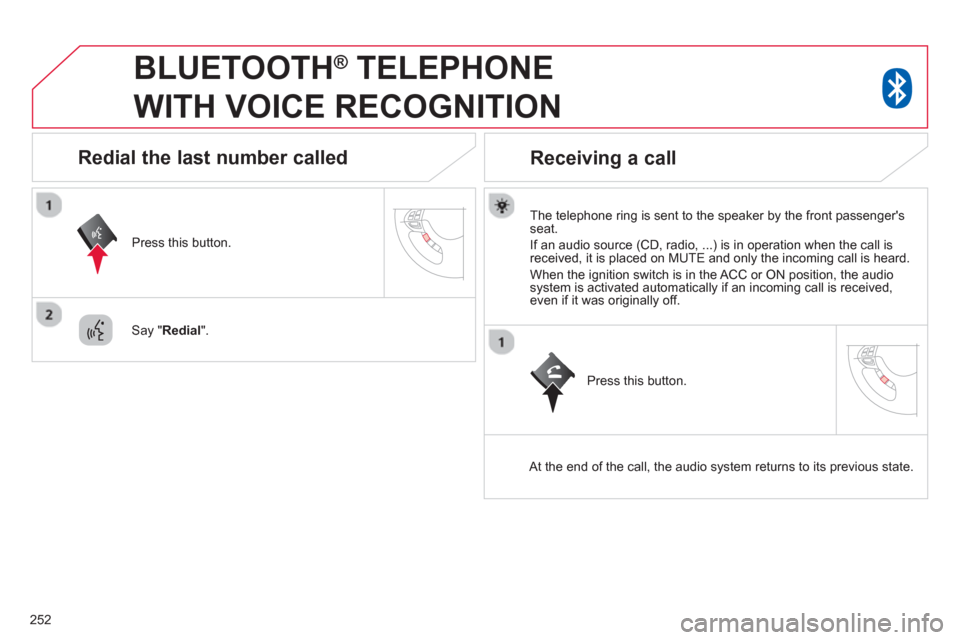

The telephone ring is sent to the speaker by the front passenger's
seat.
If an audio source (CD, radio, ...) is in operation when the call is
received, it is placed on MUTE and only the incoming call is heard.
When the ignition switch is in the ACC or ON position, the audio
system is activated automatically if an incoming call is received,
even if it was originally off.

At the end of the call, the audio system returns to its previous state.











Redial the last number called


Press this button.

Say " Redial
".











Receiving a call


Press this button.

253

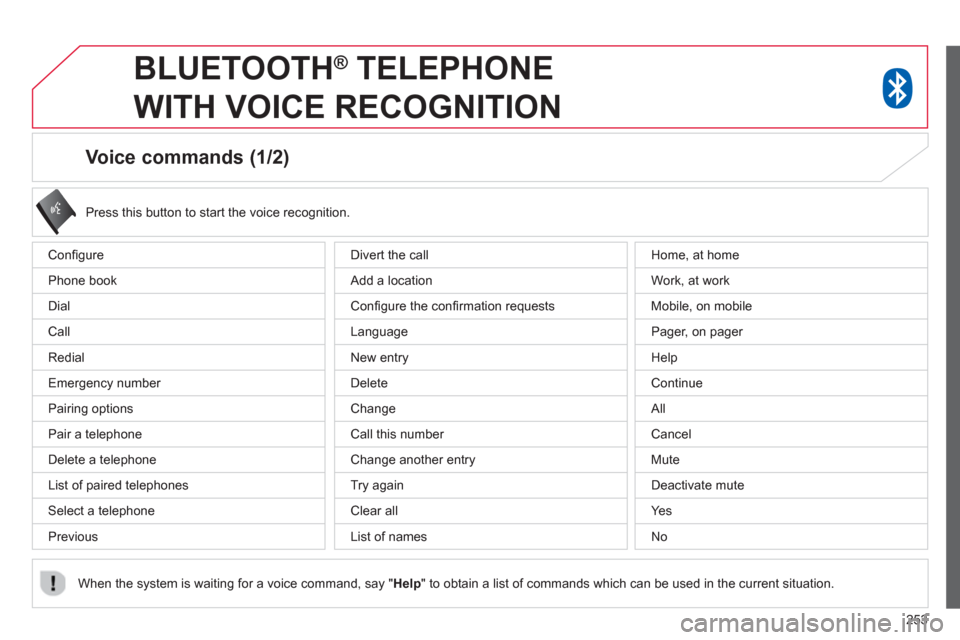

Voice commands (1/2)

Confi gure
Phone book
Dial
Call
Redial
Emergency number
Pairing options
Pair a telephone
Delete a telephone
List of paired telephones
Select a telephone
Previous
Press this button to start the voice recognition.


When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current situation.
Divert the call
Add a location
Confi gure the confi rmation requests
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No





BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

254

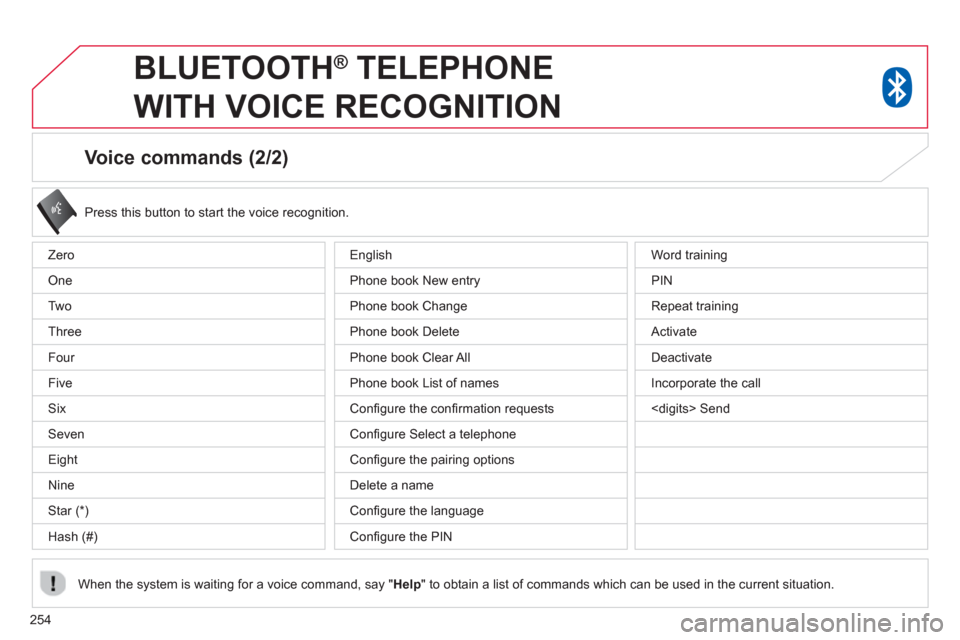

Voice commands (2/2)


Press this button to start the voice recognition.


When the system is waiting for a voice command, say " Help
" to obtain a list of commands which can be used in the current situation.
Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Hash (#) Word training
PIN
Repeat training
Activate
Deactivate
Incorporate the call
Send




English
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
Confi gure the confi rmation requests
Confi gure Select a telephone
Confi gure the pairing options
Delete a name
Confi gure the language
Confi gure the PIN





BLUETOOTH ®
TELEPHONE
WITH VOICE RECOGNITION

255

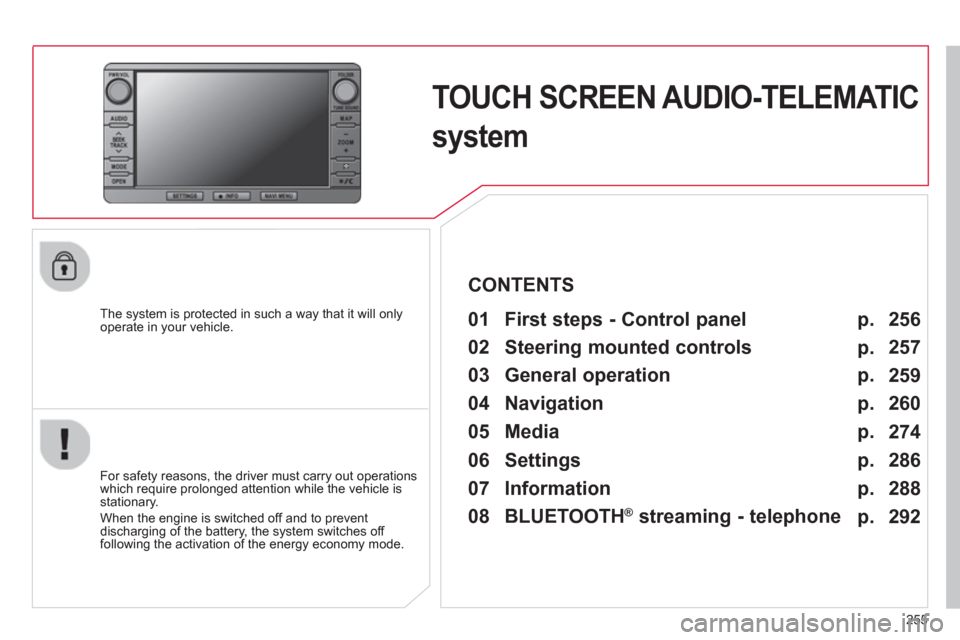

TOUCH SCREEN AUDIO-TELEMATIC
system


The system is protected in such a way that it will only
operate in your vehicle.

01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

03 General operation

04 Navigation

05 Media

06 Settings

07 Information p.
p.
p.
p.
p.
p.
p. 256
257
259
260
274
286
288
02 Steering mounted controls
p.
292
08 BLUETOOTH
®
streaming - telephone

256

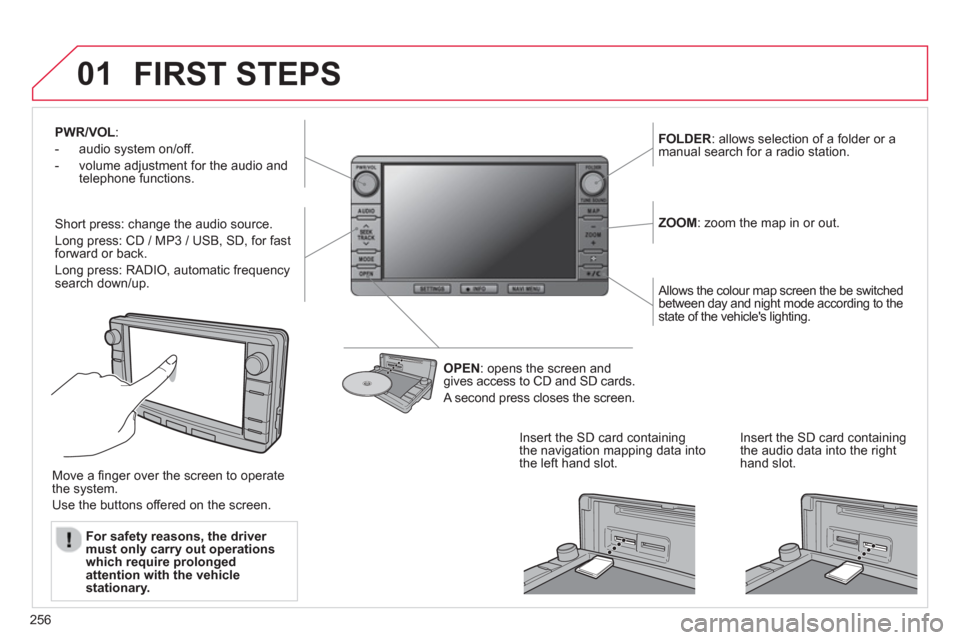

01

















PWR/VOL
:


- audio system on/off.

- volume adjustment for the audio and
telephone functions.


Short press: change the audio source.
Long press: CD / MP3 / USB, SD, for fast
forward or back.
Long press: RADIO, automatic frequency
search down/up.

FOLDER
: allows selection of a folder or a
manual search for a radio station.


OPEN
: opens the screen and
gives access to CD and SD cards.
A second press closes the screen.

ZOOM
: zoom the map in or out.

Allows the colour map screen the be switched
between day and night mode according to the
state of the vehicle's lighting.

Move a fi nger over the screen to operate
the system.
Use the buttons offered on the screen.


For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary.


Insert the SD card containing
the navigation mapping data into
the left hand slot.
Insert the SD card containing
the audio data into the right
hand slot.


FIRST STEPS

257

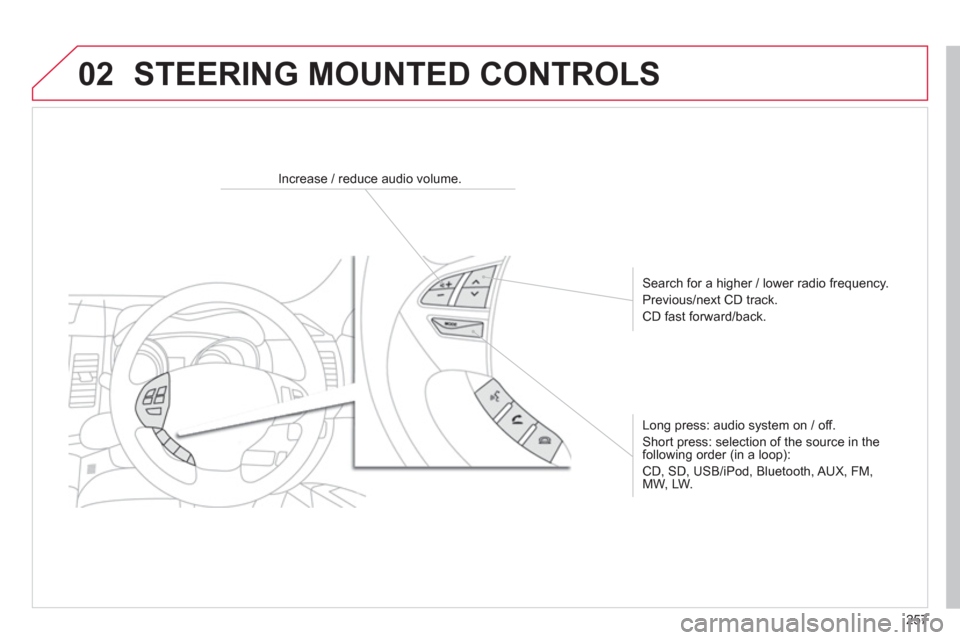

02







Increase / reduce audio volume.

Search for a higher / lower radio frequency.
Previous/next CD track.
CD fast forward/back.

Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, SD, USB/iPod, Bluetooth, AUX, FM,
MW, LW.


STEERING MOUNTED CONTROLS

258
