Citroen C4 AIRCROSS RHD 2014 1.G Owner's Manual

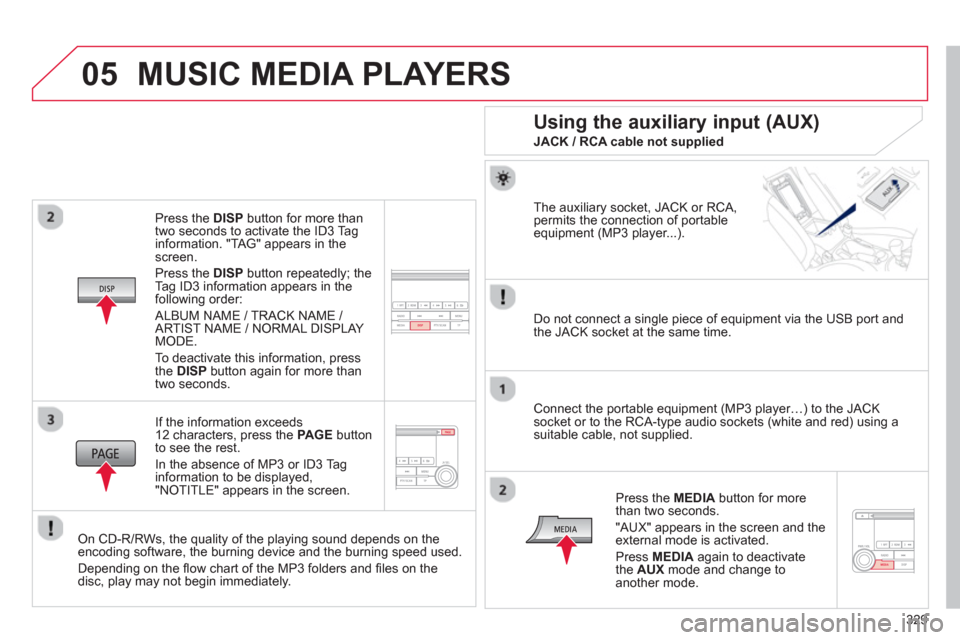

329
05

Press the DISP
button for more than
two seconds to activate the ID3 Tag
information. "TAG" appears in the
screen.
Press the DISP
button repeatedly; the
Tag ID3 information appears in the
following order:
ALBUM NAME / TRACK NAME /
ARTIST NAME / NORMAL DISPLAY
MODE.
To deactivate this information, press
the DISP
button again for more than
two seconds.

If the information exceeds
12 characters, press the PAGE
button
to see the rest.
In the absence of MP3 or ID3 Tag
information to be displayed,
"NOTITLE" appears in the screen.

On CD-R/RWs, the quality of the playing sound depends on the
encoding software, the burning device and the burning speed used.
Depending on the fl ow chart of the MP3 folders and fi les on the
disc, play may not begin immediately.


MUSIC MEDIA PLAYERS



















Using the auxiliary input (AUX)


The auxiliary socket, JACK or RCA,
permits the connection of portable
equipment (MP3 player...).

Do not connect a single piece of equipment via the USB port and
the JACK socket at the same time.

Connect the portable equipment (MP3 player…) to the JACK
socket or to the RCA-type audio sockets (white and red) using a
suitable cable, not supplied.

Press the MEDIA
button for more
than two seconds.
"AUX" appears in the screen and the
external mode is activated.
Press MEDIA
again to deactivate
the AUX
mode and change to
another mode.

JACK / RCA cable not supplied

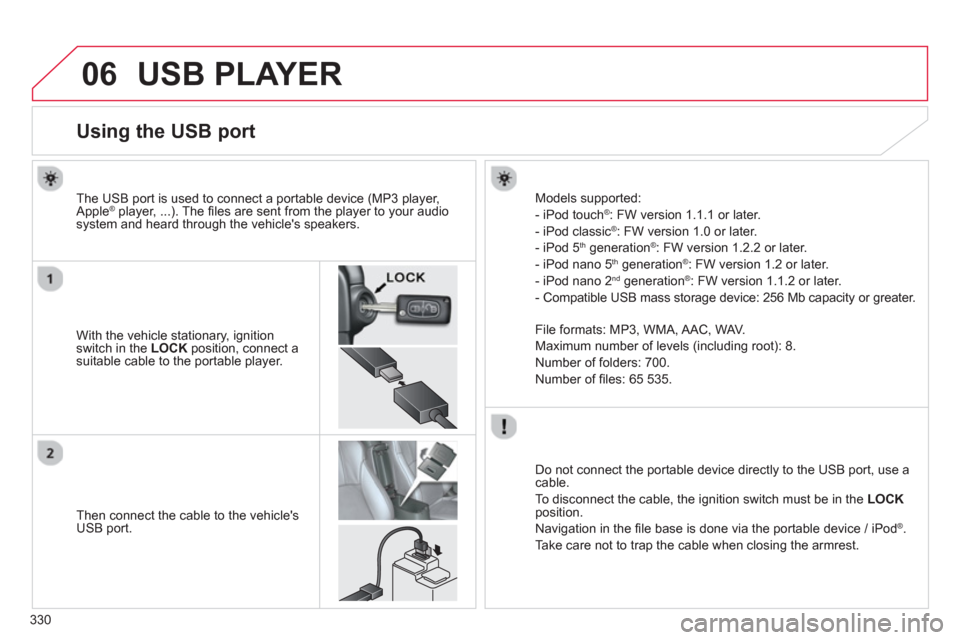

330
06 USB PLAYER






















Using the USB port


With the vehicle stationary, ignition
switch in the LOCK
position, connect a
suitable cable to the portable player.
The USB port is used to connect a portable device (MP3 player,
Apple
® player, ...). The fi les are sent from the player to your audio
system and heard through the vehicle's speakers.

Then connect the cable to the vehicle's
USB port.
Models supported:
- iPod touch ® : FW version 1.1.1 or later.
- iPod classic ® : FW version 1.0 or later.
- iPod 5 th generation ®
: FW version 1.2.2 or later.
- iPod nano 5 th generation ®
: FW version 1.2 or later.
- iPod nano 2 nd generation ®
: FW version 1.1.2 or later.
- Compatible USB mass storage device: 256 Mb capacity or greater.

File formats: MP3, WMA, AAC, WAV.
Maximum number of levels (including root): 8.
Number of folders: 700.
Number of fi les: 65 535.

Do not connect the portable device directly to the USB port, use a
cable.
To disconnect the cable, the ignition switch must be in the LOCK

position.
Navigation in the fi le base is done via the portable device / iPod
®
.
Take care not to trap the cable when closing the armrest.

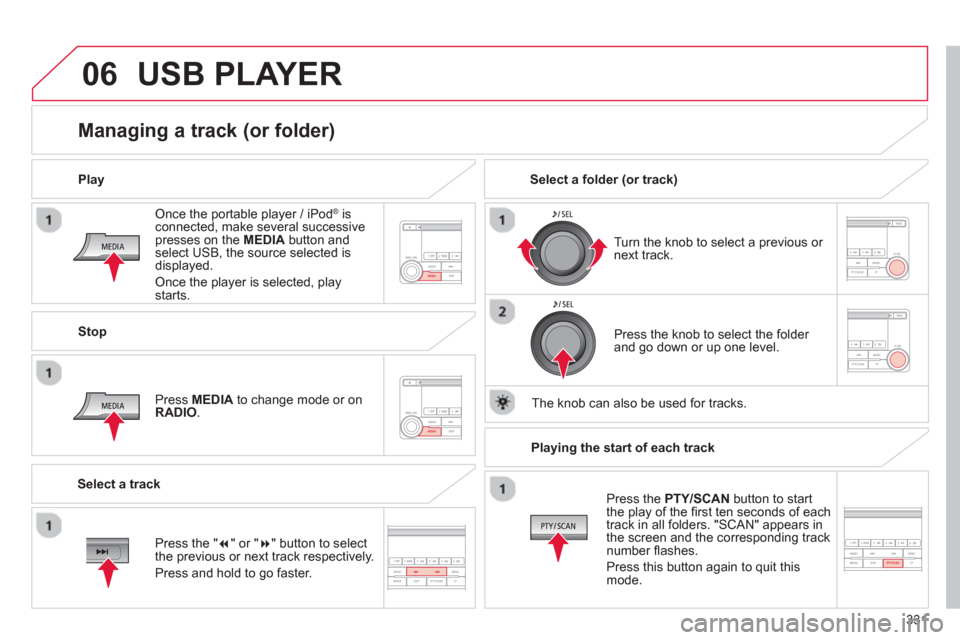

331
06

Once the portable player / iPod ®
is
connected, make several successive
presses on the MEDIA
button and
select USB, the source selected is
displayed.
Once the player is selected, play
starts.
Play













Managing a track (or folder)


Stop

Press MEDIA
to change mode or on
RADIO
.
Turn the knob to select a previous or
next track.
Select a folder (or track)

Select a track
Press the knob to select the folder
and go down or up one level.

The knob can also be used for tracks.

USB PLAYER


Press the "
" or "
" button to select
the previous or next track respectively.
Press and hold to go faster.
Playing the start of each track

Press the PTY/SCAN
button to start
the play of the fi rst ten seconds of each
track in all folders. "SCAN" appears in
the screen and the corresponding track
number fl ashes.
Press this button again to quit this
mode.

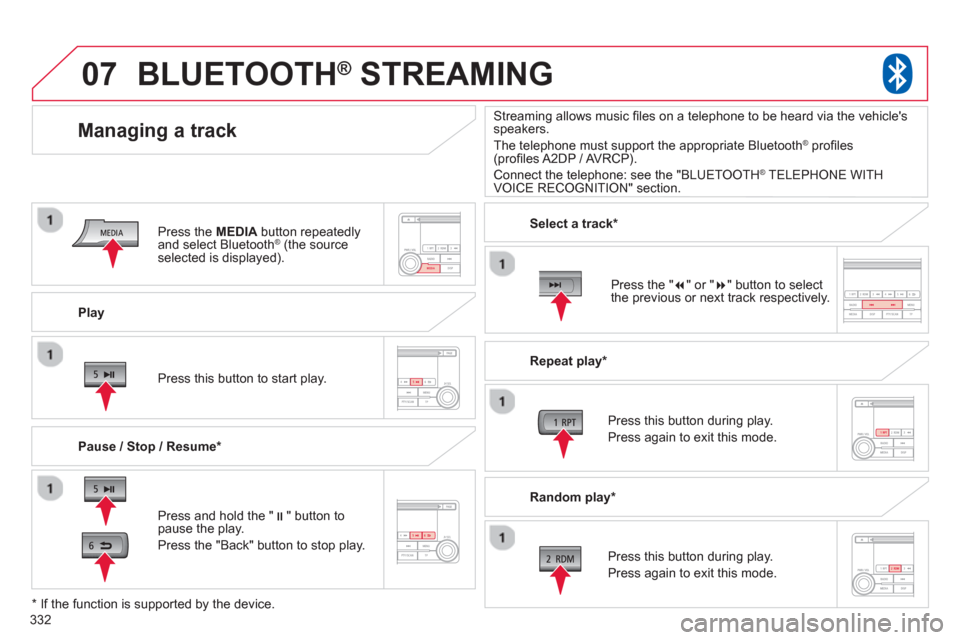

332
07

Play






Managing a track


Pause / Stop / Resume *






BLUETOOTH ®
STREAMING


Press and hold the "
" button to
pause the play.
Press the "Back" button to stop play.
Press this button to start play.
Select a track *


Repeat play *


Press this button during play.
Press again to exit this mode.

Press this button during play.
Press again to exit this mode.

*
If the function is supported by the device.
Random play *







Streaming allows music fi les on a telephone to be heard via the vehicle's
speakers.
The telephone must support the appropriate Bluetooth
®
profi les
(profi les A2DP / AVRCP).
Connect the telephone: see the "BLUETOOTH
® TELEPHONE WITH
VOICE RECOGNITION" section.


Press the MEDIA
button repeatedly
and select Bluetooth
® (the source
selected is displayed).

Press the "
" or "
" button to select
the previous or next track respectively.

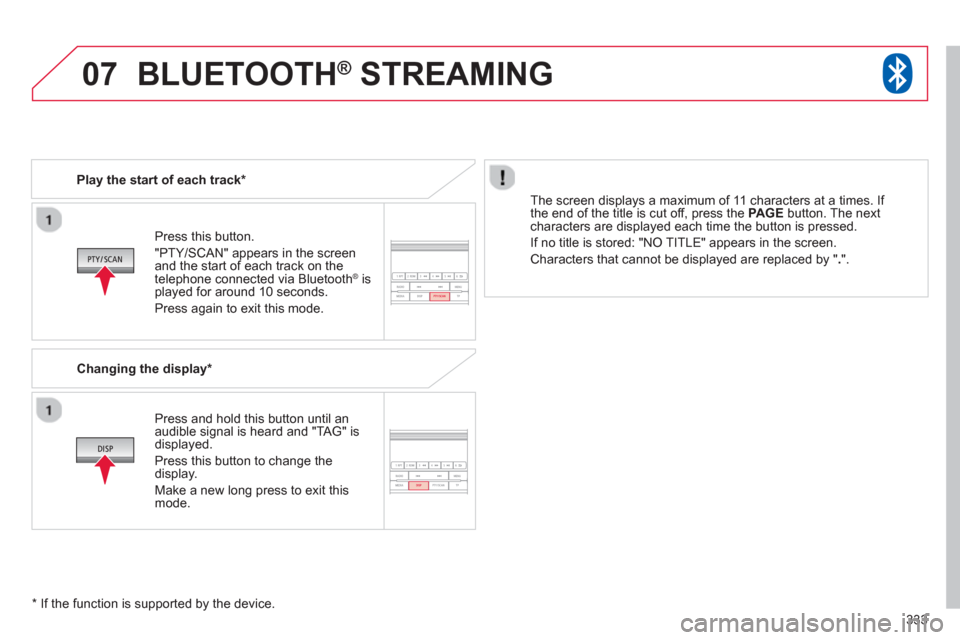

333
07

Press this button.
"PTY/SCAN" appears in the screen
and the start of each track on the
telephone connected via Bluetooth
® is
played for around 10 seconds.
Press again to exit this mode.
Play the start of each track *


Changing the display *


Press and hold this button until an
audible signal is heard and " TAG " is
displayed.
Press this button to change the
display.
Make a new long press to exit this
mode.
The screen displays a maximum of 11 characters at a times. If
the end of the title is cut off, press the PAGE
button. The next
characters are displayed each time the button is pressed.
If no title is stored: "NO TITLE" appears in the screen.
Characters that cannot be displayed are replaced by " .
".

* If the function is supported by the device.






BLUETOOTH ®
STREAMING

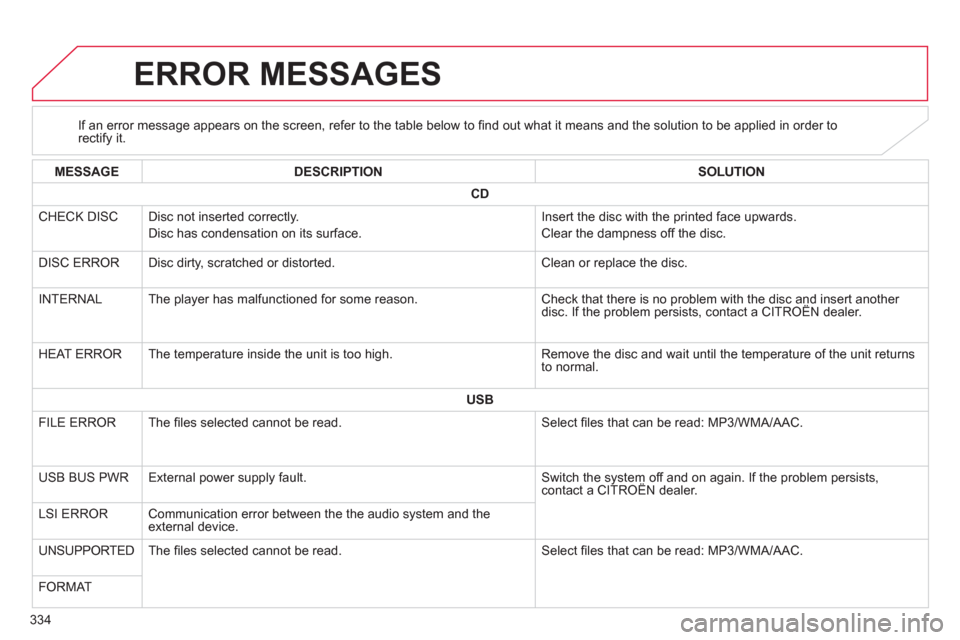

334



















ERROR MESSAGES








If an error message appears on the screen, refer to the table below to fi nd out what it means and the solution to be applied in order to
rectify it.




MESSAGE


DESCRIPTION


SOLUTION




CD




CHECK DISC Disc not inserted correctly.
Disc has condensation on its surface. Insert the disc with the printed face upwards.
Clear the dampness off the disc.

DISC ERROR Disc dirty, scratched or distorted. Clean or replace the disc.

INTERNAL The player has malfunctioned for some reason. Check that there is no problem with the disc and insert another
disc. If the problem persists, contact a CITROËN dealer.

HEAT ERROR The temperature inside the unit is too high. Remove the disc and wait until the temperature of the unit returns
to normal.

USB




FILE ERROR The fi les selected cannot be read. Select fi les that can be read: MP3/WMA/AAC.

USB BUS PWR External power supply fault. Switch the system off and on again. If the problem persists,
contact a CITROËN dealer.

LSI ERROR Communication error between the the audio system and the
external device.

UNSUPPORTED The fi les selected cannot be read. Select fi les that can be read: MP3/WMA/AAC.

FORMAT

335




















ERROR MESSAGES


MESSAGE


DESCRIPTION


SOLUTION




CD




UNSUPPORTED An unsupported USB device has been connected. Use a suitable USB cable.

DEVICE


APPLE
PLAYERS




NO SONG An iPod / iPhone has been connected but contains no titles. Connect an iPod / iPhone containing tracks.

VER ERROR The iPod / iPhone software version is not supported. Connect a version of iPod / iPhone with a software version
compatible with the system.

OTHER




ERROR DC An abnormal direct current has been sent to the speakers. Switch the system off and on again. If the problem persists,
contact a CITROËN dealer.

336

.
