Eco-drivingEco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you to change up: as soon as the
indication to change up is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and
Co
2 emissions and also helps reduce the background traffic noise.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Eco-driving

11
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter...) and
observe the schedule of operations recommended by the manufacturer.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

12
Instrument panel
1. Rev counter.
2. Speedometer.
Screen type 2
3.
I

nstrument panel display screen:
-
W
arning and status displays.
-
T
otal and trip distance recorders.
-
S
ervice indicator.
-
C
oolant temperature.
- T rip computer information.
- C ruise control setting.
-

G
ear shift indicator recommendations.
-

S
ettings menu (display, sound...).
-

F
uel level.
-
A

mbient temperature.
-

T
ransmission mode.
Panel grouping together the dials and warning/
indicator lamps. These inform the driver of the
activation/deactivation of a system or of the
occurrence of a fault.
Screen type 1
Management of the display is done using
the INFO button located on the dashboard
to the right of the instrument panel.
Monitoring

13

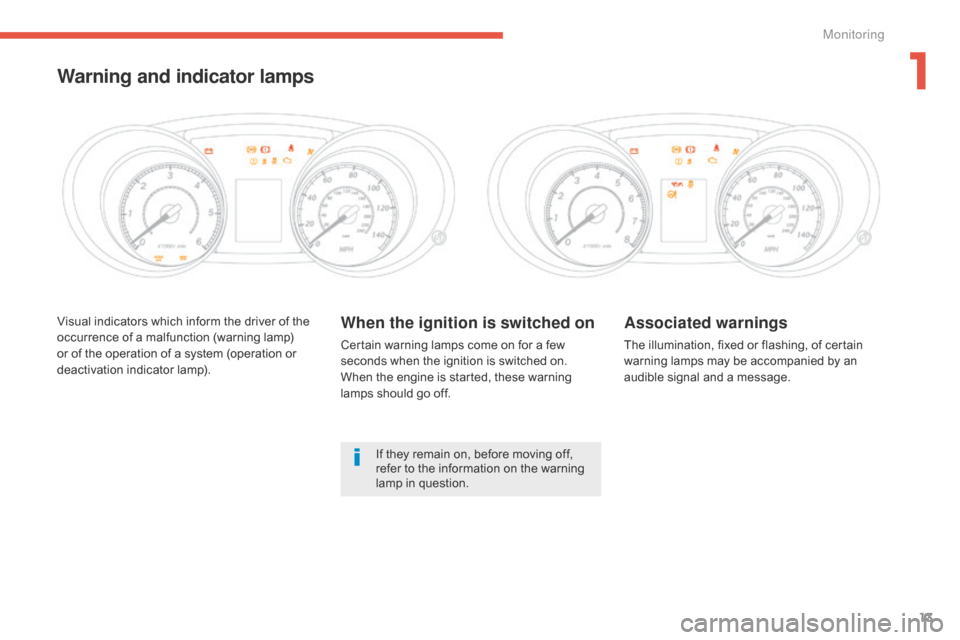

Visual indicators which inform the driver of the
occurrence of a malfunction (warning lamp)
or of the operation of a system (operation or
deactivation indicator lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds when the ignition is switched on.
When the engine is started, these warning
lamps should go off.
Associated warnings
The illumination, fixed or flashing, of certain
warning lamps may be accompanied by an
audible signal and a message.
Warning and indicator lamps
If they remain on, before moving off,
refer to the information on the warning
lamp in question.
1
Monitoring

14
Warning lamps
When the engine is running or the vehicle is being driven, the
illumination of one of the following warning lamps indicates a
malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel or appears in the
instrument panel screen.Warning /indicator lampis on Cause Action / Observations
Parking brake
/
Brake fluid
level
/ Electronic
brake force
distribution fixed.
It comes on for a few seconds, then
goes off when the ignition is switched
to "ON".
The parking brake is on or not fully
released. It is accompanied by a message. Release the parking brake
to make the warning lamp go off.
The brake fluid level is too low. It is accompanied by a message. Top up with brake fluid and contact a CITROËN dealer or a qualified workshop.
The electronic brake force distribution
(EBFD) is faulty. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
Battery charge *fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
The illumination of a warning lamp may be accompanied by the display
of an additional message, to assist you in identifying the problem.
If you encounter any problems, you should contact a CITROËN dealer
or a qualified workshop.
* According to destination country.
Monitoring

15
Warning/indicator lampis on Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a CITROËN
dealer or a qualified workshop without delay.
Front seat belt
not fastened /
unfastened
fixed, then flashing,
accompanied by an
audible signal.The driver has not fastened or has
unfastened their seat belt.
Pull the strap, then insert the tongue in the buckle.
Airbags and
pretensioners temporarily.
When you switch on the ignition, this
warning lamp comes on for a few
seconds, then goes off. If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed. Fault with one of the airbag or seat
belt pretensioner systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Under-inflation fixed,
accompanied by
a message.The tyre pressure for one or more
wheels is too low.
Check the tyre pressures as soon as possible.
This check should preferably be done with the tyres cold.
You must reinitialise the system after every adjustment of
one or more tyre pressures and after replacing one or more
wheels.
For more information refer to the "Under-inflation detection"
section.
flashing
then fixed,
accompanied by
a message. The system has a fault and/or one
or more wheels does not have a
detected sensor.
The tyre pressures are no longer monitored.
Have the system checked by a C
ITR
oËn d

ealer or a
qualified workshop.
1
Monitoring

16
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the instrument panel screen.Warning /indicator lampis on Cause Action / Observations
Left-hand
direction
indicator flashing with audible
warning.
The lighting stalk has been pressed
downwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Right-hand
direction
indicator flashing with audible
warning.
The lighting stalk has been pushed
upwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualified workshop.
Sidelamps or
dipped beam
headlamps fixed.
The sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamp sfixed. The rear foglamps are switched on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Monitoring

17
Warning/indicator lampis on Cause Action / Observations
Cruise control fixed This comes on when the cruise
control has been activated. Press the "ON/OFF" button to activate/deactivate the
cruise control.
Active stability
control and
traction control
(ASC/TCL) flashing.
Operation of the ASC/ TCL systems. The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
fixed. Fault in the ASC/ TCL systems. Have it checked by a CITROËN dealer or a qualified
workshop.
Stop & Star t
(Auto Stop & Go)
function fixed.
When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
(AS&G) function has put the engine
into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. See "Stop & Start (
aS

&G) function" for special cases
with STOP mode and START mode.
Diesel engine
pre-heating
fixed.
The engine is cold and:
-

t
he ignition switch is at the
ON


position (ignition on), or
-

t
he START/STOP starting button
has been pressed (ignition on). With key starting, wait until the warning lamp has gone
off before starting.
With the Keyless Entry and Starting system, the engine
will only start after the warning lamp has gone off.
The duration for which the warning lamp is on is
determined by the climatic conditions (up to 30 seconds
in severe weather).
If the engine does not start, switch the ignition off and
then on again and wait again until the warning lamp
goes off, then start the engine.
1
Monitoring

18
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.Warning /indicator lampis on Cause Action / Observations
ASC/TCL fixed. The ASC/ TCL off switch, located at
the bottom of the dashboard (driver's
side) has been pressed.
ASC/ TCL is deactivated.
ASC: active stability control.
TCL: traction control. Press the button to activate the ASC/ TCL.
The ASC/ TCL system is automatically activated on
starting the vehicle.
Stop & Star t
system
(Auto
Stop & Go)fixed.
The off switch for the Stop & Start
(AS&G) system, located at the bottom
of the dashboard (driver's side) has
been pressed.
The Stop & Start (AS&G) system is
deaactivated. Press the switch again to activate the Stop & Start
(AS&G) system.
Monitoring
