Citroen C4 AIRCROSS RHD 2015 1.G Owner's Manual

229
DIESEL ENGINES1.6 HDi 1101.8 HDi 150
Gearboxes Manual (6-speed)Manual (6-speed)
Model codes: BU... 9HD8/S9HDB/S 6HZ8/S6HZB/S
Transmission mode 2WD4WD2WD 4WD
-

U
nladen weight 1 4101 4751 480 1 545
-

K
erb weight 1 4851 550 1 555 1 620
-

G
ross vehicle weight (GV W) 2 0602 060 2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130 2 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 260
3 260 3 530
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 130
1 130 1 400
-

B
raked trailer (with transfer of load within
the GTW limit) 1 300
1 300 -
-

U
nbraked trailer 695750 750
-

R
ecommended nose weight 7070 70
For: Russia, Ukraine, Morocco, Argentina, Chile.
9
Technical data

230
DIESEL ENGINES1.6 HDi 1101.8 HDi 150
Gearboxes Manual (6-speed)Manual (6-speed)
Model codes: BU... 9HD8/S9HDB/S 6HZB

6HZB/S
Transmission mode 2WD4WD4WD
-

U
nladen weight 1 4101 4751 530
-

K
erb weight 1 4851 5501 605
-

G
ross vehicle weight (GV W) 2 0602 0602 060
-

G
ross vehicle weight (GV W) when towing 2 1302 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 110
3 1103 110
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 050
1 0501 050
-

U
nbraked trailer 750750750
-

R
ecommended nose weight 707070
For: Australia, New Zealand.
Technical data

231
DIESEL ENGINES1.6 HDi 110
Gearboxes Manual (6-speed)
Model codes: BU... 9HD8/S9HDB/S
Transmission mode 2WD4WD
-

U
nladen weight 1 4201 485
-

K
erb weight 1 4951 560
-

G
ross vehicle weight (GV W) 2 0602 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 321
3 321
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 200
1 200
-

U
nbraked trailer 750750
-

R
ecommended nose weight 7070
For: South Africa.
9
Technical data

232
DIESEL ENGINES1.6 HDi 110
Gearboxes Manual (6-speed)
Model codes: BU... 9HD8/S9HDB/S
Transmission mode 2WD4WD
-

U
nladen weight 1 4201 485
-

K
erb weight 1 4951 560
-

G
ross vehicle weight (GV W) 2 0602 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 2 745
2 745
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 650
650
-

U
nbraked trailer 650650
-

R
ecommended nose weight 7070
For other countries of sale.
Technical data

233

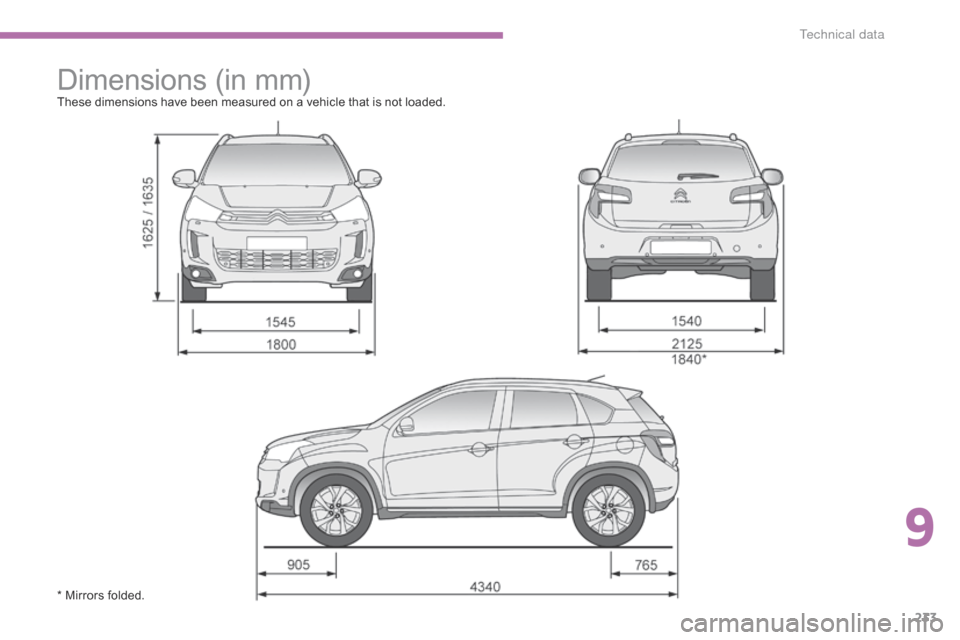

Dimensions (in mm)These dimensions have been measured on a vehicle that is not loaded.
* Mirrors folded.
9
T

234
Off-road performance
EngineGround clearance*aA
pproach angle
Departure angle Break-over angle
1.6 litre 115 190 mm
18.9 °30.9 ° 19.0 °
2.0 litre 150
201 mm
1.6 litre HDi 110 178 mm
1.8 litre HDi 150 182 mm
* Vehicle unladen.
Technical data

235
Identification markingsVarious visible markings for the identification and tracing of your vehicle.
A.
M
anufacturer's plate.
I

t is riveted to the middle pillar, right hand
side and carries the following information:
-

t
he name of the manufacturer,
-

t
he European whole vehicle type
approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised vehicle weight
(gross vehicle weight),
-

t
he maximum authorised weight of
vehicle + trailer (gross train weight),
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight. The tyre pressures must be checked
when the tyres are cold, at least once
a month.
If the tyre pressures are too low, this
increases fuel consumption.
B.
T

yre label.
I

t is fixed to the middle pillar, driver's side
and carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.C.
V

ehicle identification number (VIN)
under the bonnet.
T

his number is engraved on the body near
the damper support.
D.
V

ehicle identification number (VIN) at
the bottom of the windscreen aper ture.
I

t is marked on a label visible through the
windscreen, left hand side.
9
Technical data

236
T

237

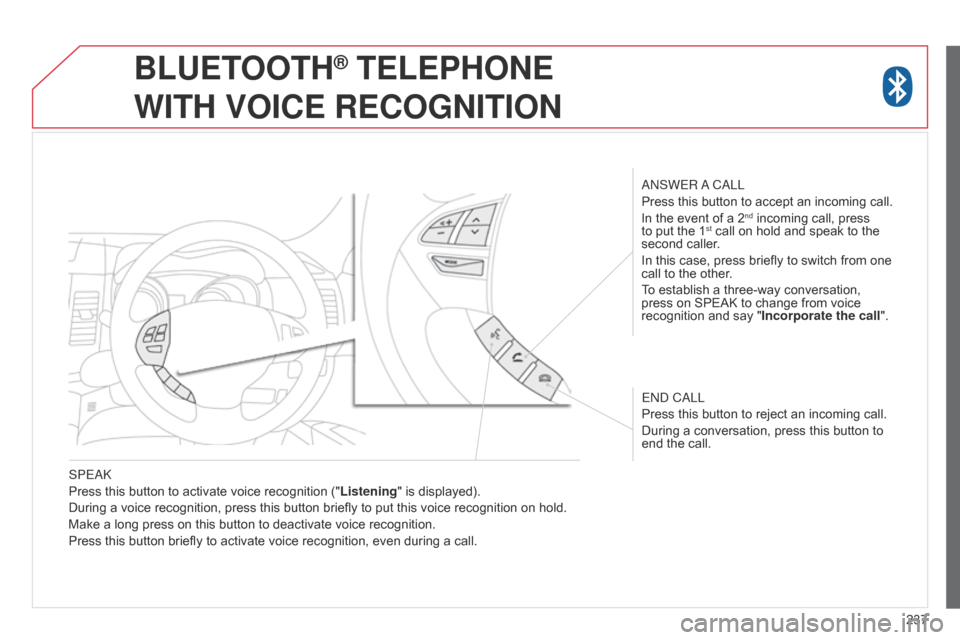

SPE
ak
Press this button to activate voice recognition ("
Listening" is displayed).
During a voice recognition, press this button briefly to put this voice recognition on hold.
Make a long press on this button to deactivate voice recognition.
Press this button briefly to activate voice recognition, even during a call.
an

SWER
a


C
a
LL
Press this button to accept an incoming call.
In the event of a 2
nd incoming call, press
to put the 1st call on hold and speak to the
second caller.
In this case, press briefly to switch from one
call to the other.
To establish a three-way conversation,
press on SPEAK to change from voice
recognition and say " Incorporate the call".
E
nd
C
a
LL
Press this button to reject an incoming call.
During a conversation, press this button to
end the call.
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

238
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

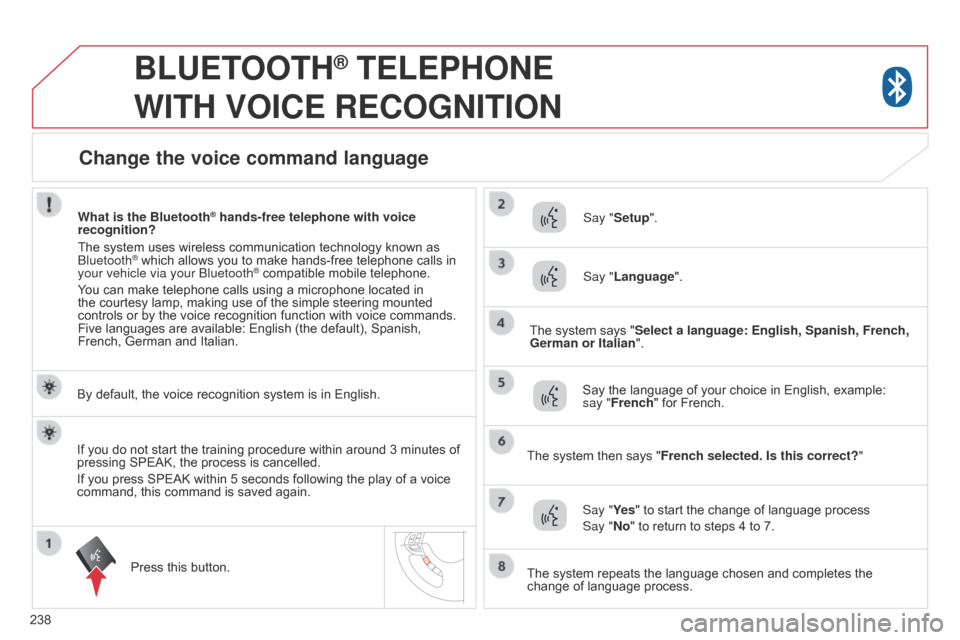

By default, the voice recognition system is in English.
Press this button. Say "Setup".
Say "Language".
Say the language of your choice in English, example:
say "French" for French.
Say "Ye s " to start the change of language process
Say "No" to return to steps 4 to 7.
The system says "Select a language: English, Spanish, French,
German or Italian".
The system then says "French selected. Is this correct?"
The system repeats the language chosen and completes the
change of language process.
If you do not start the training procedure within around 3
minutes of
pressing SPEAK, the process is cancelled.
If you press SPEAK within 5 seconds following the play of a voice
command, this command is saved again. What is the Bluetooth
® hands-free telephone with voice
recognition?
The system uses wireless communication technology known as
b

luetooth
® which allows you to make hands-free telephone calls in
your vehicle via your b luetooth® compatible mobile telephone.
You can make telephone calls using a microphone located in
the courtesy lamp, making use of the simple steering mounted
controls or by the voice recognition function with voice commands.
Five

languages are available: English (the default), Spanish,
French, German and Italian.
Change the voice command language
