technical data Citroen C4 AIRCROSS RHD 2017 1.G User Guide

226

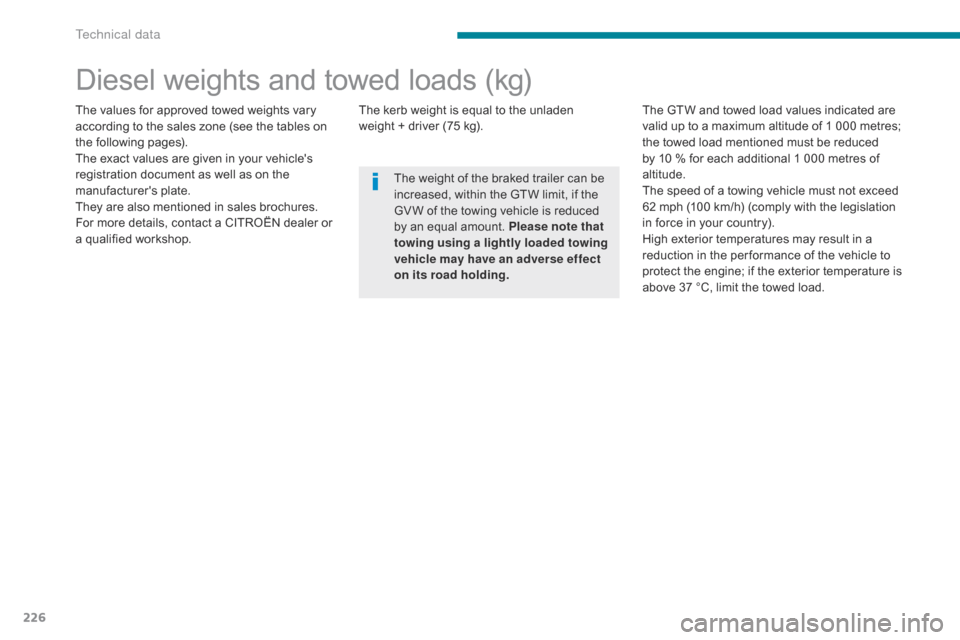

Diesel weights and towed loads (kg)
The values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a CITROËN dealer or
a qualified workshop.The kerb weight is equal to the unladen
weight
+ driver (75 kg).The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.
The weight of the braked trailer can be
increased, within the GTW limit, if the
GV W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
Technical data

227
DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S
Transmission mode 2WD4WD
-

U
nladen weight 1 3151 425
-

K
erb weight 1 3901 500
-

G
ross vehicle weight
(GV W) 2 060
2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 260
3 260
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 130
1 130
-

B
raked trailer (with transfer of load within
GTW limit) 1 300
1 300
-

U
nbraked trailer 695750
-

R
ecommended nose weight 7070

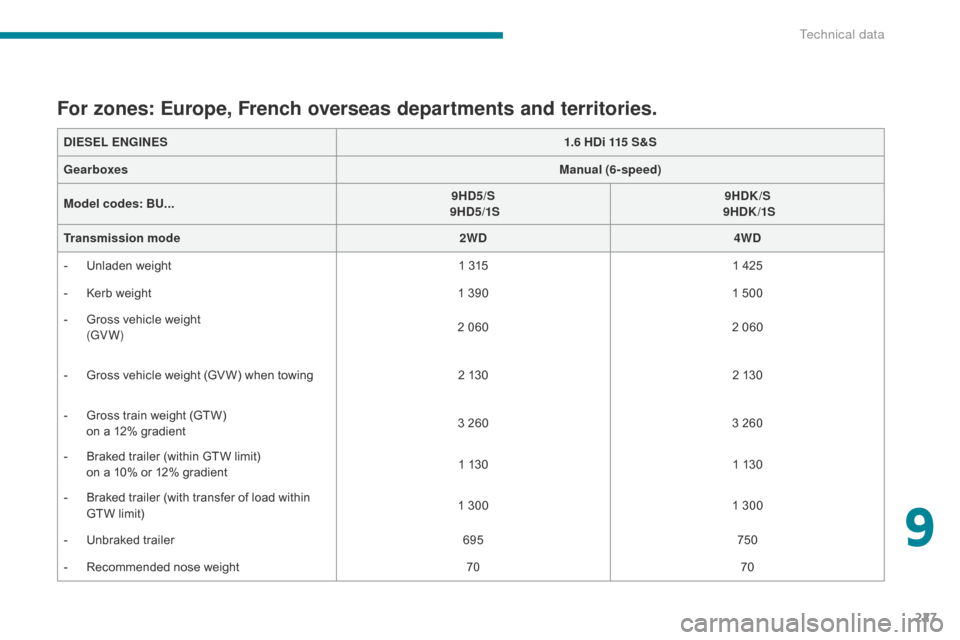

For zones: Europe, French overseas departments and territories.
9
Technical data

228
DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S
Transmission mode 2WD4WD
-

U
nladen weight 1 4101 475
-

K
erb weight 1 4851 550
-

G
ross vehicle weight
(GV W) 2 060
2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 260
3 260
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 130
1 130
-

B
raked trailer (with transfer of load within
GTW limit) 1 300
1 300
-

U
nbraked trailer 695750
-

R
ecommended nose weight 7070

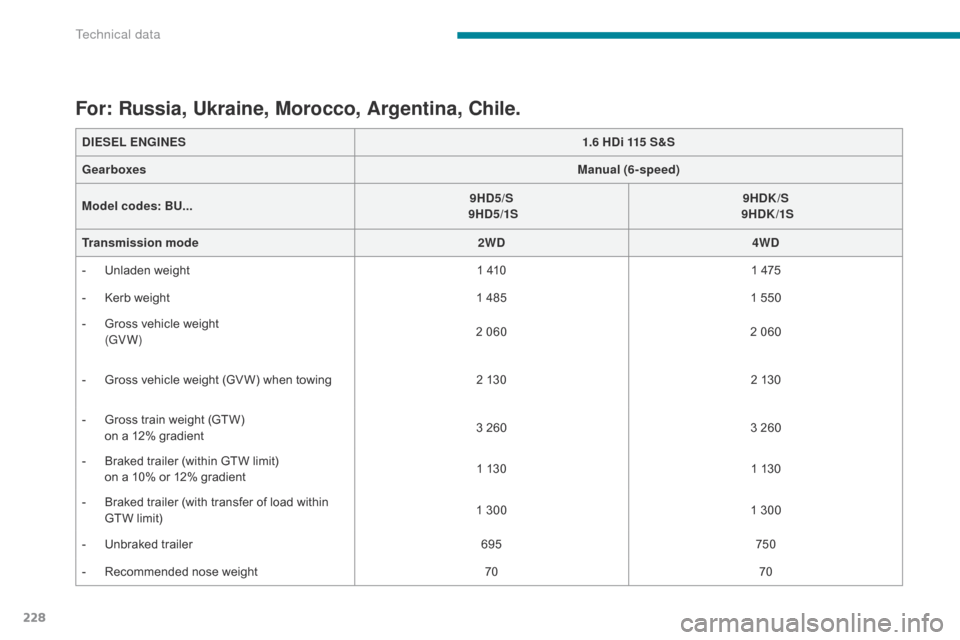

For: Russia, Ukraine, Morocco, Argentina, Chile.
Technical data

229
DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD
5/S
9HD5/1S 9HDK/S

9HDK /1S
Transmission mode 2WD4WD
-

U
nladen weight 1 4201 485
-

K
erb weight 1 4951 560
-

G
ross vehicle weight
(GV W) 2 060
2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 321
3 321
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 200
1 200
-

U
nbraked trailer 750750
-

R
ecommended nose weight 7070

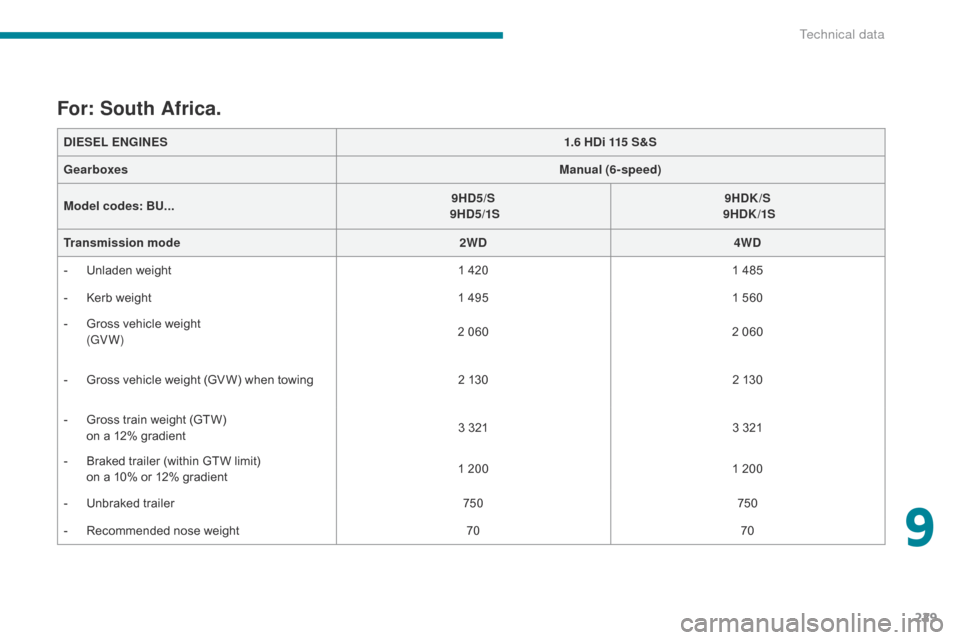

For: South Africa.
9
Technical data

230
DIESEL ENGINES1.6 HDi 115 S&S1.8 HDi 140
Gearboxes Manual (6-speed)Manual (6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S 6HYG
Transmission mode 2WD4WD4WD
-

U
nladen weight 1 4201 485 1 520
-

K
erb weight 1 4951 560 1 595
-

G
ross vehicle weight
(GV W) 2 060
2 0602 060
-

G
ross vehicle weight (GV W) when towing 2 1302 1302 130
-

G
ross train weight (GTW)


o
n a 12% gradient 2 745
2 7452 745
-

B
raked trailer (within GTW limit)


o
n a 10% or 12% gradient 650
650650
-

U
nbraked trailer 650650650
-

R
ecommended nose weight 707070

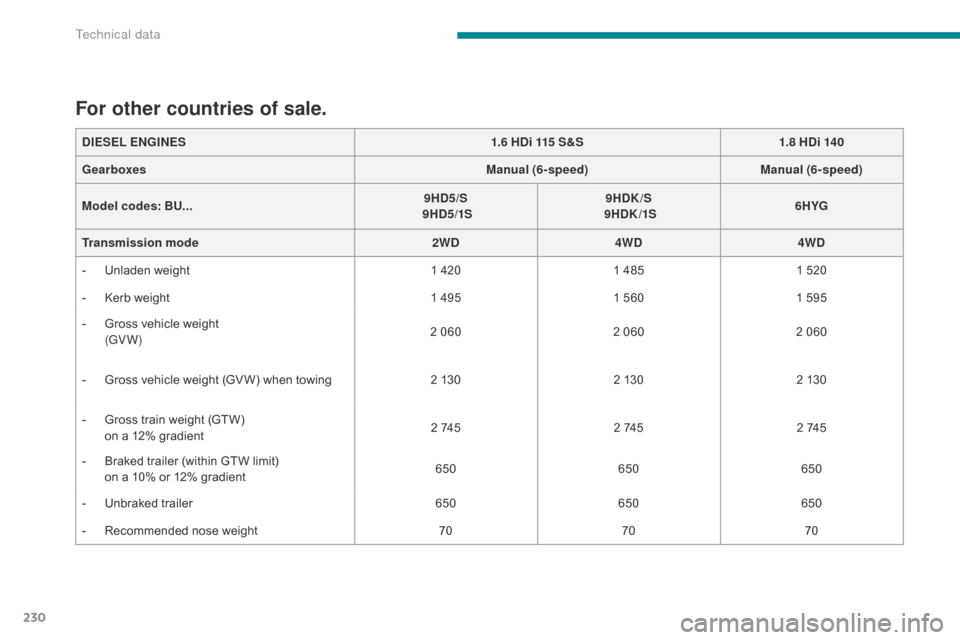

For other countries of sale.
Technical data

232

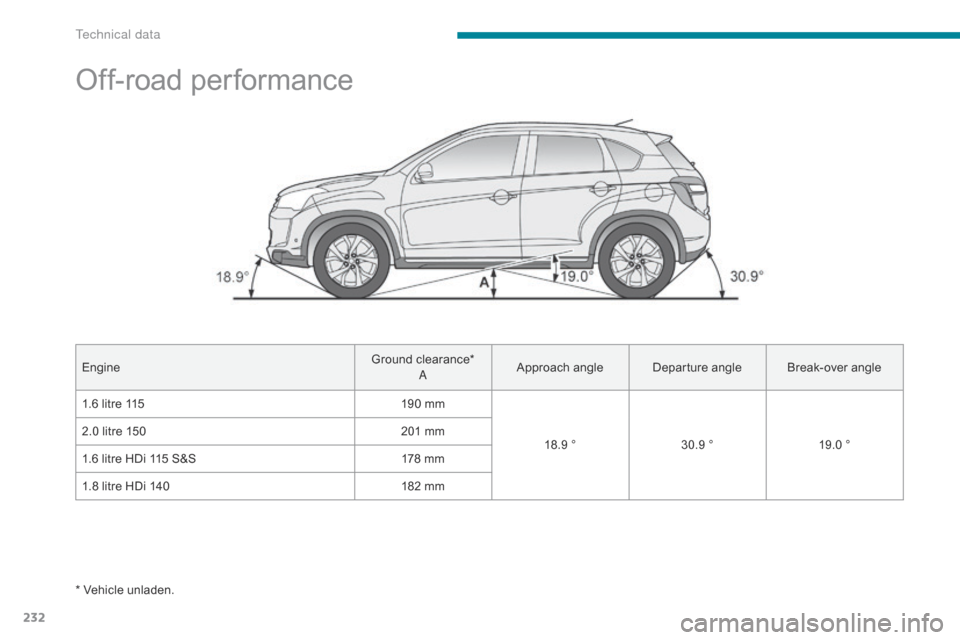

Off-road performance
EngineGround clearance*
A Approach angle
Departure angleBreak-over angle
1.6 litre 115 190 mm
18.9 °30.9 ° 19.0 °
2.0 litre 150
201 mm
1.6 litre HDi 115 S&S 178 mm
1.8 litre HDi 140 182 mm
* Vehicle unladen.
Technical data

233

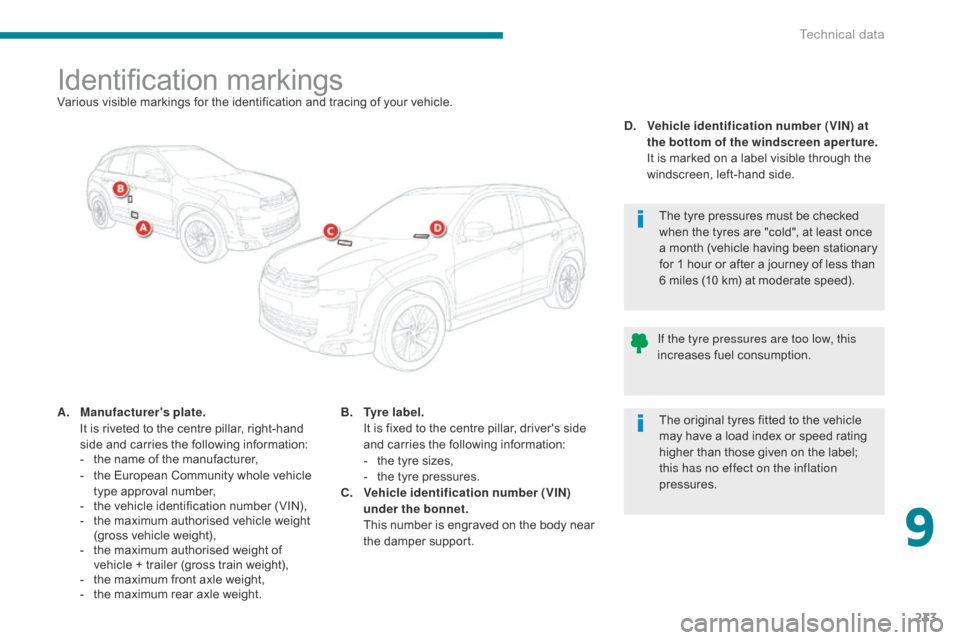

Identification markingsVarious visible markings for the identification and tracing of your vehicle.
A.
M
anufacturer's plate.
I

t is riveted to the centre pillar, right-hand
side and carries the following information:
-

t
he name of the manufacturer,
-

t
he European Community whole vehicle
type approval number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised vehicle weight
(gross vehicle weight),
-

t
he maximum authorised weight of
vehicle + trailer (gross train weight),
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight. The tyre pressures must be checked
when the tyres are "cold", at least once
a month (vehicle having been stationary
for 1 hour or after a journey of less than
6 miles (10 km) at moderate speed).
If the tyre pressures are too low, this
increases fuel consumption.
B.
T

yre label.
I

t is fixed to the centre pillar, driver's side
and carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.
C.
V

ehicle identification number (VIN)
under the bonnet.
T

his number is engraved on the body near
the damper support. D.
V

ehicle identification number (VIN) at
the bottom of the windscreen aper ture.
I

t is marked on a label visible through the
windscreen, left-hand side.
The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.
9
Technical data

341
Tank, fuel .......................................................173
Technical data ....................................... 2
19 -230
Telephone
............................. 2

39, 288, 310, 311
Telephone, Bluetooth with voice recognition

.........................2

35 -246
Telephone, hands-free
........... 2

35 -237, 241-245
Temperature, coolant
...................................... 35
T

hird brake lamp
.................................. 2
03, 204
Three flashes (direction indicators)
................................... 14

2
Time (setting)

..............................
....... 44, 46, 48
TMC (Traffic info)

.......................................... 2

67
To o l s
................

...................................... 193, 19 4
Total distance recorder

...................................32
T

ouch screen audio- CD system
...................28

9
Touch screen audio-telematic system

................
......................................... 247
To w b a r
................

........................................... 17 7
Towed loads

.......................... 2

20-224, 226-230
Towing another vehicle

.................................2

15
TP (Traffic information)

.........................2
82, 321
Traction control (TCL)
................................... 14

5
Traffic information (TMC)

..............................2

67
Trajectory control systems

............................14

5
Ty r e s
........................................................ 1

0, 114
Tyre under-inflation detection

................. 1
5, 114Ventilation ..............................
............. 10, 79 - 81
Voice commands ................... 2 36, 237, 241-245
V
U
Under-inflation (detection) ............................11 4
Unlocking .............................. ....................52, 56
USB
........

...................................... 280, 308, 309 Warning and indicator
lamps
..............................
.................. 13, 16, 18
Warning lamp, low fuel level
............................................................. 17
3
Warning lamp, seat belts
..............................
14
7
Weights
...............
..................
220-224, 226-230
Welcome lighting............................................. 58
Wheelbrace
...............................
....................
193
Wheel, spare
................................. 1
14, 193, 194
Window controls
.............................................
68
W
iper blades (changing)
...............................
17
6
Wipers
................................................... 13
4, 13 6
Wipers, automatic rain sensitive
............................................... 13
6
W
.

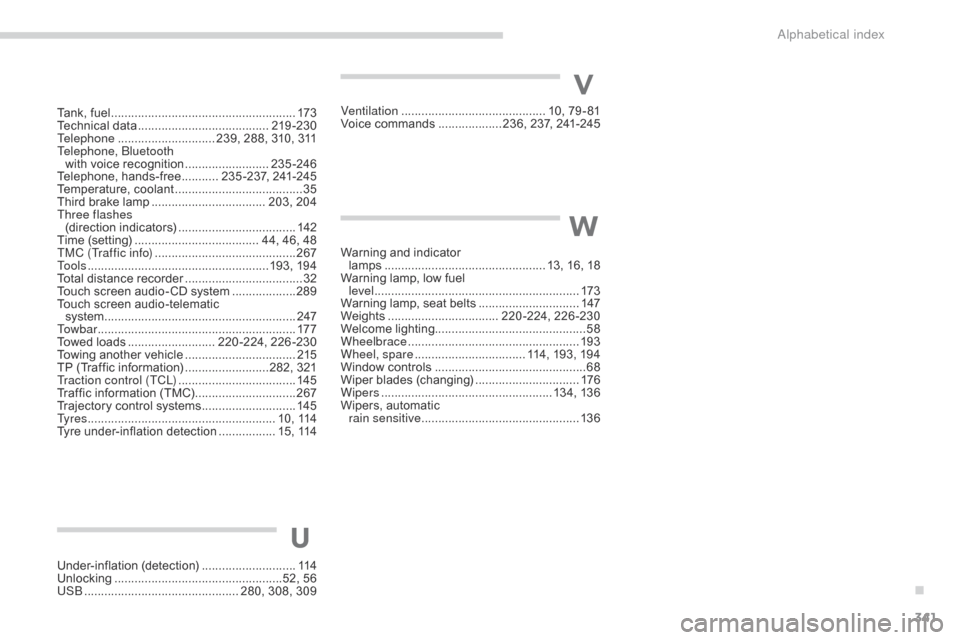

Alphabetical index
