218

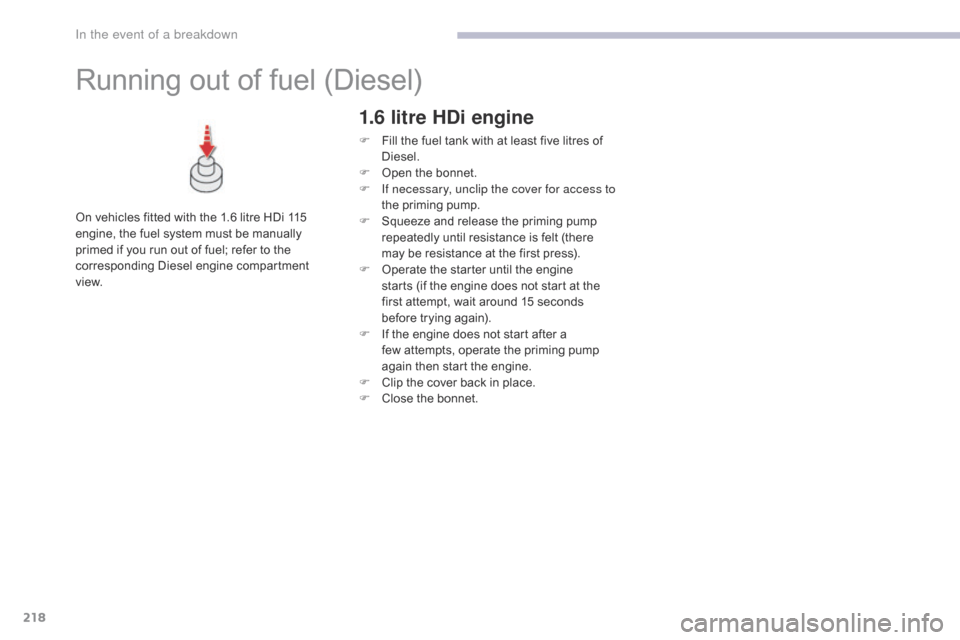

Running out of fuel (Diesel)
On vehicles fitted with the 1.6 litre HDi 115
engine, the fuel system must be manually
primed if you run out of fuel; refer to the
corresponding Diesel engine compartment
view.
1.6 litre HDi engine
F Fill the fuel tank with at least five litres of Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the cover for access to
the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter until the engine
starts (if the engine does not start at the
first
attempt, wait around 15 seconds
before trying again).
F

I
f the engine does not start after a
few
attempts, operate the priming pump
again then start the engine.
F

C
lip the cover back in place.
F

C
lose the bonnet.
In the event of a breakdown

219
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S : model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES
1.6 litre 1152.0 litre 150
GEARBOXES Manual
(5-speed) CVT
(6-speed) Manual
(5-speed) CVT
(6-speed)
Model codes: BU... NKZ0

NKZ0/S NKZ9
NKZ9/S AFYR

AFZ7 AFYV
AFZM AFYT

AFZH AFZ9 AFYW

AFZP
AFZC
Transmission mode 2WD2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: EU standard (kW) 86113
Max power engine speed (rpm) 6 0006 000
Max torque: EU standard (Nm) 15 419 9
Max torque engine speed (rpm) 4 0004 200
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
OIL CAPACITY (in litres)
Engine (with filter replacement) 4.24.3
9
Technical data

220
Petrol weights and towed loads (kg)
The values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a CITROËN dealer or
a qualified workshop.The kerb weight is equal to the unladen
weight
+ driver (75 kg).The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.
The weight of the braked trailer can be
increased, within the GTW limit, if the
GV W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
Technical data

221
For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas territories.
PETROL ENGINES1.6 litre 1152.0 litre 150
Gearboxes Manual
(5 - speed) Manual (5-speed)
CVT (6- speed)
Model codes: BU... NKZ7

NKZ0 AFZ7
AFZM AFZH

AFZ9 AFZP

AFZC
Transmission mode 2WD2WD 4WD2WD 4WD
-

U
nladen weight 1 3101 355 1 4201 385 1 450
-

K
erb weight 1 3851 430 1 4951 460 1 525
-

G
ross vehicle weight
(GV W) 1 870
1 9701 9701 9701 970
-

G
ross vehicle weight (GV W) when towing 1 9252 035 2 0352 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 3 025
3 335 3 3353 3353 335
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 100
1 300 1 3001 3001 300
-

U
nbraked trailer 68571574 5725 750
-

R
ecommended nose weight 5565656565
9
Technical data

222
For: Australia, New Zealand.
PETROL ENGINES2.0 litre 150
Gearboxes CVT (6- speed)
Model codes: BU... AFZH
AFZ9 AFZP
AFZC
Transmission mode 2WD4WD
-

U
nladen weight 1 3801 445
-

K
erb weight 1 4551 520
-

G
ross vehicle weight
(GV W) 1 970
1 970
-

G
ross vehicle weight (GV W) when towing 2 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 3 020
3 020
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 050
1 050
-

U
nbraked trailer 750750
-

R
ecommended nose weight 6565
Technical data

223
For: South Africa.
PETROL ENGINES2.0 litre 150
Gearboxes Manual (5-speed)CVT (6- speed)
Model codes: BU... AFYRAFYV AFYTAFYW
Transmission mode 2WD4WD2WD 4WD
-

U
nladen weight 1 3501 4151 390 1 455
-

K
erb weight 1 4251 490 1 4651 530
-

G
ross vehicle weight
(GV W) 1 970
1 9701 9701 970
-

G
ross vehicle weight (GV W) when towing 2 0352 0352 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 3 075
3 0752 760 2 760
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 050
1 050 750750
-

U
nbraked trailer 1 0501 050 750750
-

R
ecommended nose weight 65656565
9
Technical data

224
* Vehicle not for towing.
For other countries of sale.
PETROL ENGINES2.0 litre 150
Gearboxes Manual (5-speed)CVT (6- speed)
Model codes: BU... AFYR

AFZ7 AFYV

AFZM AFYT

AFZH
AFZ9 AFYW

AFZP
AFZC
Transmission mode 2WD4WD2WD 4WD
-

U
nladen weight 1 3401 405 1 3701 435
-

K
erb weight 1 4151 480 1 445 1 510
-

G
ross vehicle weight
(GV W) 1 970
1 9701 9701 970
-

G
ross vehicle weight (GV W) when towing 2 0352 0352 0352 035
-

G
ross train weight (GTW)
o

n a 12% gradient 2 655
2 655 -*-*
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 650
650 -*-*
-

U
nbraked trailer 650650 -*-*
-

R
ecommended nose weight 6565 -*-*
Technical data

225
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S and .../1S : model fitted with the Stop & Start (AS&G) function.
DIESEL ENGINES
1.6 HDi 115 S&S1.8 HDi 140
GEARBOXES Manual
(6-speed) Manual
(6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S 6HYG
Transmission mode 2WD4WD4WD
Cubic capacity (cc) 1 5601 798
Bore x stroke (mm) 77 x 88.383 x 83.1
Max power*: EU standard (kW) 84103
Max power engine speed (rpm) 3 6004 000
Max torque: EU standard (Nm) 270290
Max torque engine speed (rpm) 1 7502 000 to 3 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter (FAP) Ye sYe s
OIL CAPACITY (in litres)
Engine (with filter replacement) 3.755.3
9
Technical data

226
Diesel weights and towed loads (kg)
The values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a CITROËN dealer or
a qualified workshop.The kerb weight is equal to the unladen
weight
+ driver (75 kg).The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.
The weight of the braked trailer can be
increased, within the GTW limit, if the
GV W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
Technical data

227
DIESEL ENGINES1.6 HDi 115 S&S
Gearboxes Manual (6-speed)
Model codes: BU... 9HD5/S

9HD5/1S 9HDK/S

9HDK /1S
Transmission mode 2WD4WD
-

U
nladen weight 1 3151 425
-

K
erb weight 1 3901 500
-

G
ross vehicle weight
(GV W) 2 060
2 060
-

G
ross vehicle weight (GV W) when towing 2 1302 130
-

G
ross train weight (GTW)
o

n a 12% gradient 3 260
3 260
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 130
1 130
-

B
raked trailer (with transfer of load within
GTW limit) 1 300
1 300
-

U
nbraked trailer 695750
-

R
ecommended nose weight 7070
For zones: Europe, French overseas departments and territories.
9
Technical data
