Page 5 of 331
.
.
E3_en_Chap00a_sommaire_ed01-2014
Direction indicators 129
Hazard warning lamps
1
29
H or n
13 0
Emergency or assistance call
1
30
Tyre under-inflation detection
1
31
ESC system
1
34
Seat belts
1
37
Airbags
140
Safety
Child seats 1 46
Deactivating the passenger's
front airbag
1
49
ISOFIX child seats
1
55
i-Size child seats
1
58
Child lock
1
60
Child safety
Checks
Fuel tank 161
Misfuel prevention (Diesel)
1
63
Running out of fuel (Diesel)
1
65
AdBlue
® additive and SCR system
(Blue HDi Diesel) 1 66
Temporary puncture repair kit
1
74
Changing a wheel
1
81
Snow chains
1
87
Changing a bulb
1
88
Changing a fuse
1
96
12 V battery
2
03
Energy economy mode
20
7
Changing a wiper blade
2
08
To w i n g
2
0 9
Towing a trailer
2
11
Roof bars
2
13
Very cold climate screens
2
15
AIRBUMP
® protectors 2 16
Accessories
217
Practical information Technical data
Emergency or assistance 235
Touch screen tablet
2
37
Audio and telematics
Visual search
Alphabetical index
Bonnet 220
Petrol engines
2
21
Diesel engines
2
22
Checking levels
2
23
Checks
226Petrol engines
2
28
Petrol weights
2
29
Diesel engines
2
30
Diesel weights
23
1
Dimensions
232
Identification markings
2
33
Contents
Page 115 of 331
113
E3_en_Chap06_visibilite_ed01-2014
Lighting controlSystem for selection and control of the various front and rear lamps providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively according to the climatic
conditions:
-
s
idelamps, to be seen,
-
d
ipped beam headlamps to see without
dazzling other drivers,
-
m
ain beam headlamps to see clearly when
the road is clear.
Additional lighting
Other lamps are provided to meet the
requirements of particular driving conditions:
-
a
rear foglamp,
-
f
ront foglamps with cornering lighting,
-
d
aytime running lamps to be more visible
during the day,
-
g
uide-me-home lighting to facilitate your
exit from the vehicle,
-
par
king lamps as vehicle position markers.
In the event of the failure of one or more
bulbs, a message advises you to check
the lamp(s) in question.
6
Visibility
Page 190 of 331
188
E3_en_Chap09_info_pratiques_ed01-2014
Changing a bulb
Front lamps
1. Daytime running lamps / Sidelamps (LEDs).
2.
D
ipped beam headlamps (H7).
3.
M
ain beam headlamps (H1).
4.
D
irection indicators (PY21W).
5.
F
ront foglamps (PS24W). In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Practical information
Page 191 of 331
189
E3_en_Chap09_info_pratiques_ed01-2014
Daytime running lamps /
Sidelamps (LEDs)
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.F
D isconnect the bulb connector.
F
R
emove the bulb and change it.
Dipped beam headlamps
F Remove the protective cover by pulling on the tab.
F
T
ake the connector and bulb holder, then
lift the assembly upwards to unclip it.
F
R
emove the assembly of connector and
bulb holder. To reassemble, carry out these operations in
reverse order, positioning the alignment lug
at the top
.
9
Practical information
Page 192 of 331
190
E3_en_Chap09_info_pratiques_ed01-2014
Main beam headlamps
F Remove the protective cover by pulling on the tab.
F
D
isconnect the bulb connector (do not
remove the earth connector located below).
F
P
ush on the spring, then move it towards
the middle of the vehicle to release the
bulb.
F
R
emove the bulb and change it.
Direction indicators
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
F
T
urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F
R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
To reassemble, carry out these operations in
reverse order.
Practical information
Page 193 of 331
191
E3_en_Chap09_info_pratiques_ed01-2014
Front foglamps
You can also contact a CITROËN
dealer or a qualified workshop for the
replacement of these bulbs.
F
B
elow the front bumper, unscrew the
3 wheel arch liner fixing screws.
F
M
ove the wheel arch liner aside to allow
access to the front foglamp.
F
D
isconnect the connector from the bulb
holder by pressing on its tab, located
at the top. F
R
emove the bulb holder by squeezing
the two clips (top and bottom) with thumb
and finger.
F
R
eplace the module (bulb holder and bulb).
To reassemble, carry out these operations in
reverse order.
9
Practical information
Page 195 of 331
193
E3_en_Chap09_info_pratiques_ed01-2014
1. Sidelamps (W5W).
2. Brake lamps (P21W).
3.
D
irection indicators (PY21W).
4.
F
oglamp or reversing lamp (P21W).
Rear lamps
Changing bulbs
To reassemble, carry out these operations in
reverse order. F
S
pread the bulb holder retainers and
remove the bulb holder.
F
R
eplace the failed bulb:
-
f
or the sidelamp, pull the bulb (the upper
o n e) o u t ,
-
f
or the other lamps, turn the
corresponding bulb (lower) a quarter turn.
These bulbs are changed from inside the boot.
F
O
pen the boot.
F
R
emove the corresponding access cover in
the trim panel.
F
D
isconnect the lamp unit connector by
pressing the locking button (located under
the connector for the right hand lamp and
above the connector for the left
hand lamp),
F
S
lacken and remove the nut ( take care not
to drop it inside the wing ).
F
P
ress down on the retaining clip for lamp
unit, then carefully remove it towards the
outside. Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without damaging the lamp.
9
Practical information
Page 196 of 331
194
E3_en_Chap09_info_pratiques_ed01-2014

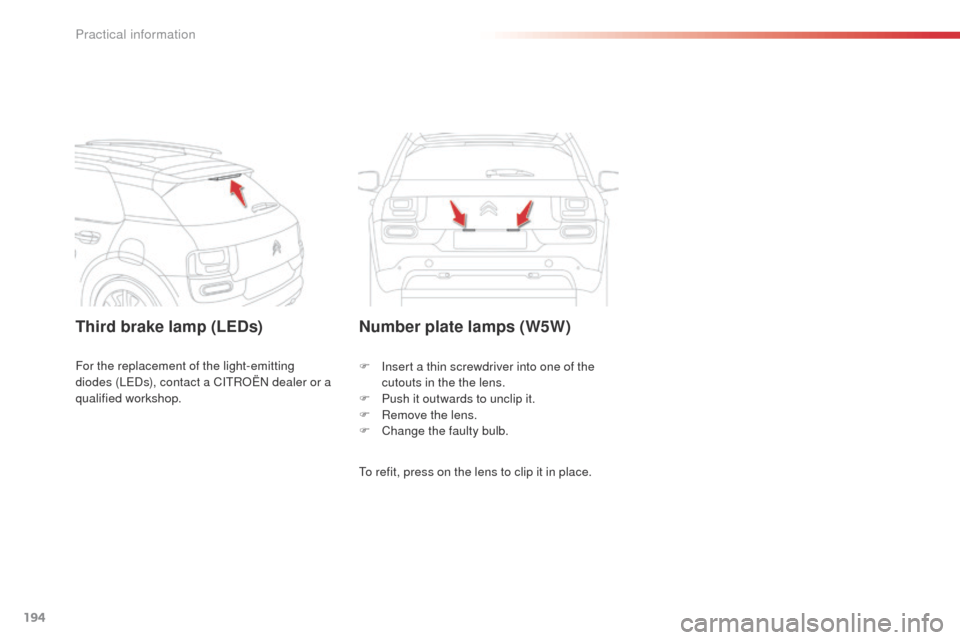

Third brake lamp (LEDs)Number plate lamps (W5W)
To refit, press on the lens to clip it in place. F
I
nsert a thin screwdriver into one of the
cutouts in the the lens.
F
P
ush it outwards to unclip it.
F
R
emove the lens.
F
C
hange the faulty bulb.
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.
Practical information
Page 197 of 331
195
E3_en_Chap09_info_pratiques_ed01-2014
F Using a small flat blade screwdriver, unclip the console assembly surrounding the
courtesy lamp.
F
R
emove the failed bulb and change it.
F
R
efit the console around the courtesy
lamp, ensuring that it is clipped in correctly.
Courtesy lamp
with bulbs (W5W) Courtesy lamp
with LEDs
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.
Boot (W5W)
F Unclip the lamp by pushing the body from
behind.
F
R
emove the bulb and change.
F
R
efit the lamp.
Interior lighting
9
Practical information
Page 220 of 331
218
E3_en_Chap09_info_pratiques_ed01-2014
The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
a fire extinguisher, a first aid kit, mud
flaps at the rear of the vehicle.
"Multimedia"
Bluetooth hands-free system, portable satellite
navigation system, driving assistance systems,
smartphone carrier, DVD player, CD player,
230 V socket, semi-integral satellite navigation
system, rear multimedia carrier, navigation
mapping updates, aftermarket digital radio...
By visiting a CITROËN
dealer you can also
obtain
cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...
Practical information
