C4-cactus_en_Chap00c_eco-conduite_ed02-2014
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom   of   the   boot,   as   close   as   possible   to   the   rear   seats.
Limit
  the   loads   carried   in   the   vehicle   and   reduce   wind   resistance   (roof
b

ars,   roof   rack,   bicycle   carrier,   trailer...).   Use   a   roof   box   in   preference.
Remove
  roof   bars   and   roof   racks   after   use.
At
  the   end   of   winter,   remove   snow   tyres   and   refit   your   summer   tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in the   door   aperture,   driver's   side.
Carry
  out   this   check   in   particular:
-

b
efore   a   long   journey,
-

a
t   each   change   of   season,
-

a
fter   a   long   period   out   of   use.
Don't
  forget   the   spare   wheel   and   the   tyres   on   any   trailer   or   caravan.
Have
  your   vehicle   serviced   regularly   (engine   oil,   oil   filter,   air   filter,
p

assenger   compartment   filter...)   and   observe   the   schedule   of
o

perations   recommended   in   the   maintenance   and   warranty   guide.
When
  refuelling,   do   not   continue   after   the   third   cut-off   of   the   nozzle   to
a

void   any   over flow.
At
  the   wheel   of   your   new   vehicle,   it   is   only   after   the   first   1   800   miles
(3
  000   kilometres)   that   you   will   see   the   fuel   consumption   settle   down   to
a

  consistent   average.
Eco-driving

217
C4-cactus_en_Chap10_verifications_ed02-2014
1. Screenwash  fluid   reservoir.
2. C oolant   header   tank.
3.
 B

rake   fluid   reservoir.
4.
 B

attery.
5.
 F

usebox.
6.
 A

ir   filter.
7.
 E

ngine   oil   dipstick.
8.
 E

ngine   oil   filler   cap.
Petrol engines
10
Checks

218
C4-cactus_en_Chap10_verifications_ed02-2014
1. Screenwash  fluid   reservoir.
2. C oolant   header   tank.
3.
 B

rake   fluid   reservoir.
4.
 B

attery.
5.
 F

usebox.
6.
 A

ir   filter.
7.
 E

ngine   oil   dipstick.
8.
 E

ngine   oil   filler   cap.
9.
 P

riming
 pu
mp*.
Diesel engines
* According to engine.
Checks

222
C4-cactus_en_Chap10_verifications_ed02-2014

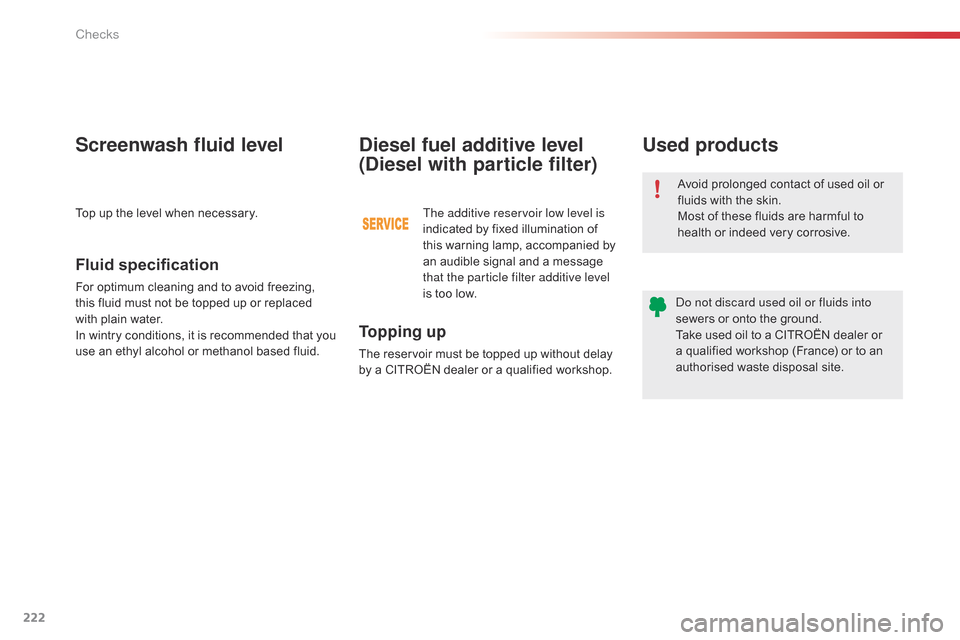

Avoid prolonged contact of used oil or fluids   with   the   skin.
Most
  of   these   fluids   are   harmful   to
h

ealth   or   indeed   very   corrosive.
do n

ot discard used oil or fluids into
sewers
  or   onto   the   ground.
Take
  used   oil   to   a   CITROËN   dealer   or
a

  qualified   workshop   (France)   or   to   an
a

uthorised   waste   disposal   site.
Used products
To p p i n g u p
The reservoir must be topped up without delay by   a   CITROËN   dealer   or   a   qualified   workshop.
Diesel fuel additive level
(Diesel with particle filter)
The additive reservoir low level is
indicated  by   fixed   illumination   of
t

his   warning   lamp,   accompanied   by
a

n   audible   signal   and   a   message
t

hat the particle filter additive level
is
  too   low.
Fluid specification
For optimum cleaning and to avoid freezing, this   fluid   must   not   be   topped   up   or   replaced
w

ith   plain   water.
In

w
intry
c
onditions,
i
t
i
s
r
ecommended
t
hat
y
ou
u

se   an   ethyl   alcohol   or   methanol   based   fluid.
Screenwash fluid level
Top up the level when necessary.
Checks

223
C4-cactus_en_Chap10_verifications_ed02-2014
Checks
12 V battery
The battery does not require any maintenance.
H owever,   check   that   the   terminals   are   clean a

nd   correctly   tightened,   particularly   in   summer
 a

nd   winter.Refer to the manufacturer's service schedule for details of the
replacement
  intervals   for   these
c

omponents.
Air filter and passenger compartment filter
Replace the oil filter each time the e ngine   oil   is   changed.
Refer
  to   the   manufacturer's
s

ervice schedule for details of
the
  replacement   interval   for   this
c

omponent.
Oil filterThe presence of this label, in particular with
the   Stop   &   Start   system,   indicates   the   use   of
a s

pecific 12 V lead-acid battery with special
technology
  and   specification.   The   involvement
o

f   a   CITROËN   dealer   or   a   qualified   workshop
i

s   essential   when   replacing   or   disconnecting
t

he   battery.
Unless
  other wise   indicated,   check   these   components   in   accordance   with   the   manufacturer's   service   schedule   and   according   to   your   engine.
Other wise,   have   them   checked   by   a   CITROËN   dealer   or   a   qualified   workshop.
Depending   on   the   environment   (e.g.   dusty
a

tmosphere)   and   the   use   of   the   vehicle
(

e.g. city   driving),   replace them twice as often
if necessary .
A   clogged   passenger   compartment   filter   may
h

ave   an   adverse   effect   on   the   per formance
o

f   the   air   conditioning   system   and   generate
u

ndesirable
 o
dours.
Particle filter (Diesel)
The start of saturation of the
particle filter is indicated by the
fixed
  illumination   of   this   warning
l

amp   accompanied   by   a   warning
m

essage.
As

soon   as   the   traffic   conditions   permit,
r

egenerate   the   filter   by   driving   at   a
s

peed   of   at   least   40   mph   (60   km/h)   until
t

he

warning   lamp   goes   off.
If

the
  warning   lamp   stays   on,   this
i

ndicates   a   low   additive   level.
on a n

ew vehicle, the first particle
filter

regeneration   operations   may   be
a

ccompanied   by   a   "burning"   smell,
w

hich   is   per fectly   normal.
Following
  prolonged   operation   of   the
v

ehicle at very low speed or at idle,
you

may,   in   exceptional   circumstances,
n

otice   the   emission   of   water   vapour   at
t

he

exhaust   on   acceleration.   This   does
n

ot affect the behaviour of the vehicle
or

the   environment.
When

carrying

out

work

on

the

battery,

refer

t

o the "12 V battery" section for details of the
precautions

to

be

taken

before

disconnecting

t

he

battery

and

following

its

reconnection.
10
Checks

227
C4-cactus_en_Chap11_caracteristiques-techniques_ed02-2014
Enginee-HDi 92BlueHDi 100
Gearbox ETG
 e

lectronic
(6-speed) Manual
(5-speed)
Model code 0B9HP0
b

b HY
Cubic
  capacity   (cc) 1
  5601
  560
Bore
  x   stroke   (mm) 75
  x   88.375
  x   88.3
Max
  power:   EU   standard   (kW)* 68 73
Max
  power   engine   speed   (rpm) 4 000 3
  750
Max
  torque:   EU   standard   (Nm) 230 254
Max
  torque   engine   speed   (rpm) 1
  7501
  750
Fuel
die

sel
die
sel
Catalytic converter yesyes
Particle filter yesyes
Engine
  oil   capacity   with   replacement   of   the   oil
f

ilter   (in   litres) 3.75
3.75
*
  The   maximum   power   corresponds   to   the   value   type   approved   on   a   test   bed,   under   conditions   defined   by   European   legislation   (Directive   1999/99/EC).
Engines and gearboxes - DIESEL
11
Technical data

305
