CITROEN C4 CACTUS 2020 Owners Manual

19
Radio
QUESTIONRESPONSESOLUTION
The reception quality of the tuned radio station
gradually deteriorates or the stored stations are
not working (no sound, 87.5 MHz is displayed,
e t c .) . The vehicle is too far from the transmitter of
the station or no transmitter is present in the
geographical area.
Activate the "RDS" function by means of the
upper band to enable the system to check
whether there is a more power ful transmitter in
the geographical area.
The environment (hills, buildings, tunnels,
basement car parks, etc.) block reception,
including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for
example when going through a car wash or into
an underground car park). Have the aerial checked by a dealer.
I cannot find some radio stations in the list of
received stations.
The name of the radio station changes. The station is not received or has changed its
name in the list.
Press the round arrow on the "List" tab of the
"Radio" page.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the
station name.
.
CITROËN Connect Radio

20
Media
QUESTIONRESPONSESOLUTION
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes). Some files supplied with the memory stick
may greatly slow down access to reading
the memory stick (multiplication by 10 of the
catalogue time).Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
Some information characters in the currently
playing media are not displayed correctly. The audio system does not display some types
of characters.Use standard characters to name tracks and
folders.
Playback of streaming files does not start. The connected device does not automatically launch playback.Start playback from the device.
Names of tracks and playing time are not
displayed on the audio streaming screen. The Bluetooth profile does not allow the
transfer of this information.
CITROËN Connect Radio

21

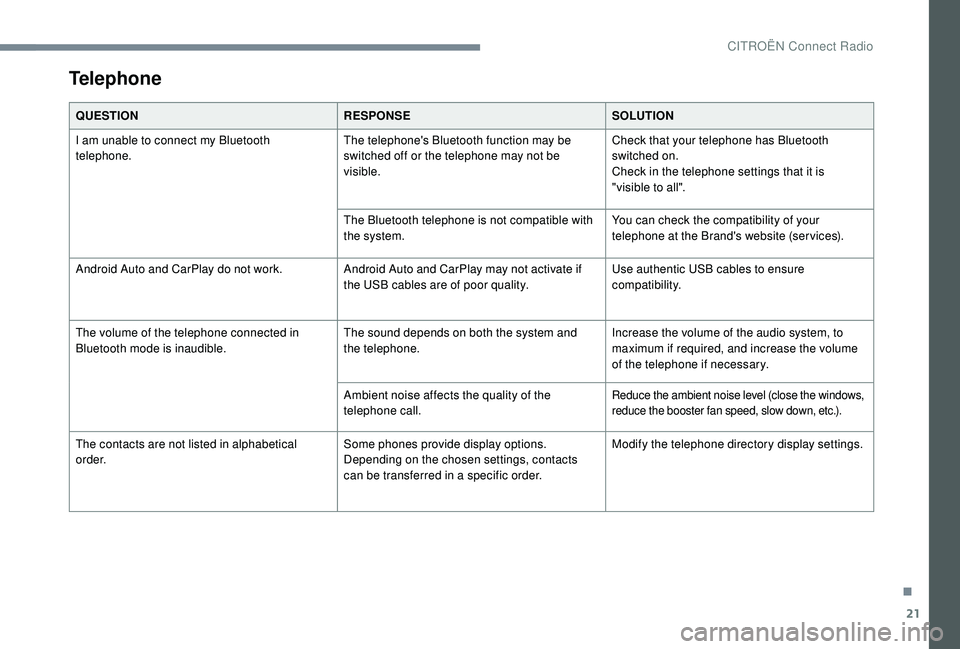

Telephone
QUESTIONRESPONSESOLUTION
I am unable to connect my Bluetooth
telephone. The telephone's Bluetooth function may be
switched off or the telephone may not be
visible.Check that your telephone has Bluetooth
switched on.
Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. You can check the compatibility of your
telephone at the Brand's website (services).
Android Auto and CarPlay do not work. Android Auto and CarPlay may not activate if
the USB cables are of poor quality.Use authentic USB cables to ensure
compatibility.
The volume of the telephone connected in
Bluetooth mode is inaudible. The sound depends on both the system and
the telephone.Increase the volume of the audio system, to
maximum if required, and increase the volume
of the telephone if necessary.
Ambient noise affects the quality of the
telephone call.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, etc.).
The contacts are not listed in alphabetical
o r d e r. Some phones provide display options.
Depending on the chosen settings, contacts
can be transferred in a specific order.Modify the telephone directory display settings.
.
CITROËN Connect Radio

22
Settings
QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the equalizer setting is deselected.
When changing the equalizer setting, the treble
and bass settings are reset. The selection of an equalizer setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted
to the sources listened to. Adjust the audio
functions to the middle position.
When the engine is off, the system switches off
after several minutes of use. When the engine is switched off, the system's
operating time depends on the state of charge
of the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.
Turn the ignition on to increase the charge of
the battery.
CITROËN Connect Radio

181
Accessories ..............................................69 , 99
Active Safety Brake........................... 15, 117-11 9
AdBlue
® ................................ 14, 21-22, 14 9 -15 0
Additive, Diesel ............................................... 12
Adjusting headlamps


...................................... 64
Adjusting head restraints


................................ 44
Adjusting seats


................................................ 43
Adjusting the air distribution


.....................50-53
Adjusting the air flow
................................. 50

-53
Adjusting the date


............................... 29, 32 , 17
Adjusting the height of the steering wheel


.....46
Adjusting the lumbar support
.......................... 44
A

djusting the temperature

........................50-53
Adjusting the time


............................... 29, 33 , 17
Advice on care and maintenance


...........55, 152
Advice on driving


...................................... 94-95
Airbags
...............................

.................16, 78 , 82
Airbags, curtain


......................................... 79-80
Airbags, front ....................................... 78- 80, 83
Airbags, lateral


.......................................... 79-80
Air conditioning


........................................... 6, 50
Air conditioning, automatic


.......................49-53
Air conditioning, manual
........................... 49,

51
Air intake


................................................... 50-53
Air vents


.......................................................... 48
Alarm


......................................................... 4 0 - 41
Anti-lock braking system (ABS)
......................72
Anti-slip regulation (ASR)


............................... 72
Apple CarPlay connection


........................18, 12
Armrest, front
............................................ 56, 58
Assistance call
...............................

............70 -71
Assistance, emergency braking


.............72, 11 8
Audio streaming (Bluetooth)


.................25 -26, 9 Cable, audio


....................................................25
Cable, Jack


.....................................................25
Capacity, fuel tank


.................................137-13 8
Cap, fuel filler

...............................
..........137-13 8
CD


...............................................................25, 9
CD, MP3


......................................................25, 9
Central locking
.......................................... 3

2, 34
Changing a bulb
..................... 16

1-162, 16 4 -165
Changing a fuse
...................... 16

6 -167, 16 9 -170
Changing a wheel
.......................... 15

4, 157-15 8
Changing a wiper blade
................... 67,

141-142
Changing the remote control battery


..............37
Checking the engine oil level


..........................21
Checking the levels


...............................14 4, 14 6
AB
C
Battery .................................... 140, 147 , 171 , 173
Battery, charging .................................... 172-173
Battery, remote control


.............................35-38
Blanking screen (snow shield)


......................13 9
Blind spot monitoring system
.................123 -124
Blind spot sensors


................................. 123 -124
BlueHDi


.............................................. 21-22, 149
Bluetooth (hands-free)
.................... 2

7-2 8, 13 -14
Bluetooth (telephone)
...................... 2

7-2 8, 13 -15
Bonnet


........................................................... 143
Boot


............................................... 39-40, 55, 59
Brake discs


.................................................... 148
Brake lamps
...............................

...................16 4
Brakes


....................................................... 9, 148
Braking, automatic emergency


.........15, 117-11 9
Brightness


....................................................... 16
Bulbs (changing)


............................ 161-162, 16 4 Checking tyre pressures
(using the kit) ..............................15 3 -15 4, 15 6
Checks


...........................................14 4, 147-148
Checks, routine


......................................147-148
Child lock


.........................................................93
Children


......................................................87- 91
Children (safety)


..............................................93
Child seats

........................77,

81- 82, 86 - 87 , 92
Child seats, conventional


................................86
Child seats, i-Size
...........................................91
Child seats, ISOFIX
..................................88 -91
Checking tyre pressures (using the kit)


..............................15 3 -15 4, 15 6
Checks


...........................................14 4, 147-148
Checks, routine


......................................147-148
Child lock


.........................................................93
Children


......................................................87- 91
Children (safety)


..............................................93
Child seats

........................77,

81- 82, 86 - 87 , 92
Child seats, conventional


................................86
Child seats, i-Size
...........................................91
Child seats, ISOFIX
..................................88 -91
CITROËN Connect Nav


....................................1
CITROËN Connect Radio
................................. 1
C

leaning (advice)

..........................................152
Closing the boot
........................................39-40
Closing the doors


......................................34, 39
Coat hanger


....................................................58
Collision risk alert


.........................................11 9
Configuration, vehicle
............................... 24

-27
Connection, Bluetooth
........ 21

-22, 27-2 8 , 13 -15
Connection, MirrorLink


........................19, 11 -12
Connection, Wi-Fi network


.............................22
Control, electric windows


................................41
.
Alphabetical index

182
D
Control, emergency boot release ...................40
Control, emergency door .......................... 3
6 -37
Control, heated seats


................................44-45
Control stalk, lighting


................................61, 64
Control stalk, wipers

...........................65

-66, 68
Courtesy lamp
............................................... 165
Courtesy lamps
......................................... 54-55
Cover, load space
........................................... 60
Cruise control


.................................. 112, 114 -11 6
Cruise control by speed limit recognition
.....112
Cup holder
....................................................... 56Earth point, remote .......................................
14 4
Eco-driving (advice) ..........................................6
Economy mode
............................................. 14

0
Electronic brake force distribution (EBFD)


.....72
Emergency braking assistance (EBA)


............72
Emergency call


..........................................70 -71
Emergency switching off


.................................99
Emissions control system, SCR
...................149
Energy economy mode
................................. 14

0
Engine compartment
.................................... 14

4
Engine, Diesel


.........................16, 13 6 , 15 3 , 178
Engine, petrol
...............................

.13 6 , 14 4 , 17 7
Engines


..................................................176 -178
Environment


................................................6, 38
E
F
G
H
Fatigue detection ................................... 120 -121
Filling the AdBlue® tank ................................ 15 0
Filling the fuel tank .................................13 6 -13 8
Filter, air


........................................................ 147
Filter, Diesel fuel


........................................... 14 4
Filter, oil
................

......................................... 147
Filter, particle


......................................... 14 6 -147
Filter, passenger compartment


..................... 147
Fitting a wheel

........................................ 15 9 -161
Fitting roof bars


............................................. 142
Fittings, boot


............................................. 59-60
Fittings, interior
............................................... 5

6
Flap, fuel filler


......................................... 137-13 8
Foglamp, rear


.................................... 17, 62, 16 4
Foglamps, front


.................... 61- 62, 65, 162-163
Foglamps, rear
................................................ 61
F

requency (radio)


...................................... 23 -24Gauge, fuel
............................................. 137-13 8
Gearbox, automatic

....
6, 101-103 , 107-109, 148
Gearbox, electronic

..................
6, 103 -10 6 , 148
Gearbox, manual

................
6, 56 , 58 , 10 0 , 107-109 , 148
Gear lever

.........................................................
6
Gear lever, electronic gearbox

.....................
148
Gear lever, manual gearbox

.........................
10 0
Gear shift indicator ~ Gear efficiency indicator

.....................................
10 6
Glove box ........................................................
56
GPS. ................ ................................................
14
Grip control ................................................74 -75
Hazard warning lamps


............................70, 15 3
Hazard warning lamps, automatic operation
...................................... 70
H

eadlamps, automatic illumination

..........61, 63
Headlamps, dipped beam


.......................61, 162
Headlamps, main beam


....................18, 61 , 162
Head restraints, front
......................................44
Head restraints, rear
.......................................46
Heating
.................................................. 6,

5 0 - 51
Hill start assist
...............................................107
Hooks


..............................................................59
Horn ................................................................. 70
DAB (Digital Audio
Broadcasting) – Digital radio


....................
24, 8
Date (setting)


.......................................
29, 32 , 17
Daytime running lamps


.............................
61, 63
Daytime running lamps, LED


........................
162
Deactivating the passenger airbag 7
8 -79
, 82- 83
Deactivation of DSC (ESC)

.............................
73
Deadlocking
.............................................. 33, 35
Defrosting


........................................................ 54
Defrosting, front


.............................................. 54
Demisting


........................................................ 54
Demisting, front
............................................... 54
D

imensions
..............................

..................... 179
Dipstick
................

............................. 21, 14 4 -145
Direction indicators


................... 62, 64, 162-16 4
Display screen, instrument panel


................. 10 6
Distance alert ~ Collision Risk Alert

............. 117
Doors


............................................................... 39
Driver's attention warning
............................. 12

1
Driving economically ......................................... 6
Driving time warning


..................................... 120
Dynamic stability control (DSC)


........... 15, 72-75 Fuel
............................................................ 6 , 13 6
Fuel consumption

..............................................
6
Fuel tank ........................................................ 13 8
Fusebox, engine compartment

.....................
170
Fuses
....................................... 16
6 -167
, 16 9 -170
Alphabetical index

183
Maintenance (advice) ....................................15 2
Maintenance, routine ........................................ 6
Map reading lamps
................................... 5

4-55
Markings, identification


.................................179
Mat


............................................................ 56, 58
Menu


............................................................... 12
Menus (audio)


........................................ 4-5, 4-5
Messages


........................................................ 30
Messages, quick
............................................. 3

0
M
N
O
Mirror, rear view ..............................................47
M irrors, door ............................... 46 - 47, 123 -124
Misfuel prevention


......................................... 13 8
Mountings, ISOFIX


......................................... 88
Number plate lamps


...................................... 165
I
Identification, vehicle .................................... 179
Ignition ................ ...........................53, 97 , 99 , 29
Ignition on ........................................................ 99
Immobiliser, electronic


........................35-36, 95
Indicator, AdBlue
® range ............................ 21-22
Indicator, engine oil level ................................ 21
Indicators, direction


................................ 62, 163
Inflating tyres (using the kit)
.......... 15

3 -15 4, 15 6
Instrument panel


............................................... 8
Internet browser
.............................................. 21
I

SOFIX mountings ........................................... 88
Key


...................................................... 31, 33 -37
Key, electronic


........................................... 33-34
Keyless Entry and Starting

......33

-36, 95 , 97- 9 8
Key not recognised

......................................... 99
K

ey with remote control
............................ 3

2, 95
Kit, hands-free
................................ 2

7-2 8, 13 -14
Kit, temporary puncture repair


..................................... 59, 15 3 -15 4 , 15 6
K
J
Jack ............................... ...................157-15 8, 25
Jump starting ................................................ 171Labels, identification


.....................................
179
Lamp, boot

..............................................
55, 166
Lamps, parking

...............................................
64
Lane Departure Warning System (LDWS)

...
12 2
Leather (care)

................................................
152
LEDs – Light-emitting diodes
................. 63,
162
Level, brake fluid ...........................................
14 6
Level, Diesel additive

....................................
14 6
Level, engine coolant

....................................
14 6
Level, engine oil ...............................
21, 14 4 -145
Levels and checks
..............................
..
14 4 , 14 6
Level, screenwash fluid
..........................
67,
14 6
Light-emitting diodes – LEDs
......... 63,
162
, 165
Lighting, cornering

..........................................
65
Lighting dimmer

..............................................
30
Lighting, directional

.........................................
65
Lighting, guide-me home

................................
64
Lighting, interior ............................... .........
54-55
Loading .............................................................6
Load reduction mode


....................................140
Locating your vehicle


......................................32
Locking
...............................

.......................35-36
Locking from the inside
...................................35
Locking the doors
........................................... 35
L

ow fuel level
.........................................13

7-13 8
Lumbar


............................................................44
L
Obstacle detection ........................................ 125
Oil change .............................................. 14
4 -145
Oil consumption


..................................... 14 4 -145
Oil, engine


.............................................. 14 4 -145
On-board tools


.............................................. 15 4
Opening the bonnet


...................................... 143
Opening the boot


................................ 33, 39-40
Opening the doors


.................................... 33, 39
.
Alphabetical index

184
Safety, children ...................78 -79, 81- 83 , 87- 91
Screen, cold climate ..................................... 13
9
Screen menu map


........................................... 12
Screenwash, front


........................................... 67
Screenwash, rear


............................................ 66
SCR (Selective Catalytic Reduction)


............149
Seat belts


....................................... 10, 76 -77 , 86
SRadio .............................................. 23, 25 , 6 -7 , 9
Radio, digital (Digital Audio Broadcasting – DAB)
................................24, 8
Range, AdBlue


........................................... 21-23
RDS
................

....................................... 23 -24, 7
Rear screen, demisting


...................................54
Recharging the battery


..........................172-173 Seat, rear bench


.......................................
45-46
Seats, front
...............................
.......................
43
Seats, heated

............................................
44-45
Seats, rear

.................................................
45-46
Selector, gear

.........................................
101-103
Serial number, vehicle

..................................
179
Service indicator

.............................................
20
Servicing
..................................................... 6,
20
Settings, equipment

..................................
24-27
Settings, system

........................................
32, 16
Sidelamps
.................... 61,
63-64
, 162, 16 4 -165
Side repeater

................................................
163
Snow chains

...........................................
13 8 -13 9
Socket, 12 V accessory ............................
56-57
Socket, auxiliary
.......................................... 25,
9
Socket, Jack

..............................................
57, 25
Sockets, audio
................................................ 57
Spe
ed limiter
..........................................
11
2 -114
Speed limit recognition
.......................... 11
0 -111
Stability control (ESC)..................................... 72
Starting a Diesel engine
............................... 13
6
Starting the engine
......................................... 96
S
tarting the vehicle
..............
94,
96-98
, 101-10 6
Starting using another battery

................
99, 171
Station, radio
...............................
.......
23 -24 , 6 -7
Stay, bonnet

..................................................
143
Steering mounted controls, audio ................ 3, 3
Steering wheel, adjustment ............................ 46
S
topping the vehicle

............94, 96-98 , 101-10 6
Stop & Start
.............................
18 , 28 , 49, 54 , 107-109 , 13 8, 143, 147, 174
Storage


......................................................56, 58
Sun visor
...............................

..........................56
Switching off the engine


.................................96
Synchronising the remote control
...................38
R
Pads, brake ................................................... 148
Paint colour code .......................................... 179
Panoramic glass sunroof


................................55
Parcel shelf, rear


....................................... 59-60
Park Assist

...............................
.....................127
Parking brake


........................................ 10 0, 148
Parking sensors, audible and visual


.............125
Parking sensors, front


...................................126
Parking sensors, rear .................................... 125
Plates, identification ...................................... 179
Player, Apple
® ............................................. 26, 9
Player, MP3 CD ............................... ................25
Player, USB

................................................. 25, 9
Port, USB

........................................ 56-57, 25, 9
Pre-heater, Diesel


........................................... 16
Pressures, tyres


..................... 15 4, 157 , 179 -18 0
Pre-tensioning seat belts


................................ 77
Priming pump
................................................ 15

3
Priming the fuel system
................................ 15 3
Profiles


...................................................... 31, 16
Protecting children


.............. 78 -79, 81- 83 , 87- 91
Puncture


................................. 15 3 -15 4, 15 6 -157 Recirculation, air


.......................................
50-53
Reduction of electrical load

..........................
140
Regeneration of the particle filter .................
147
Reinitialisation of the under- inflation detection system

...........................
13 3
Reinitialising the remote control
..................... 38
R
eminder, key in ignition
.................................
97
R
eminder, lighting on
......................................
62
R
emote control

...........................................
31- 3 6
Removing a wheel .................................
15 9 -161
Removing the mat ...........................................58
Replacing bulbs ............................. 16
1-162, 16 4
Replacing fuses


.............................166 -167, 169
Replacing the air filter
................................... 14

7
Replacing the oil filter
................................... 14

7
Replacing the passenger compartment filter


......................................147
Reservoir, screenwash


.................................14 6
Resetting the service indicator


.................20 -21
Resetting the trip recorder


........................28-29
Reversing camera
...............................

..........127
Reversing lamp


.............................................16 4
Roof bars


.......................................................142
Running out of fuel (Diesel)
..........................15 3
P
Alphabetical index

185
T
U
Tables of engines ................................... 17 7-178
Tables of fuses ........................166 -167, 16 9 -170
Ta n k , f u e l


................................................ 137-13 8
Technical data
........................................ 17

7-178
Telephone
..............................

........27- 3 0 , 13 -15
Temperature, coolant


........................................ 9
Third brake lamp


........................................... 165
Three flashes (direction indicators)
................ 63
T

ime (setting)

...................................... 29, 33 , 17
TMC (Traffic info)

............................................ 15
T

o o l s

............................................... 157, 157-15 8
Total distance recorder


.............................28-29
Touch screen ...................................... 24-27, 1, 1
To w b a r
...............................

......................95, 140
Towed loads


.................................................. 176
Towing another vehicle


..........................174 -175
Towing eye
...................................................... 59
Traction control (ASR)


.........................15, 7 2 -74
Traffic information (TMC)


................................15
Tr a i l e r
...............

....................................... 95, 140
Triangle, warning ..................................... 59, 15 3
Trip computer


............................................. 27-2 8
Trip distance recorder
............................... 2

8-29
Ty r e s


.......................................................... 6, 18 0
Tyre under-inflation detection
...............................

.16 , 132-13 3 , 157
Under floor storage


......................................... 59
Under-inflation (detection)


............................132
Unlocking


.................................................. 32-33
Unlocking from the inside
...............................35
Unlocking the boot

...............................
...........32
Unlocking the doors
.................................. 3

2, 35
Updating the date
................................ 29,

32, 17
Updating the time
...............................

.29 , 33 , 17
USB


............................................................. 25, 9 Ventilation
.......................................6, 48-49 , 51
Visibility ...............
............................................54
Voice commands


...............................5-8, 10 -12
V
W
Warning and indicator lamps ............................ 8
W arning lamp, airbag ...................................... 16
W
arning lamp, braking system

.........................9
Warning lamp, Diesel engine pre-heater


.......16
Warning lamp, driver's seat belt not fastened
...............................

............76
Warning lamp, low fuel level
...........................17
Warning lamp, parking brake


............................9
Warning lamps


.................................................. 8
Warning lamp, seat belts


................................76
Warning lamp, Service ....................................11
Warnings and indicators


...................................9
Washing (advice) ........................................... 152
Weights
...............

.......................................... 176
Wheel, spare
.......................... 15

4, 157-15 8 , 18 0
Window controls


............................................. 41
Windows, rear doors


...............................42, 152
Windows, rear quarter


..................................152
Wiper blades (changing)


..................67, 141-142
Wiper, rear ....................................................... 66
Wipers


................................................. 19, 65 , 68
Wipers, automatic rain sensitive


...............66, 68
.
Alphabetical index
