Towing device
Load distribution
F D istribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without exceeding
it.
Air density decreases with altitude, thus
reducing engine performance. The maximum
towed load must be reduced by 10
% for every
1,000 metres of altitude.
Use towing devices and their genuine
harnesses approved by CITROËN. It is
recommended that the installation be
per formed by a CITROËN dealer or a
qualified workshop.
If the towing device is not fitted by
a CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Certain driving or manoeuvring aid
functions are automatically disabled if an
approved towing device is used. Obser ve the maximum authorised towable
weight, indicated on your vehicle's
registration certificate, the manufacturer's
label as well as in the Technical data

section of this guide.
Complying with the maximum
authorised nose weight (ball joint)
also includes the use of accessories
(bicycle carriers, tow boxes, etc.).
Obser ve the legislation in force in the
country in which you are driving.
Remove the quickly detachable towball
when not towing a trailer.
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as air conditioning,
heated rear screen, etc.
The deactivated functions are reactivated
automatically as soon as conditions permit.
Energy economy mode
System which manages the duration of use of
certain functions to conser ve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use
functions such as the audio and telematics
system,
windscreen wipers, dipped beam
headlamps,
courtesy lamps, etc. for a
maximum combined duration of about forty
minutes.
Entering the mode
A message appears on the touch screen
indicating that the vehicle has switched to
economy mode and the active functions are put
o n st a n d by.
If a telephone call is being made at this
time, it will be maintained for around 10
minutes with the Bluetooth hands-free
system of your audio system.
Exiting the mode
These functions will be automatically restored
the next time the vehicle is used.
In order to restore the use of these functions
immediately, start the engine and let it run:
-

f
or less than ten minutes, to use the
equipment for approximately five minutes,
Practical information

176

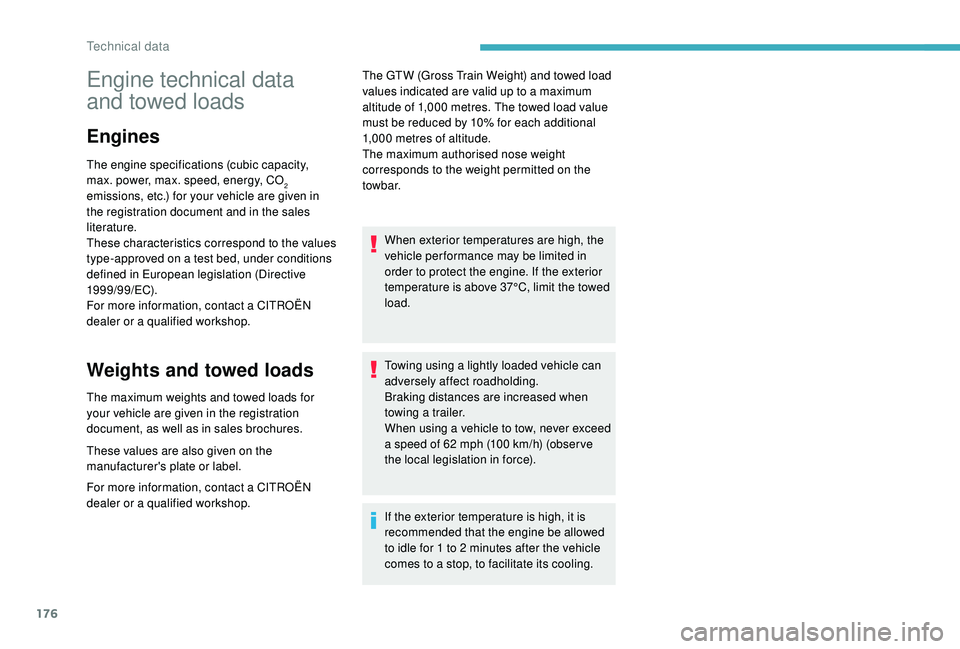

Engine technical data
and towed loads
Engines
The engine specifications (cubic capacity,
max. power, max. speed, energy, CO
2
emissions, etc.) for your vehicle are given in
the registration document and in the sales
literature.
These characteristics correspond to the values
type-approved on a test bed, under conditions
defined in European legislation (Directive
1999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.
Weights and towed loads
The maximum weights and towed loads for
your vehicle are given in the registration
document, as well as in sales brochures.
These values are also given on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop. The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000 metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towbar.
When exterior temperatures are high, the
vehicle per formance may be limited in
order to protect the engine. If the exterior
temperature is above 37°C, limit the towed
load.
Towing using a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100 km/h) (obser ve
the local legislation in force).
If the exterior temperature is high, it is
recommended that the engine be allowed
to idle for 1 to 2 minutes after the vehicle
comes to a stop, to facilitate its cooling.
Technical data

177

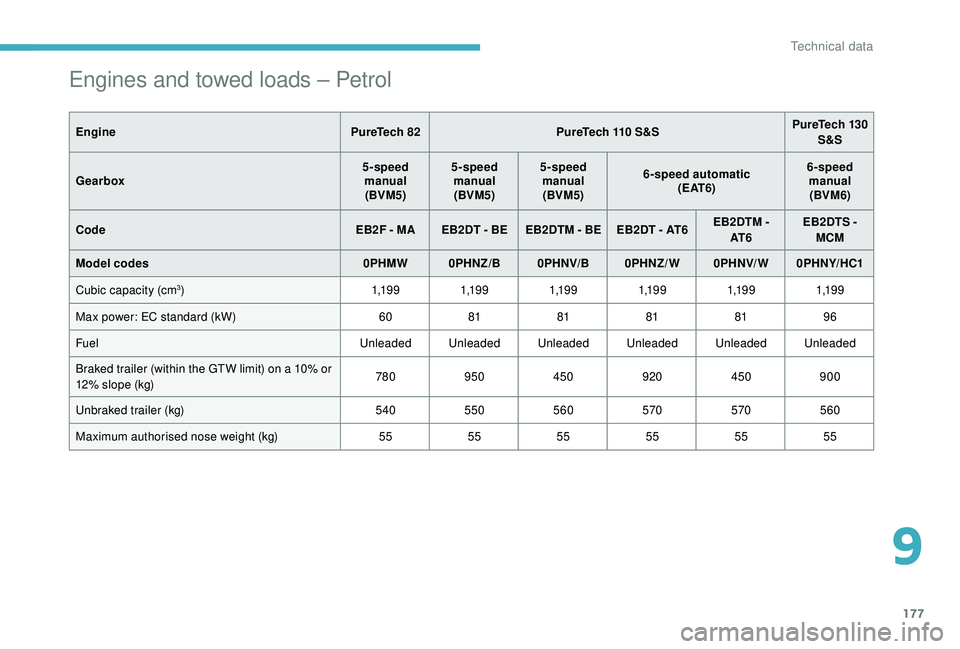

Engines and towed loads – Petrol
EnginePureTech 82PureTech 110 S&S PureTech 130
S&S
Gearbox 5-speed
manual(BVM5) 5-speed
manual(BVM5) 5-speed
manual(BVM5) 6-speed automatic
( E AT 6 ) 6-speed
manual(BVM6)
Code EB2F - MA EB2DT - BE EB2DTM - BE EB2DT - AT6 EB2DTM -
AT 6 EB2DTS -
MCM
Model codes 0PHMW 0PHNZ/B 0PHNV/B0PHNZ/ W0PHNV/ W0PHNY/HC1
Cubic capacity (cm
3) 1,1 9 91,1 9 91,1 9 91,1 9 91,1 9 91,1 9 9
Max power: EC standard (kW) 608181818196
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) on a 10% or
12% slope (kg) 780
950 450 920450900
Unbraked trailer (kg) 540550560 570570560
Maximum authorised nose weight (kg) 555555555555
9
Technical data

178
Engines and towed loads – Diesel
EngineBlueHDi 100BlueHDi 100 S&S
Gearbox 5-speed manual
(BVM5) 5-speed manual
(BVM5) 6-speed electronic
(ETG6)
Code DV6FD - BEDV6FD - BEDV6FD - MCP
Model codes 0BBHY0BBHY
Cubic capacity (cm
3) 1,5 6 0 1,5 6 0
Max power: EC standard (kW) 7373
Fuel DieselDiesel
Braked trailer (within the GTW limit) on a 10 or
12% slope (kg) 950
950950
Unbraked trailer (kg) 575575 615
Maximum authorised nose weight (kg) 555555
Technical data

179
Identification markings
Various visible markings for identifying and
searching for information on your vehicle.
A. Vehicle identification number (V.I.N.),
under the bonnet.
This number is engraved on the chassis near
the right-hand front wheel arch.
B. Vehicle identification number (V.I.N.), on
the windscreen lower cross member.
This number is indicated on a self-adhesive
label which is visible through the windscreen.
Dimensions (in mm)
These dimensions have been measured on an
unladen vehicle.
* Version with longitudinal bars.
9
Technical data

180
The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 31 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
Never reduce the pressure of a warm tyre.
Low tyre pressures increase fuel
consumption.

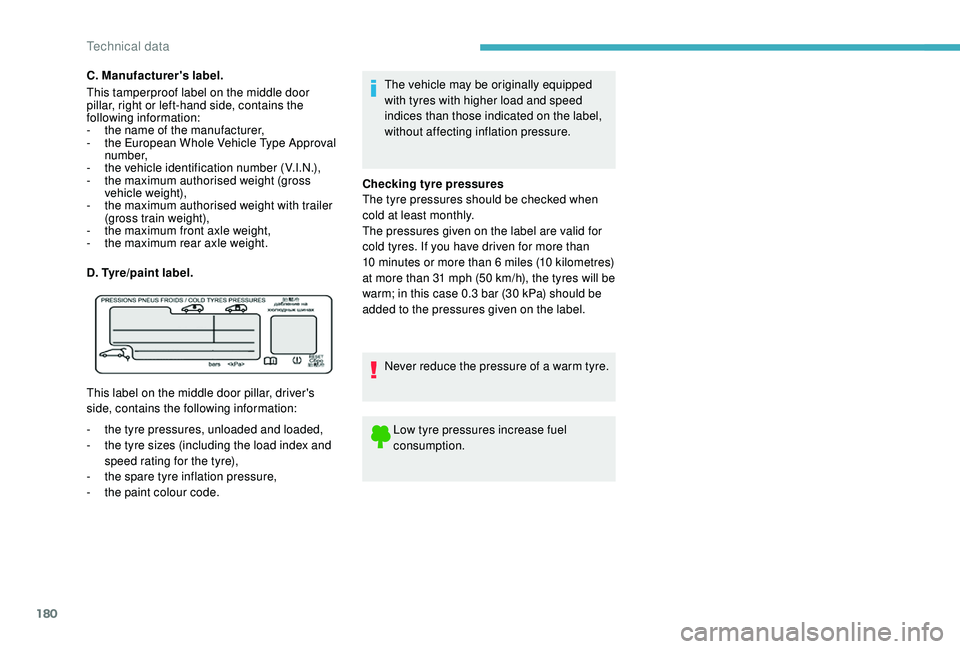

C. Manufacturer's label.
This tamperproof label on the middle door
pillar, right or left-hand side, contains the
following information:
-

t

he name of the manufacturer,
-

t

he European Whole Vehicle Type Approval
number,
-

t

he vehicle identification number (V.I.N.),
-

t

he maximum authorised weight (gross
vehicle weight),
-

t

he maximum authorised weight with trailer
(gross train weight),
-

t

he maximum front axle weight,
-

t

he maximum rear axle weight.
D. Tyre/paint label.
This label on the middle door pillar, driver's
side, contains the following information:
-

t

he tyre pressures, unloaded and loaded,
-

t

he tyre sizes (including the load index and
speed rating for the tyre),
-

t

he spare tyre inflation pressure,
-

t

he paint colour code.
Technical data

185
T
U
Tables of engines ................................... 17 7-178
Tables of fuses ........................166 -167, 16 9 -170
Ta n k , f u e l


................................................ 137-13 8
Technical data
........................................ 17

7-178
Telephone
..............................

........27- 3 0 , 13 -15
Temperature, coolant


........................................ 9
Third brake lamp


........................................... 165
Three flashes (direction indicators)
................ 63
T

ime (setting)

...................................... 29, 33 , 17
TMC (Traffic info)

............................................ 15
T

o o l s

............................................... 157, 157-15 8
Total distance recorder


.............................28-29
Touch screen ...................................... 24-27, 1, 1
To w b a r
...............................

......................95, 140
Towed loads


.................................................. 176
Towing another vehicle


..........................174 -175
Towing eye
...................................................... 59
Traction control (ASR)


.........................15, 7 2 -74
Traffic information (TMC)


................................15
Tr a i l e r
...............

....................................... 95, 140
Triangle, warning ..................................... 59, 15 3
Trip computer


............................................. 27-2 8
Trip distance recorder
............................... 2

8-29
Ty r e s


.......................................................... 6, 18 0
Tyre under-inflation detection
...............................

.16 , 132-13 3 , 157
Under floor storage


......................................... 59
Under-inflation (detection)


............................132
Unlocking


.................................................. 32-33
Unlocking from the inside
...............................35
Unlocking the boot

...............................
...........32
Unlocking the doors
.................................. 3

2, 35
Updating the date
................................ 29,

32, 17
Updating the time
...............................

.29 , 33 , 17
USB


............................................................. 25, 9 Ventilation
.......................................6, 48-49 , 51
Visibility ...............
............................................54
Voice commands


...............................5-8, 10 -12
V
W
Warning and indicator lamps ............................ 8
W arning lamp, airbag ...................................... 16
W
arning lamp, braking system

.........................9
Warning lamp, Diesel engine pre-heater


.......16
Warning lamp, driver's seat belt not fastened
...............................

............76
Warning lamp, low fuel level
...........................17
Warning lamp, parking brake


............................9
Warning lamps


.................................................. 8
Warning lamp, seat belts


................................76
Warning lamp, Service ....................................11
Warnings and indicators


...................................9
Washing (advice) ........................................... 152
Weights
...............

.......................................... 176
Wheel, spare
.......................... 15

4, 157-15 8 , 18 0
Window controls


............................................. 41
Windows, rear doors


...............................42, 152
Windows, rear quarter


..................................152
Wiper blades (changing)


..................67, 141-142
Wiper, rear ....................................................... 66
Wipers


................................................. 19, 65 , 68
Wipers, automatic rain sensitive


...............66, 68
.
Alphabetical index
