"Driving assistance" menu
The functions with settings that can be adjusted are detailed in the following table.Button Corresponding function Comments
Stop & Star t Deactivation of the function.
Parking sensors Deactivation of the function.
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
Under-inflation initialisation Reinitialisation of the under-inflation detection system.
Park Assist Activation / Deactivation of the Park Assist function.
1
Monitoring
Page 42 of 331
40
ButtonCorresponding function Comments
Diagnostic List of current alerts, servicing information.
Vehicle settings
Access to other functions with settings that can be adjusted. The functions are grouped together under three tabs:- " Driving assistance "
● " Automatic rear wiper in reverse": activation/deactivation of rear wiper linked to reverse
gear (see the "Visibility" section).
-
"Lighting "
●
"
Guide-me-home lighting": activation/deactivation and duration of the automatic
guide-me-home lighting (see the "Visibility" section).
-
"Vehicle access "
●
"
Unlock boot only": activation/deactivation of selective boot unlocking (see the
"Access" section).
Monitoring
Page 43 of 331
41
The functions available through this menu are detailed in the table below.
"Configuration" menu
ButtonCorresponding function Comments
Audio settings Adjustment of volume, balance...
Turn off screen Turns off the screen display in the touch screen tablet (black screen). Pressing the black
screen restores the display.
Interactive help Access to the interactive handbook.
Brightness Adjustment of the brightness of the instruments and controls.
1
Monitoring
Page 44 of 331
42
ButtonCorresponding function Comments
Configuration Choice of units:
-
t
emperature (°Celsius or °Fahrenheit)
-
d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used by the touch screen tablet: French, English, Italian, Spanish,
German, Dutch, Portuguese, Polish, Turkish, Russian, Croatian, Hungarian, Czech, Brazilian.
Screen settings Adjustment of the display settings (scrolling of text, animations...)
Calculator Display the calculator.
Calendar Display the calendar.
Monitoring
Page 45 of 331
43
Tr i p c o m p u t e r
System that gives you information on the journey in progress (range, fuel consumption…).
Information display in the touch screen tablet
F Select the "Driving assistance "
menu. -
T
he current fuel consumption tab
with:
●
t
he range,
●
t
he current fuel consumption,
●
t
he Stop & Start time counter.
-
T
he trip "1"
tab with:
●
t
he average fuel consumption,
●
t
he distance travelled.
● t he average speed, f
or the first trip.
-
T
he trip "2" tab with:
●
t
he average fuel consumption,
●
t
he distance travelled.
●
t
he average speed,
f
or the second trip.
Trip reset
F When the desired trip is displayed, press the Reset button or on the end of the wiper
control stalk until zeros appear.
Tr i p s "1" and "2" are independent.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
The information is accessible in the the touch screen tablet.
For a temporary display in a new
window, press the end of the wiper stalk
for access to the information and cycle
through the different tabs.
The trip computer information is displayed in
the primary page of the menu.
F
P
ress one of the buttons to display the
desired tab.
1
Monitoring
Page 46 of 331
44
Trip computer, a few definitions
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled).
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km). If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Stop & Start time counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.
Monitoring
Page 47 of 331
45
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
The total distance recorder is displayed
continuously in the instrument panel, as soon
as the driver's door is opened, as well as when
the vehicle is locked or unlocked.To conform to legislation in the
country you are crossing, change the
units of distance (miles or km) in the
"Configuration " menu of the touch
screen tablet.
This operation must be carried out with
the vehicle stationary. System which measures a distance travelled
(daily, for example) since it was reset to zero by
the driver.
This function is accessible from the trip
computer in the touch screen tablet
.
Trip distance recorder
F Select the "Driving assistance "
menu.
F
S
elect the tab for trip " 1"
or trip " 2".
F
T
o reset the trip recorder to zero, press
the " Reset " button or the end of the wiper
control stalk until zeros appear.
Distance recorders
1
Monitoring
Page 48 of 331
46

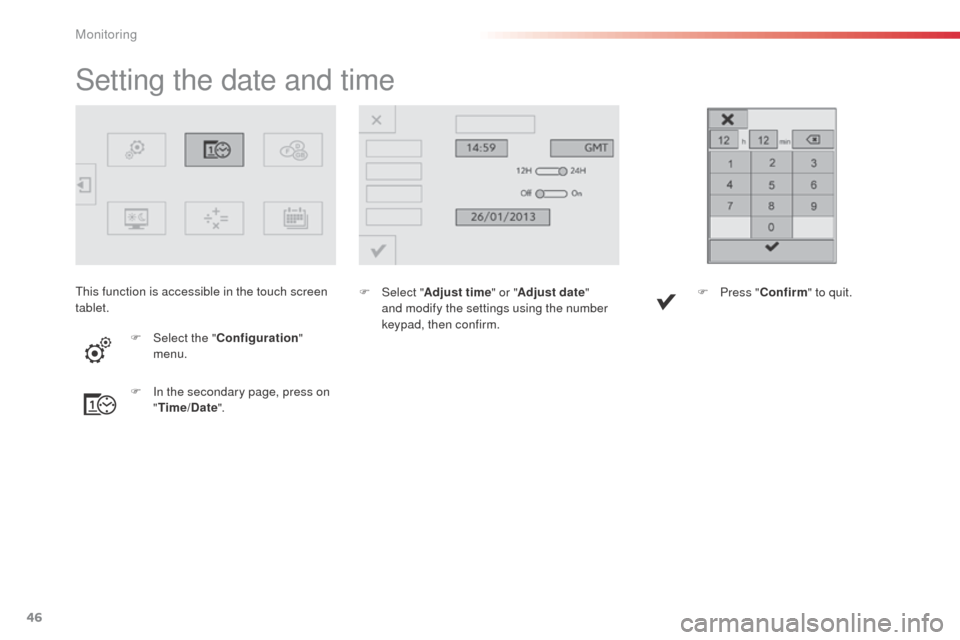

Setting the date and time
F Select "Adjust time " or "Adjust date"
and modify the settings using the number
keypad, then confirm.
F
I
n the secondary page, press on
" Time/Date ".
F
Sel
ect the " Configuration "
menu. F
P ress "Confirm " to quit.
This function is accessible in the touch screen
tablet.
Monitoring
Page 49 of 331
47
System which permits central unlocking or locking of the vehicle using the door lock or from a distance.
It is also used to locate and start the vehicle, as well as providing protection against theft.
Remote control key
Unfolding / folding the key Unlocking the vehicle
Unlocking using the key
F Turn the key in the driver's door lock towards the front of the vehicle to unlock.
Unlocking using the remote
control
F Press the open padlock to unlock the vehicle.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
F
P
ress this button to unfold or fold the key.
Selective unlocking of the boot
F Press the central button on the remote control to unlock the
boot. The doors remain locked.
If selective unlocking of the boot is
deactivated, pressing this button also
unlocks the doors.
Don't forget to lock the boot again by
pressing the closed padlock button.
The activation or deactivation of selective boot
unlocking is set in the touch screen tablet.
Selective unlocking of the boot is
activated by default.F
Sel
ect the " Driving assistance "
menu.
F
I
n the secondary page, press on
" Vehicle settings ".
2
Access
Page 50 of 331
48
If one of the doors or the boot is still
open, the central locking does not
take place; the vehicle locks then
immediately unlocks, identifiable by the
sound of the locks rebounding.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
again automatically after thirty seconds
unless a door or the boot is open.
Locking using the remote control
F Press the closed padlock to lock the vehicle.
Locking the vehicle
Locking is confirmed by the fixed illumination
of the direction indicators for approximately
two seconds.
Locking using the key
F Turn the key in the driver's door lock, towards the rear of the vehicle to lock it. This function allows you to identify your vehicle
from a distance, especially when the light is
poor. Your vehicle must be locked.
Locating your vehicle
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
F
P
ress the closed padlock on the
remote control.
This will bring on the courtesy lamps and
flashing of the direction indicators for a few
seconds.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle. In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Check that the doors and boot are fully
closed.
Access
