Citroen C4 DAG 2008 1.G Owner's Manual

10

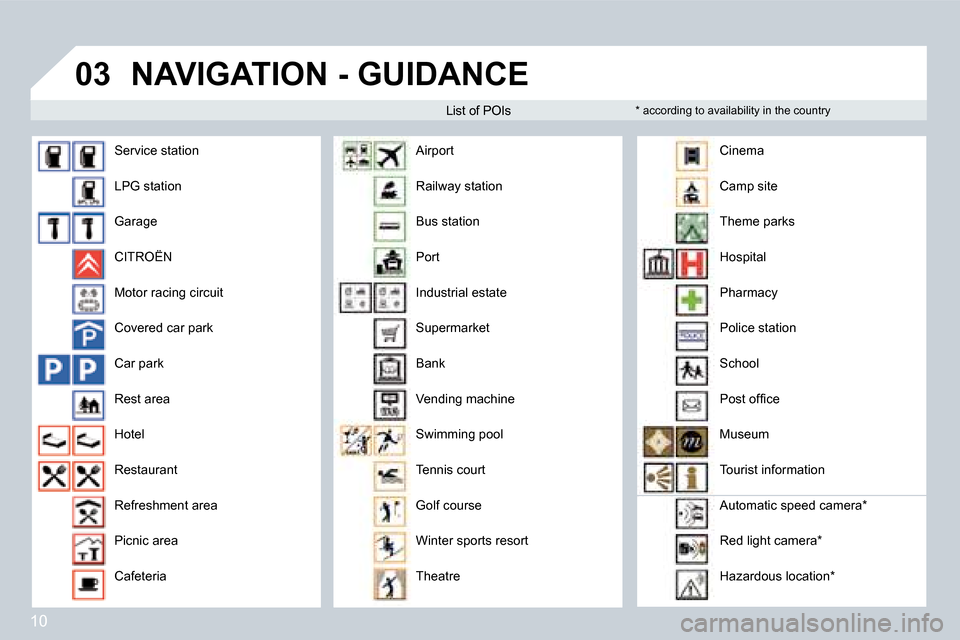

03NAVIGATION - GUIDANCE
Service station
LPG station
Garage
CITROËN
Motor racing circuit
Covered car park
Car park
Rest area
Hotel
Restaurant
Refreshment area
Picnic area
Cafeteria Airport
Railway station
Bus station
Port
Industrial estate
Supermarket
Bank
Vending machine
Swimming pool
Tennis court
Golf course
Winter sports resort
Theatre Cinema
Camp site
Theme parks
Hospital
Pharmacy
Police station
School
Post ofice
Museum
Tourist information
Automatic speed camera*
Red light camera*
Hazardous location*
List of POIs
* according to availability in the country

11
03
6
4
5
1
2
3

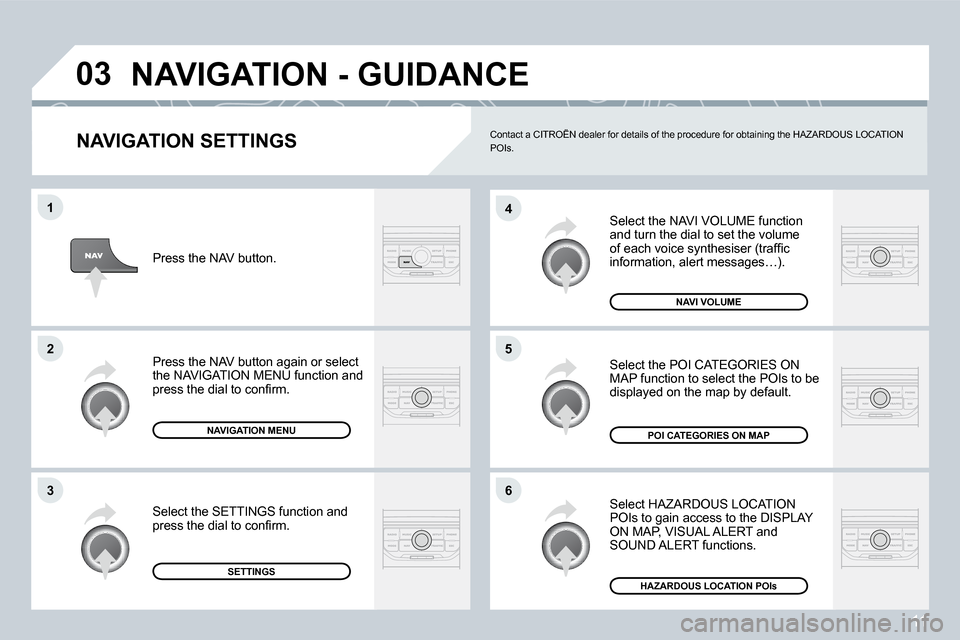

NAVIGATION SETTINGSSelect the NAVI VOLUME function
and turn the dial to set the volume
of each voice synthesiser (trafic
information, alert messages…).
Select HAZARDOUS LOCATION
POIs to gain access to the DISPLAY
ON MAP, VISUAL ALERT and
SOUND ALERT functions.
Select the POI CATEGORIES ON
MAP function to select the POIs to be
displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select
the NAVIGATION MENU function and
press the dial to conirm.
Select the SETTINGS function and
press the dial to conirm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIs
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the procedure for obtaining the HAZARDOUS LOCATION
POIs.

12
04
1
2
5
4
3

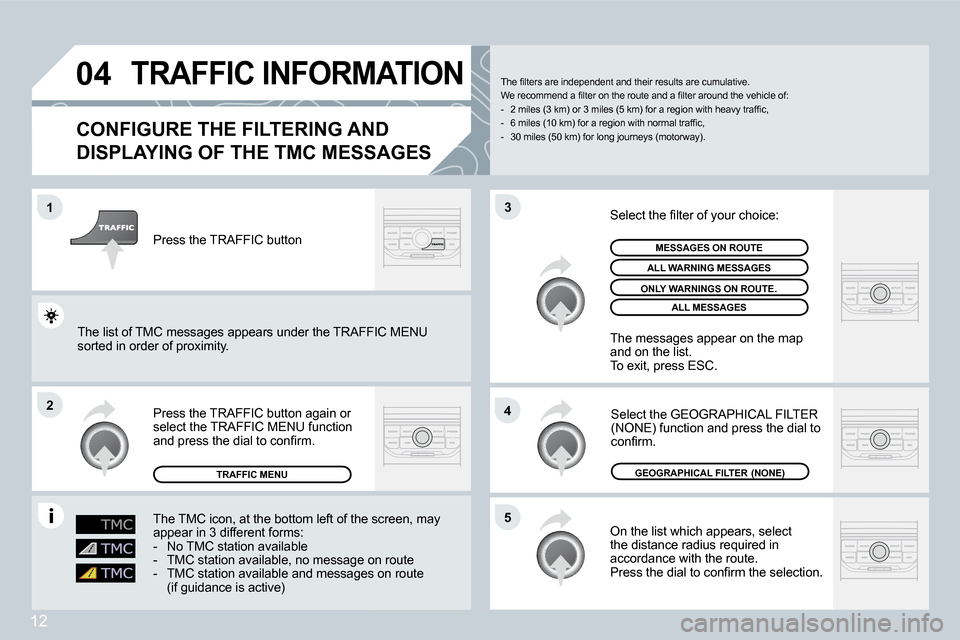

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGESOn the list which appears, select
the distance radius required in
accordance with the route.
Press the dial to conirm the selection.
Press the TRAFFIC button again or
select the TRAFFIC MENU function
and press the dial to conirm.
GEOGRAPHICAL FILTER (NONE)
Press the TRAFFIC button The ilters are independent and their results are cu
mulative.
We recommend a ilter on the route and a ilter aroun d the vehicle of:
- 2 miles (3 km) or 3 miles (5 km) for a region wit h heavy trafic,
- 6 miles (10 km) for a region with normal trafic,
- 30 miles (50 km) for long journeys (motorway).
Select the GEOGRAPHICAL FILTER
(NONE) function and press the dial to
conirm.
The list of TMC messages appears under the TRAFFIC
MENU
sorted in order of proximity. Select the ilter of your choice:MESSAGES ON ROUTE
ALL WARNING MESSAGES
ONLY WARNINGS ON ROUTE.
ALL MESSAGES
The messages appear on the map
and on the list.
To exit, press ESC.
TRAFFIC MENU
The TMC icon, at the bottom left of the screen, may
appear in 3 different forms:
- No TMC station available
- TMC station available, no message on route
- TMC station available and messages on route

(if guidance is active)

13
11
2
3
05

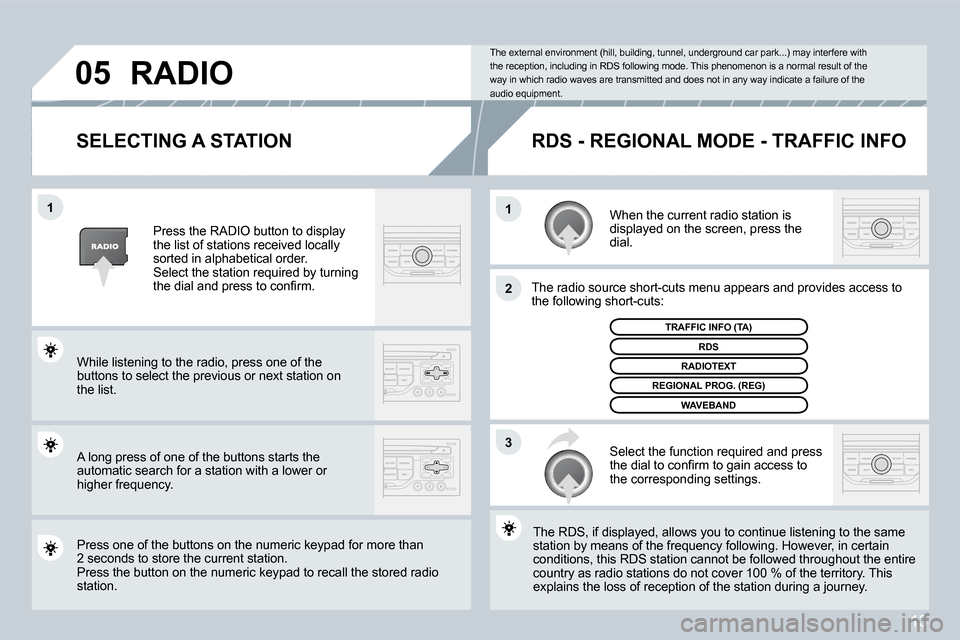

SELECTING A STATIONWhen the current radio station is
displayed on the screen, press the
dial.
The radio source short-cuts menu appears and provid es access to
the following short-cuts:
Select the function required and press
the dial to conirm to gain access to
the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue liste ning to the same
station by means of the frequency following. Howeve r, in certain
conditions, this RDS station cannot be followed thr oughout the entire
country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station durin g a journey.
The external environment (hill, building, tunnel, u
nderground car park...) may interfere with
the reception, including in RDS following mode. Thi s phenomenon is a normal result of the
way in which radio waves are transmitted and does n ot in any way indicate a failure of the
audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to conirm.
While listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall th e stored radio
station.
RDS
RADIOTEXT
REGIONAL PROG. (REG)
WAVEBAND
RADIO
A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

14

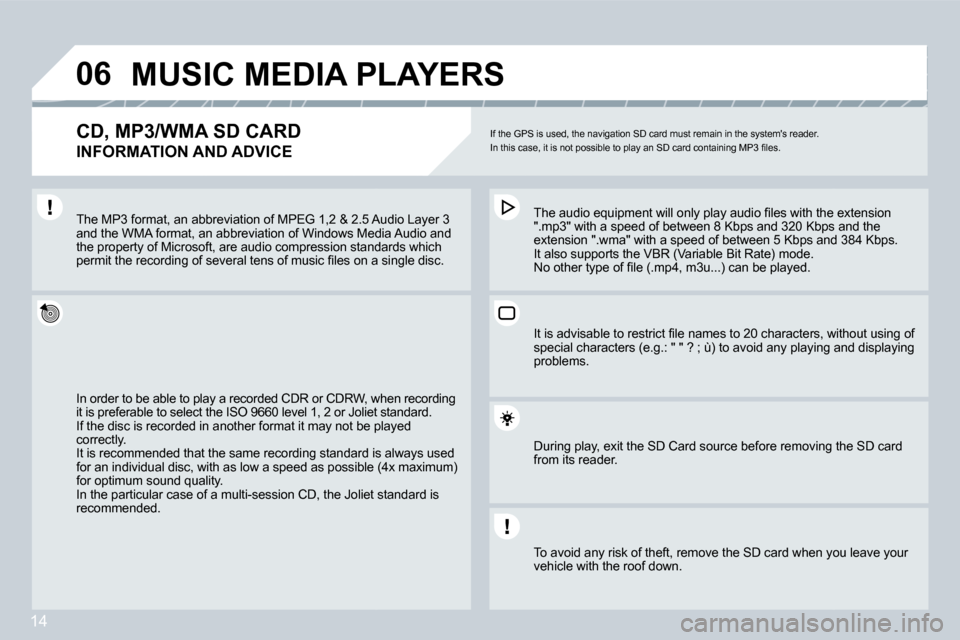

06MUSIC MEDIA PLAYERS
CD, MP3/WMA SD CARD
INFORMATION AND ADVICE If the GPS is used, the navigation SD card must rem
ain in the system's reader.
In this case, it is not possible to play an SD card containing MP3 iles.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it may no t be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as poss ible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the J oliet standard is
recommended. The audio equipment will only play audio iles with
the extension
".mp3" with a speed of between 8 Kbps and 320 Kbps and the
extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR (Variable Bit Rate) mode.
No other type of ile (.mp4, m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1,2 & 2.5 A
udio Layer 3
and the WMA format, an abbreviation of Windows Medi a Audio and
the property of Microsoft, are audio compression st andards which
permit the recording of several tens of music iles on a single disc.
It is advisable to restrict ile names to 20 charact ers, without using of
special characters (e.g.: " " ? ; ù) to avoid any p laying and displaying
problems.
During play, exit the SD Card source before removin g the SD card
from its reader.
To avoid any risk of theft, remove the SD card when you leave your
vehicle with the roof down.

15
1
2
3
5
4
6

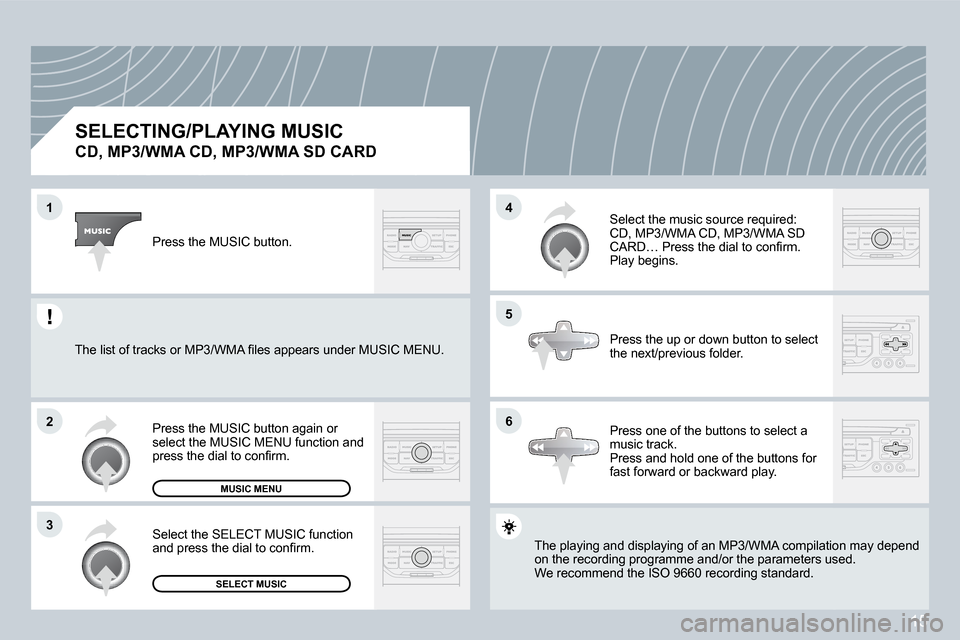

SELECTING/PLAYING MUSIC
CD, MP3/WMA CD, MP3/WMA SD CARDThe playing and displaying of an MP3/WMA compilation may depend
on the recording programme and/or the parameters us ed.
We recommend the ISO 9660 recording standard.
Press the MUSIC button.
Select the SELECT MUSIC function
and press the dial to conirm.
Press the up or down button to select
the next/previous folder.
Select the music source required:
CD, MP3/WMA CD, MP3/WMA SD
CARD… Press the dial to conirm.
Play begins.
SELECT MUSIC
Press the MUSIC button again or
select the MUSIC MENU function and
press the dial to conirm.
Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or backward play.
MUSIC MENU
The list of tracks or MP3/WMA iles appears under MU
SIC MENU.

16
1
2
3
4
1
4
06
2
3
5

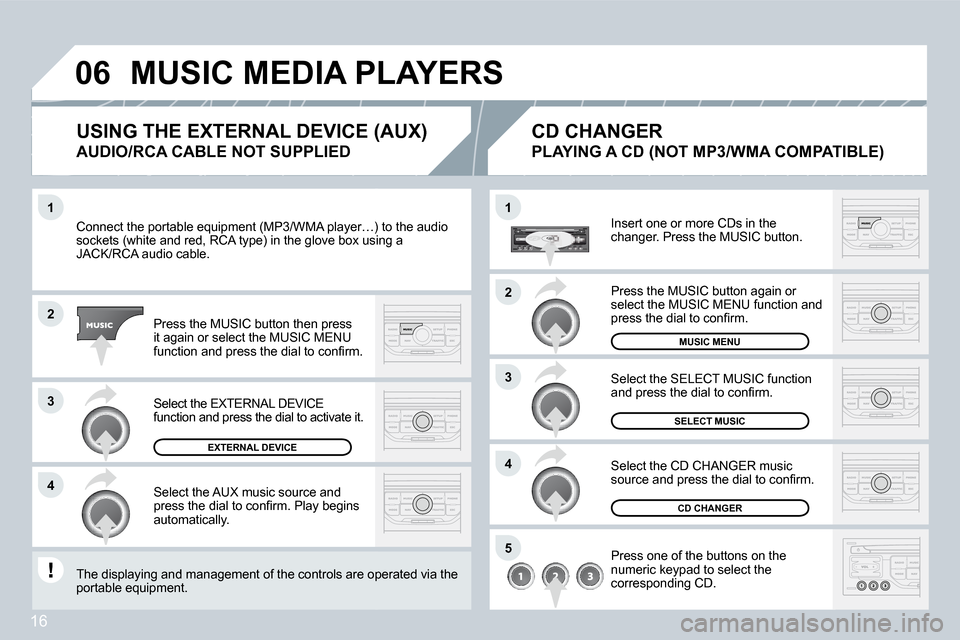

Connect the portable equipment (MP3/WMA player…) to the audio
sockets (white and red, RCA type) in the glove box using a
JACK/RCA audio cable.
Press the MUSIC button then press
it again or select the MUSIC MENU
function and press the dial to conirm.
Select the AUX music source and
press the dial to conirm. Play begins
automatically.
Select the EXTERNAL DEVICE
function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the
changer. Press the MUSIC button.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Select the CD CHANGER music
source and press the dial to conirm.
The displaying and management of the controls are o perated via the
portable equipment.
CD CHANGER
Select the SELECT MUSIC function
and press the dial to conirm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or
select the MUSIC MENU function and
press the dial to conirm.
MUSIC MENU
MUSIC MEDIA PLAYERS

17
07
1
3
5
4
2
1
2

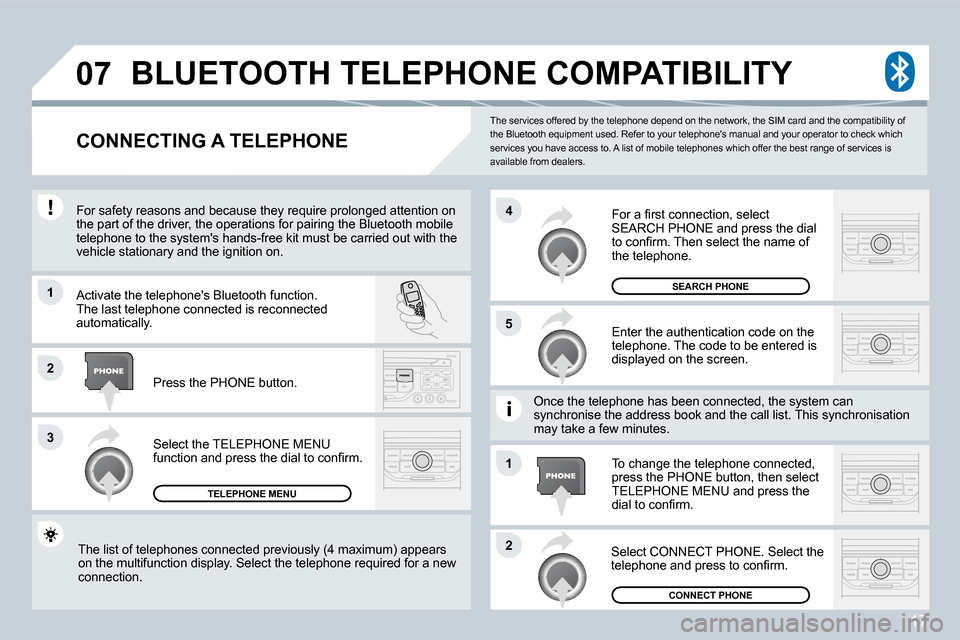

The services offered by the telephone depend on the network, the SIM card and the compatibility of
the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which
services you have access to. A list of mobile telep hones which offer the best range of services is
available from dealers.
BLUETOOTH TELEPHONE COMPATIBILITY
CONNECTING A TELEPHONE
For safety reasons and because they require prolong ed attention on
the part of the driver, the operations for pairing the Bluetooth mobile
telephone to the system's hands-free kit must be ca rried out with the
vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.
Select the TELEPHONE MENU
function and press the dial to conirm.
TELEPHONE MENU
Enter the authentication code on the
telephone. The code to be entered is
displayed on the screen.
To change the telephone connected,
press the PHONE button, then select
TELEPHONE MENU and press the
dial to conirm.
Once the telephone has been connected, the system c
an
synchronise the address book and the call list. Thi s synchronisation
may take a few minutes.
Select CONNECT PHONE. Select the
telephone and press to conirm.
The list of telephones connected previously (4 maxi
mum) appears
on the multifunction display. Select the telephone required for a new
connection. Press the PHONE button.
For a irst connection, select
SEARCH PHONE and press the dial
to conirm. Then select the name of
the telephone.
SEARCH PHONE
CONNECT PHONE

18
2
3
11
2
3

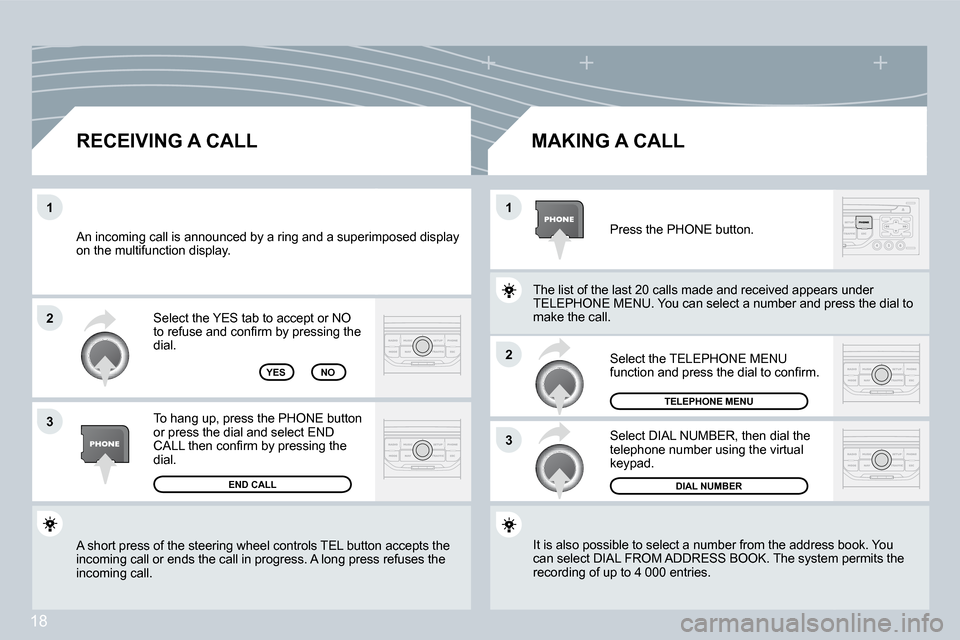

A short press of the steering wheel controls TEL button accepts the
incoming call or ends the call in progress. A long press refuses the
incoming call. Select the YES tab to accept or NO
to refuse and conirm by pressing the
dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a super
imposed display
on the multifunction display.
YES
To hang up, press the PHONE button
or press the dial and select END
CALL then conirm by pressing the
dial.
END CALL
Press the PHONE button.
It is also possible to select a number from the add ress book. You
can select DIAL FROM ADDRESS BOOK. The system permi ts the
recording of up to 4 000 entries. Select DIAL NUMBER, then dial the
telephone number using the virtual
keypad.
Select the TELEPHONE MENU
function and press the dial to conirm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received app
ears under
TELEPHONE MENU. You can select a number and press t he dial to
make the call.
NO

19
08
5
6
1
2
3
4
CONFIGURATION
SETTING THE DATE AND TIME This function provides access to the options: SYSTE
M LANGUAGE, DATE AND TIME, DISPLAY
(BRIGHTNESS, COLOUR, MAP COLOUR), VEHICLE PARAMETER S, UNITS, SYSTEM
PARAMETERS.
Set the parameters one by one using
the direction arrows and conirm by
means of the dial. Select the DATE FORMAT function
and press the dial to conirm.
Conirm the format required using
the dial.
Select the SET DATE AND TIME
function and press the dial to conirm. Pressing the SET UP button for more than 2 seconds
permits access to:
Press the SET UP button.
Select the TIME FORMAT function
and press the dial to conirm.
Conirm the format required using
the dial.
SET DATE AND TIME
Select the DATE AND TIME function
and press the dial to conirm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
CEMO MODE
DATE AND TIME
