42 III
C O M F O R T
A i r c o n d i t i o n i n g
At any time of year, the air condition-
ing is useful for removing air humid-
ity and misting.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If you are towing a heavy trailer or if
outside temperatures are very high,
the air conditioning may be tempo-
rarily interrupted in favour of engine
cooling.
Sensor
The automatic air conditioning inside the passenger compartment makes use of the sunlight sensor, which is located on the dashboard behind the instrument panel.
Take care not to obstruct it.
Water arising from condensation
in the air conditioning is allowed to
drain out through an aperture pro-
vided for this purpose; a pool of
water may thus form beneath the
vehicle when stationary.
You are recommended to have the
air conditioning system checked on
a regular basis (see Maintenance
Guide).
The air conditioning uses energy
from the engine to operate. This
results in extra fuel consumption
Page 42 of 257
43
III
C O M F O R T

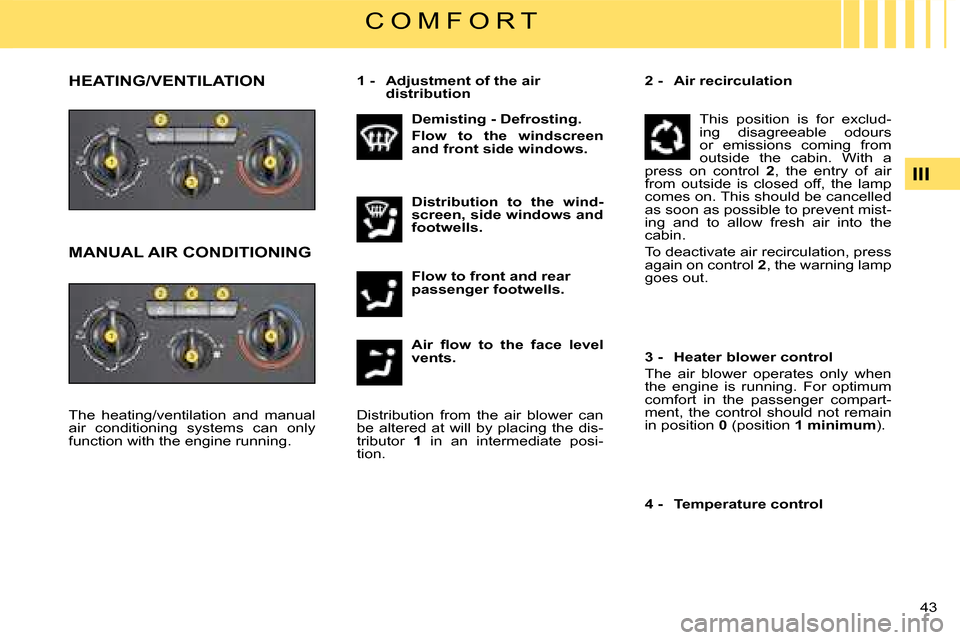

A i r fl o w t o t h e f a c e l e v e l vents.
T h e h e a t i n g / v e n t i l a t i o n a n d m a n u a l air conditioning systems can only function with the engine running.
1 - A d j u s t m e n t o f t h e a i r d i s t r i b u t i o n
D e m i s t i n g - D e f r o s t i n g .
F l o w t o t h e w i n d s c r e e n a n d f r o n t s i d e w i n d o w s .
D i s t r i b u t i o n t o t h e w i n d - s c r e e n , s i d e w i n d o w s a n d f o o t w e l l s .
F l o w t o f r o n t a n d r e a r p a s s e n g e r f o o t w e l l s .
H E A T I N G / V E N T I L A T I O N
Distribution from the air blower can be altered at will by placing the dis-tributor 1 in an intermediate posi-tion.
MANUAL AIR CONDITIONING
2 - Air recirculation
3 - H e a t e r b l o w e r c o n t r o l
The air blower operates only when the engine is running. For optimum comfort in the passenger compart-ment, the control should not remain in position 0 (position 1 m i n i m u m).
4 - T e m p e r a t u r e c o n t r o l
This position is for exclud-ing disagreeable odours or emissions coming from outside the cabin. With a press on control 2, the entry of air from outside is closed off, the lamp comes on. This should be cancelled as soon as possible to prevent mist-ing and to allow fresh air into the cabin.
To deactivate air recirculation, press again on control 2, the warning lamp goes out.
Page 43 of 257
44 III
C O M F O R T
6 - A i r c o n d i t i o n i n g
The air conditioning will only operate when the engine is running.

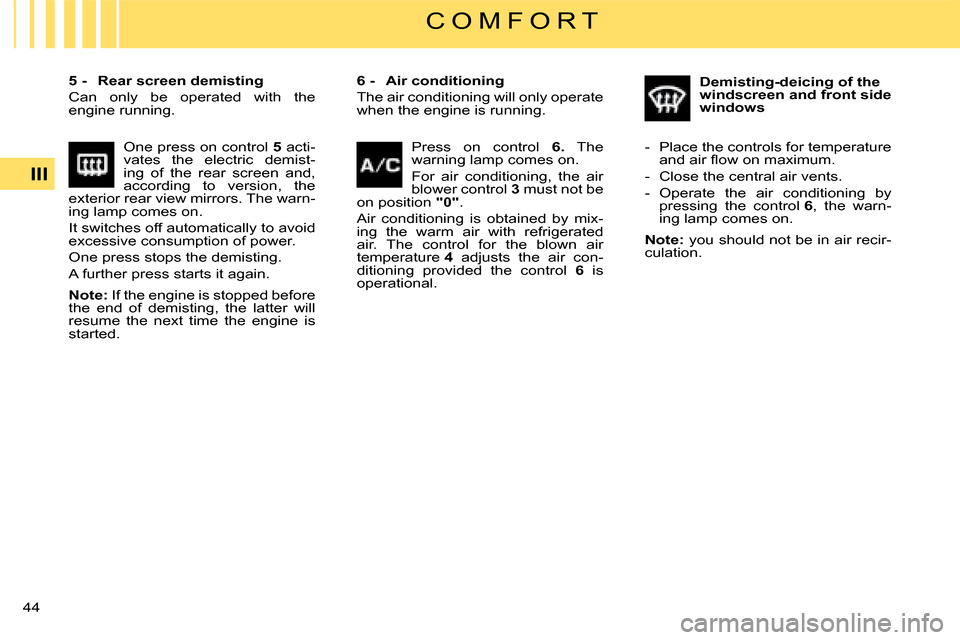

5 - R e a r s c r e e n d e m i s t i n g
Can only be operated with the engine running.
D e m i s t i n g - d e i c i n g o f t h e w i n d s c r e e n a n d f r o n t s i d e w i n d o w s
One press on control 5 acti-vates the electric demist-ing of the rear screen and, according to version, the exterior rear view mirrors. The warn-ing lamp comes on.
It switches off automatically to avoid excessive consumption of power.
One press stops the demisting.
A further press starts it again.
Note: If the engine is stopped before the end of demisting, the latter will resume the next time the engine is started.
Press on control 6. The warning lamp comes on.
For air conditioning, the air blower control 3 must not be on position "0".
Air conditioning is obtained by mix-ing the warm air with refrigerated air. The control for the blown air temperature 4 adjusts the air con-ditioning provided the control 6 is operational.
- Place the controls for temperature a n d a i r fl o w o n m a x i m u m .
- Close the central air vents.
- Operate the air conditioning by pressing the control 6, the warn-ing lamp comes on.
Note: you should not be in air recir-culation.
Page 44 of 257
45
III
C O M F O R T

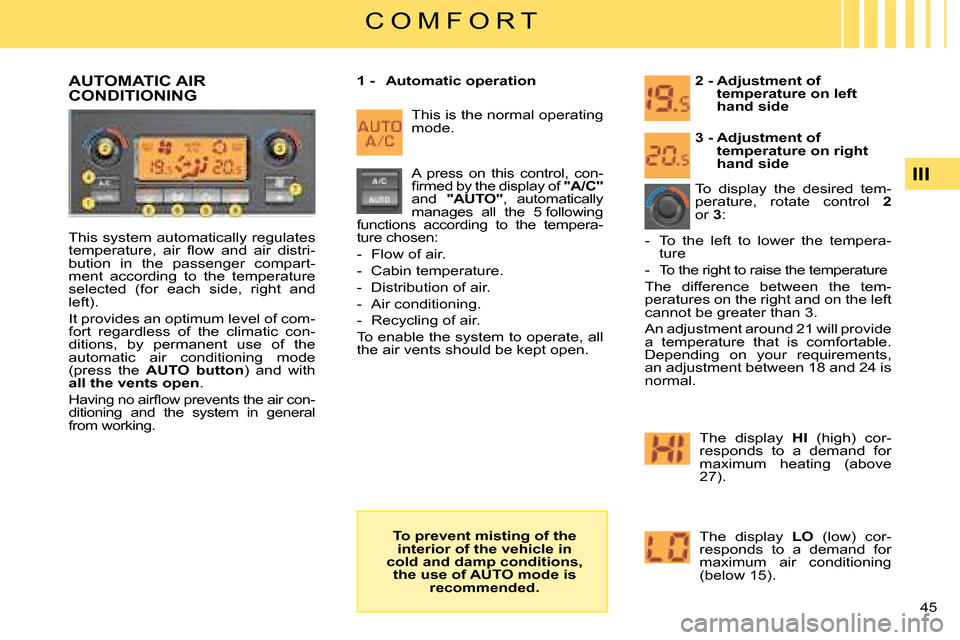

This system automatically regulates t e m p e r a t u r e , a i r fl o w a n d a i r d i s t r i -bution in the passenger compart-ment according to the temperature selected (for each side, right and left).
It provides an optimum level of com-fort regardless of the climatic con-ditions, by permanent use of the automatic air conditioning mode (press the AUTO button) and with a l l t h e v e n t s o p e n.
H a v i n g n o a i r fl o w p r e v e n t s t h e a i r c o n -ditioning and the system in general from working.
2 - A d j u s t m e n t o f t e m p e r a t u r e o n l e f t h a n d s i d e
1 - A u t o m a t i c o p e r a t i o n
To display the desired tem-perature, rotate control 2or 3:
AUTOMATIC AIR CONDITIONING
The display HI (high) cor-responds to a demand for maximum heating (above 27).
The display LO (low) cor-responds to a demand for maximum air conditioning (below 15).
A press on this control, con- fi r m e d b y t h e d i s p l a y o f " A / C "and "AUTO", automatically manages all the 5 following functions according to the tempera-ture chosen:
- Flow of air.
- Cabin temperature.
- Distribution of air.
- Air conditioning.
- Recycling of air.
To enable the system to operate, all the air vents should be kept open.
3 - A d j u s t m e n t o f t e m p e r a t u r e o n r i g h t h a n d s i d e
- To the left to lower the tempera-ture
- To the right to raise the temperature
The difference between the tem-peratures on the right and on the left cannot be greater than 3.
An adjustment around 21 will provide a temperature that is comfortable. Depending on your requirements, an adjustment between 18 and 24 is normal.
This is the normal operating mode.
T o p r e v e n t m i s t i n g o f t h e i n t e r i o r o f t h e v e h i c l e i n c o l d a n d d a m p c o n d i t i o n s , t h e u s e o f A U T O m o d e i s r e c o m m e n d e d .
Page 45 of 257
46 III
C O M F O R T

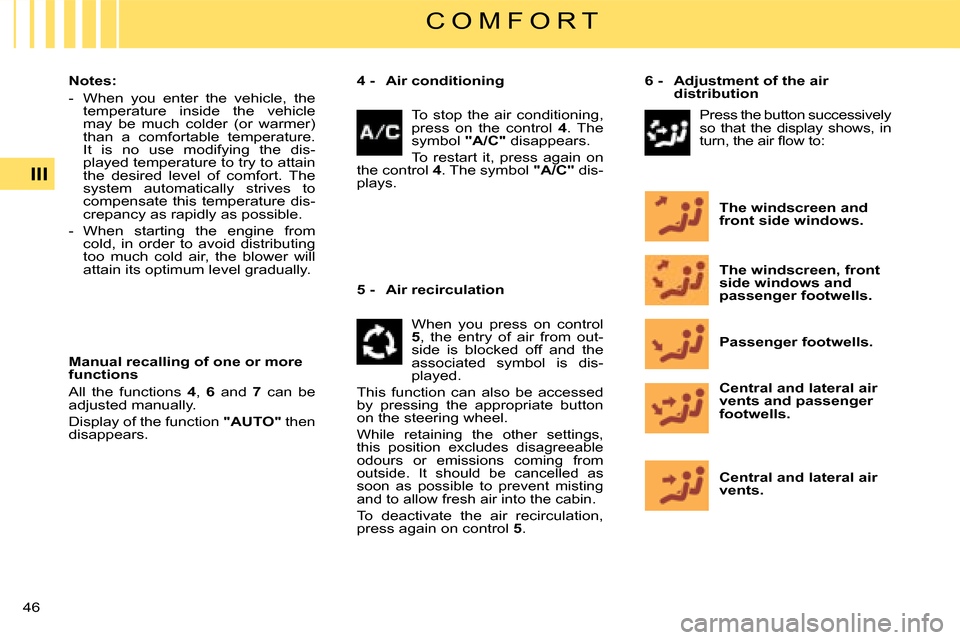

Notes:
- When you enter the vehicle, the temperature inside the vehicle may be much colder (or warmer) than a comfortable temperature. It is no use modifying the dis-played temperature to try to attain the desired level of comfort. The system automatically strives to compensate this temperature dis-crepancy as rapidly as possible.
- When starting the engine from cold, in order to avoid distributing too much cold air, the blower will attain its optimum level gradually.
M a n u a l r e c a l l i n g o f o n e o r m o r e f u n c t i o n s
All the functions 4, 6 and 7 can be adjusted manually.
Display of the function "AUTO" then disappears.
C e n t r a l a n d l a t e r a l a i r vents.
C e n t r a l a n d l a t e r a l a i r v e n t s a n d p a s s e n g e r f o o t w e l l s .
P a s s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n , f r o n t s i d e w i n d o w s a n d p a s s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n a n d f r o n t s i d e w i n d o w s .
4 - A i r c o n d i t i o n i n g 6 - A d j u s t m e n t o f t h e a i r d i s t r i b u t i o n
5 - Air recirculation
To stop the air conditioning, press on the control 4. The symbol " A / C " disappears.
To restart it, press again on the control 4. The symbol " A / C " dis-plays.
When you press on control 5, the entry of air from out-side is blocked off and the associated symbol is dis-played.
This function can also be accessed by pressing the appropriate button on the steering wheel.
While retaining the other settings, this position excludes disagreeable odours or emissions coming from outside. It should be cancelled as soon as possible to prevent misting and to allow fresh air into the cabin.
To deactivate the air recirculation, press again on control 5.
Press the button successively so that the display shows, in t u r n , t h e a i r fl o w t o :
Page 46 of 257
47
III
C O M F O R T

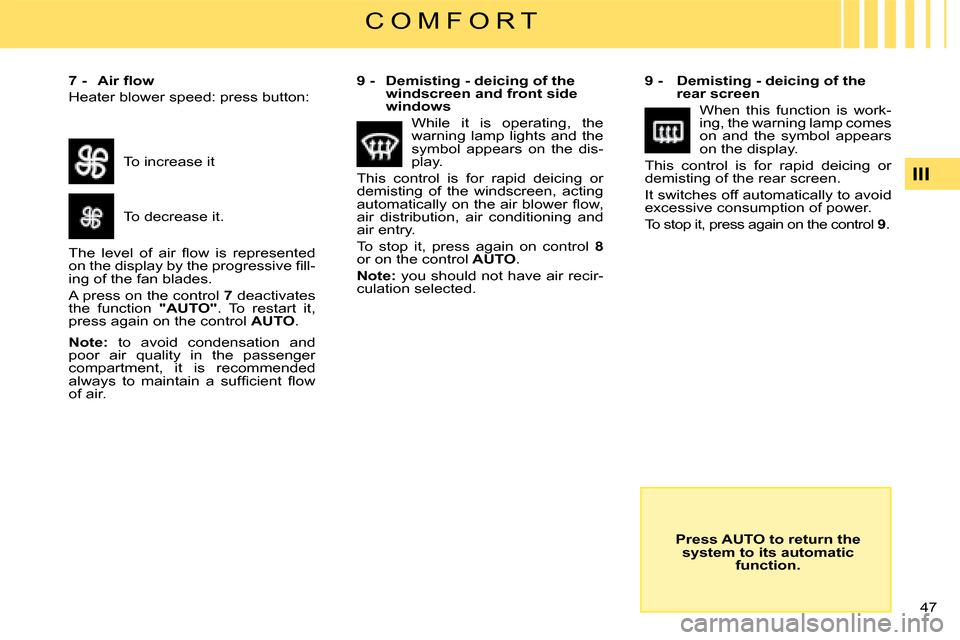

7 - A i r fl o w
Heater blower speed: press button:
9 - D e m i s t i n g - d e i c i n g o f t h e rear screen
When this function is work-ing, the warning lamp comes on and the symbol appears on the display.
This control is for rapid deicing or demisting of the rear screen.
It switches off automatically to avoid excessive consumption of power.
To stop it, press again on the control 9.
P r e s s A U T O t o r e t u r n t h e s y s t e m t o i t s a u t o m a t i c f u n c t i o n .
To increase it
To decrease it.
T h e l e v e l o f a i r fl o w i s r e p r e s e n t e d o n t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l -ing of the fan blades.
A press on the control 7 deactivates the function "AUTO". To restart it, press again on the control AUTO.
Note: to avoid condensation and poor air quality in the passenger compartment, it is recommended a l w a y s t o m a i n t a i n a s u f fi c i e n t fl o w of air.
9 - D e m i s t i n g - d e i c i n g o f t h e w i n d s c r e e n a n d f r o n t s i d e w i n d o w s
While it is operating, the warning lamp lights and the symbol appears on the dis-play.
This control is for rapid deicing or demisting of the windscreen, acting a u t o m a t i c a l l y o n t h e a i r b l o w e r fl o w , air distribution, air conditioning and air entry.
To stop it, press again on control 8or on the control AUTO.
Note: you should not have air recir-culation selected.
Page 47 of 257
48 III
C O M F O R T

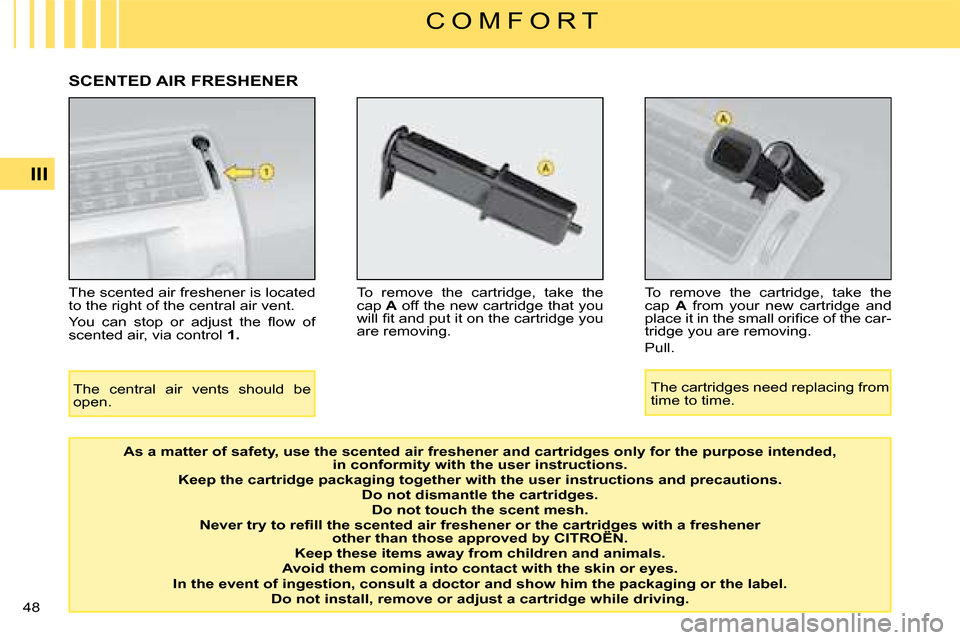

The scented air freshener is located to the right of the central air vent.
Y o u c a n s t o p o r a d j u s t t h e fl o w o f scented air, via control 1.
To remove the cartridge, take the cap A off the new cartridge that you w i l l fi t a n d p u t i t o n t h e c a r t r i d g e y o u are removing.
To remove the cartridge, take the cap A from your new cartridge and p l a c e i t i n t h e s m a l l o r i fi c e o f t h e c a r -tridge you are removing.
Pull.
A s a m a t t e r o f s a f e t y , u s e t h e s c e n t e d a i r f r e s h e n e r a n d c a
r t r i d g e s o n l y f o r t h e p u r p o s e i n t e n d e d , i n c o n f o r m i t y w i t h t h e u s e r i n s t r u c t i o n s . K e e p t h e c a r t r i d g e p a c k a g i n g t o g e t h e r w i t h t h e u s e r i n s t r u c t i o n s a n d p r e c a u t i o n s . D o n o t d i s m a n t l e t h e c a r t r i d g e s . D o n o t t o u c h t h e s c e n t m e s h . N e v e r t r y t o r e fi l l t h e s c e n t e d a i r f r e s h e n e r o r t h e c a r t r i d g e s w i t h a f r e s h e n e r o t h e r t h a n t h o s e a p p r o v e d b y C I T R O Ë N . N e v e r t r y t o r e fi l l t h e s c e n t e d a i r f r e s h e n e r o r t h e c a r t r i d g e s w i t h a f r e s h e n e r N e v e r t r y t o r e fi l l t h e s c e n t e d a i r f r e s h e n e r o r t h e c a r t r i d g e s w i t h a f r e s h e n e r
K e e p t h e s e i t e m s a w a y f r o m c h i l d r e n a n d a n i m a l s . A v o i d t h e m c o m i n g i n t o c o n t a c t w i t h t h e s k i n o r e y e s . I n t h e e v e n t o f i n g e s t i o n , c o n s u l t a d o c t o r a n d s h o w h i m t h e p a c k a g i n g o r t h e l a b e l . D o n o t i n s t a l l , r e m o v e o r a d j u s t a c a r t r i d g e w h i l e d r i v i n g .
SCENTED AIR FRESHENER
The central air vents should be open.The cartridges need replacing from time to time.
Page 48 of 257
49
III
C O M F O R T

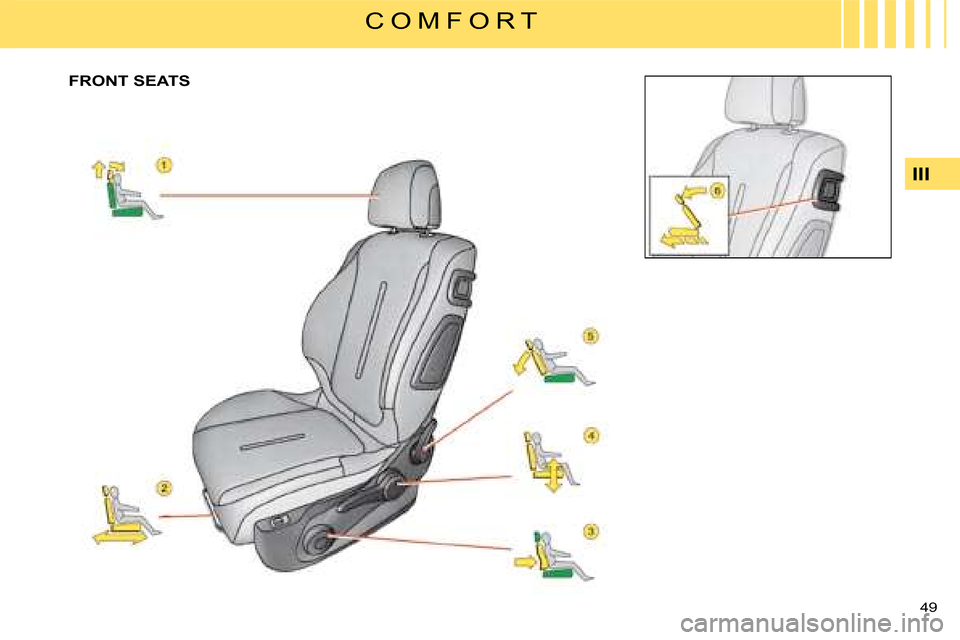

FRONT SEATS
Page 49 of 257
50 III
C O M F O R T
To raise, pull upwards. To lower, press on the unlocking button and on the head restraint. The adjust-ment is correct when the upper edge of the restraint is level with the top of your head. The head restraint is also angle-adjustable.
To remove, press on the unlocking button and pull upwards.
Note: Never drive the vehicle with- o u t t h e h e a d r e s t r a i n t s fi t t e d .
L u m b a r s u p p o r t
D r i v e r ’ s s e a t h e i g h t
B a c k r e s t a n g l e
A c c e s s t o t h e r e a r seats
R e a c h

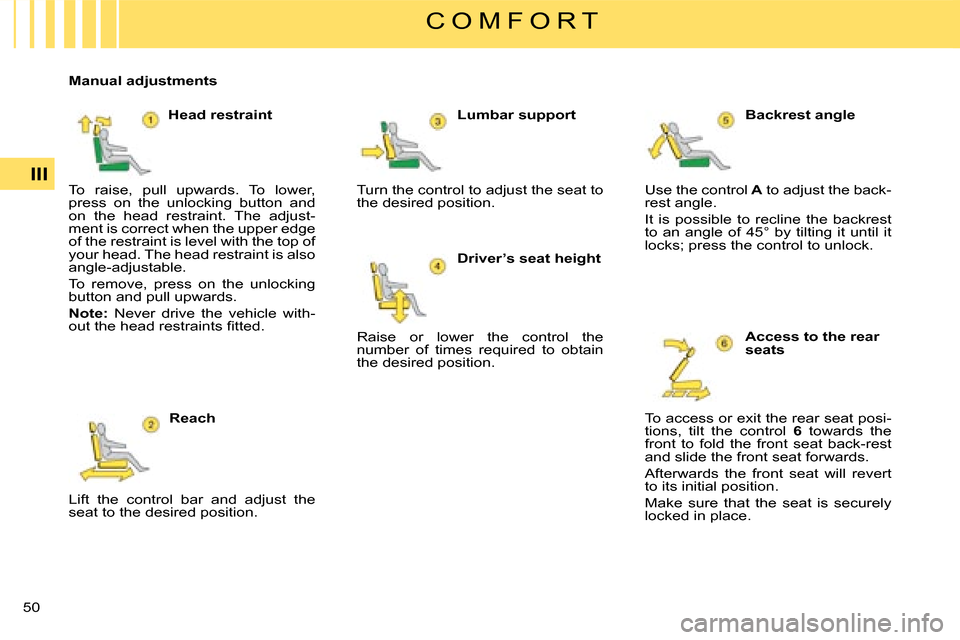

M a n u a l a d j u s t m e n t s
H e a d r e s t r a i n t
Lift the control bar and adjust the seat to the desired position.
Turn the control to adjust the seat to the desired position.
Raise or lower the control the number of times required to obtain the desired position.
Use the control A to adjust the back-rest angle.
It is possible to recline the backrest to an angle of 45° by tilting it until it locks; press the control to unlock.
To access or exit the rear seat posi-tions, tilt the control 6 towards the front to fold the front seat back-rest and slide the front seat forwards.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is securely locked in place.
Page 50 of 257
51
III
C O M F O R T
H e a t e d s e a t s
The front seats can be heated inde-pendently. Use the controls placed on the sides of the seats, turning them to select one of three heating levels:
0: Off.
1: Gentle heat.
2: Medium heat.
3: Strong heat.
The seat temperature will adjust accordingly.
Note: The heated seats will only operate when the engine is running.
Note: The seats can still be moved on a temporary basis:
- when opening one of the front doors.
- after switching off the ignition.

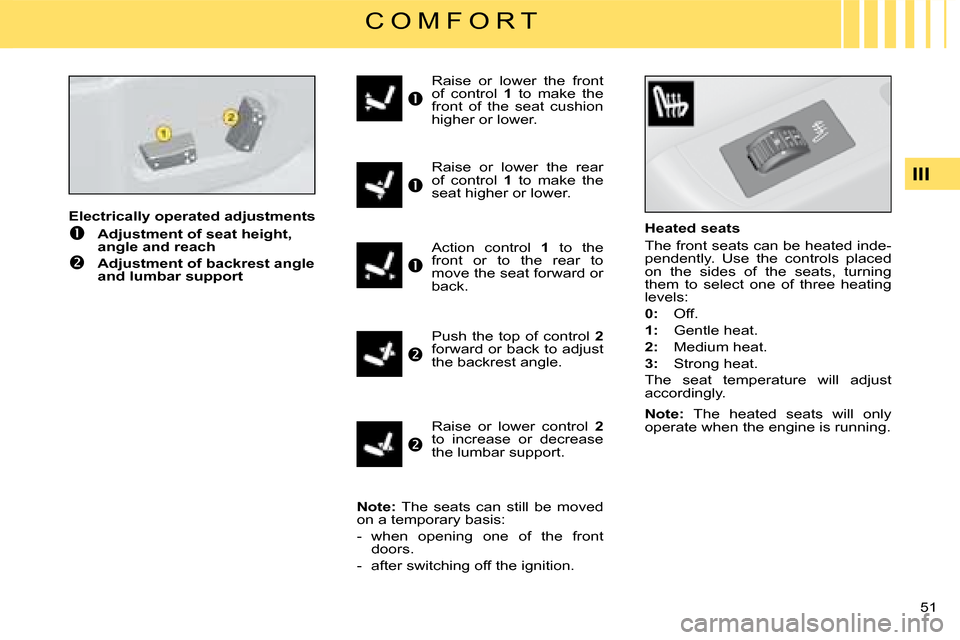

E l e c t r i c a l l y o p e r a t e d a d j u s t m e n t s
A d j u s t m e n t o f s e a t h e i g h t , a n g l e a n d r e a c h
A d j u s t m e n t o f b a c k r e s t a n g l e a n d l u m b a r s u p p o r t
Raise or lower the front of control 1 to make the front of the seat cushion higher or lower.
Raise or lower the rear of control 1 to make the seat higher or lower.
Action control 1 to the front or to the rear to move the seat forward or back.
Push the top of control 2forward or back to adjust the backrest angle.
Raise or lower control 2to increase or decrease the lumbar support.
