70
V I S I B I L I T Y
LIGHTING CONTROLS
System for selection and control of
the various front and rear lamps pro-
viding the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped headlamps to see with-out dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for im- proved visibility when cornering.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving con-
ditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- daytime running lamps to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lamps off,
automatic switching on of
the lamps,
sidelamps only,
dipped headlamps or
main beam headlamps.
B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
( " h e a d l a m p fl a s h " ) b y m a i n t a i n i n g a
pull on the stalk.
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
c o n fi r m s t h e s e l e c t i v e s w i t c h i n g o n
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring
A and the stalk B .
A. Main lighting mode selection ring,
with:
Page 61 of 279
71
V I S I B I L I T Y
V
C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
- 1 st turn forwards: rear foglamp on.
-
1 st turn rearwards: rear foglamp off.
- 1 st turn forwards: front foglamps on.
-
2 nd turn forwards: rear foglamps on.
-
1 st turn rearwards: rear foglamps off.
-
2 nd turn rearwards: front foglamps off.
Model with rear foglamp only Model with front and rear
foglamps In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They
should only be used in fog or snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Lighting on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lamps, with
the ignition off and in manual light-
ing mode.
In this case, switching off the lamps
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 69 of 279
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 70 of 279
77
V I S I B I L I T Y
V
Special position of the
windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy
lamp
2. Map reading
lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 99 of 279
96
VIII
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning
lamp comes on in the
instrument panel, ac-
companied by an audible
signal and a message on
the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
markings" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 101 of 279
98
VIII
S A F E T Y
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation (also known
as Traction Control) optimises
traction to prevent skidding of the
wheels, by acting on the brakes of
the driving wheels and on the en-
gine.
The electronic stability programme
acts on the brake of one or more
wheels and on the engine to keep
t h e v e h i c l e o n t h e t r a j e c t o r y r e q u i r e d
by the driver.
Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the event
o f a g r i p o r t r a j e c t o r y p r o b l e m . T h i s i s i n d i c a t e d b y fl a s h i n g
of this warning lamp on the
instrument panel. Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to deactivate the ASR and
ESP systems, so that the wheels
can move freely and regain grip.
Press the "ESP OFF" button, lo-
cated in the centre of the dash-
board. Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" but-
ton again to reactivate them
manually.
If this warning lamp comes
on in the instrument panel
and the indicator lamp on the
button comes on, this indi-
cates that the ASR and ESP
systems are deactivated. Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
ceptional safety in normal driving,
but this should not encourage the
d r i v e r t o t a k e e x t r a r i s k s o r d r i v e a t
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Page 108 of 279
104
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
t h e r i s k o f i n j u r y t o t h e c h e s t .
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact
applied to all or part of the side
impact zone
B , perpendicular to the
longitudinal centreline of the vehicle
on a horizontal plane and directed
from the outside towards the inside
of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p -
tion of the rear centre passenger) in
the event of a serious side impact in
o r d e r t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as the
corresponding side airbag in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the
vehicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
Page 113 of 279
108
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected. Moving off
When the ignition is on, light-
ing of the service warning lamp,
accompanied by an audible sig-
nal and the message "Gearbox
faulty" indicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start.
To start the engine, the selector
must be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to select reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Reverse gear
Page 121 of 279
116
IX
D R I V I N G
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched on
manually: a speed of at least 30 km/h
(around 20 mph) must be pro-
grammed.
The speed limiter cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver.
Steering wheel controls
The speed limiter controls are lo-
cated on the left-hand side of the
steering wheel.

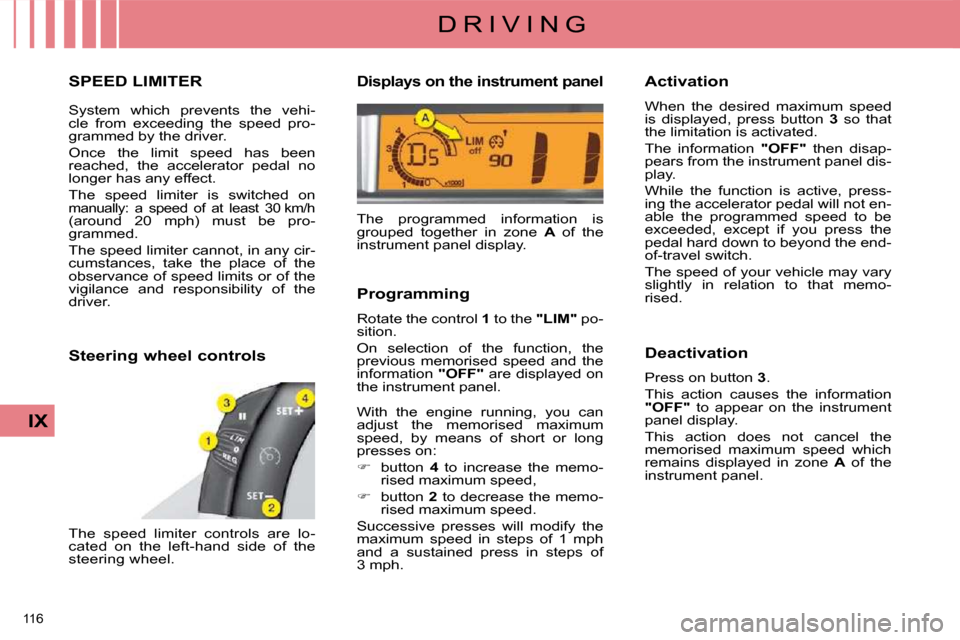

Displays on the instrument panel
The programmed information is
grouped together in zone A of the
instrument panel display.
Programming
Rotate the control 1 to the "LIM" po-
sition.
On selection of the function, the
previous memorised speed and the
information "OFF" are displayed on
the instrument panel.
With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph. Activation
When the desired maximum speed
is displayed, press button
3 so that
the limitation is activated.
The information "OFF" then disap-
pears from the instrument panel dis-
play.
While the function is active, press-
ing the accelerator pedal will not en-
able the programmed speed to be
exceeded, except if you press the
pedal hard down to beyond the end-
of-travel switch.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
Deactivation
Press on button 3 .
This action causes the information
"OFF" to appear on the instrument
panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Page 123 of 279
118
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or
automatic gearbox,
- position A on an electronic
gearbox or D on an automatic
gearbox.
The cruise control cannot, in any
circumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver. Steering wheel controls

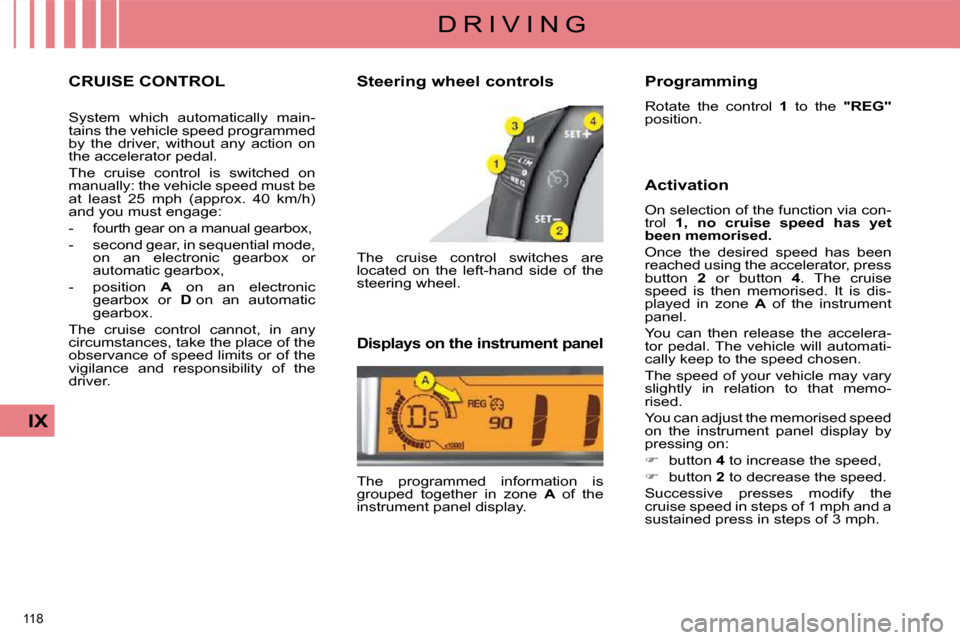

The cruise control switches are
located on the left-hand side of the
steering wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone
A of the
instrument panel display. Programming
Rotate the control
1 to the "REG"
position.
Activation
On selection of the function via con-
trol 1, no cruise speed has yet
been memorised.
Once the desired speed has been
reached using the accelerator, press
button 2 or button 4 . The cruise
speed is then memorised. It is dis-
played in zone A of the instrument
panel.
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
