Page 15 of 279
30
I
I N S T R U M E N T S a n d C O N T R O L S
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.
With the ignition on, press the
button until zeros appear. Dashboard lighting rheostat
Activation
Turn control A or press control B
to adjust the brightness of the
dashboard lighting,
With control B , press until the
brightness is at maximum, release,
press until you reach minimum.
Deactivation
When the lights are off, or in day mode
i n t h e c a s e o f v e h i c l e s fi t t e d w i t h d a y -
time running lights, the button has no
effect.
System permitting manual adjust-
ment of the brightness of the dash-
board to suit the level of ambient
light.
The rheostat is active if the sidelamps
are on and applies to:
- the instrument panel,
- the display screens.
Page 34 of 279
47
III
C O M F O R T
7 - A i r f l o w
Heater blower speed: press button: 9 - Demisting - defrosting of
t h e r e a r s c r e e n
To increase it .
To decrease it.
T h e l e v e l o f a i r fl o w i s r e p r e s e n t e d
o n t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l -
ing of the fan blades.
A press on the control 7 deactivates
the "AUTO" function. To restart it,
press again on the control AUTO .
To avoid condensation and poor air
quality in the passenger compart-
ment, it is recommended always to
m a i n t a i n a s u f fi c i e n t fl o w o f a i r . 8 - Demisting - defrosting of
t h e w i n d s c r e e n a n d f r o n t
s i d e w i n d o w s
While it is operating, the
warning lamp lights and the
symbol appears on the mul-
tifunction screen.
This control is for rapid demisting or
defrosting of the windscreen, acting
a u t o m a t i c a l l y o n t h e a i r b l o w e r fl o w ,
air distribution, air conditioning and
air entry.
To stop it, press again on control 8
or on the control AUTO .
You should not have air recirculation
selected. When this function is work-
ing, the warning lamp comes
on and the symbol appears
on the multifunction screen.
This control is for rapid demisting or
defrosting of the rear screen.
It switches off automatically to avoid
excessive consumption of power.
To stop it, press again on the control 9 .
P r e s s A U T O t o r e t u r n t h e s y s -
t e m t o a u t o m a t i c o p e r a t i o n .
Page 62 of 279
72
V I S I B I L I T Y
V
* According to country.
Daytime running lamps *
On vehicles which are equipped with
daytime running lamps, the dipped
headlamps come on when the vehi-
cle is started.
This indicator lamp comes on on the
instrument panel screen.
The instruments and controls (instru-
ment panel, multifunction screen,
a i r c o n d i t i o n i n g c o n t r o l p a n e l . . . ) a r e
only lit on switching to the automatic
lighting mode or when the lights are
switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access -
§ R e m o t e c o n t r o l k e y " ) .
Page 63 of 279
73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is ad-
justed automatically.
Page 64 of 279
72
V I S I B I L I T Y
V
* According to country.
Daytime running lamps *
On vehicles which are equipped with
daytime running lamps, the dipped
headlamps come on when the vehi-
cle is started.
This indicator lamp comes on on the
instrument panel screen.
The instruments and controls (instru-
ment panel, multifunction screen,
a i r c o n d i t i o n i n g c o n t r o l p a n e l . . . ) a r e
only lit on switching to the automatic
lighting mode or when the lights are
switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access -
§ R e m o t e c o n t r o l k e y " ) .
Page 65 of 279
73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of
the brightness sensor, the lighting
comes on, a message appears on
the multifunction screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is ad-
justed automatically.
Page 66 of 279
74
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction occurs,
this warning lamp is
displayed on the in-
strument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
If a malfunction occurs, do not
touch the xenon bulbs. Contact a
CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated
if the lighting stalk is in the "AUTO"
or "Dipped/main beam head-
lamps" position. In position "0" , the
function is not activated.
Page 115 of 279
110
IX
D R I V I N G

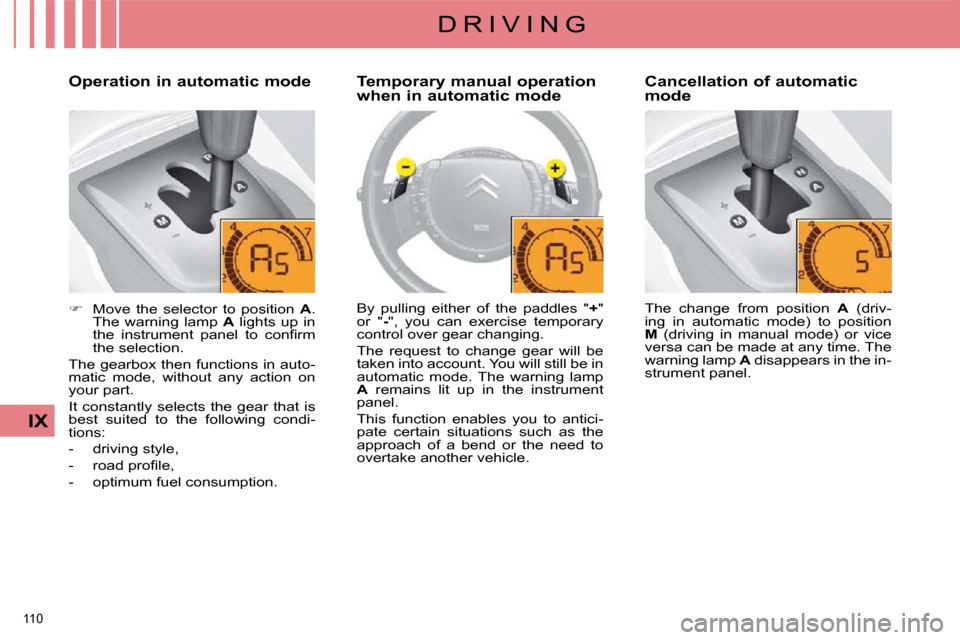

Temporary manual operation
when in automatic mode
By pulling either of the paddles " + "
or " - ", you can exercise temporary
control over gear changing.
The request to change gear will be
taken into account. You will still be in
automatic mode. The warning lamp
A remains lit up in the instrument
panel.
This function enables you to antici-
pate certain situations such as the
approach of a bend or the need to
overtake another vehicle.
Move the selector to position A .
The warning lamp A lights up in
t h e i n s t r u m e n t p a n e l t o c o n fi r m
the selection.
The gearbox then functions in auto-
matic mode, without any action on
your part.
It constantly selects the gear that is
best suited to the following condi-
tions:
- driving style,
- r o a d p r o fi l e ,
- optimum fuel consumption.
Operation in automatic mode
Cancellation of automatic
mode
The change from position A (driv-
ing in automatic mode) to position
M (driving in manual mode) or vice
versa can be made at any time. The
warning lamp A disappears in the in-
strument panel.
