Page 6 of 279
27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver's seat belt not fastened:
- The warning lamp comes on if the driver's seat belt is not
fastened when the ignition is
switched on and between 0 and
20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal.
It then remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between
0 and 20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 11 of 279
27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver's seat belt not fastened:
- The warning lamp comes on if the driver's seat belt is not
fastened when the ignition is
switched on and between 0 and
20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal.
It then remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between
0 and 20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 12 of 279
27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver's seat belt not fastened:
- The warning lamp comes on if the driver's seat belt is not
fastened when the ignition is
switched on and between 0 and
20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal.
It then remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between
0 and 20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 51 of 279
61
IV
A C C E S S
ALARM
System which protects and provides
a deterrent against the theft of your
vehicle. It provides two types of pro-
tection, exterior and interior, as well
as an anti-tamper function.
Exterior perimiter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries
to enter the vehicle by forcing a door,
the boot or the bonnet.
Interior volumetric protection
The system detects any variation in
the volume in the passenger com-
partment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the ve-
hicle or a window partially open,
deactivate the interior volumetric
protection.
Anti-tamper function
The system detects the putting out
of service of its components.
The alarm is triggered if anyone
tries to put the wires of the siren, the
central control or the battery out of
service.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. Locking the vehicle with full
alarm
Activation
Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle us-
ing the locking button on the re-
mote control.
The alarm is activated; the indicator
light on button A fl a s h e s o n c e p e r
second.
Deactivation
Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indica-
tor light on button A switches off. Locking the vehicle with
exterior protection alarm only
Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press but-
ton A until the indicator lamp is lit
continuously.
Get out of the vehicle.
Lock or deadlock the vehicle us-
ing the locking button on the re-
mote control.
The exterior protection alarm alone
remains activated; the indicator
lamp on button A fl a s h e s o n c e p e r
second.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the
unlocking button on the remote
control.
Relock the vehicle using the re-
mote control.
The alarm is activated again with
both types of protection; the indica-
tor lamp on button A switches off.
Page 128 of 279
124
X
C H E C K S

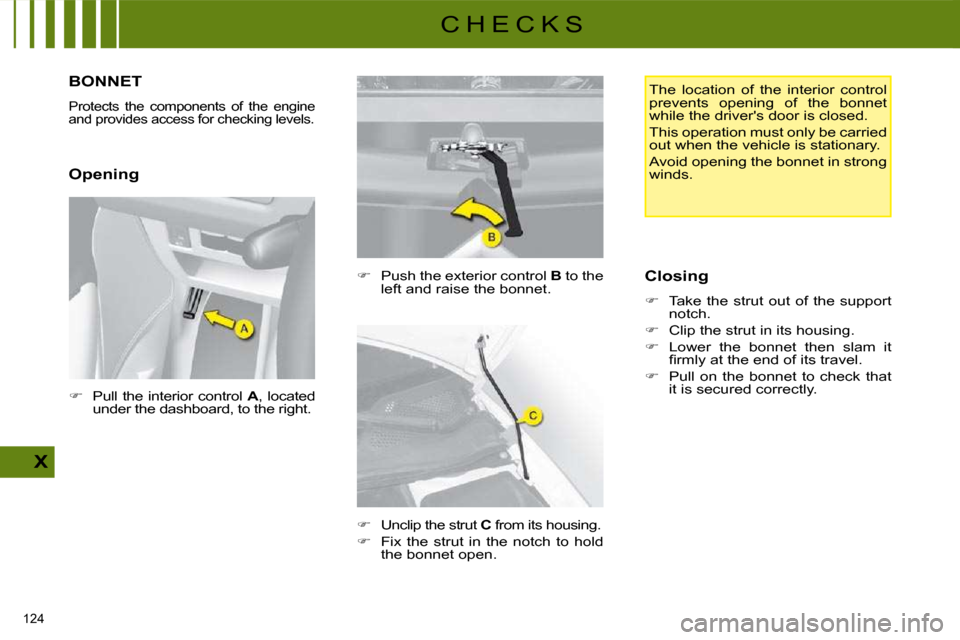

BONNET
Protects the components of the engine
and provides access for checking levels.
Opening
Push the exterior control B to the
left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in the notch to hold
the bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet then slam it
fi r m l y a t t h e e n d o f i t s t r a v e l .
Pull on the bonnet to check that
it is secured correctly.
The location of the interior control
prevents opening of the bonnet
while the driver's door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
Pull the interior control A , located
under the dashboard, to the right.
Page 159 of 279
153
XI
P R A C T I C A L I N F O R M A T I O N
BATTERY
P r o c e d u r e f o r c h a r g i n g y o u r b a t t e r y
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n -
g i n e u s i n g a n o t h e r b a t t e r y .
Access to the battery
T h e b a t t e r y i s l o c a t e d u n d e r t h e b o n n e t .
To gain access to it:
open the bonnet using the inte-
rior lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover to gain
access to the two terminals,
unclip the fuse box to remove
t h e b a t t e r y , i f n e c e s s a r y . Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e
v e h i c l e .
Follow the instructions for use
p r o v i d e d b y t h e m a n u f a c t u r e r o f
t h e c h a r g e r .
Reconnect starting with the neg-
a t i v e t e r m i n a l ( - ) .
Check that the terminals and
c o n n e c t o r s a r e c l e a n . I f t h e y a r e
covered with sulphate (whitish or
greenish deposit), remove them
a n d c l e a n t h e m .
Starting using another
battery
The batteries contain harm-
ful substances such as sul-
p h u r i c a c i d a n d l e a d . T h e y
must be disposed of in accordance
with regulations and must not, in
a n y c i r c u m s t a n c e s , b e d i s c a r d e d
w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
It is advisable to disconnect the
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h .

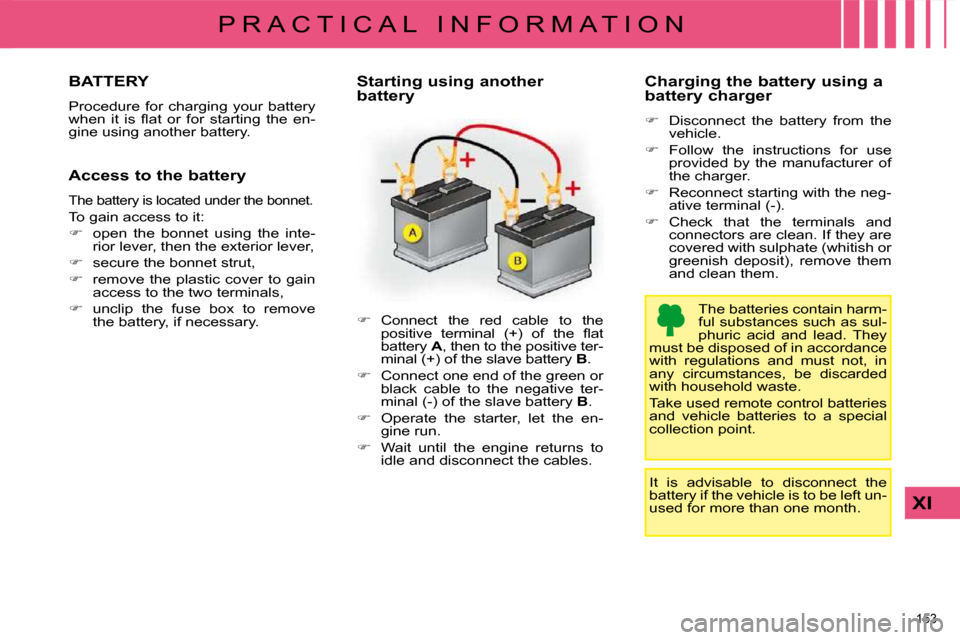

Connect the red cable to the
p o s i t i v e t e r m i n a l ( + ) o f t h e fl a t
b a t t e r y A , then to the positive ter-
m i n a l ( + ) o f t h e s l a v e b a t t e r y B .
Connect one end of the green or
black cable to the negative ter-
m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Operate the starter, let the en-
g i n e r u n .
Wait until the engine returns to
i d l e a n d d i s c o n n e c t t h e c a b l e s .
