Citroen C4 DAG 2010 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010, Model line: C4 DAG, Model: Citroen C4 DAG 2010 2.GPages: 284, PDF Size: 12.69 MB
Page 151 of 284
128
X
C H E C K S * A c c o r d i n g t o e n g i n e .
DIESEL ENGINES
T h e c o v e r s a n d c a p s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r
priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp
wash reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. B l e e d s c r e w * . As the diesel fuel system is
pressurised, any work on
this system is prohibited.
Page 152 of 284
129
X
C H E C K S
CHECKING LEVELS
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
CITROËN dealer.
Take care when working under the
bonnet, as some parts of the engine
can be extremely hot (risk of burns).
Oil level
Oil change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation. O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.
Brake fluid level
Fluid change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation.
T h i s fl u i d m u s t b e c h a n g e d r e g u -
larly. Fluid which has been used for
too long may cause a loss of braking
e f fi c i e n c y .
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations
a n d f u l fi l t h e D O T 4 s t a n d a r d s .
Coolant level
Coolant change
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the
manufacturer's recommendations.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
15 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
Check this level also between each
scheduled service and before long
journeys. T h e b r a k e fl u i d l e v e l s h o u l d
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm,
the temperature of the coolant is
regulated by the fan. This can oper-
ate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h
a p a r t i c l e e m i s s i o n fi l t e r , t h e f a n
may operate after the vehicle has
b e e n s w i t c h e d o f f , e v e n i f t h e e n -
gine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding, un-
screw the cap by two turns to al-
low the pressure to drop. When the
pressure has dropped, remove the
cap and top up the level.
In order to maintain the re-
liability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.
Page 153 of 284
130
C H E C K S
Screenwash and headlamp
wash fluid
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with plain water.
Reservoir capacities:
- screenwash: approximately 3 litres,
- screenwash and headlamp wash: approximately 6 litres. Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by
lighting of the service warning lamp,
accompanied by an audible warning
and a message on the multifunction
screen.
Topping up
This additive must be topped up by
a CITROËN dealer without delay.
Used products
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e
skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
Do not discard used oil or
fl u i d s i n t o s e w e r s o r o n t o
the ground.
Take used oil to a CITROËN
dealer (France) or an authorised
waste disposal site.
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multifunction
screen.
Top up the level when you next stop
the vehicle.
Page 154 of 284
131
X
C H E C K S
CHECKS
Unless otherwise indicated, check
these components in accordance
with the Warranty and Maintenance
Record and according to your en-
gine.
Otherwise, have them checked by a
CITROËN dealer.
Battery The battery does not re-
quire any maintenance.
However, check that the
terminals are clean and
correctly tightened, particu-
larly in summer and winter.
When carrying out work on the bat-
tery, refer to the "Practical infor-
mation" section for details of the
precautions to be taken before dis-
connecting the battery and following
its reconnection.
Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for
details of the replacement
intervals for these compo-
nents.
Depending on the environment (e.g.
dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(refer to the "Engines" section).
A clogged passenger compartment
fi l t e r m a y h a v e a n a d v e r s e e f f e c t o n
the performance of the air condition-
ing system and generate undesirable
odours.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h
time the engine oil is
changed. Particle filter system (Diesel)
Complementary to the catalytic
c o n v e r t e r , t h i s fi l t e r m a k e s a n a c -
tive contribution to the preservation
of air quality by the retaining of the
unburnt pollutant particles. Black
exhaust fumes are thus no longer
emitted.
After prolonged idling or driving at very
low speeds, you may occasionally no-
tice water vapour being emitted from
the exhaust when accelerating. This is
of no consequence to the running of
the vehicle or to the environment.
If there is risk of clogging, a message
appears on the multifunction screen,
accompanied by an audible signal
and lighting of the service warning
lamp.
This alert tells you that the particle
fi l t e r i s s t a r t i n g t o fi l l u p ( i n c o n d i t i o n s
of urban driving of exceptionally long
d u r a t i o n : l o w s p e e d s , t r a f fi c j a m s
etc.)
T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d
to drive as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d
of 40 mph (around 60 km/h) or
m o r e f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the alert message disappears).
If this alert persists, consult a
CITROËN dealer.
Refer to the Warranty and
Maintenance Record for details of
the replacement interval for this
component.
Page 155 of 284
132
X
C H E C K S
Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
6 - s p e e d e l e c t r o n i c g e a r b o x
system The gearbox does not re-
quire any maintenance (no
oil change).
Automatic gearbox The gearbox does not re-
quire any maintenance (no
oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake If a loss of effectiveness
of this system is noticed,
the parking brake must be
checked, even between
two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent qual-
i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this compo-
nent.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this com-
ponent.
Page 156 of 284
133
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A WHEEL
Access to the tools
The tools are located in the spare
w h e e l , u n d e r t h e b o o t fl o o r .
To gain access to them:
open the boot,
l i f t t h e fl o o r ,
unclip and remove the box con-
t a i n i n g t h e t o o l s . List of tools
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
v e h i c l e . D o n o t u s e t h e m f o r o t h e r
p u r p o s e s .
1. Wheelbrace *
2. Jack with handle *
3. Aluminium wheel central embel-
lisher removal tool *
4. S o c k e t f o r s e c u r i t y b o l t s ( l o c a t e d
in the glove box)
F i t s t h e w h e e l b r a c e .
5. R e m o v a b l e t o w i n g e y e Access to the spare wheel
The spare wheel is installed in the
b o o t , u n d e r t h e fl o o r .

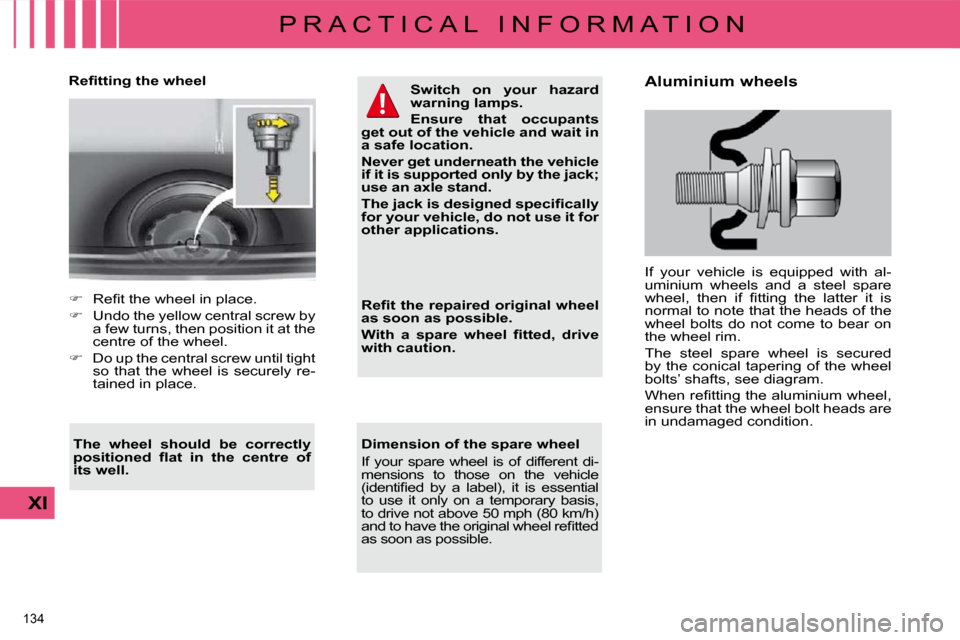

Removing the wheel
U n d o t h e y e l l o w c e n t r a l s c r e w b y
a q u a r t e r t u r n .
Raise the spare wheel towards
y o u r e a r w a r d s .
Remove the wheel from the boot
s p a c e .
* O n l y w h e r e t h e v e h i c l e h a s a s p a r e
w h e e l .
Page 157 of 284
133
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A WHEEL
Access to the tools
The tools are located in the spare
w h e e l , u n d e r t h e b o o t fl o o r .
To gain access to them:
open the boot,
l i f t t h e fl o o r ,
unclip and remove the box con-
t a i n i n g t h e t o o l s . List of tools
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
v e h i c l e . D o n o t u s e t h e m f o r o t h e r
p u r p o s e s .
1. Wheelbrace *
2. Jack with handle *
3. Aluminium wheel central embel-
lisher removal tool *
4. S o c k e t f o r s e c u r i t y b o l t s ( l o c a t e d
in the glove box)
F i t s t h e w h e e l b r a c e .
5. R e m o v a b l e t o w i n g e y e Access to the spare wheel
The spare wheel is installed in the
b o o t , u n d e r t h e fl o o r .
Removing the wheel
U n d o t h e y e l l o w c e n t r a l s c r e w b y
a q u a r t e r t u r n .
Raise the spare wheel towards
y o u r e a r w a r d s .
Remove the wheel from the boot
s p a c e .
* O n l y w h e r e t h e v e h i c l e h a s a s p a r e
w h e e l .
Page 158 of 284
134
XI
P R A C T I C A L I N F O R M A T I O N
R e fi t t i n g t h e w h e e l
Dimension of the spare wheel
I f y o u r s p a r e w h e e l i s o f d i f f e r e n t d i -
mensions to those on the vehicle
( i d e n t i fi e d b y a l a b e l ) , i t i s e s s e n t i a l
t o u s e i t o n l y o n a t e m p o r a r y b a s i s ,
t o d r i v e n o t a b o v e 5 0 m p h ( 8 0 k m / h )
a n d t o h a v e t h e o r i g i n a l w h e e l r e fi t t e d
a s s o o n a s p o s s i b l e .
Switch on your hazard
warning lamps.
Ensure
that
occupants
get out of the vehicle and wait in
a safe location.
Never get underneath the vehicle
if it is supported only by the jack;
use an axle stand.
T h e j a c k i s d e s i g n e d s p e c i fi c a l l y
for your vehicle, do not use it for
other applications.
The wheel should be correctly
p o s i t i o n e d fl a t i n t h e c e n t r e o f
its well. Aluminium wheels
I f y o u r v e h i c l e i s e q u i p p e d w i t h a l -
uminium wheels and a steel spare
w h e e l , t h e n i f fi t t i n g t h e l a t t e r i t i s
normal to note that the heads of the
wheel bolts do not come to bear on
t h e w h e e l r i m .
The steel spare wheel is secured
b y t h e c o n i c a l t a p e r i n g o f t h e w h e e l
b o l t s ’ s h a f t s , s e e d i a g r a m .
W h e n r e fi t t i n g t h e a l u m i n i u m w h e e l ,
ensure that the wheel bolt heads are
i n u n d a m a g e d c o n d i t i o n .
R e fi t t h e w h e e l i n p l a c e .
U n d o t h e y e l l o w c e n t r a l s c r e w b y
a few turns, then position it at the
c e n t r e o f t h e w h e e l .
D o u p t h e c e n t r a l s c r e w u n t i l t i g h t
s o t h a t t h e w h e e l i s s e c u r e l y r e -
t a i n e d i n p l a c e .
R e fi t t h e r e p a i r e d o r i g i n a l w h e e l
as soon as possible.
W i t h a s p a r e w h e e l fi t t e d , d r i v e
with caution.
Page 159 of 284
135
XI
P R A C T I C A L I N F O R M A T I O N
Removing a wheel
List of operations
P a r k t h e v e h i c l e o n s t a b l e , fi r m
g r o u n d . A p p l y t h e p a r k i n g b r a k e .
Switch off the ignition and en- g a g e fi r s t g e a r o r r e v e r s e g e a r ,
d e p e n d i n g o n t h e s l o p e ( f o r v e -
hicles with automatic gearbox,
s e l e c t p o s i t i o n P ) .
D e t a c h t h e e m b e l l i s h e r u s i n g t h e
wheelbrace 1 b y p u l l i n g c l o s e t o
t h e v a l v e .
For vehicles with aluminium wheels, slide the embellisher re-
moval tool 3 into the slot in the
c e n t r a l e m b e l l i s h e r a n d a p p l y
fi r m l e v e r a g e t o d e t a c h .
Slacken the wheel bolts using
the wheelbrace 1 .
F o r v e h i c l e s fi t t e d w i t h s e c u r i t y w h e e l b o l t s , s l a c k e n t h e s e c u r i t y
bolts using the socket 4 fi t t e d o n
the wheelbrace 1 .
Position the jack 2 under the
b o d y s h e l l , e x a c t l y a s i n t h e i l l u s -
tration at the mark A , closest to
t h e w h e e l t h a t i s t o b e r e p l a c e d .
Operate the jack 2 until its base
i s i n c o n t a c t w i t h t h e g r o u n d .
Make sure that the base of the
j a c k i s v e r t i c a l l y b e l o w t h e j a c k -
i n g p o i n t u s e d .
R a i s e t h e v e h i c l e .
Remove the bolts and disengage
t h e w h e e l . List of operations
P o s i t i o n t h e w h e e l o n t h e h u b .
D o u p t h e 3 b o l t s b y h a n d .
P o s i t i o n t h e 4 t h b o l t .
Pretighten the bolts using the
wheelbrace 1 . F o r v e h i c l e s fi t t e d
w i t h s e c u r i t y w h e e l b o l t s , p r e t i g h t e n
t h e s e c u r i t y b o l t u s i n g t h e s o c k e t 4
fi t t e d o n t h e w h e e l b r a c e 1 .
Retract the jack 2 a n d d i s e n g a g e i t .
Tighten the wheel bolts using the
wheelbrace 1 a n d t h e s e c u r i t y
bolts using the socket 4 .
Reposition the embellisher, com-
m e n c i n g b y p l a c i n g t h e s l o t a t
the valve, pressing it home with
t h e p a l m o f y o u r h a n d .
F o r v e h i c l e s fi t t e d w i t h a l u m i n i u m wheels, reclip the central embel-
l i s h e r i n p l a c e .
Stow the tools and the wheel in
t h e b o o t .
C h e c k t h e t y r e p r e s s u r e a n d
also have the wheel balancing
c h e c k e d .
Fitting a wheel
Page 160 of 284
136
XI
P R A C T I C A L I N F O R M A T I O N
TEMPORARY PUNCTURE REPAIR KIT Using the kit
Do not remove any foreign bodies
which have penetrated the tyre.
Repair procedure
Connect the compressor's elec-
tric plug to the vehicle's 12 V
s o c k e t .
A f fi x t h e s p e e d l i m i t a t i o n s t i c k e r
to the vehicle's steering wheel
t o r e m i n d y o u t h a t a w h e e l i s i n
t e m p o r a r y u s e .
Start the vehicle and leave the
e n g i n e r u n n i n g .
C o m p l e t e s y s t e m c o n s i s t i n g o f a
compressor and a sealant cartridge
which permits
temporary repair of
t h e t y r e s o t h a t y o u c a n d r i v e t o t h e
n e a r e s t g a r a g e .
It is designed to repair most punctures
w h i c h c o u l d a f f e c t t h e t y r e , l o c a t e d o n
t h e t y r e t r e a d o r s h o u l d e r .
Take care, this product
i s h a r m f u l ( e . g . e t h y l e n e -
g l y c o l , c o l o p h o n y . . . ) i f s w a l -
lowed and causes irritation
t o t h e e y e s . K e e p i t o u t o f r e a c h o f
c h i l d r e n .
Access to the kit
S w i t c h o f f t h e i g n i t i o n .
Turn the selector A to the
"SEALANT" position:
Check that the switch B
is in position "0" .
Unscrew the cap from the white
pipe C .
Connect the white pipe to the
v a l v e o f t h e t y r e t o b e r e p a i r e d .
