61
IV
A C C E S S

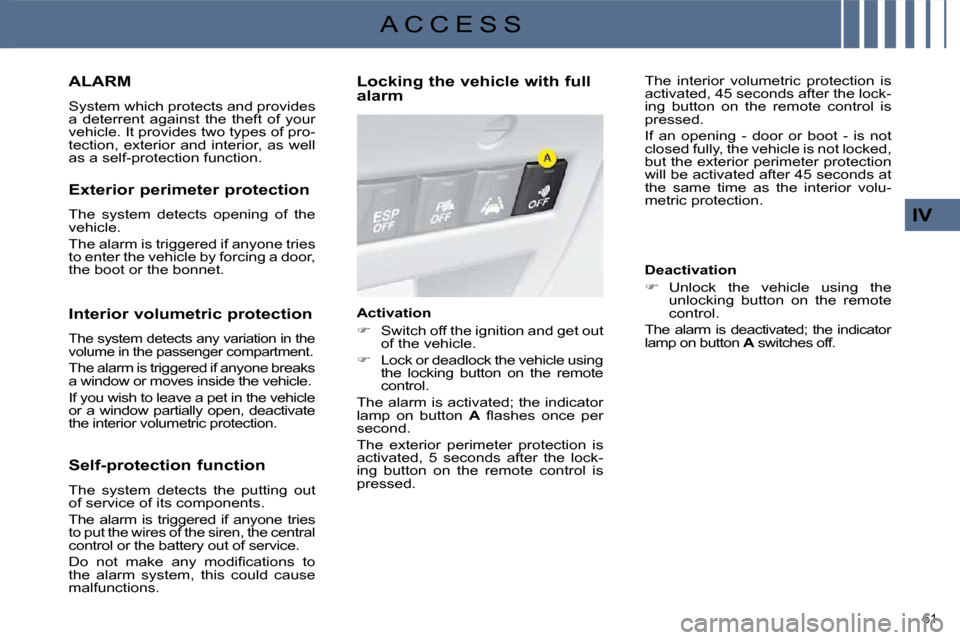

ALARM
System which protects and provides
a deterrent against the theft of your
vehicle. It provides two types of pro-
tection, exterior and interior, as well
as a self-protection function.
Exterior perimeter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries
to enter the vehicle by forcing a door,
the boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Self-protection function
The system detects the putting out
of service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. Locking the vehicle with full
alarm
Activation
Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator
lamp on button A fl a s h e s o n c e p e r
second.
The exterior perimeter protection is
activated, 5 seconds after the lock-
ing button on the remote control is
pressed. Deactivation
Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indicator
lamp on button A switches off.
The interior volumetric protection is
activated, 45 seconds after the lock-
ing button on the remote control is
pressed.
If an opening - door or boot - is not
closed fully, the vehicle is not locked,
but the exterior perimeter protection
will be activated after 45 seconds at
the same time as the interior volu-
metric protection.
Page 71 of 284
62
IV
A C C E S S
Triggering of the alarm
If the indicator lamp on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock. Failure of the remote control
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic activation *
This is indicated by sounding of the
s i r e n a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for approximately thirty
seconds.
After it has been triggered, both
types of protection are again opera-
tional.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
Unlock the vehicle using the key
in the driver's door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
Malfunction
When the ignition is switched on,
lighting of the indicator lamp on
button A for ten seconds indicates
a siren fault.
Have it checked by a CITROËN
dealer.
* According to country.
2 minutes after the last door or the
boot is closed, the alarm is activated
automatically.
To avoid triggering the alarm on
e n t e r i n g t h e v e h i c l e , fi r s t p r e s s
the unlocking button on the re-
mote control.
Locking the vehicle with exterior
perimeter protection only
Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press but-
ton A until the indicator lamp is lit
continuously.
Get out of the vehicle.
Lock or deadlock the vehicle
without delay using the locking
button on the remote control.
The exterior perimeter protection
alone remains activated; the indica-
tor lamp on button A fl a s h e s o n c e
per second.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the
unlocking button on the remote
control.
Relock the vehicle using the re-
mote control.
The alarm is activated again with
both types of protection; the indica-
tor lamp on button A fl a s h e s o n c e
per second.
Page 74 of 284
65
IV
A C C E S S

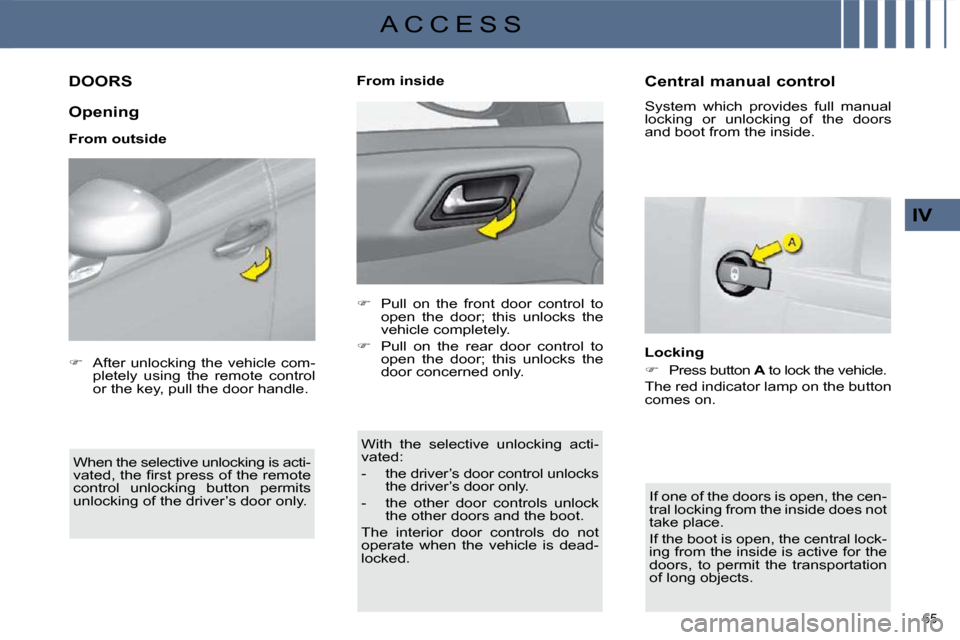

DOORS
Opening
From outside When the selective unlocking is acti-
v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver’s door only.
Pull on the front door control to
open the door; this unlocks the
vehicle completely.
Pull on the rear door control to
open the door; this unlocks the
door concerned only.
With the selective unlocking acti-
vated:
- the driver’s door control unlocks the driver’s door only.
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Central manual control
System which provides full manual
locking or unlocking of the doors
and boot from the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
If the boot is open, the central lock-
ing from the inside is active for the
doors, to permit the transportation
of long objects.
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside
Page 75 of 284
66
IV
A C C E S S
Unlocking
Press button A again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
d i c a t o r l a m p fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
Central automatic control Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock
automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic central
locking of the doors is active.
Unlocking
Above 6 mph (10 km/h), press
button A to unlock the doors and
boot temporarily.
Activation
Press button A for more than two
seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction screen.
Deactivation
Press button A again for more
than two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction screen.
Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking. Locking the driver's door
Insert the key in the lock, then
turn it to the right.
Locking the front and rear
passenger doors
Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this
function. Unlocking the driver's door
Insert the key in the lock, then
turn it to the left.
Unlocking the front and rear
passenger doors
Pull the interior door opening
control.
Page 76 of 284
67
IV
A C C E S S

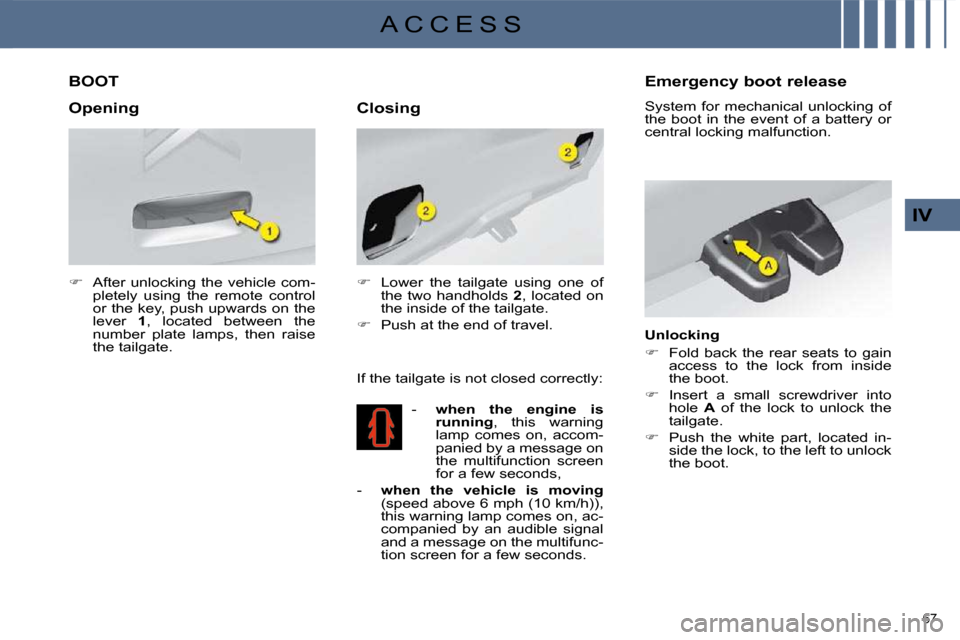

BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, push upwards on the
lever 1 , located between the
number plate lamps, then raise
the tailgate.
Lower the tailgate using one of
the two handholds 2 , located on
the inside of the tailgate.
Push at the end of travel.
- when the engine is
running , this warning
lamp comes on, accom-
panied by a message on
the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
Opening Closing
Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Push the white part, located in-
side the lock, to the left to unlock
the boot.
Page 81 of 284
72
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle’s dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
c o n t r o l p a n e l , . . . ) i s i n d e p e n d e n t o f
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle’s igni-
tion has been switched off makes
the driver’s exit easier when the light
is poor.

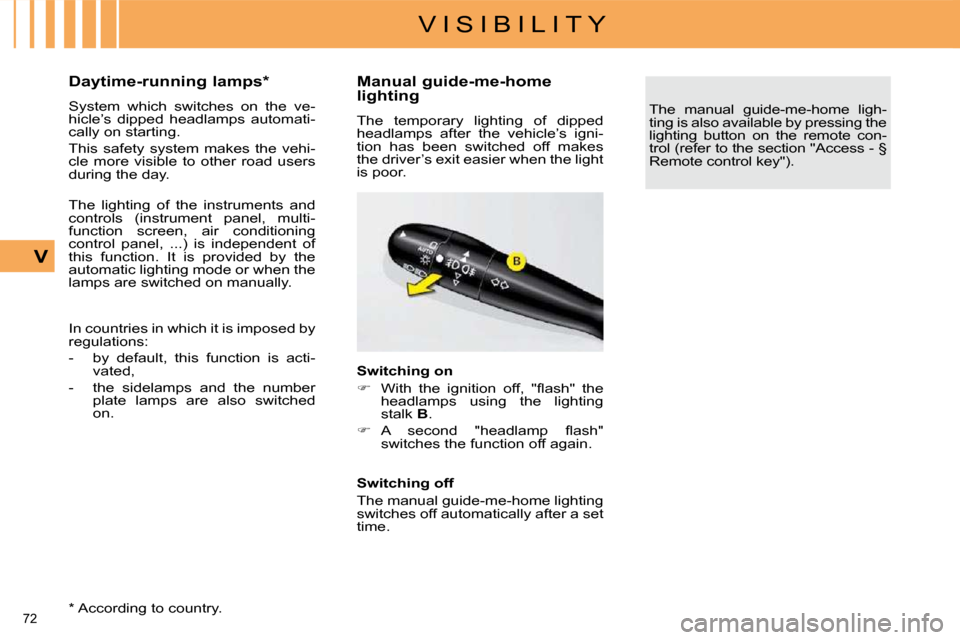

Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home ligh-
ting is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the sidelamps and the number plate lamps are also switched
on.
Page 83 of 284
72
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle’s dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
c o n t r o l p a n e l , . . . ) i s i n d e p e n d e n t o f
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle’s igni-
tion has been switched off makes
the driver’s exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home ligh-
ting is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the sidelamps and the number plate lamps are also switched
on.
Page 88 of 284
77
V I S I B I L I T Y
V
Special position of
the windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear. COURTESY LAMPS

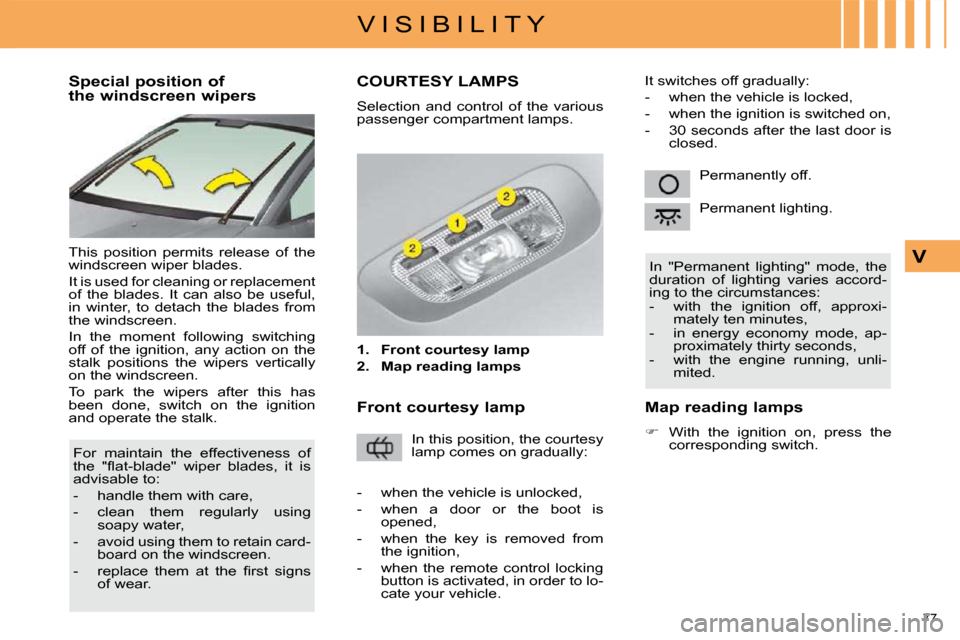

Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In "Permanent lighting" mode, the
duration of lighting varies accord-
ing to the circumstances:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 89 of 284
77
V I S I B I L I T Y
V
Special position of
the windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In "Permanent lighting" mode, the
duration of lighting varies accord-
ing to the circumstances:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 178 of 284
153
XI
P R A C T I C A L I N F O R M A T I O N
BATTERY
P r o c e d u r e f o r c h a r g i n g y o u r b a t t e r y
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n -
g i n e u s i n g a n o t h e r b a t t e r y .
Access to the battery
T h e b a t t e r y i s l o c a t e d u n d e r t h e
b o n n e t .
To gain access to it:
open the bonnet using the interi-
or release lever, then the exterior
s a f e t y c a t c h ,
s e c u r e t h e b o n n e t s t a y ,
remove the plastic cover to gain
access to the two terminals,
unclip the fusebox to remove the
b a t t e r y , i f n e c e s s a r y . Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e
v e h i c l e .
Follow the instructions for use
p r o v i d e d b y t h e m a n u f a c t u r e r o f
t h e c h a r g e r .
Reconnect starting with the neg-
a t i v e t e r m i n a l ( - ) .
Check that the terminals and
c o n n e c t o r s a r e c l e a n . I f t h e y a r e
c o v e r e d w i t h s u l p h a t e ( w h i t i s h o r
greenish deposit), remove them
a n d c l e a n t h e m .
Starting using another
battery
The batteries contain harm-
ful substances such as sul-
p h u r i c a c i d a n d l e a d . T h e y
must be disposed of in accordance
with regulations and must not, in
a n y c i r c u m s t a n c e s , b e d i s c a r d e d
w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
It is advisable to disconnect the
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t
u n u s e d f o r m o r e t h a n o n e m o n t h .

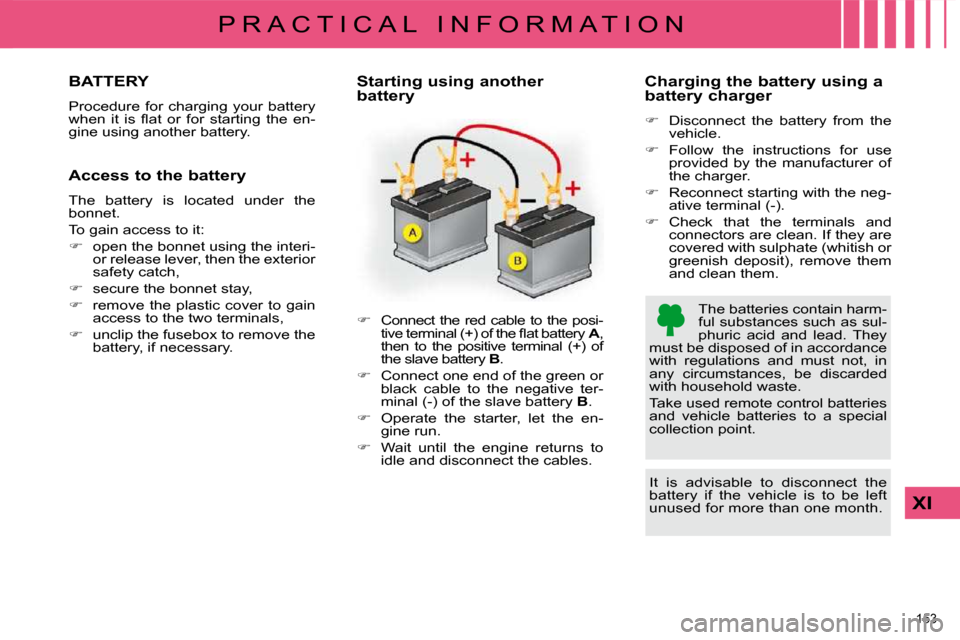

Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
t h e s l a v e b a t t e r y B .
Connect one end of the green or
black cable to the negative ter-
m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Operate the starter, let the en-
g i n e r u n .
Wait until the engine returns to
i d l e a n d d i s c o n n e c t t h e c a b l e s .
