Page 139 of 284
115
IX
D R I V I N G
Manual operation
SPORT and SNOW
programmes
These two special programmes sup-
plement the automatic operation in
v e r y s p e c i fi c c o n d i t i o n s o f u s e .
Selector position for manual gear
changing.
T h e fl a s h i n g o f t h e w a r n i n g l a m p f o r
the position requested signals that
this position is not yet obtained.
I f t h e w a r n i n g l a m p i s o n fi x e d , t h e
p o s i t i o n i s c o n fi r m e d .
Lighting of a dash in the rev coun-
ter indicates an operating fault. In
this case:
- a marked snatching may be felt
when selecting R for reverse
gear,
- the gearbox is locked in a gear,
- do not exceed 60 mph (approx. 100 km/h).
Consult a CITROËN dealer.
- A request to change gear is ac-
cepted only if the engine speed
permits it.
- For safety reasons, depending on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
matic mode) to position M (driving
in sequential mode) or vice versa.
- The SPORT and SNOW modes
do not operate in sequential
mode.
SPORT programme "S"
With the lever in position D and the
engine running, press button " S ".
The gearbox automatically favours a
dynamic style of driving.
" S " appears on the instrument panel.
Move the selector to position M .
Push the lever towards the " + "
sign to change up a gear.
Pull the lever towards the " - " sign
to change down a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically,
t o fi r s t g e a r i f n e c e s s a r y .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes. SNOW programme "
"
With the lever in position D and the
engine running, press button " ".
The gearbox adapts to driving on
slippery roads.
This programme facilitates starting
and traction in conditions of poor grip.
" " appears on the instrument panel.
Return to automatic operation
Press the button selected again
at any time to exit from the pro-
gramme engaged and return to
auto-adaptive mode.
Page 218 of 284
194
2 2
3 3
11
5 5
6 6
4 4
0 6
OK
STOP COPY
COMPLETE CD
COPY CD TO JUKEBOX
AUDIO FUNCTIONS
Select COPY CD TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE CD to copy the entire CD and press the dial to c o n fi r m .
To stop the copy, repeat points 2 and 3. Select STOP COPY and press the dial t o c o n fi r m .
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disk. Copying may take up to 20 minutes depending on the duration of the C D. During this copying phase, it is not possible to listen to the albums previously recorded on the hard disk or the CDs.
Select the letters one by one and select O K t o c o n fi r m .
If it is not an MP3 CD, the Jukebox automatically compresses the CD in MP3 format. The compression may take appr oximately 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disk.
A long press on the SOURCE button starts the copyi ng of the CD.
I t i s n o t p o s s i b l e t o c o p y fi l e s f r o m t h e J u k e b o x t o a C D . T h e S T O P T H E C D C O P Y a c t i o n d o e s n o t d e l e t e t h e fi l e s w h i c h have already been transferred onto the jukebox hard disk.
Select AUDIO FUNCTIONS then select C D a n d p r e s s t h e d i a l t o c o n fi r m .
Insert an audio CD or an MP3 compilation and press the MENU button.
JUKEBOX
COPYING A CD ONTO THE HARD DISK
AUDIO/VIDEO
Page 229 of 284
205
0 8
2 2
11
Press the voice recognition control to start the voice recognition. Say the words one by one and wait f o r t h e a u d i b l e c o n fi r m a t i o n s i g n a l between each word. The list which follows is exhaustive.
To display the list of available voice commands, press the voice recognition control to start the voice recognition, then say HELP or the voice recognition command.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.

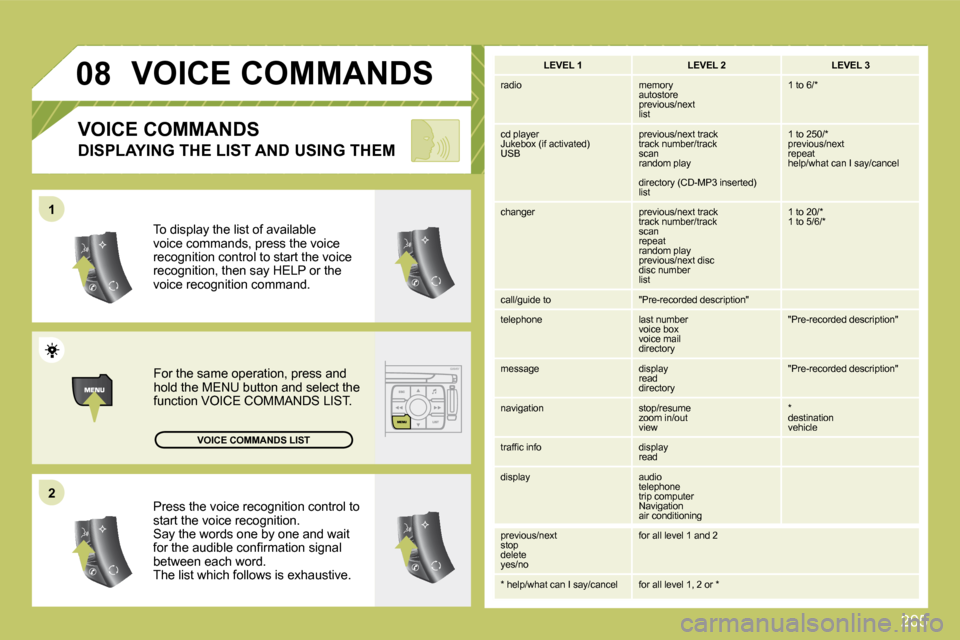

VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 L E V E L 2 L E V E L 3
radio memory autostore previous/next list
1 to 6/*
cd player Jukebox (if activated) USB
previous/next track track number/track scan random play
directory (CD-MP3 inserted) list
1 to 250/* previous/next repeat help/what can I say/cancel
changer previous/next track track number/track scan repeat random play previous/next disc disc number list
1 to 20/* 1 to 5/6/*
call/guide to "Pre-recorded description"
telephone last number voice box voice mail directory
"Pre-recorded description"
message display read directory
"Pre-recorded description"
navigation stop/resume zoom in/out view
* destination vehicle
t r a f fi c i n f o display read
display audio telephone trip computer Navigation air conditioning
previous/next stop delete yes/no
for all level 1 and 2
* help/what can I say/cancel for all level 1, 2 or *
VOICE COMMANDS
Page 238 of 284
214

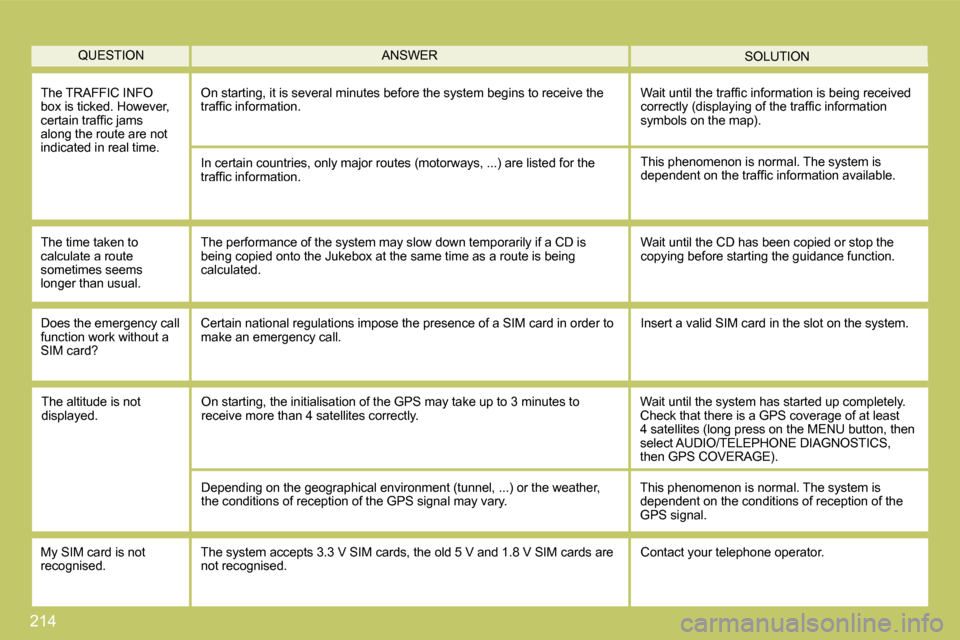

QUESTION SOLUTION ANSWER
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
Certain national regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on the system.
My SIM card is not recognised. The system accepts 3.3 V SIM cards, the old 5 V an d 1.8 V SIM cards are not recognised. Contact your telephone operator.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
